PDGEK5002STB-0-0-01

Description
Photodiode Detector, ST/PC Connector, Panel Mount, PACKAGE-3
CategoryWireless rf/communication    Optical fiber
File Size281KB,3 Pages
ManufacturerLaser Components USA Inc.
Environmental Compliance
Download Datasheet Parametric View All

PDGEK5002STB-0-0-01 Overview

Photodiode Detector, ST/PC Connector, Panel Mount, PACKAGE-3

PDGEK5002STB-0-0-01 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1340070104
package instructionPACKAGE-3
Reach Compliance Codeunknown
body height21.2 mm
Body length or diameter6 mm
Connection TypeST/PC CONNECTOR
Fiber optic equipment typesPHOTODIODE DETECTOR
Fiber type50/125, MMF
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
surface mountNO

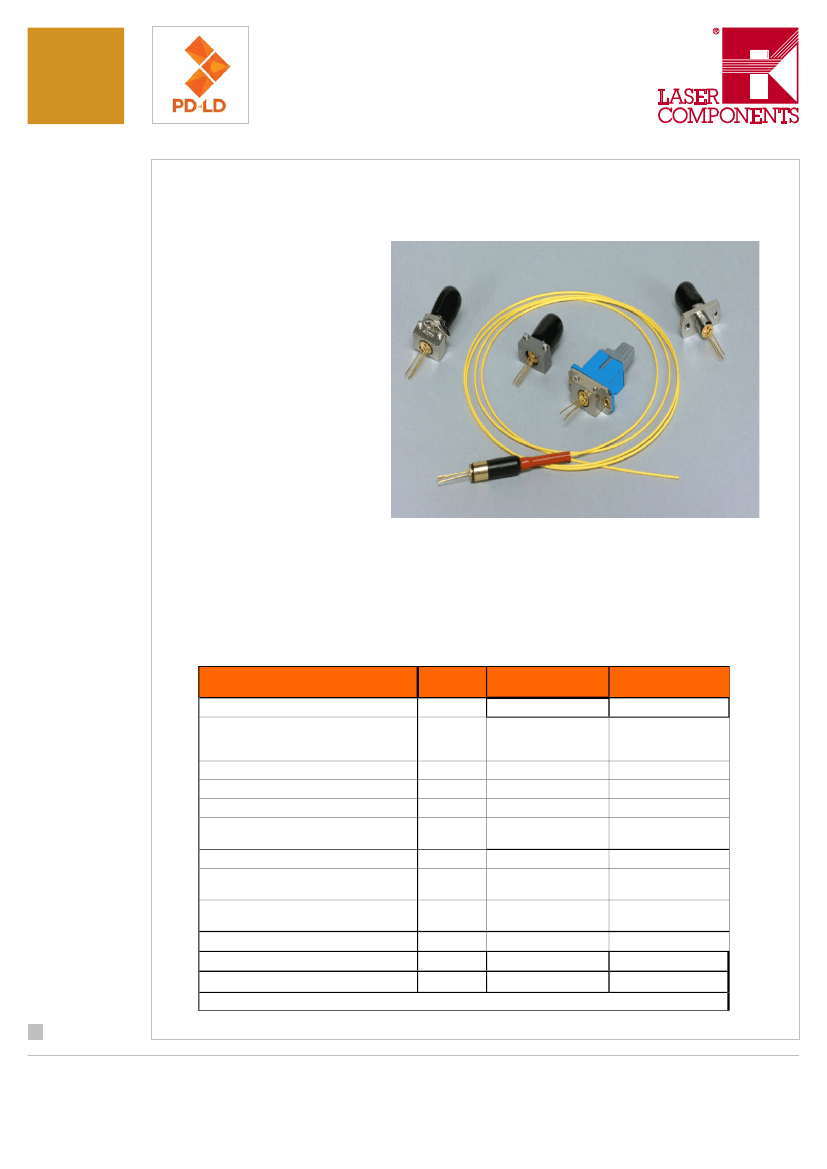

Detectors

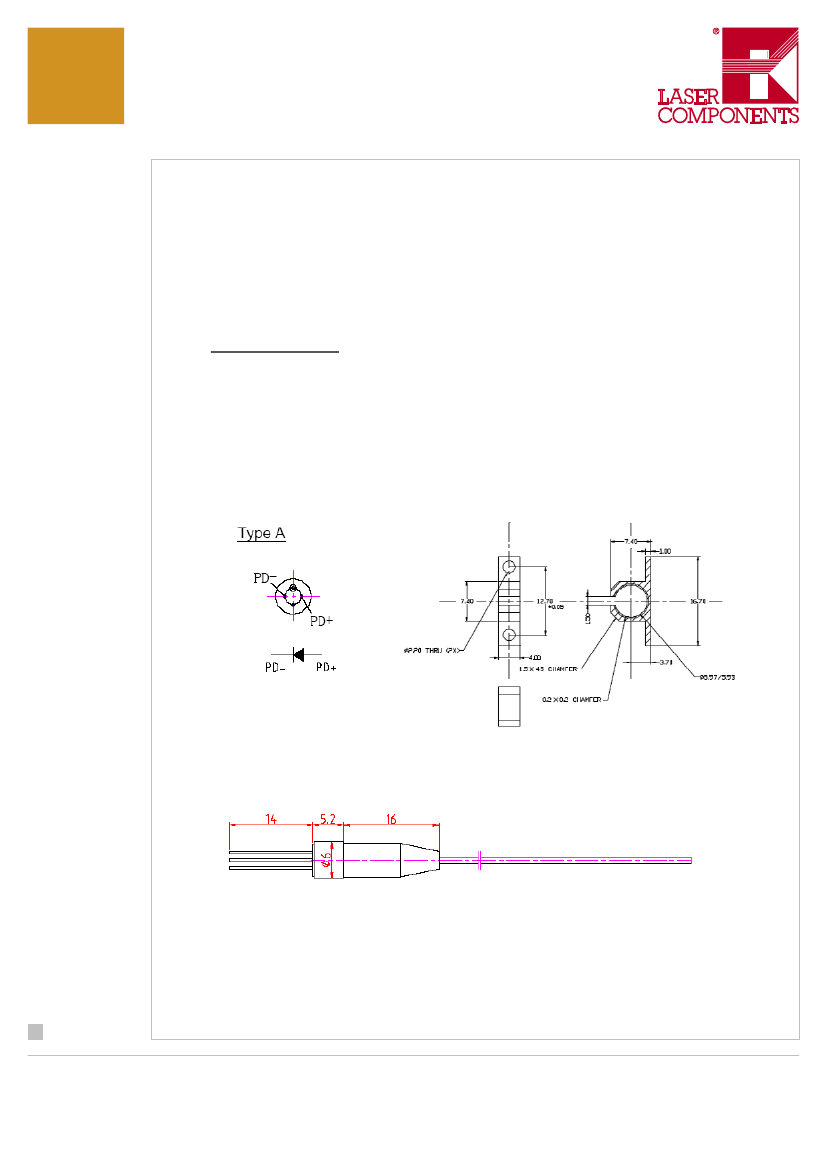

Analog InGaAs PIN Detectors
Analog InGaAs PIN Detectors
PD-LD Inc. offers low noise, high
responsivity analog InGaAsP photo
detectors in convenient fiber cou-
pled packages. These assemblies
incorporate 70 micron diameter
active area detector that responds
optimally to both 1310 and 1550
nm light sources. Each module
contains a semiconductor whose
bandwidth is ideally suited to indus-
try standard transmission rates
from DC to 2.5 GHz (typ). The low
intermodualtion distortion values
make them useful in multi-channel
CATV applications. When fiber pig-
tailed these components are avail-
able with low back reflection per-
formance. LBR is specified as –40
db maximum optical return loss.
InGaAs Photodiodes with low Intermodulation Distortion (IM2)
High Linearity & Responsivity
Low-Capacitance Receivers
-40 to 85ºC Operating Range
Features
CATV Trunk
Feeder
ONU Nodes
Forward Path AM CATV to 2.5 GHz
Return Path CATV Receivers
Applications
Performance Specifics: Examples (more options available)
Parameter
Operating Wavelength
Responsivity
-1300 nm
-1550 nm
Analog Bandwidth (-3 dB)
Second Order Intermod Distortion Product
1
Third Order Intermod Distortion Product
Dark Current
Reverse Voltage
Breakdown Voltage
Capacitance
Forward Current
Optical Back Reflection
Units
nm
A/W
GHz
dBc
dBc
nA
V
V
pF
mA
OBR
Symbol
Lambda
R
BW
e
IM2
IM3
Id
V
R
V
BD
C
I
F
dB
PDINBJ075 Series
(V
R
=5V, T=25 C)
1100 to 1600 nm
0.80 min
0.80 min
2.5 min
-70 max
-80 max
1 max @25 C
100 max @ 85C
50 max
55 typ @I
R
=10 uA
25 min
0.8 max
0.56 typ
50 max
-40
Polarization Dependent Loss
1
PDL
dB
+/- 0.1
IM2 measured at 5V reverse bias, 1 mW input optical power, 1310 nm, 50 ohm matched impedance ,f1+ f2 =850 MHz
