15SMV1000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 15SMV1000

15SMV1000: DescriptionDC-DC Unregulated Power Supply Module, 1 Output, 1.25W, Hybrid, PACKAGE-4; CategoryPower/power management The power supply circuit; File Size122KB，5 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

15SMV1000 Overview

DC-DC Unregulated Power Supply Module, 1 Output, 1.25W, Hybrid, PACKAGE-4

15SMV1000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	PACKAGE-4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	16.5 V
Minimum input voltage	13.5 V
Nominal input voltage	15 V
JESD-30 code	R-XDMA-G4
JESD-609 code	e0
Number of functions	1
Output times	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output current	0.00125 A
Maximum output voltage	1030 V
Minimum output voltage	970 V
Nominal output voltage	1000 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	GWDIP4/6,.6,175
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	YES
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1.25 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

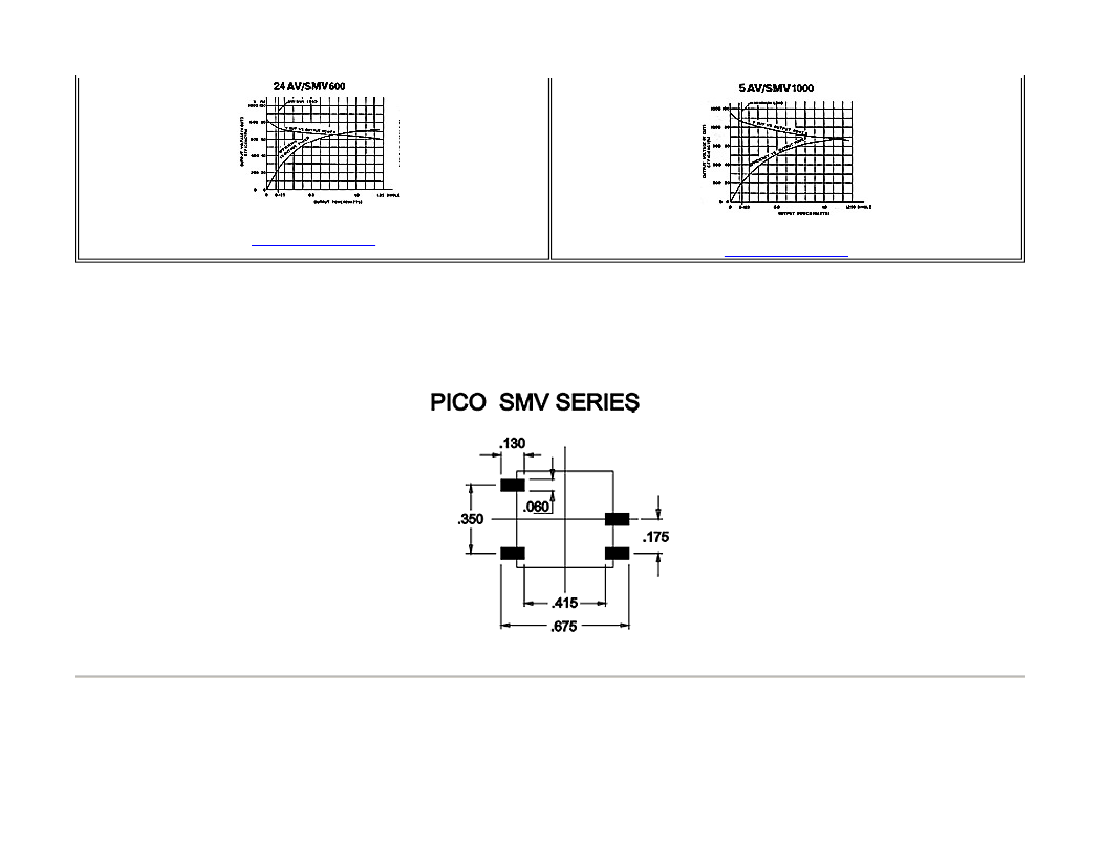

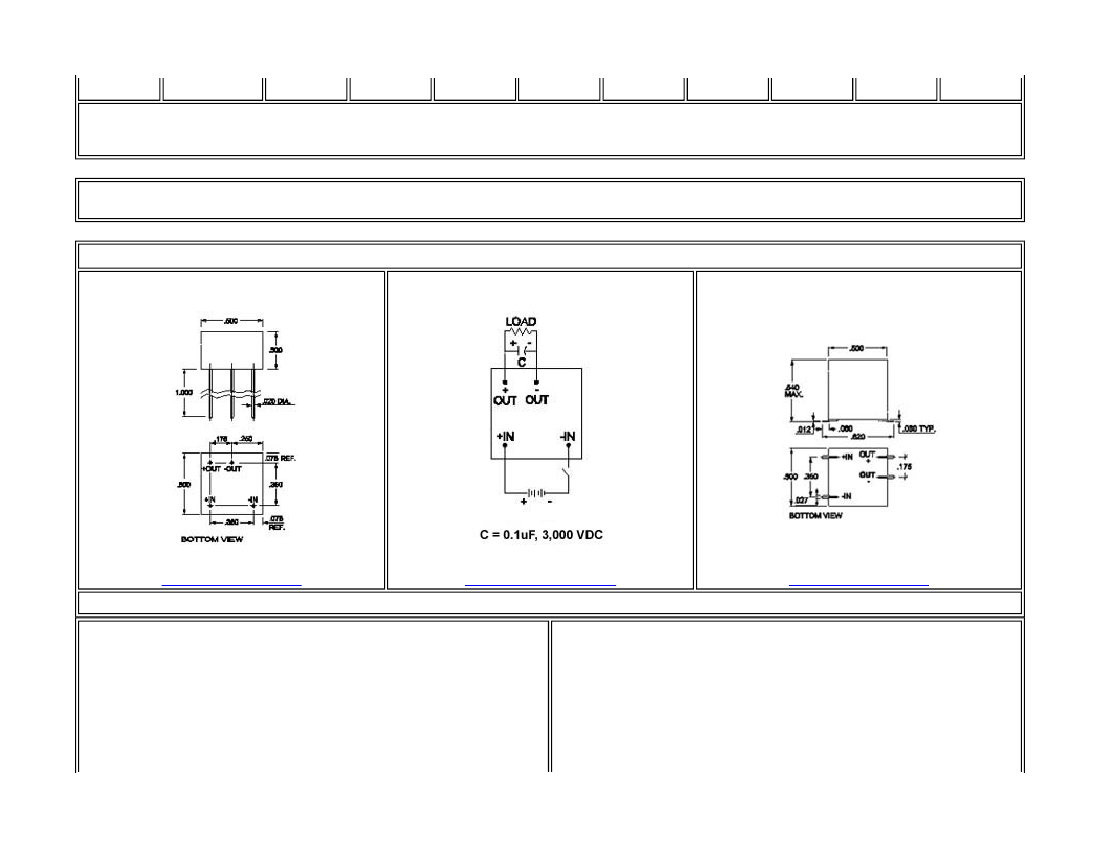

Pico Electronics: SERIES AV/SMV SURFACE MOUNT and PLUG-IN

Page 1 of 5

SERIES AV/SMV

SURFACE MOUNT and PLUG-IN

Hi Voltage 600 to 1000 VDC

Hi Reliability

Ultra-Miniature - Low Profile

Isolated DC-DC Converters

.540" ht. .500 ht. up to 1000 VDC output

This series of unregulated high voltage DC-DC converters are produced in an ultra-miniature encapsulated package. 40 different models are

available. These single output isolated units will operate over the temperature range of -25º C to +70º C with no heat sink or electrical

derating. For military applications an operating temperature range -55º C to +85 º C is available. An optional environmental screening

package per MIL-STD-883 is also available.

FEATURES

TYPICAL CHARACTERISTICS:

1.25 watt output at 70º ambient

Ultra-miniature size 0.500" height, 5.0 grams weight, 0.125 cubic inches

volume

4 input voltage ranges 5, 12, 24 and 28 VDC

100 megohm @ 1500 VDC input/output isolation

MIL-STD 883 options available

No heat sink or electrical derating required

OPTIONS AVAILABLE

Per Mil. Std. 883

Test conditions:

25º C ambient and input voltage at nominal value unless

otherwise specified.

LINE REGULATION:

OUTPUT IS DIRECTLY PROPORTIONAL TO

THE INPUT.

Input voltage range:

±10% all models

Output voltage tolerance at full load-nom. Input:

±3%

Please keep loaded to minimum of 10% at all times.

Note:

For tighter output voltage tolerances, please consult factory.

Converter frequency:

20 - 40 KHz

Output temperature coefficient:

0.02%/ºC for all models

Operating temperature:

-25º C to +70º C ambient. No heat sink is

http://www.picoelectronics.com/dcdclow/pe65.htm?PartNo=15SMV1000

12/18/2007
