B-020-42-05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> B-020-42-05

B-020-42-05: DescriptionB-020-42-05; CategoryWire/cable; File Size31KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

B-020-42-05 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B-020-42-05	-	-	View	Buy Now

B-020-42-05 Overview

B-020-42-05

B-020-42-05 Parametric

Parameter Name	Attribute value
Suitable	coaxial cable
Temperature identification	no
Connector type	welded casing
Temperature identification type	no
Preassembled lead types	55A0111
Cable shielding materials	silver, tin
Shield outer diameter (maximum value)	4.5 mm
Lead splitting	Stranded wire
Lead plating materials	tin
Lead color	white/black
Termination method	welding
Insulating sleeve outer diameter	5.7 mm [ .225 in ]
Conductor outer diameter	.3 – 2.8 mm [ .015 – .11 in ]
Dielectric outer diameter	4.2 mm [ .165 in ]
Dielectric outer diameter	4.2 mm [ .165 in ]
Preassembled lead size (mm²)	.38
total length	31 mm [ 1.22 in ]
Preassembled lead size (AWG)	22
Resistance properties	Splash protection
Operating temperature (max) (°C)	150
Meet government qualifications	no
MIL/NAS specifications (MIL-S-83519, NAS-1747)	no

Preview

Download Datasheet

View All

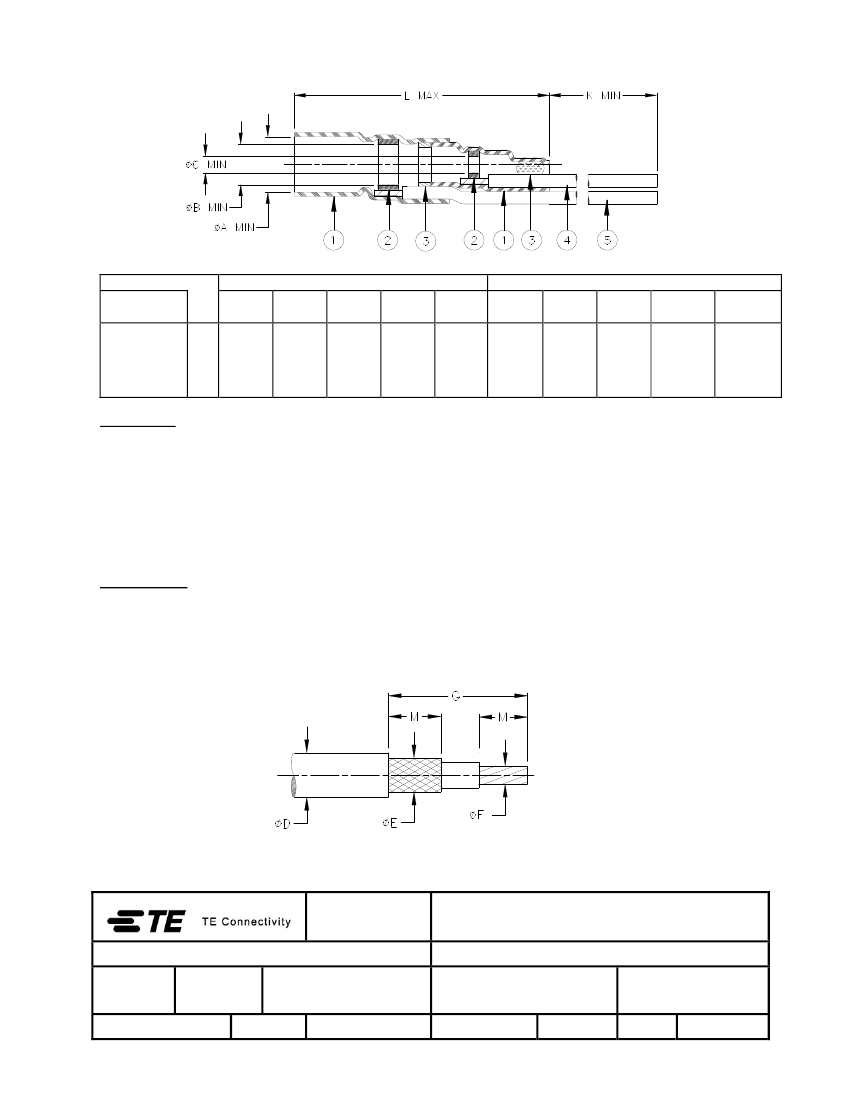

CUSTOMER DRAWING

Product Revision

Product

Name

B-020-42-05

øA

min

6.30

[.248]

Product Dimensions

øB

øC

min

max

4.60

[.181]

2.80

[.110]

31.00

[1.220]

min

180.00

[7.087]

øD

2.20

[.087]

5.70

[.224]

Cable Dimensions

øE

øF

G0.5

min

(G0.02)

2.10

17.0

0.30

[.083]

[.669]

[.012]

4.50

[.177]

M0.5

(M0.02)

6.0

[.236]

MATERIALS

1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.

2. SOLDER PREFORMS WITH FLUX:

SOLDER: TYPE Sn63 per ANSI-J-STD-006.

FLUX:

TYPE ROL1 per ANSI-J-STD-004.

3. MELTABLE RINGS: Thermally stabilized thermoplastic.

4. CONDUCTOR LEAD: Raychem 55A0111-22 in accordance with MIL-W-22759/32 AWG22 stranded tin plated copper.

Color: white.

5. GROUND LEAD: Raychem 55A0111-22 in accordance with MIL-W-22759/32 AWG22 stranded tin plated copper.

Color: black.

APPLICATION

1. This controlled soldering device is designed for termination of coaxial cables to connectors and printed circuit boards.

They will terminate the tin or silver plated center conductor and the single or double tin or silver plated copper braid of a

coaxial cable having an insulation rated for at least 125C.

2. Temperature range: -55C to +150C.

3. Install using Raychem-approved convection or infrared hating tools in accordance with Raychem Installation Procedure

RPIP-500-03.

NOTE:

For best results, prepare the cable as illustrated above.

TITLE :

Raychem

Devices

UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.

INCHES DIMENSIONS ARE BETWEEN [.xxx] BRACKETS.

Raychem reserves the right to amend

ANGLES: N/A

TOLERANCES:

this drawing at any time. Users should

0.00 N/A

evaluate the suitability of the product

ROUGHNESS IN

0.0 N/A

for their application.

MICRON

0 N/A

DRAWN BY:

CAGE CODE:

CAD NAME:

COAXIAL SOLDERSLEEVE DEVICE WITH

PRE-INSTALLED STRANDED WIRES

DOCUMENT NO.:

DATE:

B-020-42-05

REVISED PER:

12-Jun-15

PROD. REV.

REVISION:

SIZE:

ECO-15-008855

SHEET:

M. FORONDA

06090

B-020-42-05.doc

SEE TABLE

1 of 1

If this document is printed it becomes uncontrolled. Check for the latest revision.
