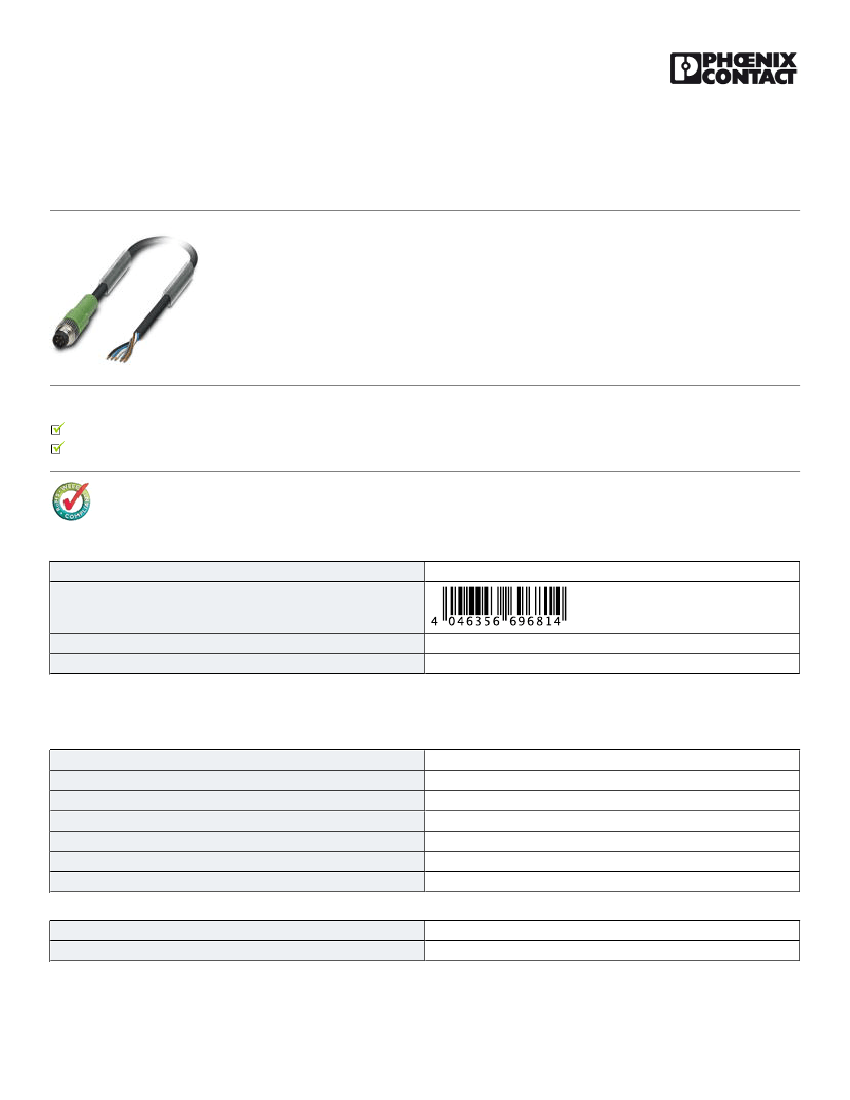

Sensor/Actuator cable - SAC-5P-M 8MSB/ 3,0-115 - 1404462
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 5-position, PUR, Black-gray RAL 7021, Plug straight M8, B-coded, on Free cable end,
Cable length: 3 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85444290
GERMANY
1 PCE
Technical data
General data
Rated current at 40°C
Rated voltage
Number of positions
Volume resistance
Insulation resistance
Length of cable
Ambient temperature (operation)
3A
30 V
5
≤ 5 mΩ
≥ 100 MΩ
3m
-25 °C ... 90 °C (Plug / socket)
General characteristics
Standards/regulations
Coding
M8 plug-in connector IEC 61076-2-104
B - inverse
10.05.2013 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1404462
Sensor/Actuator cable - SAC-5P-M 8MSB/ 3,0-115 - 1404462
Technical data
General characteristics
Surge voltage category
Pollution degree
Degree of protection
Degree of protection
Degree of protection
Insertion/withdrawal cycles
Torque
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
Status display
II
3
IP65
IP67
IP68
≥ 100
0.2 Nm (M8 plug-in connectors)
CuSn
Ni/Au
TPU GF
TPU, hardly inflammable, self-extinguishing
Zinc die-cast, nickel-plated
NBR
No
Conductor data
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
PUR halogen-free black
115
Li9Y11Y
20549
0.25 mm²
24
32x 0.10 mm
1.17 mm ±0.02 mm
approx. 0.21 mm (Core insulation)
approx. 0.7 mm (Outer cable sheath)
Brown, white, blue, black, gray
5 cores, twisted
75 mm
Black-gray RAL 7021
4.7 mm ±0.15 mm
23.5 mm
47 mm
4000000
47 mm
10 m
3 m/s
10 m/s²
10.05.2013 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1404462
Sensor/Actuator cable - SAC-5P-M 8MSB/ 3,0-115 - 1404462
Technical data
Conductor data
Cable weight
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, conductor
Test voltage, conductor
Flame resistance
Flame resistance
Halogen-free
Halogen-free
Resistance to oil
Other resistance
Other resistance
Other resistance
Other resistance
Ambient temperature (operation)
Ambient temperature (operation)
30 kg/km
PUR
PP
PP
Bare Cu litz wires
≥ 1 GΩ*km
≤ 75 Ω/km
≤ 300 V (AC)
≥ 3000 V (AC)
according to UL 758/1581 (horizontal)
In accordance with UL 758/1581 FT2
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
hydrolysis and microbe resistant
Resistant to salt water
Low adhesion
abrasion-resistant
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
31251501
31251501
31251501
31251501
31251501
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27060306
27060306
10.05.2013 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1404462
Sensor/Actuator cable - SAC-5P-M 8MSB/ 3,0-115 - 1404462
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27061801
27061801
27061801
27061801
Accessories
Accessories
Marking

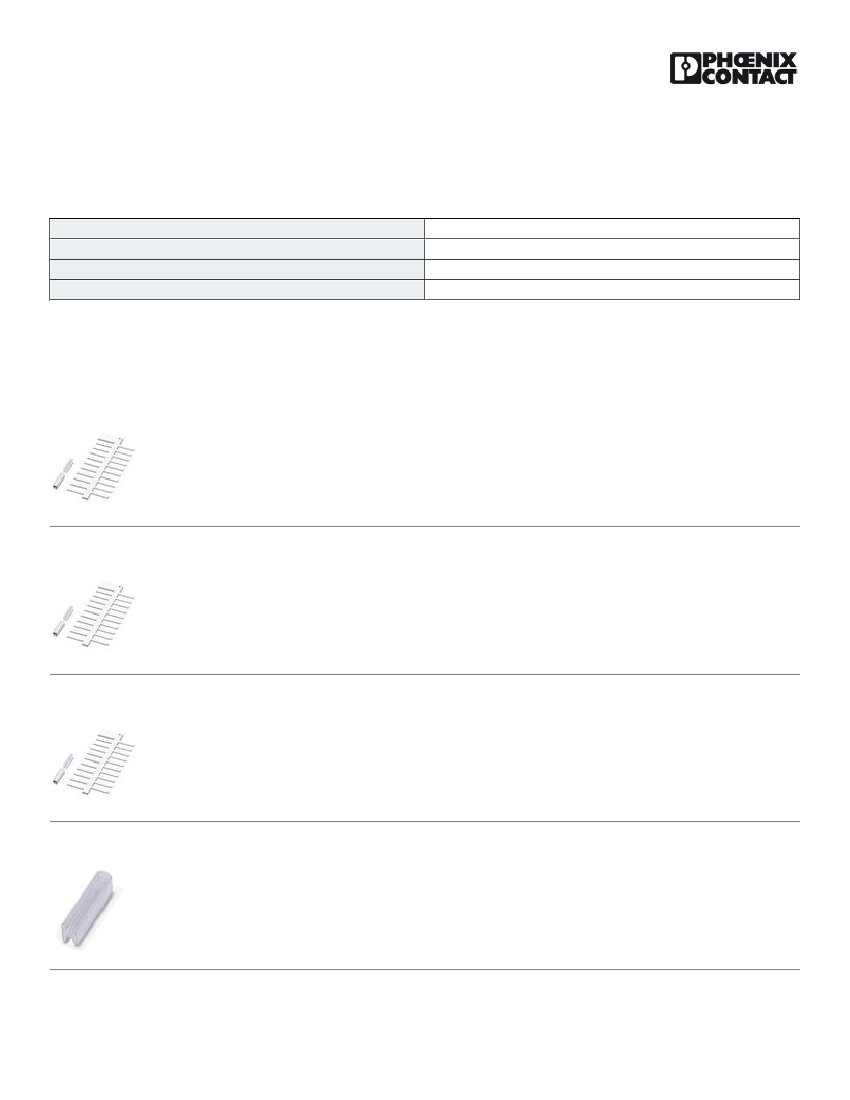

Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Conductor marker carrier - PATG 2/23 - 1013850
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 2-4 mm, Lettering field: 4 x
23 mm
10.05.2013 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1404462
Sensor/Actuator cable - SAC-5P-M 8MSB/ 3,0-115 - 1404462
Accessories

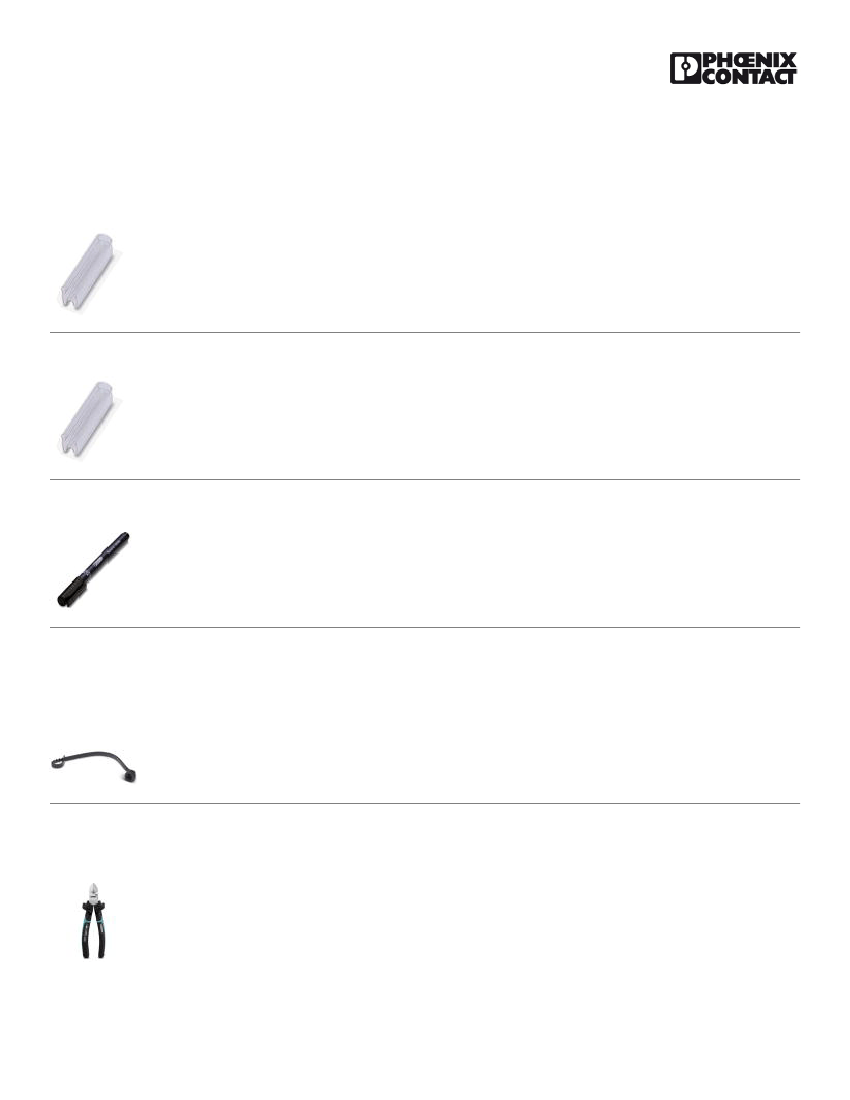

Conductor marker carrier - PATG 3/23 - 1013863
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 4-7 mm, Lettering field: 4 x
23 mm
Conductor marker carrier - PATG 4/23 - 0808011
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 6-10 mm, Lettering field: 4 x
23 mm
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Protection and sealing elements
Sealing cap - PROT-M 8 FS-PA-CHAIN - 1430857
M8 sealing cap made of plastic with fixing band for sensor cables, for M8 plugs
Tools
Cable-cutting tool - CUTFOX-S VDE - 1212207
Diagonal cutter for copper and aluminum conductors, VDE-tested
10.05.2013 Page 5 / 7
