382-10-159-00-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 382-10-159-00-001

Preview

382-10-159-00-001: DescriptionIC Socket, SIP59, 59 Contact(s); CategoryThe connector socket; File Size141KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

382-10-159-00-001 Overview

IC Socket, SIP59, 59 Contact(s)

382-10-159-00-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP59
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	382
Number of contacts	59
Base Number Matches	1

Preview

Download Datasheet

View All

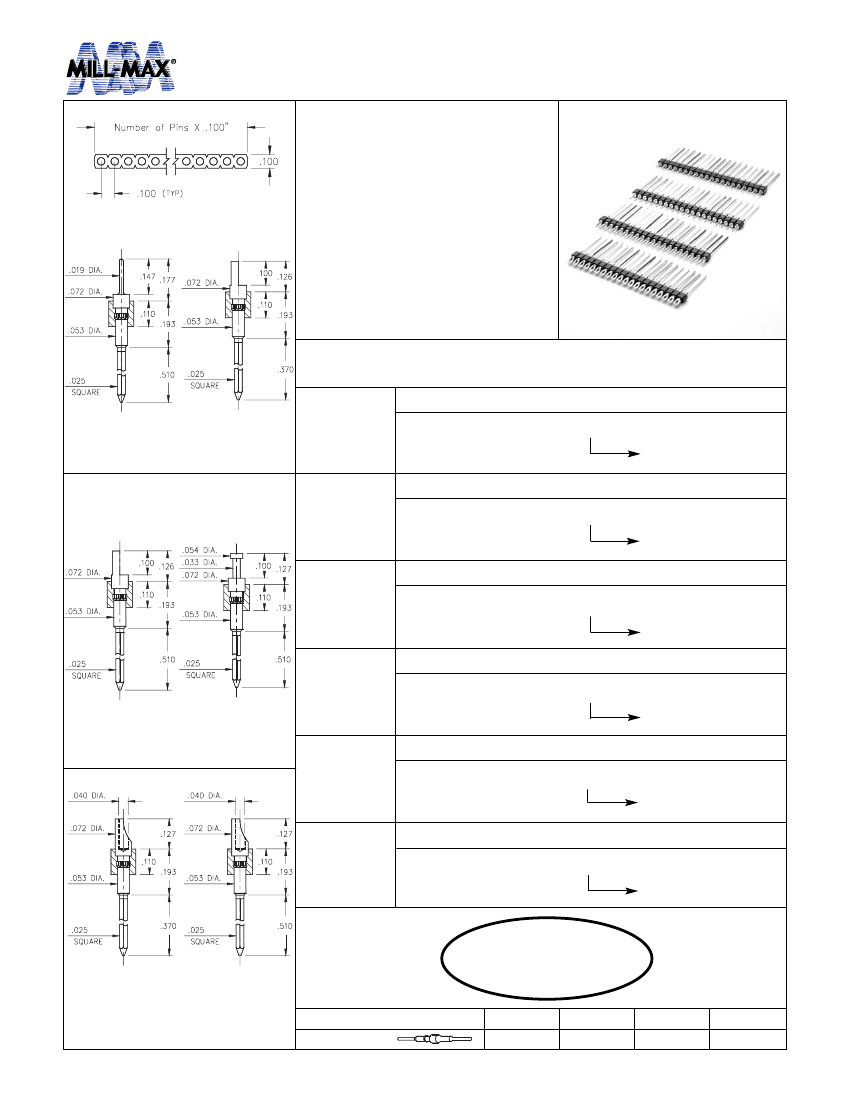

HEADER STRIPS

Wrapost

Single Row

Series 353, 362, 363

373, 382, 383

•

Series 353, 362, 363, 373, 382,

383 single row Header Strips

come with various contacts (pin,

slotted head, turret and solder

cup) with wrapost tails. (M-M#

5301, 1106-2, 1106-3, 0730-3 &

8301-2, 8301-3 see pages 184

& 185 for details).

Ordering Information

Fig. 1

Series 353...001

Pin / 3 Level Wrapost

353-XX-1_ _-00-001

Specify # of pins

01-64

Fig. 1

Fig. 2

Series 362...001 Slotted Head / 2 Level Wrapost

362-XX-1_ _-00-001

Specify # of pins

01-64

Fig. 3

Series 363...001 Slotted Head / 3 Level Wrapost

363-XX-1_ _-00-001

Specify # of pins

01-64

Fig. 4

Fig. 3

Fig. 4

Series 373..001

Turret / 3 Level Wrapost

373-XX-1_ _-00-001

Specify # of pins

01-64

Fig. 5

Series 382...001 Solder Cup / 2 Level Wrapost

382-XX-1_ _-00-001

Specify # of pins

01-64

Fig. 6

Series 383...001 Solder Cup / 3 Level Wrapost

383-XX-1_ _-00-001

Specify # of pins

01-64

XX= Plating Code

See Below

Fig. 5

Fig. 6

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ”Sn/Pb

Pin Plating

w w w. m i l l - m a x . c o m

63

516-922-6000
