ST63-2-55-20-90 datasheet, PDF

Datasheet> All Categories > The connector> ST63-2-55-20-90

ST63-2-55-20-90: DescriptionST63-2-55-20-90; CategoryThe connector; File Size47KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

ST63-2-55-20-90 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ST63-2-55-20-90	-	-	View	Buy Now

ST63-2-55-20-90 Overview

ST63-2-55-20-90

ST63-2-55-20-90 Parametric

Parameter Name	Attribute value
Temperature identification	none
Temperature identification type	none
Pre-installed leads	yes
Preassembled lead types	yes
Lead splitting	Stranded wire
Lead plating materials	tin
Termination method	welding
Insulating sleeve outer diameter	2.65 mm [ .105 in ]
Expand inner diameter (minimum value)	2.63 mm [ .105 in ]
Recovered inner diameter (maximum value)	1.4 mm [ .055 in ]
Preassembled lead size (mm²)	.61
total length	16.5 mm [ .65 in ]
Preassembled lead size (AWG)	20
Shield outer diameter (minimum value)	1.4 mm [ .055 in ]
Preassembled Lead Dimensions (CMA)	1216
Operating temperature (max) (°C)	150
Resistance properties	Immersion protection
Wire temperature (max) (°C)	150
MIL/NAS specifications (MIL-S-83519, NAS-1747)	RT-1404
Meet government qualifications	no

Preview

Download Datasheet

View All

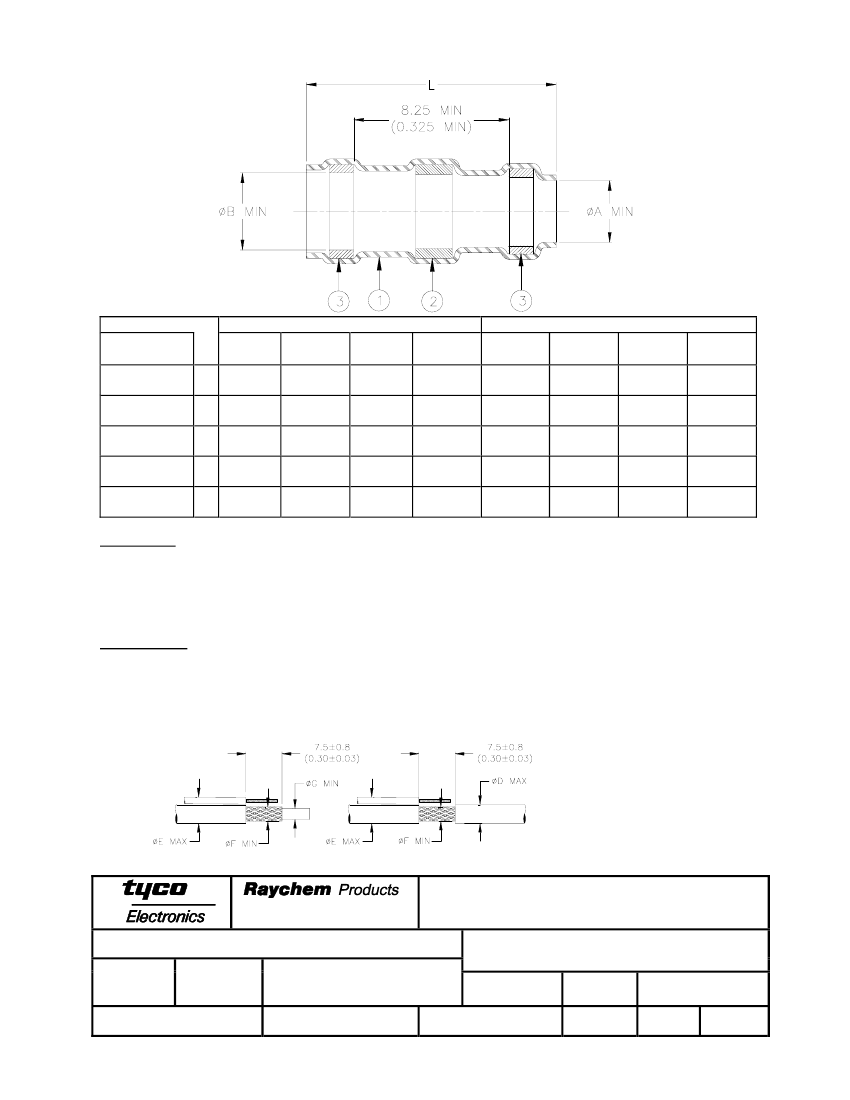

SPECIFICATION CONTROL DRAWING

Product Revision

Product

Name

ST63-1-00

ST63-2-00

ST63-3-00

ST63-4-00

ST63-5-00

Ident.

Code

ST631R

ST632R

ST633R

ST634R

ST635R

Product Dimensions

øA

L±1.75

min

(L±0.070)

16.50

1.90

(0.650)

(0.075)

16.50

2.65

(0.650)

(0.105)

16.50

4.30

(0.650)

(0.170)

19.10

5.95

(0.750)

(0.235)

19.10

7.00

(0.750)

(0.275)

øB

min

2.65

(0.105)

3.68

(0.145)

5.08

(0.200)

6.45

(0.255)

7.60

(0.300)

øD

max

1.90

(0.075)

2.65

(0.105)

4.30

(0.170)

5.95

(0.235)

7.00

(0.275)

Cable Dimensions

øE

øF

max

min

2.65

0.90

(0.105)

(0.035)

3.68

1.40

(0.145)

(0.055)

5.08

2.15

(0.200)

(0.085)

6.45

3.30

(0.255)

(0.130)

7.60

4.30

(0.300)

(0.170)

øG

min

0.50

(0.020)

0.72

(0.030)

1.25

(0.050)

1.80

(0.070)

2.50

(0.100)

MATERIALS

1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.

2. SOLDER PREFORM WITH FLUX:

SOLDER:

TYPE Sn63 per ANSI-J-STD-006.

FLUX:

TYPE ROL1 per ANSI-J-STD-004.

3. MELTABLE RINGS: Stabilized thermoplastic. Color: blue.

APPLICATION

1. These parts are designed to provide an environment resistant shield terminations on cables, rated for 125°C minimum, meeting

the dimensional criteria listed, having tin or silver plated shields and insulation.

2. When installed per Raychem process standard RCPS-100-70, assemblies will meet requirements of Raychem Specification

RT-1404.

3. Temperature range: -55°C to +150°C.

4. For best results, prepare the cable as shown:

TITLE:

305 Constitution Drive,

Menlo Park, CA. 94025, USA

SOLDERSLEEVE SHIELD

TERMINATOR

DOCUMENT NO.:

Unless otherwise specified dimensions are in millimeters.

Inches dimensions are shown in brackets.

TOLERANCES:

0.00 N/A

0.0 N/A

0 N/A

PREPARED BY:

ANGLES: N/A

ROUGHNESS IN

MICRON

ST63-X-00

DOC. ISSUE:

DATE:

Tyco Electronics reserves the right to amend

this drawing at any time. Users should

PROD. REV.:

evaluate the suitability of the product for their

SEE TABLE

application.

DCR NUMBER:

REPLACES:

SCALE:

SIZE:

6-Dec-02

SHEET:

mforonda

D020557

D981346

None

1 of 1

If this document is printed it becomes uncontrolled. Check for the latest revision.

ST63-2-55-20-90 Related Products

	ST63-2-55-20-90	ST63-5-55-22-5	ST63-3-55-20-90	ST63-3-55-26-90	ST63-2-55-22-90
Description	ST63-2-55-20-90	ST63-5-55-22-5	ST63-3-55-20-90	ST63-3-55-26-90	ST63-2-55-22-90
Temperature identification	none	none	none	none	none
Temperature identification type	none	none	none	none	none
Pre-installed leads	yes	yes	yes	yes	yes
Preassembled lead types	yes	yes	AS22759/32	AS22759/32	yes
Lead splitting	Stranded wire	Stranded wire	Stranded wire	Stranded wire	Stranded wire
Lead plating materials	tin	tin	tin	tin	tin
Termination method	welding	welding	welding	welding	welding
Insulating sleeve outer diameter	2.65 mm [ .105 in ]	7 mm [ .275 in ]	4.3 mm [ .17 in ]	4.3 mm [ .17 in ]	2.65 mm [ .105 in ]
Recovered inner diameter (maximum value)	1.4 mm [ .055 in ]	4.3 mm [ .17 in ]	2.15 mm [ .085 in ]	2.15 mm [ .085 in ]	1.4 mm [ .055 in ]
Preassembled lead size (mm²)	.61	.38	.61	.15	.38
total length	16.5 mm [ .65 in ]	19.1 mm [ .75 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]	16.5 mm [ .65 in ]
Preassembled lead size (AWG)	20	22	20	26	22
Shield outer diameter (minimum value)	1.4 mm [ .055 in ]	4.3 mm [ .17 in ]	2.15 mm [ .085 in ]	2.15 mm [ .085 in ]	1.4 mm [ .055 in ]
Preassembled Lead Dimensions (CMA)	1216	754	1216	304	754
Operating temperature (max) (°C)	150	150	150	150	150
Resistance properties	Immersion protection	Immersion protection	Immersion protection	Immersion protection	Immersion protection
Wire temperature (max) (°C)	150	150	150	150	150
MIL/NAS specifications (MIL-S-83519, NAS-1747)	RT-1404	RT-1404	RT-1404	RT-1404	RT-1404
Meet government qualifications	no	no	no	no	no
Expand inner diameter (minimum value)	2.63 mm [ .105 in ]	-	4.3 mm [ .17 in ]	4.3 mm [ .17 in ]	2.63 mm [ .105 in ]
Connector type	-	Shield terminator	Shield terminator	Shield terminator	-
Lead color	-	green	white/black	white/black	-
