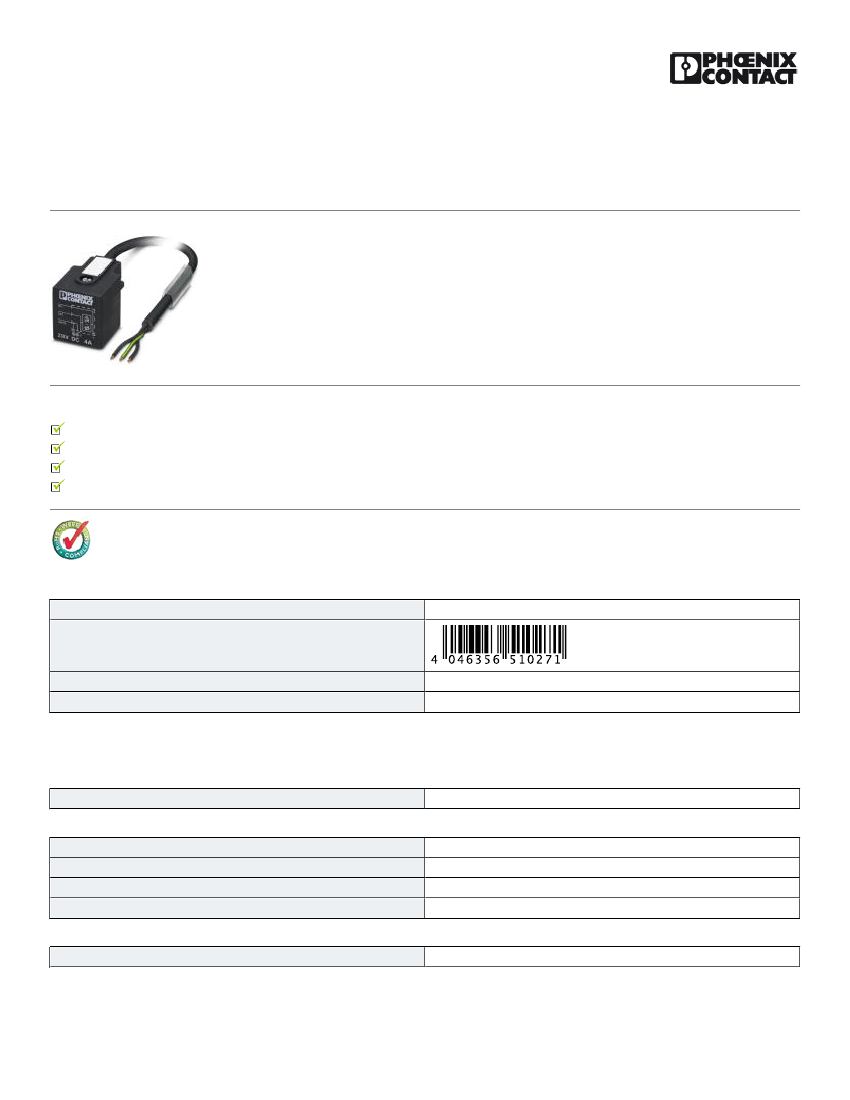

Sensor/Actuator cable - SAC-3P-5,0-PUR/A-1L-V 230V - 1400648
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Free cable end, on A valve plug, with
1 LED, connected with Varistor, Cable length: 5 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Robust valve connector with varistor as protective circuit
Convenient: increased machine availability thanks to quick and easy diagnostics
Our standard: robust halogen-free PUR cable
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85444290
POLAND
1 PCE
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 85 °C (valve plug)
IP65
IP67
IP68
General
Rated current at 40°C
4A
08.10.2013 Page 1 / 8
https://www.phoenixcontact.com/us/products/1400648
Sensor/Actuator cable - SAC-3P-5,0-PUR/A-1L-V 230V - 1400648
Technical data
General
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Standards/regulations
Status display
Protective circuit/component
Surge voltage category
Pollution degree
Torque
230 V
3
≤ 5 mΩ
≥ 100 MΩ
Valve connector EN 175301-803
1 LED
230 V varistor
III
3
0.6 Nm (Valve plug-in connector)
Material
Inflammability class according to UL 94
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Sealing material
V0
CuSn
Sn
PA 66
TPU
TPU (Seal molded)
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
3x 0.5 mm²
20
28x 0.15 mm
1.5 mm ±0.05 mm (signal line)
Black 1, black 2, green/yellow
3 wires, twisted
Black-gray RAL 7021
4.5 mm ± 0.2 mm
22.5 mm
15000000
50 mm
0.9 m
5 m/s
30 m/s²
08.10.2013 Page 2 / 8
https://www.phoenixcontact.com/us/products/1400648
Sensor/Actuator cable - SAC-3P-5,0-PUR/A-1L-V 230V - 1400648
Technical data
Cable
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Halogen-free
Other resistance
Ambient temperature (operation)
PUR
PP
Bare Cu litz wires
min. 20 MΩ*km
39 Ω/km (at 20 °C)
≤ 300 V
≥ 1200 V
According to DIN VDE 0482
According to DIN EN 50265-2-1
in accordance with DIN VDE 0472 part 815
Largely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
08.10.2013 Page 3 / 8
https://www.phoenixcontact.com/us/products/1400648
Sensor/Actuator cable - SAC-3P-5,0-PUR/A-1L-V 230V - 1400648

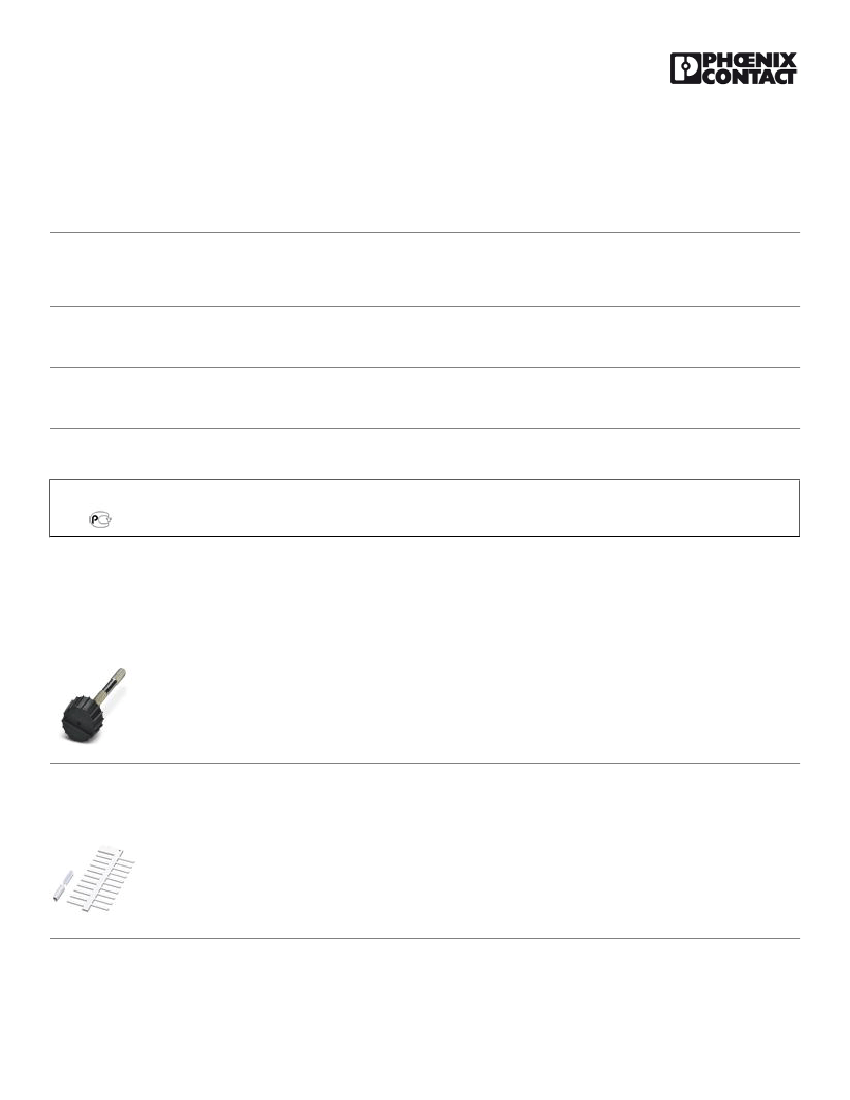

Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories
Assembly
Screw - SAC-V-SCREW-M3-29 KNURL - 1403779
Fillister head screw with plastic knurl, M3 x 40
Marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
08.10.2013 Page 4 / 8
https://www.phoenixcontact.com/us/products/1400648
Sensor/Actuator cable - SAC-3P-5,0-PUR/A-1L-V 230V - 1400648
Accessories
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Conductor marker carrier - PATG 2/15 - 1013038
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 2-4 mm, Lettering field: 4 x
15 mm
Conductor marker carrier - PATG 3/15 - 1013041
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 4-7 mm, Lettering field: 4 x
15 mm
Conductor marker carrier - PATG 4/15 - 1013054
Conductor marker carrier, transparent, Unlabeled, Mounting type: Slide on, Cable diameter: 6-10 mm, Lettering field: 4 x
15 mm
08.10.2013 Page 5 / 8
