278077088001863+: DescriptionBoard Connector, 88 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size296KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

278077088001863+ Overview

Board Connector, 88 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT

278077088001863+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (118) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	8077
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	8
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	88
Base Number Matches	1

Preview

Download Datasheet

View All

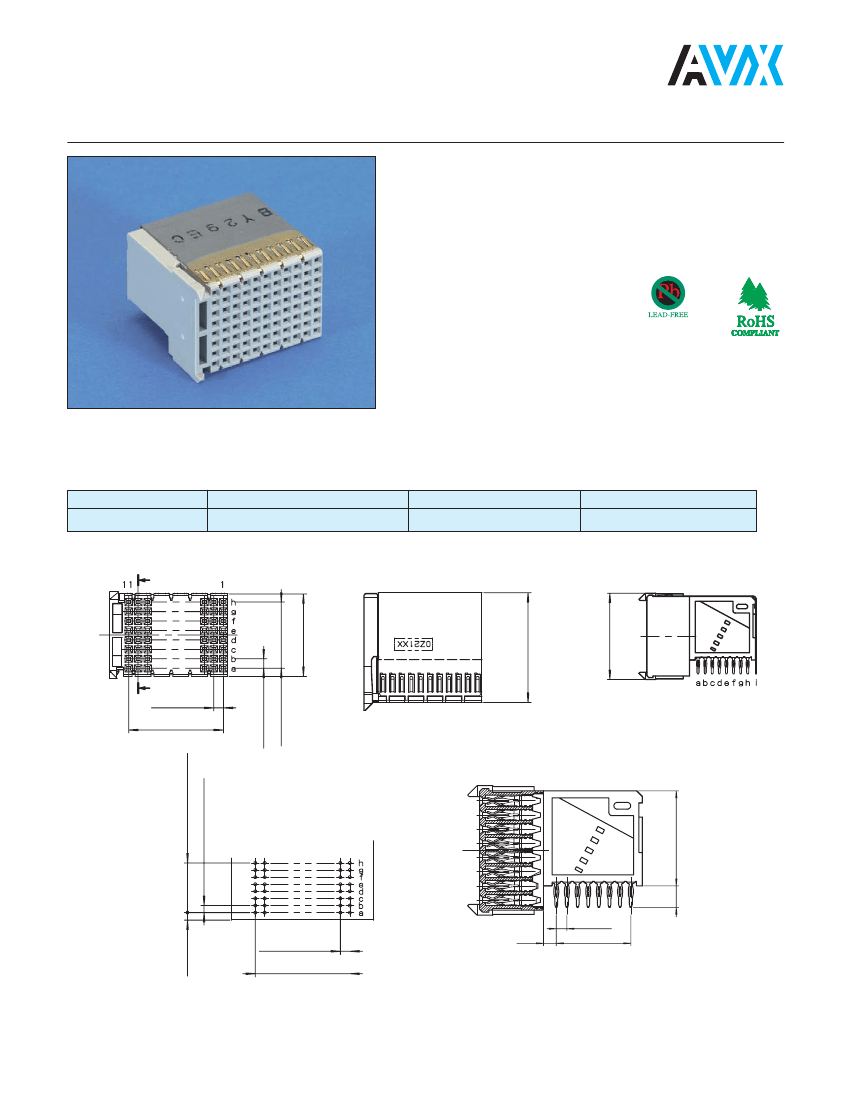

Type F Right Angle Female

for Daughter Cards

Series 8077

88 contacts in a 8 x 11 position configuration

Designed for gas tight press-fit installation

Available with or without upper ground return shield

This connector can be used by itself or in conjunction with a Type

D connector

• Should be used in end positions only

•

LEAD-FREE COMPATIBLE

COMPONENT

27 8077 088 001 863+

27 8077 088 011 863+

Plating Code

863

= Type F Right Angle Female without top shield

= Type F Right Angle Female with top shield

Contact Area

0.76µm min. Au

Press-fit Area

1.5-3.0µm Sn

Under Coat

1.2-3.0µm Ni

X

2.0 TYP.

2 x 10 = 20.0

1.5 x 7 = 10.5

±0.1

1.5

±0.1

TYP.

2.0 TYP.

2 x 7 = 14.0

23.15

18.25

17.4

1.5 MAX.

1.5 TYP.

2.0

±0.1

TYP.

2 x 10 = 20.0

±0.1

1.8

1.5 x 7 = 10.5

RECOMMENDED P.C. BOARD LAYOUT

(COMPONENT SIDE)

24

3.0

13.4

278077088001863+ Related Products

	278077088001863+	278077088011863+
Description	Board Connector, 88 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT	Board Connector, 88 Contact(s), 8 Row(s), Female, Right Angle, Press Fit Terminal, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN (118) OVER NICKEL	TIN (118) OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e3	e3
MIL compliance	NO	NO
Manufacturer's serial number	8077	8077
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	8	8
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	88	88
Base Number Matches	1	1
