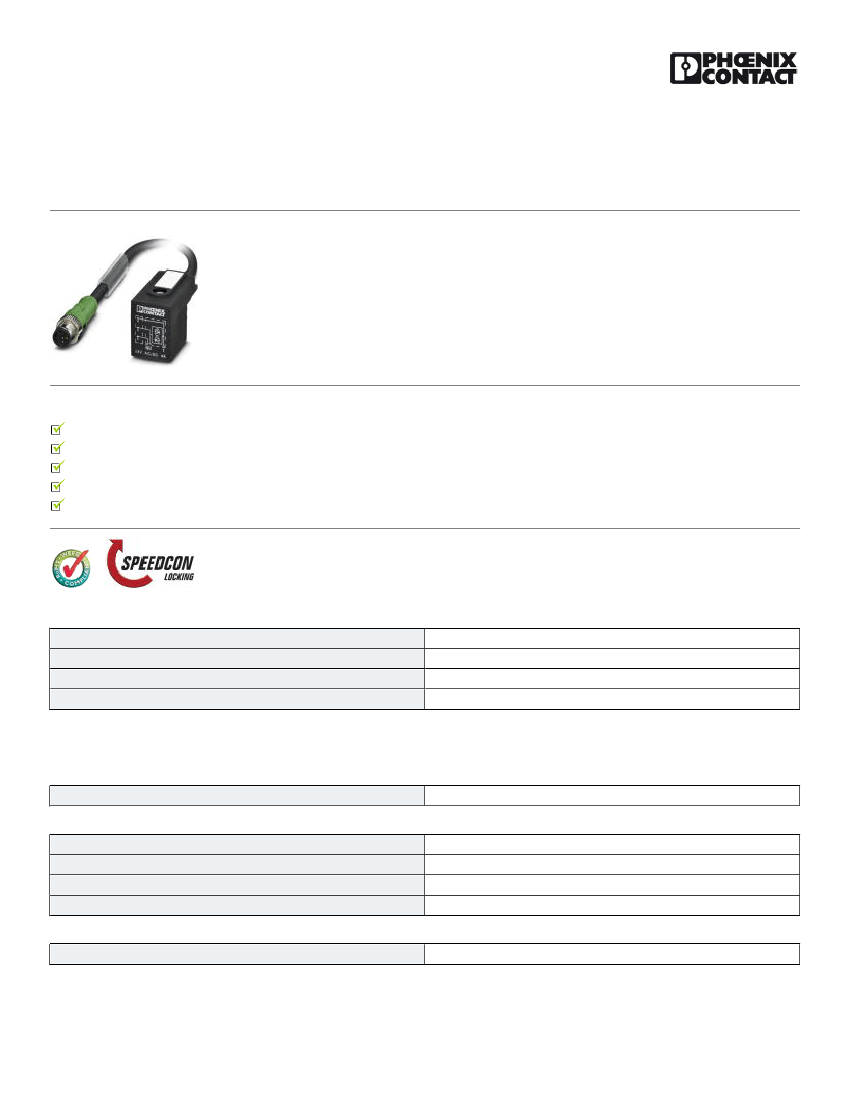

Sensor/Actuator cable - SAC-3P-MS/ 1,5-PUR/BI-1L-Z SCO - 1435153
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Sensor/Actuator cable, 3-position, PUR halogen-free, Black-gray RAL 7021, Plug straight M12 SPEEDCON, A-
coded, on Valve connector BI (11 mm), with 1 LED, connected with Z diode, Cable length: 1.5 m
Product Features
Easy and safe: 100% electrically tested plug-in components
Robust valve connector with Zener diode as protective circuit
Save time, thanks to installation with SPEEDCON rapid interlock system
Convenient: increased machine availability thanks to quick and easy diagnostics
Our standard: robust halogen-free PUR cable
Packing unit
11
80.0 GRM
85444290
Poland
Key commercial data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 90 °C (Plug / socket)
-20 °C ... 85 °C (valve plug)
IP65
IP67
General
Rated current at 40°C
4A
01.11.2013 Page 1 / 8
https://www.phoenixcontact.com/us/products/1435153
Sensor/Actuator cable - SAC-3P-MS/ 1,5-PUR/BI-1L-Z SCO - 1435153
Technical data
General
Rated voltage
Number of positions
Contact resistance
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Surge voltage category
Pollution degree
Insertion/withdrawal cycles
Torque
24 V
3
≤ 5 mΩ
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
1 LED
Z diode
III
3
≥ 100 (M12 connector)
0.4 Nm (M12 connector)
0.6 Nm (Valve connector)
Material
Inflammability class according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Valve plug contact material
Valve plug contact surface material
Valve plug contact insert material
Material housing valve plug
Material, knurls
Sealing material
HB
CuSn
Ni/Au
TPU GF
TPU
CuSn
Sn
PA 66
TPU
Zinc die-cast, nickel-plated
TPU (Seal molded)
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
PUR halogen-free black
PUR
Li9Y11Y-HF
20549
3x 0.5 mm²
20
28x 0.15 mm
1.5 mm ±0.05 mm (signal line)
Black 1, black 2, green/yellow
3 wires, twisted
01.11.2013 Page 2 / 8
https://www.phoenixcontact.com/us/products/1435153
Sensor/Actuator cable - SAC-3P-MS/ 1,5-PUR/BI-1L-Z SCO - 1435153
Technical data
Cable
External sheath, color
External cable diameter D
Smallest bending radius, fixed installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Flame resistance
Halogen-free
Other resistance
Ambient temperature (operation)
Black-gray RAL 7021
4.5 mm ± 0.2 mm
22.5 mm
15000000
50 mm
0.9 m
5 m/s
30 m/s²
PUR
PP
Bare Cu litz wires
min. 20 MΩ*km
39 Ω/km (at 20 °C)
≤ 300 V
≥ 1200 V
According to DIN VDE 0482
According to DIN EN 50265-2-1
in accordance with DIN VDE 0472 part 815
Largely oil-resistant
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
-40 °C ... 80 °C (cable, fixed installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC001855
EC001855
01.11.2013 Page 3 / 8
https://www.phoenixcontact.com/us/products/1435153
Sensor/Actuator cable - SAC-3P-MS/ 1,5-PUR/BI-1L-Z SCO - 1435153
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories
Conductor marking
Insert label - PABA WH/15 - 1013151
Insert label, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
01.11.2013 Page 4 / 8
https://www.phoenixcontact.com/us/products/1435153
Sensor/Actuator cable - SAC-3P-MS/ 1,5-PUR/BI-1L-Z SCO - 1435153
Accessories
Insert label - PABA YE/15 - 1013698
Insert label, Strip, yellow, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Insert label - PABA RD/15 - 1013944
Insert label, Strip, red, Unlabeled, Can be labeled with: Plotter, Mounting type: Thread on, Cable diameter: 0.6-50 mm,
Lettering field: 15 x 4 mm
Marker carrier cable
Conductor marker carrier - PATO 2/15 - 1013122
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 2.8-4.4 mm, Lettering field: 4
x 15 mm
Conductor marker carrier - PATO 3/15 - 1013135
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 4.4-6.7 mm, Lettering field: 4
x 15 mm
Conductor marker carrier - PATO 4/15 - 1013148
Conductor marker carrier, transparent, Unlabeled, Mounting type: Clip on, Cable diameter: 6.7-10 mm, Lettering field: 4 x
15 mm
01.11.2013 Page 5 / 8
