2154828-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2154828-2

Preview

2154828-2: Description(2154828-2) Cable Assembly EPII 3 Pos; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2154828-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2154828-2	-	-	View	Buy Now

2154828-2 Overview

(2154828-2) Cable Assembly EPII 3 Pos

2154828-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1762235378
Reach Compliance Code	compliant
Samacsys Description	Cable Assembly EPII 3 Pos
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-04 08:05:28
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact material	NOT SPECIFIED
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Power Connector Ratings	115/230VAC
Mixed contacts	NO
Number of ports	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
Panel mounting	NO
polarization key	POLARIZED
Guideline	UL
UL Flammability Code	94V-0
Maximum wire diameter	18 AWG

Preview

Download Datasheet

View All

8

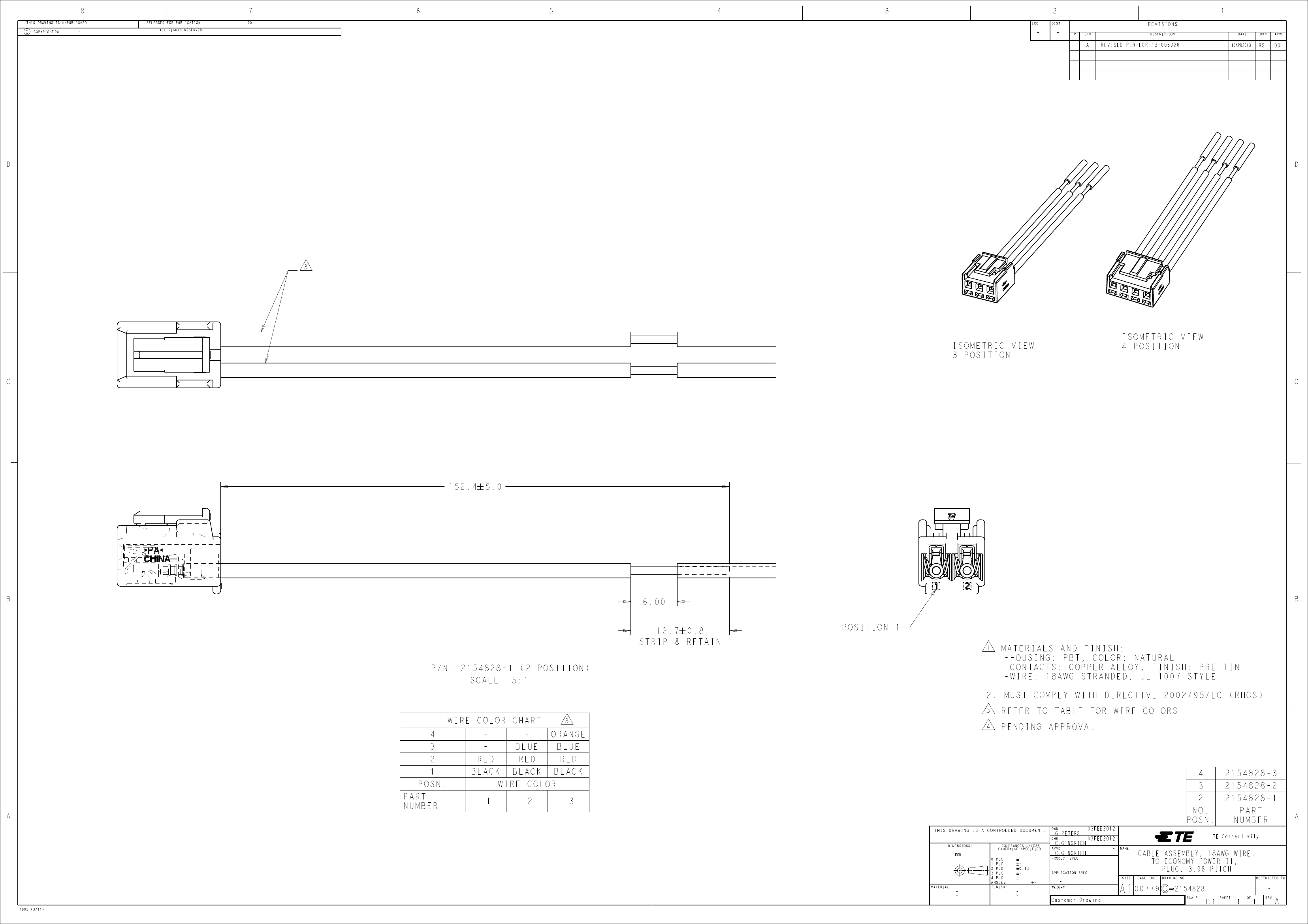

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

-

A

REVISED PER ECR-13-006026

10APR2013

RS

DD

D

3

ISOMETRIC VIEW

3 POSITION

C

ISOMETRIC VIEW

4 POSITION

C

152.4 # 5.0

B

6.00

12.7 0.8

STRIP & RETAIN

P/N: 2154828-1 (2 POSITION)

SCALE

5:1

POSITION 1

1

B

MATERIALS AND FINISH:

-HOUSING: PBT, COLOR: NATURAL

-CONTACTS: COPPER ALLOY, FINISH: PRE-TIN

-WIRE: 18AWG STRANDED, UL 1007 STYLE

2. MUST COMPLY WITH DIRECTIVE 2002/95/EC (RHOS)

WIRE COLOR CHART

4

3

2

1

-

RED

-

BLUE

BLACK

-2

RED

-

3

REFER TO TABLE FOR WIRE COLORS

PENDING APPROVAL

ORANGE

BLUE

RED

4

A

PART

NUMBER

POSN.

BLACK

-1

WIRE COLOR

BLACK

-3

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

4

3

NO.

POSN.

-

NAME

2154828-3

2154828-2

2154828-1

PART

NUMBER

A

2

G.PETERS

C.GINGRICH

-

03FEB2012

TE Connectivity

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

-

PRODUCT SPEC

APPLICATION SPEC

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

CABLE ASSEMBLY, 18AWG WIRE,

TO ECONOMY POWER II,

PLUG, 3.96 PITCH

DRAWING NO

RESTRICTED TO

2154828

SCALE

4805 (3/11)

1:1

SHEET

1

OF

1

REV

-

A

2154828-2 Related Products

	2154828-2	2154828-1	2154828-3
Description	(2154828-2) Cable Assembly EPII 3 Pos	(2154828-1) Cable Assembly EPII 2 Pos	(2154828-3) Cable Assembly EPII 4 Pos
Brand Name	TE Connectivity	TE Connectivity	TE Connectivity
Is it Rohs certified?	conform to	conform to	conform to
Objectid	1762235378	1827703709	1827703710
Reach Compliance Code	compliant	compliant	compliant
Samacsys Description	Cable Assembly EPII 3 Pos	Cable Assembly EPII 2 Pos	Cable Assembly EPII 4 Pos
Samacsys Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	2020-10-04 08:05:28	2020-10-04 08:05:28	2020-10-04 08:05:28
Connector type	BOARD CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Electromagnetic interference shielding	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO
Power Connector Ratings	115/230VAC	115/230VAC	115/230VAC
Mixed contacts	NO	NO	NO
Number of ports	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
polarization key	POLARIZED	POLARIZED	POLARIZED
Guideline	UL	UL	UL
UL Flammability Code	94V-0	94V-0	94V-0
Maximum wire diameter	18 AWG	18 AWG	18 AWG
ECCN code	-	EAR99	EAR99
