UPD29F800ALGX-C12TX datasheet, PDF

UPD29F800ALGX-C12TX: DescriptionIC,EEPROM,NOR FLASH,512KX16/1MX8,CMOS,SOP,44PIN,PLASTIC; Categorystorage storage; File Size2MB，43 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

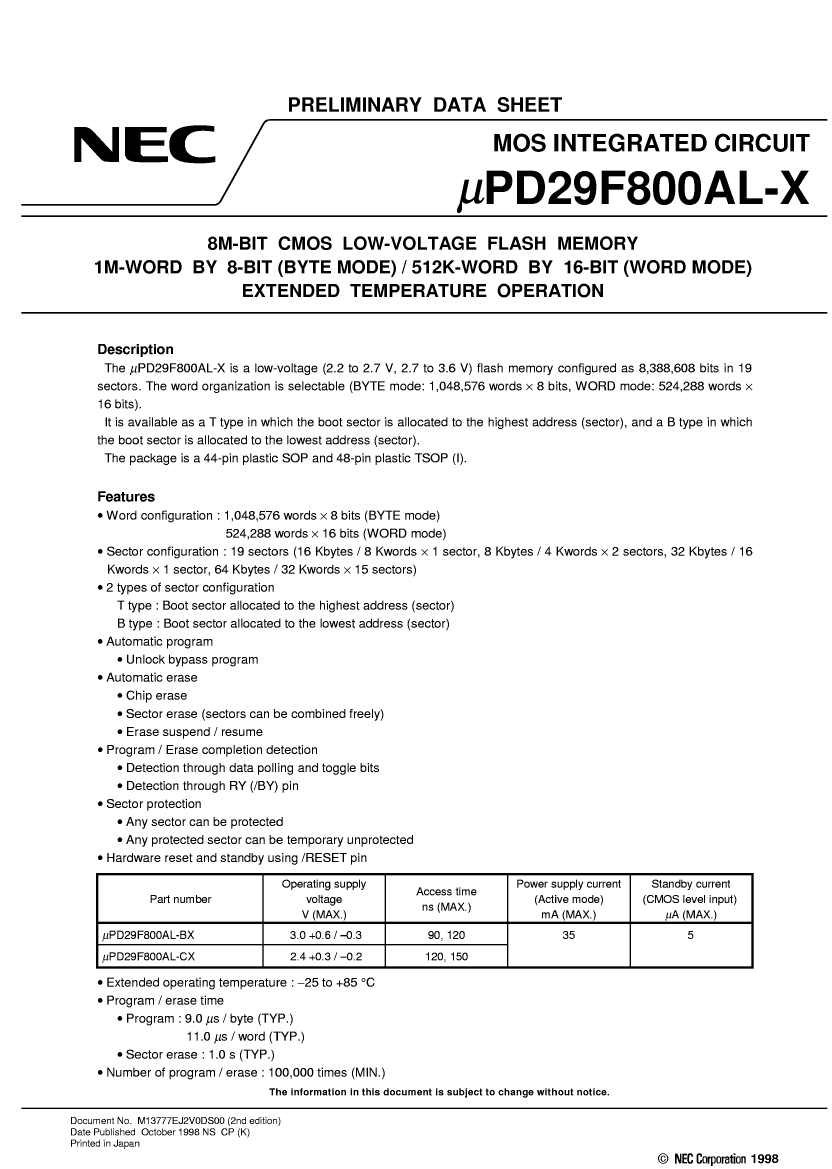

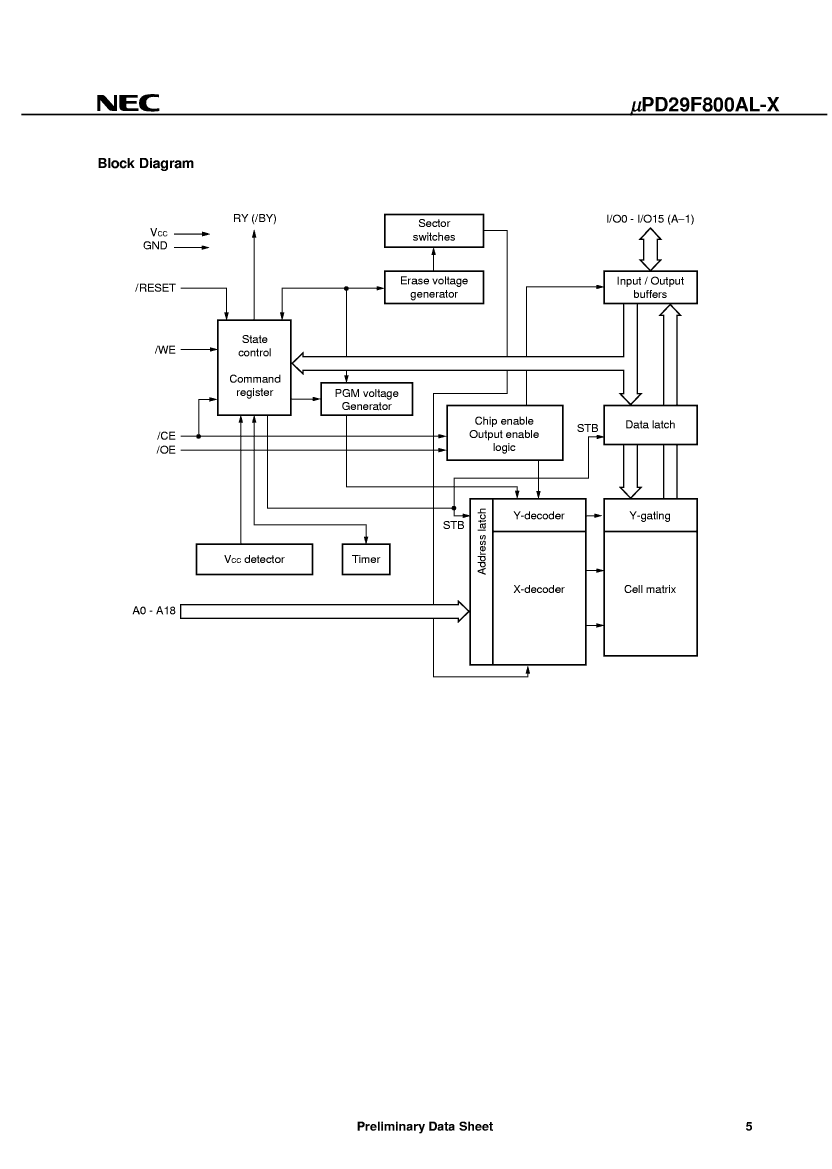

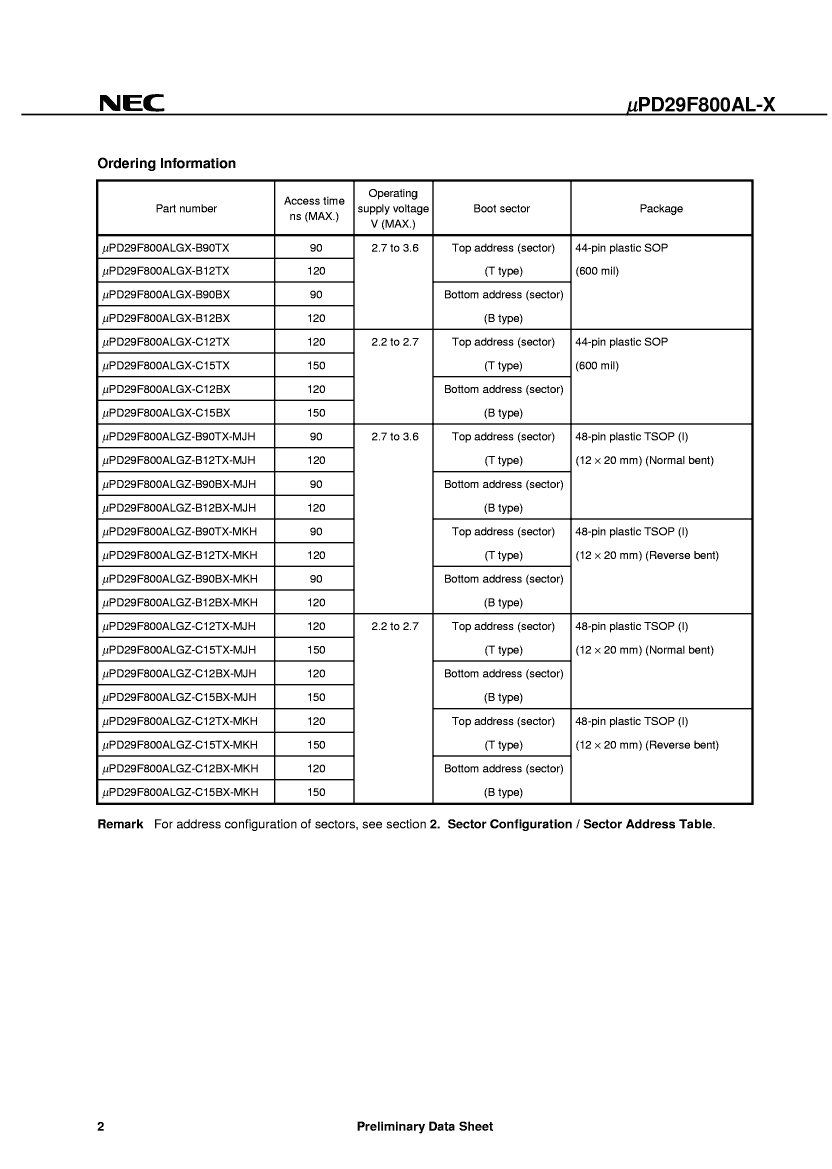

UPD29F800ALGX-C12TX Overview

IC,EEPROM,NOR FLASH,512KX16/1MX8,CMOS,SOP,44PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1156980112
package instruction	0.600 INCH, PLASTIC, SOP-44
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Maximum access time	120 ns
Spare memory width	8
startup block	TOP
command user interface	YES
Data polling	YES
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	27.83 mm
memory density	8388608 bit
Memory IC Type	FLASH
memory width	16
Number of functions	1
Number of departments/size	1,2,1,15

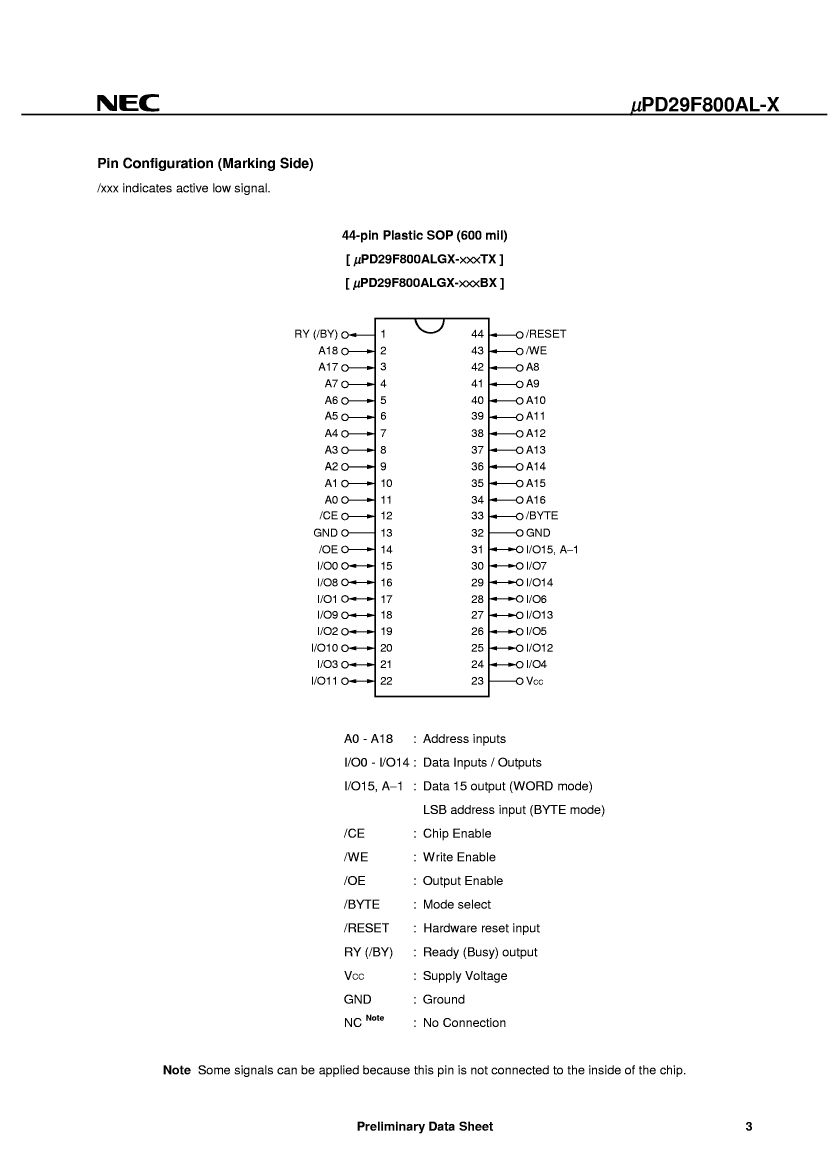

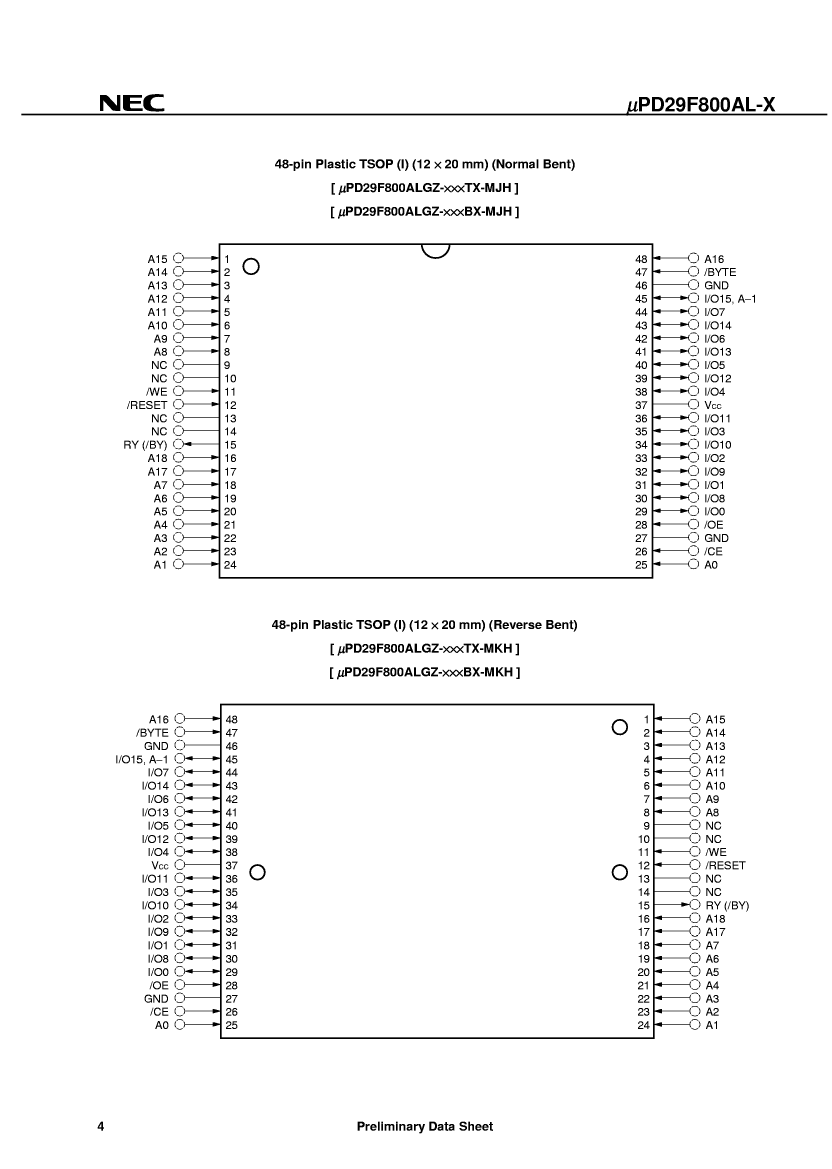

Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
organize	512KX16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
ready/busy	YES
Maximum seat height	3 mm
Department size	16K,8K,32K,64K
Maximum standby current	0.000005 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	2.7 V
Minimum supply voltage (Vsup)	2.2 V
Nominal supply voltage (Vsup)	2.4 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
switch bit	YES
type	NOR TYPE
width	13.24 mm
