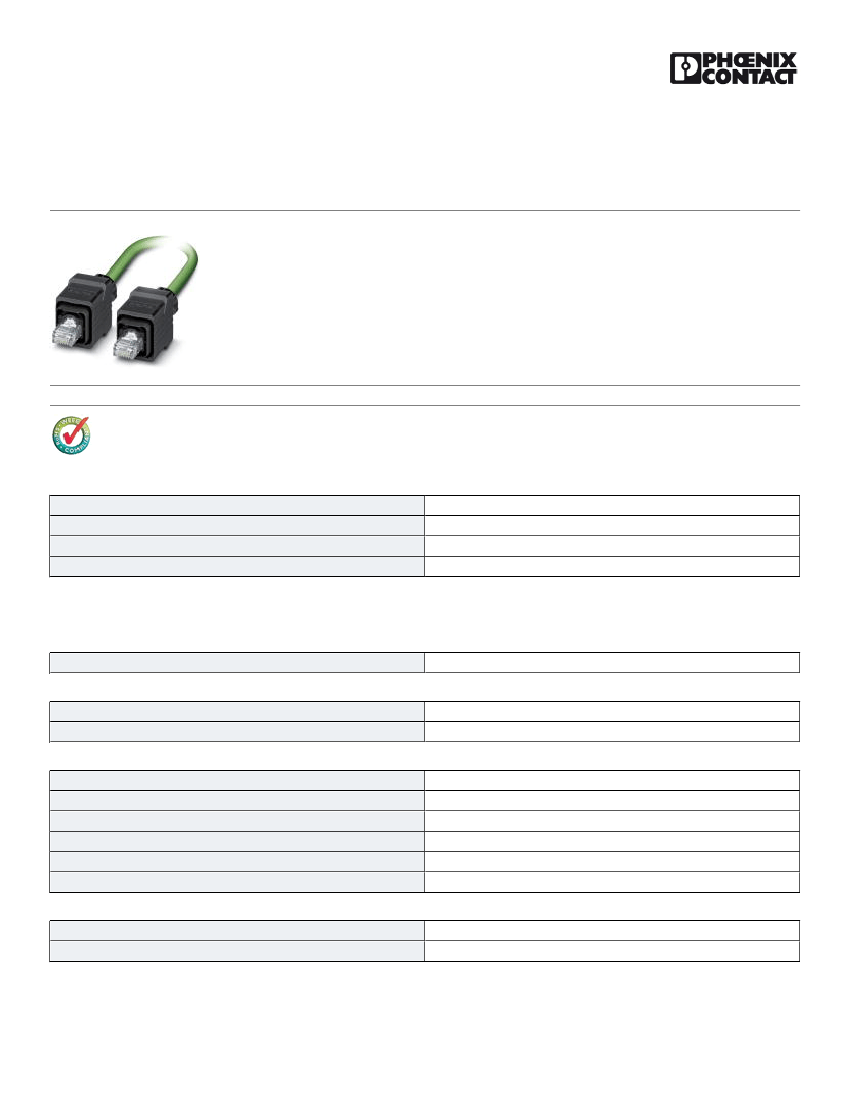

Network cable - VS-PPC/PL-PPC/PL-93C-LI/5,0 - 1416225
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Assembled PROFINET cable, CAT5e, shielded, star quad, AWG 22 flexible cable conduit capable (7-wire), RAL
6018 (yellow-green), RJ45 plug/IP67 push-pull plastic housing on RJ45 plug/IP67 push-pull plastic housing, line,
length 5 m
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
222.22 GRM
85444210
Poland
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Degree of protection
IP65
IP67
General data
Number of positions
Signal type/category
Standards/regulations
Surge voltage category
Pollution degree
4
PROFINET CAT5 (IEC 11801:2002)
PROFINET CAT5e (TIA 568B:2001)
IEC PAS 61076-3-117
I
2
Characteristics head 1
Head type
No. of positions (pin connector pattern)
Plug Straight RJ45 Push Pull / IP67
4
04/24/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1416225
Network cable - VS-PPC/PL-PPC/PL-93C-LI/5,0 - 1416225
Technical data
Characteristics head 1
Material (component)
Plastic
Characteristics head 2
Head type
No. of positions (pin connector pattern)
Material (component)
Plug Straight RJ45 Push Pull / IP67
4
Plastic
Cable
Cable type
Cable type (abbreviation)
Signal type/category
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Wire colors
Overall twist
Shielding
Optical shield covering
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Tensile strength short-term/long-term
Cable weight
Outer sheath, material
Material, inner sheath
Material conductor insulation
Conductor material
Insulation resistance
PROFINET drag chain CAT5e
93C
PROFINET CAT5 (IEC 11801:2002), 100 Mbps
PROFINET CAT5e (TIA 568B:2001), 100 bps
1x4xAWG22/7; SF/TQ
4x 0.34 mm²
22
7x 0.25 mm
approx. 1.5 mm
White, yellow, blue, orange
Star quad
Aluminum-coated foil, tinned copper braided shield
85 %
Green RAL 6018
approx. 0.9 mm
6.5 mm ±0.2 mm
5xD
7.5 x D
3000000
200 mm
10 m
4 m/s
4 m/s²
≤ 150 N
61 kg/km
PUR
FRNC
PE
Tin-plated Cu litz wires
≥ 500 MΩ*km
04/24/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1416225
Network cable - VS-PPC/PL-PPC/PL-93C-LI/5,0 - 1416225
Technical data
Cable
Loop resistance
Working capacitance
Wave impedance
Signal runtime
Coupling resistance
Nominal voltage, cable
Test voltage Core/Core
Test voltage Core/Shield
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
Ambient temperature (installation)
Ambient temperature (storage/transport)
≤ 120 Ω (per kilometer)
52 pF
100 Ω ±15 Ω (at 1 ... 100 MHz)
5.3 ns/m
≤ 20.00 mΩ/m
600 V
2000 V (50 Hz, 1 min.)
2000 V (50 Hz, 1 min.)
According to IEC 60332-1-2
The cable is halogen-free
in accordance with DIN EN 60811-2-1
UV resistant
-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C
-50 °C ... 70 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27060307
27061801
27061801
27061801
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC002599
EC000830
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
26121616
26121616
26121604
31261501
04/24/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1416225
Network cable - VS-PPC/PL-PPC/PL-93C-LI/5,0 - 1416225
Classifications
UNSPSC
UNSPSC 13.2
26121616

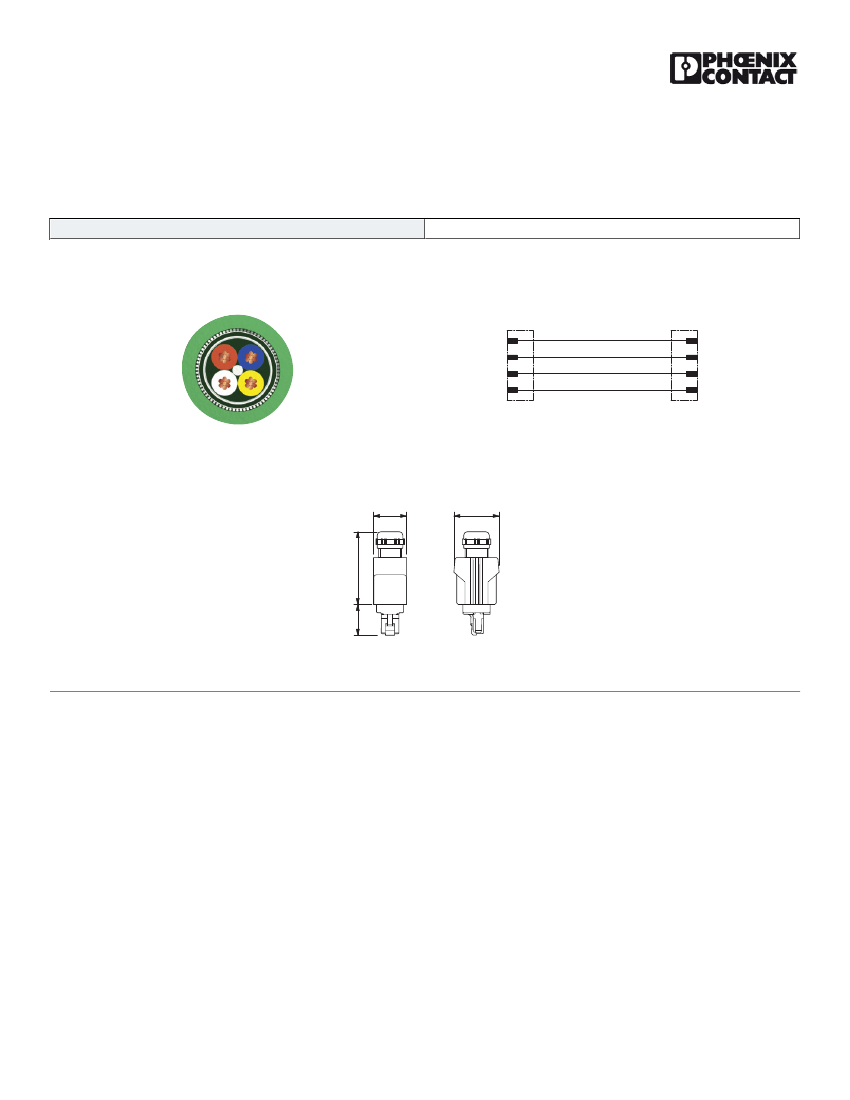

Drawings
Cable cross section
RJ45
1
2
3
6
Circuit diagram
RJ45
1 YE
2 OG
3 WH
6 BU
PROFINET drag chain CAT5e [93C]
Dimensioned drawing
22
30
Push-pull RJ45 connector IP65/67
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
20,5
48,3
04/24/2014 Page 4 / 4
