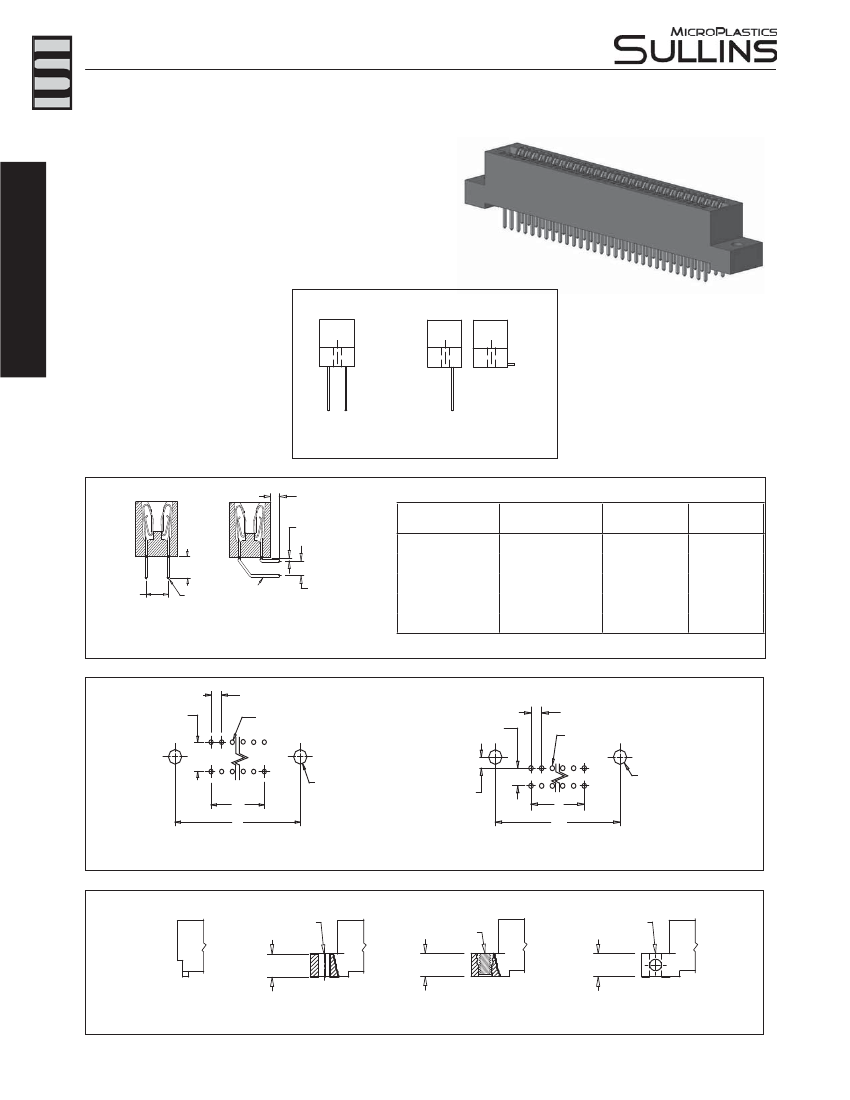

Sullins Edgecards
.100” [2.54 mm] Contact Centers, .610” [15.49 mm] Insulator Height, Dip Solder/
Wire Wrap/Right Angle/Card Extender for .093”[2.36] or .125”[3.18] Mating PCB
SPECIFICATIONS
• Accommodates .093” ± .008” [2.36 ± .20] or
.125” ± .008” [3.18 ± .20] mating PC board
(Consult factory for .031” ± .008” [.79 ± .20] boards)
• PBT, PPS or PA9T insulator
• Molded-in key available
• 3 amp current rating per contact
• 30 milli ohm maximum at rated current
Sullins Edgecards
READOUT
DUAL (D)
HALF LOADED (H)
TERMINATION TYPE
L
.030±.015
[0.75±0.38]
TERMINATION
TYPE
RS
Dip Solder
Wire Wrap
Right Angle
Right Angle
Right Angle
RM
POST CROSS
SECTION (K)
.025[.64] SQUARE
.025[.64] SQUARE
.025[.64] SQUARE
.025[.64] SQUARE
.025[.64] SQUARE
POST LENGTH
L ±.025[.64]
.190 [4.83]
.560 [14.20]
.100 [2.54]
.180 [4.57]
.250 [6.35]
FITS MIN.
HOLE SIZE
.040 [1.02]
.040 [1.02]
.043 [1.09]
.043 [1.09]
.043 [1.09]
L
.250
[6.35]
K
K
.150±.010
[3.81±0.25]
TA
TB
TM
LOOP
BELLOWS
(RS, RM)
RIGHT ANGLE
DIP SOLDER
(TA, TB, TM)
PCB LAYOUT
.250
[6.35]
.100[2.54] CC
Ø.040[1.02]
COMPONENT SIDE
.100 [2.54] CC
.150[3.81]
Ø.043[1.09]
Ø.125 [3.18],
2 PLS.
'Z' MOUNTING
A
D
Ø.125[3.18],
2 PLS. 'D'
or 'T' MOUNTING
.094
[2.40]
A
D
STRAIGHT PIN
(RS, RM) TERMINATIONS
RIGHT ANGLE
(TA, TB, TM) TERMINATIONS
MOUNTING STYLE
Ø.125 [3.18]
#4-40
.250 [6.35]
.250 [6.35]
Ø.125 [3.18]
.250 [6.35]
NO MOUNTING
EARS (N)
FLUSH MOUNTING
(D)
FLUSH MOUNTING WITH
THREADED INSERT
(T)
FLUSH MOUNTING
WITH SIDE HOLES
(Z)
40
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Edgecards
.100” [2.54 mm] Contact Centers, .610”[15.49 mm] Insulator Height, Dip Solder/
Wire Wrap/Right Angle/Card Extender for .093”[2.36] or .125”[3.18] Mating PCB
PART NUMBER CODING
MATERIALS (Insulator /Contact)
E = PBT/Phosphor Bronze
R = PPS/Phosphor Bronze
G = PA9T/Phosphor Bronze
H = PBT/Beryllium Copper
A = PPS/Beryllium Copper
J = PA9T/Beryllium Copper
(Consult Factory for Other Materials)
E B C 70 D RM D - S273
MODIFICATION CODE
(Consult Factory)
-S273 = FOR .093” ± .008” [ 2.36 ± .20]
THICK MATING PCB
-S664 = FOR .125” ± .008” [3.18 ± .20]
THICK MATING PCB
MOUNTING STYLE (Opposite Page)
N = No Mounting
D = Flush Mounting
T = Flush Mounting With Threaded Inserts
Z = Flush Mounting With Side Holes
TERMINATION TYPE (Opposite Page)
RS = .025” [0.64mm] Square Dip Solder
RM = .025” [0.64mm] Square Wire Wrap
TA, TB, TM = .025” [0.64mm] Square Right Angle
READOUT (Opposite Page)
D = Dual
H = Half Loaded
NUMBER OF CONTACT POSITIONS
See Chart Below
CONTACT CENTERS
C = .100” [2.54mm]
Sullins Edgecards
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
B
C
G
Y
=
=
=
=
S =
M =
E =
Contact Surface
.000010” Gold
.000030” Gold
.000010” Gold
.000030” Gold
Contact Surface
.000010” Gold
.000030” Gold
.000100” Pure Tin, Matte
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
.000100” Pure Tin, Matte
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
REFER TO MOUNTING STYLE
.297 [7.54] INSERTION DEPTH
C
.360
[9.14]
.470 [11.94]
.610
[15.49]
A
B
D
E
.060
[1.52]
.100 [2.54] TYP.
F
REFER TO
TERMINATION
TYPE, SEE
OPPOSITE PAGE
Tolerances with PPS Insulator Material may vary slightly due to shrinkage differential; Consult Factory.
POSITIONS/
CONTACTS
06/12
07/14*
08/16*
10/20
12/24
15/30*
17/34*
18/36
20/40*
22/44
24/48*
25/50*
28/56*
30/60
31/62*
35/70
36/72
40/80*
43/86*
44/88*
49/98*
50/100
55/110
60/120*
61/122
65/130*
70/140
A±.008
0.500
0.600
0.700
0.900
1.100
1.400
1.600
1.700
1.900
2.100
2.300
2.400
2.700
2.900
3.000
3.400
3.500
3.900
4.200
4.300
4.800
4.900
5.400
5.900
6.000
6.400
6.900
B±.008
0.700
0.800
0.900
1.100
1.300
1.600
1.800
1.900
2.100
2.300
2.500
2.600
2.900
3.100
3.200
3.600
3.700
4.100
4.400
4.500
5.000
5.100
5.600
6.100
6.200
6.600
7.100
INCHES
C±.015 D±.010
0.860
1.175
0.960
1.275
1.060
1.375
1.260
1.575
1.460
1.775
1.760
2.075
1.960
2.275
2.060
2.375
2.260
2.575
2.460
2.775
2.660
2.975
2.760
3.075
3.060
3.375
3.260
3.575
3.360
3.675
3.760
4.075
3.860
4.175
4.260
4.575
4.560
4.875
4.660
4.975
5.160
5.475
5.260
5.575
5.760
6.075
6.260
6.575
6.360
6.675
6.760
7.075
7.260
7.575
E±.020
1.435
1.535
1.635
1.835
2.035
2.335
2.535
2.635
2.835
3.035
3.235
3.335
3.635
3.835
3.935
4.335
4.435
4.835
5.135
5.235
5.735
5.835
6.335
6.835
6.935
7.335
7.835
F±.015
0.750
0.850
0.950
1.150
1.350
1.650
1.850
1.950
2.150
2.350
2.550
2.650
2.950
3.150
3.250
3.650
3.750
4.150
4.450
4.550
5.050
5.150
5.650
6.150
6.250
6.650
7.150
A±0.20
12.70
15.24
17.78
22.86
27.94
35.56
40.64
43.18
48.26
53.34
58.42
60.96
68.58
73.66
76.20
86.36
88.90
99.06
106.68
109.22
121.92
124.46
137.16
149.86
152.40
162.56
175.26
B±0.20
17.78
20.32
22.86
27.94
33.02
40.64
45.72
48.26
53.34
58.42
63.50
66.04
73.66
78.74
81.28
91.44
93.98
104.14
111.76
114.30
127.00
129.54
142.24
154.94
157.48
167.64
180.34
[MILLIMETERS]
C±0.38 D±0.25
21.84
29.85
24.38
32.39
26.92
34.93
32.00
40.01
37.08
45.09
44.70
52.71
49.78
57.79
52.32
60.33
57.40
65.41
62.48
70.49
67.56
75.57
70.10
78.11
77.72
85.73
82.80
90.81
85.34
93.35
95.50
103.51
98.04
106.05
108.20
116.21
115.82
123.83
118.36
126.37
131.06
139.07
133.60
141.61
146.30
154.31
159.00
167.01
161.54
169.55
171.70
179.71
184.40
192.41
E±0.51
36.45
38.99
41.53
46.61
51.69
59.31
64.39
66.93
72.01
77.09
82.17
84.71
92.33
97.41
99.95
110.11
112.65
122.81
130.43
132.97
145.67
148.21
160.91
173.61
176.15
186.31
199.01
F±0.38
19.05
21.59
24.13
29.21
34.29
41.91
46.99
49.53
54.61
59.69
64.77
67.31
74.93
80.01
82.55
92.71
95.25
105.41
113.03
115.57
128.27
130.81
143.51
156.21
158.75
168.91
181.61
* Consult factory for availability.
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
41
