5408DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5408DM

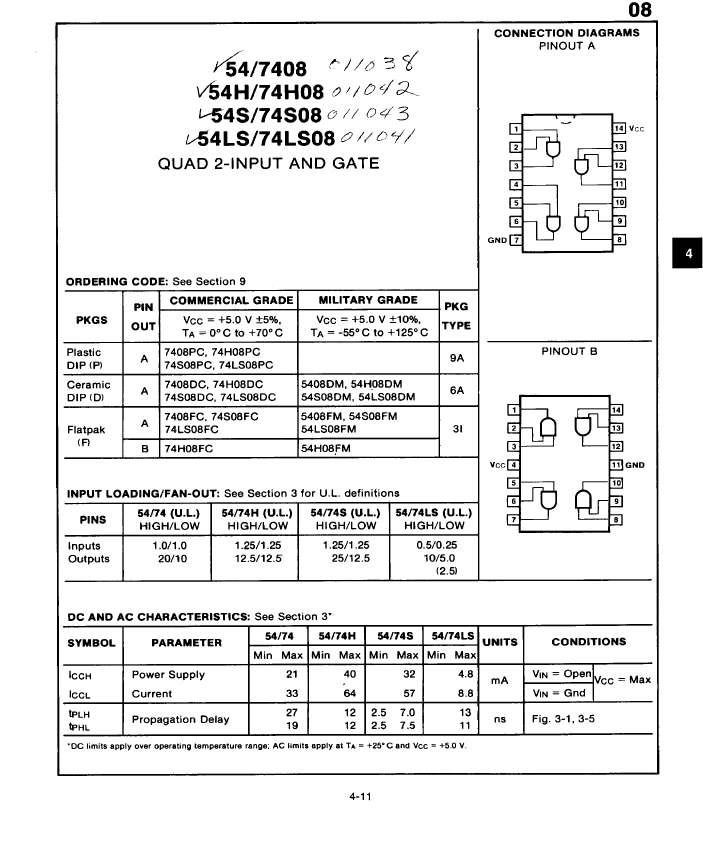

5408DM: DescriptionAND Gate, TTL, CDIP14,; Categorylogic logic; File Size30KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5408DM Overview

AND Gate, TTL, CDIP14,

5408DM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.016 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	32 mA
Prop。Delay @ Nom-Sup	40 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

5408DM Related Products

	5408DM	74LS08FC	74LS08DC	74LS08PC	74H08PC	74H08FC	54S08DMQB
Description	AND Gate, TTL, CDIP14,	AND Gate, TTL, CDFP14,	AND Gate, TTL, CDIP14,	AND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	AND Gate, TTL, PDIP14,	AND Gate, TTL, CDFP14,	AND Gate, S Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	compliant	unknown	compliant	compliant	unknown
JESD-30 code	R-XDIP-T14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDFP-F14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DIP	DIP	DFP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	FL14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	YES	NO	NO	NO	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Fairchild	Fairchild	Fairchild	Fairchild	-	-	Fairchild
power supply	5 V	5 V	5 V	5 V	-	-	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	-	5 V
Base Number Matches	1	1	1	1	1	1	-
Is it lead-free?	-	Contains lead	Contains lead	-	Contains lead	Contains lead	-
Humidity sensitivity level	-	2A	2A	-	2A	2A	-
Peak Reflow Temperature (Celsius)	-	250	250	NOT SPECIFIED	250	250	NOT SPECIFIED
Maximum time at peak reflow temperature	-	30	30	NOT SPECIFIED	30	30	NOT SPECIFIED
package instruction	-	-	-	PLASTIC, DIP-14	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3
