AC Film Capacitors, Motor Run Capacitors
Series/Type:
B32322
The following products presented in this data sheet are being withdrawn.
Ordering Code
B32322B4106J010
B32322C1406J030
B32322C1306J030
Substitute Product
Date of Withdrawal
2013-03-15
2013-10-25
2013-10-25
Deadline Last
Orders
2013-06-15
2014-01-25
2014-01-25
Last Shipments
2013-09-15
2014-04-25
2014-04-25
EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Ordering Code
B32322C1206J030
B32322C1126J030
B32322C1106J030
B32322B4805J010
B32322B4606J010
B32322B4605J010
B32322B4506J010
B32322B4505J010
B32322B4456J010
B32322B4305J010
B32322B4256J010
B32322B4186J030
B32322B4186J010
B32322B4126J010
Substitute Product
Date of Withdrawal
2013-10-25
2013-10-25
2013-10-25
Deadline Last
Orders
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2013-05-08
2014-01-25
2014-01-25
2014-01-25
2014-01-25
2014-01-25
Last Shipments
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2013-08-08
2014-04-25
2014-04-25
2014-04-25
2014-04-25
2014-04-25
B32322D4805J010
B32322D4606J010
B32322D4605J010
B32322D4506J010
B32322D4505J010
B32322D4305J010
B32322D4256J010
B32322D4186J010
B32322D4126J010
2013-10-25
2013-10-25
2013-10-25
2013-10-25
2013-10-25
2013-02-08
2013-10-25
2013-10-25
2013-10-25
2013-10-25
2013-10-25
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™
Test data
AC test voltage terminal to terminal V
TT
Insulation resistance R
ins
or time constant
τ
at 20 °C, rel. humidity
≤
65%
(minimum as-delivered values)
Dissipation factor tan
δ
at 20 °C
Maximum rate of voltage rise dV/dt
max
Climatic data
Climatic category
Lower category T
min
Upper category T
max
Damp heat test t
test
Mechanical and thermal properties
Ball pressure test to IEC 60309-1 sec. 27.3
Plastic can and top disk material
UL 94 V2 compatible
Glow wire test to IEC 60695-2-1/0 and –2-1/1
Test temp 550 °C for I
R
≤
0.5 A
Test temp 750 °C for I
R
> 0.5 A
Tracking test to IEC 60112 solution A
Compatibility to RoHS
Compliance to directive 2002/95/EC
Self-extinguishing within 30 seconds of
withdrawing the glow wire and without
igniting wrapping tissue.
> 250 V
20 N at 125 °C
Compliant to EN 60252
25/085/21 to IEC 60068-1
–25 °C
+85 °C
21 days
2 · V
R
, 2 s (routine test)
2 · V
R
, 60 s (type test)
3000 s
≤
1.0 · 10
-3
(120 Hz)
10 V/μs
Approvals
VDE
400 V/85 °C: 10000 h (class B) for 1.5 µF ... 50 µF
480 V/85 °C: 3000 h (class C) for 3 µF ... 35 µF
Approved
Approved
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 3 of 8
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™

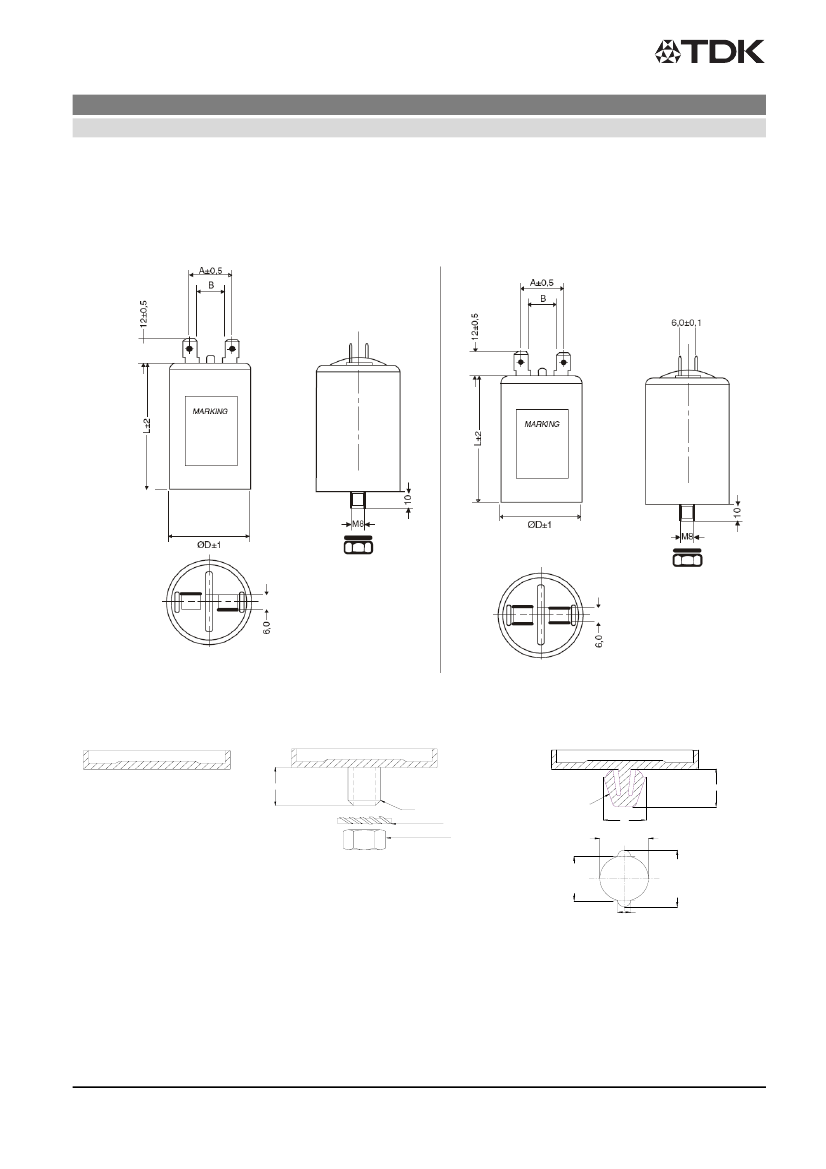

Dimensional drawings
B32320
B32322
Mounting options
# = 1: Can without mounting
# = 3: Can with M8 bolt
# = 5: Locking clip
10
Stud M8x1.25
Star Washer 8mm
Nut M8x1.25
10
M8-sized
M-Clip
fast
fixation
10
Ø8.2+0.2/-0
10.2+0.1/-0
2.0±0.05
Ø2.2+0.1/-0
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 4 of 8
January 2008
Film capacitors – AC capacitors
Motor run capacitors
B32320/B32322 – MotorCap™
Ordering codes and packing units
V
R
V AC
250
C
R
μF
1.5
2
3
4
5
6
7
7.5
8
9
10
12
14
15
16
18
20
22
25
30
35
40
45
50
55
60
Max. dimensions
d × l (mm)
B32320
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
25 × 58
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 95
40 × 95
40 × 95
Max. dimensions
d × l (mm)
B32322
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
30 × 62
35 × 62
35 × 62
35 × 62
35 × 62
35 × 71
35 × 71
40 × 71
40 × 71
40 × 71
40 × 95
40 × 95
40 × 95
B3232*C1155J0#0
B3232*C1205J0#0
B3232*C1305J0#0
B3232*C1405J0#0
B3232*C1505J0#0
B3232*C1605J0#0
B3232*C1705J0#0
B3232*C1755J0#0
B3232*C1805J0#0
B3232*C1905J0#0
B3232*C1106J0#0
B3232*C1126J0#0
B3232*C1146J0#0
B3232*C1156J0#0
B3232*C1166J0#0
B3232*C1186J0#0
B3232*C1206J0#0
B3232*C1226J0#0
B3232*C1256J0#0
B3232*C1306J0#0
B3232*C1356J0#0
B3232*C1406J0#0
B3232*C1456J0#0
B3232*C1506J0#0
B3232*C1556J0#0
B3232*C1606J0#0
Ordering code
Packing units
pcs.
112
112
112
112
112
112
112
112
112
112
112
112
112
112
84
84
84
84
84
84
60
45
45
45
45
45
FK PC PM AC
Please read the important notes,
cautions and warnings.
Page 5 of 8
January 2008
