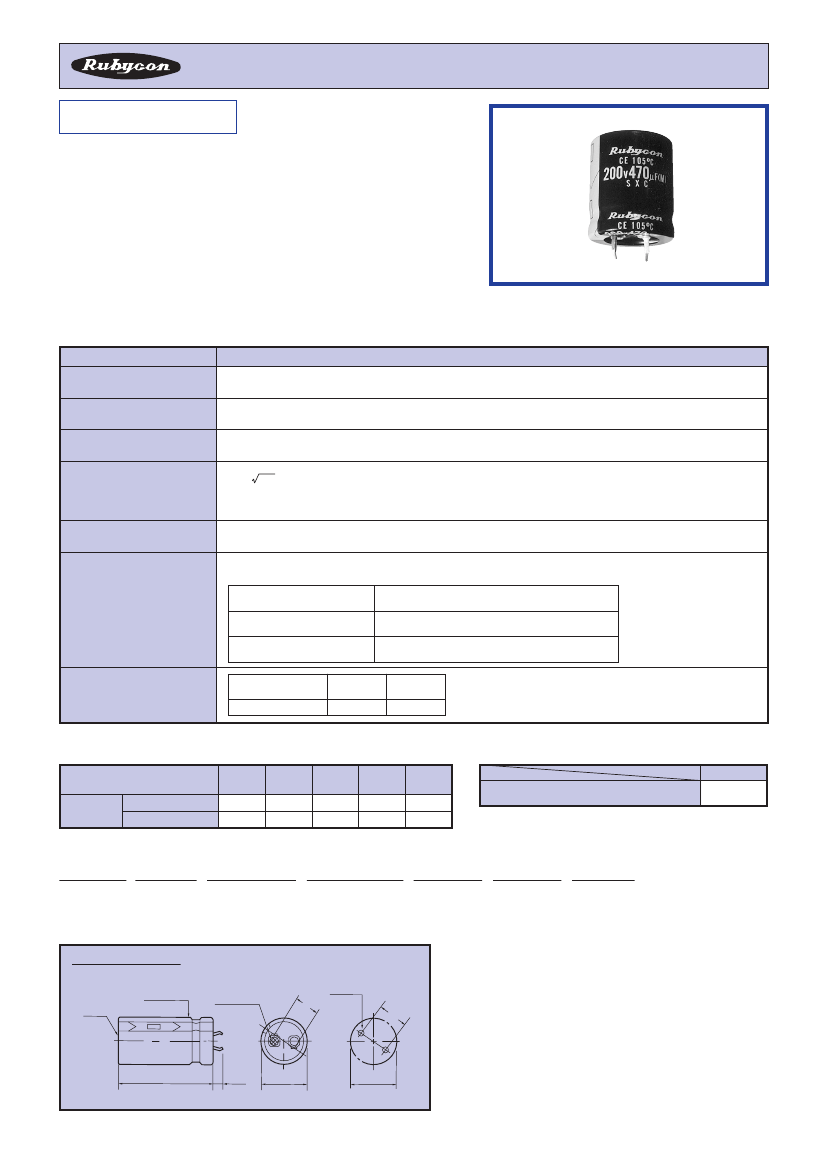

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

SXC

SERIES

105℃, Overvoltage Vent Operation Facility,

Snap-in Terminal Type

◆FEATURES

Please consult us for any further details.

・

RoHS compliance.

・

Load Life : 105℃ 2000 hours.

・

This series has speciﬁcation of vent operation in overvoltage situation.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−25∼＋105℃

200, 400V.DC

±20％

（20℃，

120Hz）

I＝3

CV (After 5 minutes application of rated voltage)

Leakage Current(MAX)

I＝

Leakage Current

(μA)

C＝

Capacitance

(μF)

V＝

Rated Voltage

(V)

Dissipation Factor(MAX)

(tanδ)

0.15（20℃，

120Hz）

After applying rated voltage with rated ripple current for 2000 hours at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z

（−25℃）（20℃）

/Z

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

200

3

400

8

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

（Hz）

200V.DC

Coeﬃcient

400V.DC

Frequency

◆OPTION

500

1.10

1.05

1k

1.14

1.10

10k≦

1.18

1.15

PET Sleeve without plate

Code

60

（50） 120

0.80

1.00

EFC

◆PART NUMBER

□□□

Rated Voltage

SXC

Series

□□□□□

Capacitance

M

Capacitance Tolerance

□□□

Option

SN

Terminal Code

D×L

Case Size

◆DIMENSIONS

●

SN

［4(3.5)mm½

terminal type

（mm）

SLEEVE(PET)

VENT

2-φ2

NEGATIVE

10

±0.1

L±2

※

4±0.5

φD±1

MOUNTING HOLES

※For φ35, 3.5±0.5

200SXC150MEFCSN22X25 Related Products
