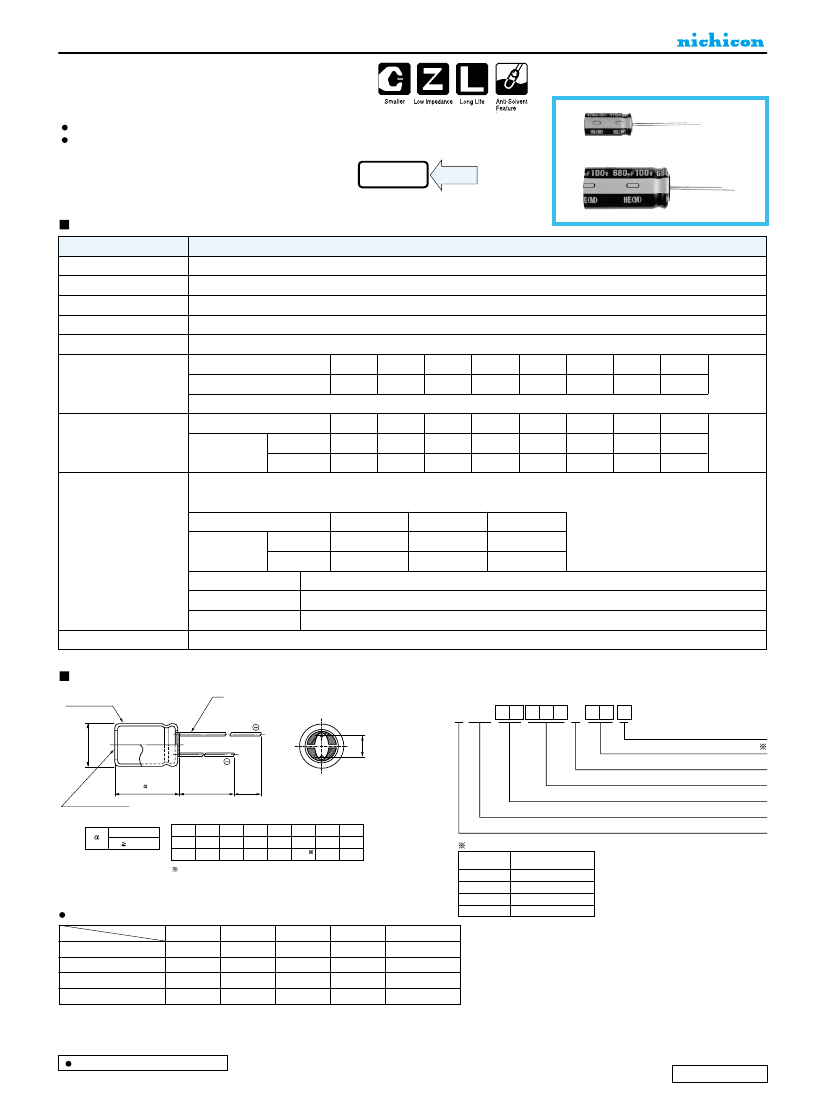

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Sized, Low Impedance,High Reliability

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Low impedance and high reliability withstanding 4000 hours to 10000 hours.

Compliant to the RoHS directive (2011/65/EU).

Specifications

ltem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Long Life

Performance Characteristics

– 40 to +105˚C

6.3 to 100V

0.47 to 18000µF

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

6.3

0.22

0.19

0.16

0.14

0.12

0.10

0.09

100

0.08

120Hz

20˚C

Tangent of loss angle (tan

)

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Stability at Low Temperature

6.3

100

120Hz

Impedance ratio

ZT / Z20 (MAX.)

Z–25˚C / Z+20˚C

Z–40˚C / Z+20˚C

The following specifications shall be met when the capacitors are restored to 20

˚C

after D.C. bias plus rated ripple current is

applied at 105

˚C

, the peak voltage shall not exceed the rated voltage.

Case size

Endurance

φD

< 6.3

4000 hours

5000 hours

φD

= 8 , 10

6000 hours

7000 hours

φD

> 12.5

8000 hours

10000 hours

Rated voltage

(V)

6.3 to 10WV

16 to 100WV

Capacitance change

tan

Leakage current

Marking

Within ± 25% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Printed with white color letter on black sleeve.

Radial Lead Type

φd

Sleeve (P.E.T.)

Type numbering system (Example : 10V 1000µF)

10 11

U HE 1 A 1 0 2 M PD

φD

0.5 MAX.

Size code

0.5

Configuration

Capacitance tolerance (± 20%)

Rated capacitance (1000µF)

L+

Pressurerelief vent

(φ6.3up)

MAX.

MIN

Rated voltage (10V)

Series name

(mm)

(L < 20) 1.5

(L 20) 2.0

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

Configuration

6.3

8 · 10

12.5 to 18

Pb-free leadwire

Pb-free PET sleeve

Type

In case L > 25 for the

φ12.5

dia. unit, lead dia.

φd

= 0.8mm

•

Please refer to page 20 about the end seal configuration.

Frequency coefficient of rated ripple current

Cap. (µF)

Frequency

50Hz

0.45

0.60

0.65

0.75

120Hz

0.55

0.70

0.75

0.80

300Hz

0.70

0.85

0.90

0.95

1kHz

0.90

0.95

0.98

1.00

10kHz or more

1.00

0.47 to 33

39 to 330

390 to 1000

1200 to 18000

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100C
