P2TC0402D3281DNWA

Description
Fixed Resistor, Thin Film, 0.063W, 3280ohm, 50V, 0.5% +/-Tol, 2ppm/Cel, Surface Mount, 0402, CHIP
CategoryPassive components    The resistor
File Size132KB，8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

P2TC0402D3281DNWA Overview

Fixed Resistor, Thin Film, 0.063W, 3280ohm, 50V, 0.5% +/-Tol, 2ppm/Cel, Surface Mount, 0402, CHIP

P2TC0402D3281DNWA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145112024593
package instructionCHIP
Reach Compliance Codeunknown
Country Of OriginFrance
ECCN codeEAR99
YTEOL9.25
Other featuresANTI-SULFUR, HIGH PRECISION
structureRectangular
JESD-609 codee2
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length1 mm
Package formSMT
Package width0.6 mm
method of packingWAFFLE PACK
Rated power dissipation(P)0.063 W
Rated temperature70 °C
resistance3280 Ω
Resistor typeFIXED RESISTOR
size code0402
surface mountYES
technologyTHIN FILM
Temperature Coefficient2 ppm/°C
Terminal surfaceTin/Silver (Sn/Ag) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance0.5%
Operating Voltage50 V

P2TC0402D3281DNWA Preview

P2TC
www.vishay.com
Vishay Sfernice

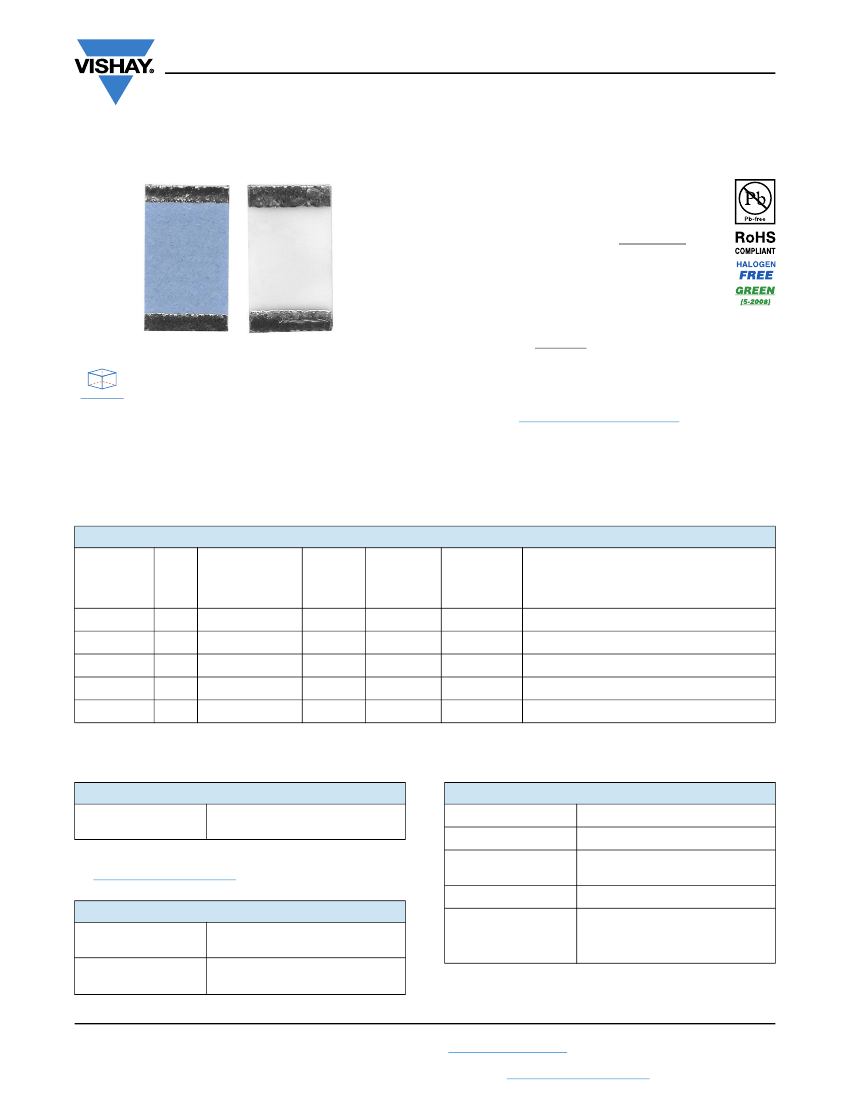

High Precision Wraparound - ± 2 ppm/°C TCR
Thin Film Chip Resistors
FEATURES
• Load life stability 0.05 % typical at 2000 h
at 70 °C under Pn
• Low temperature coefficient:
± 2 ppm/°C
(-55 °C; +155 °C)
• Very low noise < - 35 dB and voltage coefficient
< 0.01 ppm/V
• Wide resistance range: 100
to 3.6 M
depending on size
DESIGN SUPPORT TOOLS AVAILABLE
D
D
3
3
3D Models
• Tolerances to
± 0.01 %
• Termination: thin film technology
• Sulfur resistant (per ASTM B809-95 humid vapor test)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
For low noise and precision applications, superior stability,
low temperature coefficient of resistance, and low voltage
coefficient, Vishay Sfernice’s proven precision thin film
wraparound
resistors
exceed
requirements
of
MIL-PRF-55342G characteristics typical ± 2 ppm/°C
(-55 °C; +155 °C).
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
SIZE
RESISTANCE
RANGE
()
100 to 88K
100 to 160K
100 to 360K
100 to 1.3M
100 to 3.6M
RATED
POWER
W
Pn
(1)
0.063
0.125
0.200
0.330
1
RATED
POWER
W
Pd
(1)
0.040
0.100
0.125
0.250
0.500
LIMITING
ELEMENT
VOLTAGE
V
50
75
150
200
300
TOLERANCE
±%
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1, 2, 5
P2TC0402
P2TC0603
P2TC0805
P2TC1206
P2TC2010
0402
0603
0805
1206
2010
Notes
(1)
Pn = nominal power : Pd = derated power intended to improve stability
(2)
For ohmic range versus tolerance and TCR see detailed table on next page
CLIMATIC SPECIFICATIONS
Operating temperature
range
-55 °C; +155 °C
MECHANICAL SPECIFICATIONS
Substrate
Technology
Alumina
Thin film
Nickel chromium
with mineral
Note
• For temperature up to 230 °C, see PHT datasheet
(www.vishay.com/doc?53050)
Film
Protection
passivation
Epoxy + silicone
N type:
SnAg over nickel barrier for
PERFORMANCE VS. HUMID SULFUR VAPOR
Test conditions
Test results
50 °C ± 2 °C, 85 % ± 4 % RH,
exposure time 500 h
Resistance drift < (0.05 %
R
+ 0.05
),
no corrosion products observed
Terminations
solder reflow
G type:
gold over nickel barrier for
other applications
Revision: 29-Jul-2019
Document Number: 53080
1
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P2TC
www.vishay.com
Vishay Sfernice
DIMENSIONS
in millimeters (inches)
A
D
D
C
B
E
E
CASE SIZE
0402
0603
0805
1206
2010
A
MAX. TOL.
+0.152 (+0.006)
MIN. TOL.
-0.152 (-0.006)
NOMINAL
1.00 (0.039)
1.52 (0.060)
1.91 (0.075)
3.06 (0.120)
5.08 (0.200)
B
MAX. TOL.
+0.127 (+0.005)
MIN. TOL.
-0.127 (-0.005)
NOMINAL
0.60 (0.024)
0.85 (0.033)
1.27 (0.050)
1.60 (0.063)
2.54 (0.100)
C
NOMINAL
0.25 (0.010)
0.5 (0.02)
± 0.127 (0.005)
0.38 (0.015)
0.40 (0.016)
0.48 (0.019)
D/E
TOLERANCE
0.1 (0.004)
0.13 (0.005)
SUGGESTED LAND PATTERN
(to IPC-7351A)
G
min.
X
max.
Z
max.
CHIP SIZE
0402
0603
0805
1206
2010
Z
max.
1.55 (0.061)
2.37 (0.093)
2.76 (0.109)
3.91 (0.154)
5.93 (0.233)
DIMENSIONS
in millimeters (inches)
G
min.
0.15 (0.006)
0.35 (0.014)
0.74 (0.029)
1.85 (0.073)
3.71 (0.146)
X
max.
0.73 (0.029)
0.98 (0.039)
1.40 (0.055)
1.73 (0.068)
2.67 (0.105)
TEMPERATURE COEFFICIENT
TYPICAL TCR
(ppm/°C)
±2
TYPICAL TCR AND MAX. SPREAD
(ppm/°C)
±2±2
POWER DERATING CURVE
Axis Title
120
100
2nd line
Rated Power (%)
80
60
40
20
0
0
20
40
60 70 80
100 120 140 160
155
Ambient Temperature (°C)
10
100
1000
1st line
2nd line
10000
Revision: 29-Jul-2019
Document Number: 53080
2
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P2TC
www.vishay.com
Vishay Sfernice
RANGE
()
100 to < 250
250 to 88K
100 to < 250
250 to 160K
100 to < 250
250 to 360K
100 to < 250
250 to 1M3
100 to < 250
250 to 3M6
TOLERANCE
(± %)
0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
0.01; 0.02; 0.05; 0.1; 0.25; 0.5; 1; 2; 5
BEST TOLERANCE AND TCR VS. OHMIC VALUE
STYLE
0402
0603
0805
1206
2010
POPULAR OPTIONS
For any option it is recommended to consult Vishay Sfernice for availability first.
Option: Enlarged Terminations
For stringent and special power dissipation requirements, the thermal resistance between the resistive layer and the solder joint
can be reduced using enlarged terminations chip resistors which are soldered on large and thick copper pads acting as heatsink
(see application note: 53048 Power Dissipation in High Precision Vishay Sfernice Chip Resistors and Arrays (P Thin Film, PRA
Arrays, CHP Thick Film)
www.vishay.com/doc?53048.
Option to order 0063: (applies to size 1206 / 2010).
DIMENSIONS
(Option 0063) in millimeters
Bottom view for mounting
A
Uncoatted
ceramic
Enlarged
termination
B
D
F
D
E
E
CASE SIZE
1206
2010
A
MAX. TOL.
+0.152
MIN. TOL.
-0.152
NOMINAL
3.06
5.08
B
MAX. TOL.
+0.127
MIN. TOL.
-0.127
NOMINAL
1.60
2.54
E
MAX. TOL.
+0.13
MIN. TOL.
-0.13
NOMINAL
0.40
0.48
D
MAX. TOL.
+0.13
MIN. TOL.
-0.13
NOMINAL
1.215
2.215
F
NOMINAL
0.63
MIN.
0.50
MAX.
0.76
SUGGESTED LAND PATTERN
(Option 0063)
G
min.
X
max.
Z
max.
CHIP SIZE
1206
2010
Z
max.
3.91
5.93
DIMENSIONS (IN MILLIMETER)
G
min.
0.50
X
max.
1.73
2.67
Revision: 29-Jul-2019
Document Number: 53080
3
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P2TC
www.vishay.com
Option: Marking
Option to order 0013:
Marking of ohmic value and tolerance:
Sizes: 0805 to 1005: 3 digits marking (according to EIA-96)
Sizes: 1206 to 2512: 4 digits marking (same codification than in the ordering procedure)
Tolerance indicated by a color dot.
Option to order 0014:
Marking of ohmic value:
Sizes: 0805 to 1005: 3 digits marking (according to EIA-96)
Sizes: 1206 to 2512: 4 digits marking (same codification than in the ordering procedure)
No standard marking available for smaller sizes.
A price adder will apply to the unit price of the parts for options 0013 and 0014.
Option: AEC-Q200
For moisture resistance test only.
Option to Order 0058:
Specific production process to withstand 85 °C/85 % at Pn/10
Vishay Sfernice
PACKAGING
ESD packaging available: waffle-pack, and plastic tape and
reel (low conductivity).
NUMBER OF PIECES PER PACKAGE
SIZE MOQ
WAFFLE PACK
2" × 2"
TAPE AND REEL
MIN.
MAX.
5000
100
0805
100
1206
2010
140
60
1000
100
4000
8 mm
TAPE
WIDTH
PACKAGING RULES
Waffle Pack
Can be filled up to maximum quantity indicated in the table
here above, taking into account the minimum order quantity.
When quantity ordered exceeds maximum quantity of a
single waffle pack, the waffle packs are stacked up on the
top of each other and closed by one single cover.
To get “not stacked up” waffle pack in case of ordered
quantity > maximum number of pieces per package:
Please consult Vishay Sfernice for specific ordering
code.
Tape and Reel
See Part Numbering information to get the quantity desired
by tape.
0603
PERFORMANCE
TESTS
Thermal shock
Short time overload
Low temperature operation
Resistance to solder heat
CONDITIONS
MIL-PRF-55342G
MIL-STD-202 F-Method 107 F
MIL-PRF-55342G
PARA 3.10.4.7.5
MIL-PRF-55342G
PARA 3.9 and 4.7.4
MIL-PRF-55342G
PARA 3.12, 4.7.7, 4.7.1.2
MIL-PRF-55342G
PARA 3.13 and 4.7.8
MIL-STD-202 F-Method 106 E
CECC 56 days / 40 °C / 93 % RH
High temperature
MIL-PRF-55342G
PARA 3.11 and 4.7.6
MIL-PRF-55342G
8000 h Pn at 70 °C
MIL-STD-202 F-Method 108 A
MIL OR CECC
REQUIREMENTS
± 0.05 %
± 0.05 %
± 0.05 %
± 0.05 %
TYPICAL
PERFORMANCES
± 0.02 %
± 0.01 %
± 0.01 %
± 0.03 %
± 0.10 %
± 0.10 %
± 0.05 %
± 0.01 %
± 0.01 %
± 0.05 %
Moisture resistance
Load life
± 0.5 %
± 0.1 %
(2)
Revision: 29-Jul-2019
Document Number: 53080
4
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
P2TC
www.vishay.com

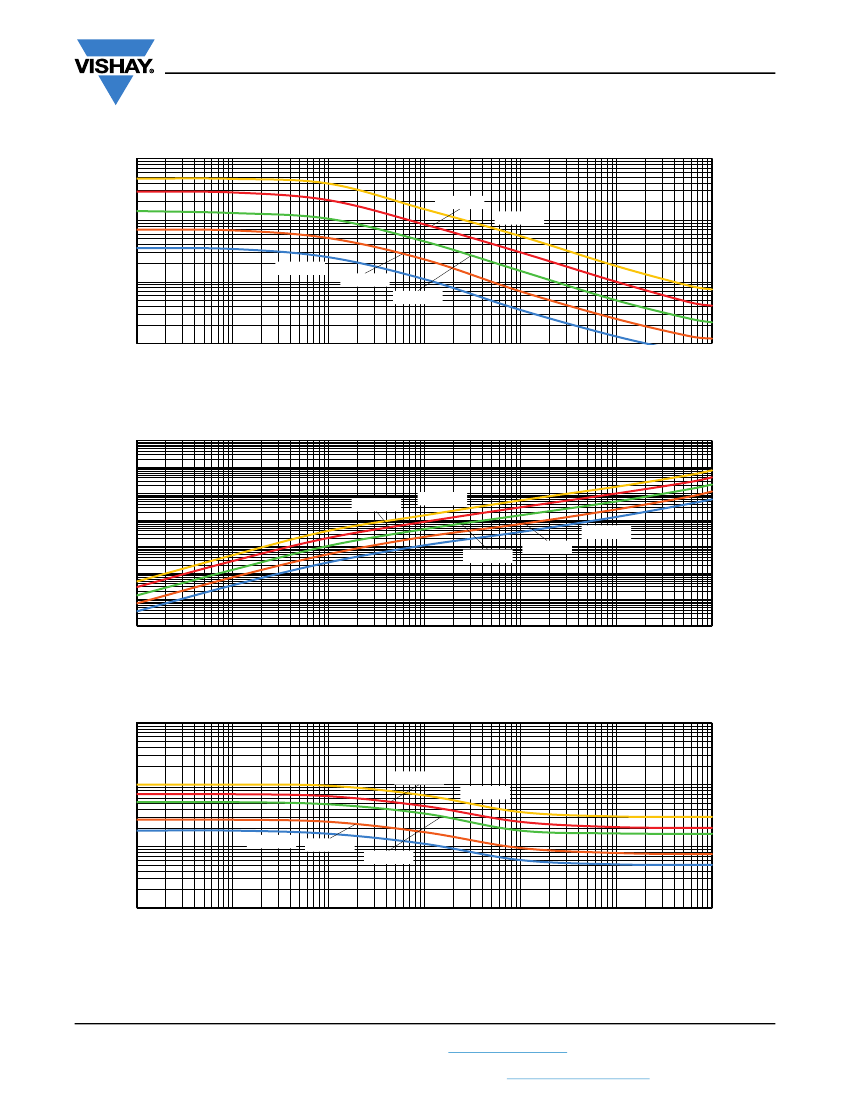

Maximum permissible pulse load
P
i
max. for single pulse
(1)
Axis Title
100
2nd line
P
- Permissible Pulse Power (W)
10000
Vishay Sfernice
P2TC1206
10
P2TC2010
1000
1st line
2nd line
P2TC0402
1
P2TC0603
P2TC0805
100
0.1
0.00001
10
0.0001
0.001
0.01
t - Pulse Duration (s)
0.1
1
10
Energy for single pulse
(1)
Axis Title
100
10
2nd line
Permissible Pulse Energy (J)
1
P2TC1206
P2TC2010
10000
1000
P2TC0402
0.1
0.01
P2TC0805
P2TC0603
0.001
0.0001
100
0.00001
0.00001
10
0.0001
0.001
0.01
t - Pulse Duration (s)
0.1
1
10
Maximum permissible pulse voltage
U
i
max. for single pulse
(1)
Axis Title
10 000
10000
2nd line
Permissible Pulse Voltage (V)
1000
P2TC1206
P2TC2010
1000
1st line
2nd line
100
P2TC0402
P2TC0603
P2TC0805
100
10
0.00001
10
0.0001
0.001
0.01
t - Pulse Duration (s)
0.1
1
10
Note
(1)
One should apply the datas mentioned on the 3 curves together to get the right performances
Revision: 29-Jul-2019
Document Number: 53080
5
For technical questions, contact:
sferthinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
1st line
2nd line
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Memory interface circuit of aduc841/42/43

Homemade high-fidelity fever HI-FI amplifier 03

Counting welding machine circuit

Constant current recovery type voltage-frequency converter circuit diagram

5V, 1A switching regulated power supply

Pyroelectric infrared detection circuit

PCM186x - Graphical User Interface Walkthrough for High-Performance ADCs and Generic Front End
PCM186x - High Performance ADC GUI Walkthrough with Generic Front End [/align][align=left][font=宋体][size=11.0pt]Depending on how the system designer has configured the system, the PCM186x[/size][font=...
德州仪器_视频 Analogue and Mixed Signal
Having problems installing platform builder 5.0?
I need help. I installed platform builder 5.0 and its 2007 patch on my computer according to the MINI2440 manual, and also installed EVC4 and its SP4 and platform manager. However, after installing al...
lilbi Embedded System
Has anyone used ATF-36077?
What should the bias voltage of this tube be? Vgs Ha~I can't debug it correctly according to the device data~...
fransesco RF/Wirelessly
Please help: Questions about USB flash drive recognition and device USB interface
1. XP and WIN7 systems can automatically recognize USB flash drives. Why can USB flash drives be recognized by the system without loading USB drivers?2. Why do some devices need to load USB drivers to...
xp4105 Embedded System
Job opportunities: VC, embedded, hardware, working location: Qingdao
3. VC Software Engineer Job Title: VC Software Engineer Number: 1 Specific Requirements: 1. Bachelor degree or above in electronic information technology or computer related major; 2. More than two ye...
LIYAN Embedded System
MakerBot 3D Printing Basic Skills--EEWORLD University
MakerBot 3D Printing Basic Skills : https://training.eeworld.com.cn/course/1971[size=4]An in-depth look at MakerBot 3D printers, and some tips and tricks for successful 3D printing. [/size]...
chenyy Industrial Control Electronics
Shortcut:   S0 S1 S2 S3 S4 S5 S6 S7 S8 S9 SA SB SC SD SE SF SG SH SI SJ SK SL SM SN SO SP SQ SR SS ST SU SV SW SX SY SZ T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 TA TB TC TD TE TF TG TH TI TJ TK TL TM TN TO TP TQ TR TS TT TU TV TW TX TY TZ U0 U1 U2 U3 U4 U6 U7 U8 UA UB UC UD UE UF UG UH UI UJ UK UL UM UN UP UQ UR US UT UU UV UW UX UZ V0 V1 V2 V3 V4 V5 V6 V7 V8 V9 VA VB VC VD VE VF VG VH VI VJ VK VL VM VN VO VP VQ VR VS VT VU VV VW VX VY VZ W0 W1 W2 W3 W4 W5 W6 W7 W8 W9 WA WB WC WD WE WF WG WH WI WJ WK WL WM WN WO WP WR WS WT WU WV WW WY X0 X1 X2 X3 X4 X5 X7 X8 X9 XA XB XC XD XE XF XG XH XK XL XM XN XO XP XQ XR XS XT XU XV XW XX XY XZ Y0 Y1 Y2 Y4 Y5 Y6 Y9 YA YB YC YD YE YF YG YH YK YL YM YN YP YQ YR YS YT YX Z0 Z1 Z2 Z3 Z4 Z5 Z6 Z8 ZA ZB ZC ZD ZE ZF ZG ZH ZJ ZL ZM ZN ZP ZR ZS ZT ZU ZV ZW ZX ZY

Popular Components

  1. SMBJ51
  2. 7211J60V5PE2
  3. TCMZ16V.TB
  4. ED15F36B7WT60/AA
  5. M55342K03B8U25RT0
  6. BZX79B47
  7. GP55P-6263-BB25Q
  8. FMXMA1100KJE-03.000000M
  9. AME8500AEFVAD21
  10. 3386P-1-202
  11. SMAJ15CA
  12. P2540-H254-S180-08

Popular Articles

  1. S3C2440A serial port driver - Data communication between serial port and peripherals under WINCE6.0 (I)
  2. VC MIPI modules and accessories are now available from Mouser Electronics
  3. Samsung Galaxy S21 FE has been shipped on a large scale, and the European market has sufficient supply
  4. Single chip microcomputer four-wire stepper motor driver
  5. Zefeng Semiconductor Lingang project goes into production, accelerating the localization of wafer-level testing materials and equipment
  6. Introduction to the performance of vegetable pesticide residue tester
  7. Why do TWS headphones also need 5G?
  8. Mechanical hard drives: The next victim of the cloud era
  9. What issues should be paid attention to during the operation of zero-sequence current protection?
  10. ams Osram's new 905nm EEL is available in an economical plastic package and is suitable for consumer electronics and industrial sensing applications

Technical ResourceMore

  1. Fall Detection Application Based on 3-Axis Accelerometer ADXL345
  2. Sheet metal stamping process tips and sheet metal parts design and manufacturing technology methods and atlas model practical manual
  3. Class D amplifier principle and design
  4. Laker Full Custom IC Design Platform
  5. USB keyboard common code value table
  6. Highly Integrated Digital RF Modulator Solutions
  7. Research on Multi-bus Automatic Test Technology for Circuit Board Fault Diagnosis
  8. Application of FCX3 Intelligent Power Distribution Monitor in Power Distribution Monitoring System
  9. 1602 LCD driver (based on VHDL)
  10. DC speed control device

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 21  2633  2698  1507  1123  1  54  55  31  23
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
