Industrial relay modules and solid-state relays
Industrial relay modules and solid-state relays
Industrial relay modules and solid-state relays – Overview
RIDERSERIES – Overview
RIDERSERIES – Relay modules
RIDERSERIES FG – Overview
RIDERSERIES FG – Relay modules
RS-SERIES – Relay modules
RSO-SERIES – Solid-state relays
B.2
B.4
B.6
B.44
B.46
B.48
B.58
1327250000 – 2012/2013
B.1
Industrial relay modules and
solid-state relays
B

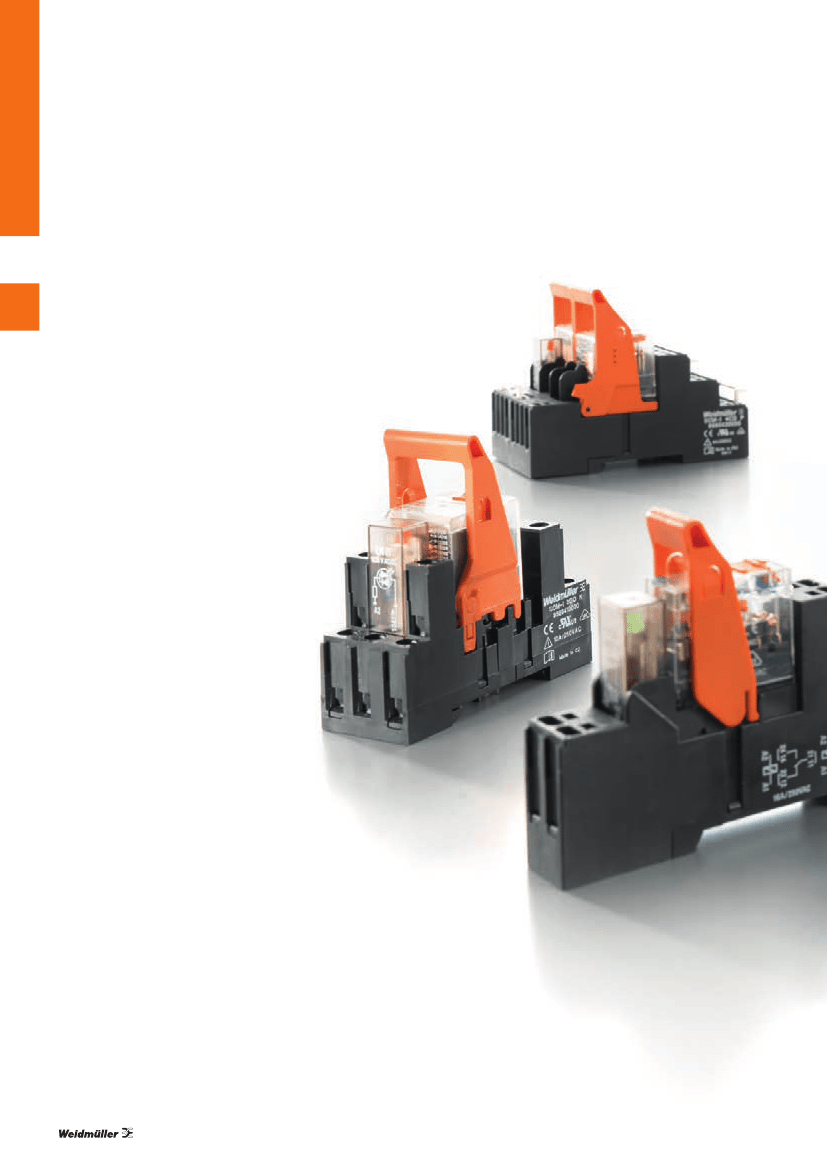

Industrial relay modules and solid-state relays – Overview
Industrial relay modules and
solid-state relays
Industrial relay module and solid-state relay
with the proven connection technology
Easy handling and safe connections
Weidmüller‘s relay bases are remarkable for their secure
connection systems and their ease of use during wiring and
installation. Pluggable cross-connection and the extra-quick
PUSH IN connection help you to further reduce wiring
times. In combination with the established relay technology,
Weidmüller‘s industrial relays and solid state relays provide
users with excellent reliability and service convenience.
Whether electro-mechanical or electronic, our extensive
choice of relay modules and solid-state relays provides
the proper solution for all of your industrial application
needs.
B
B.2
1327250000 – 2012/2013

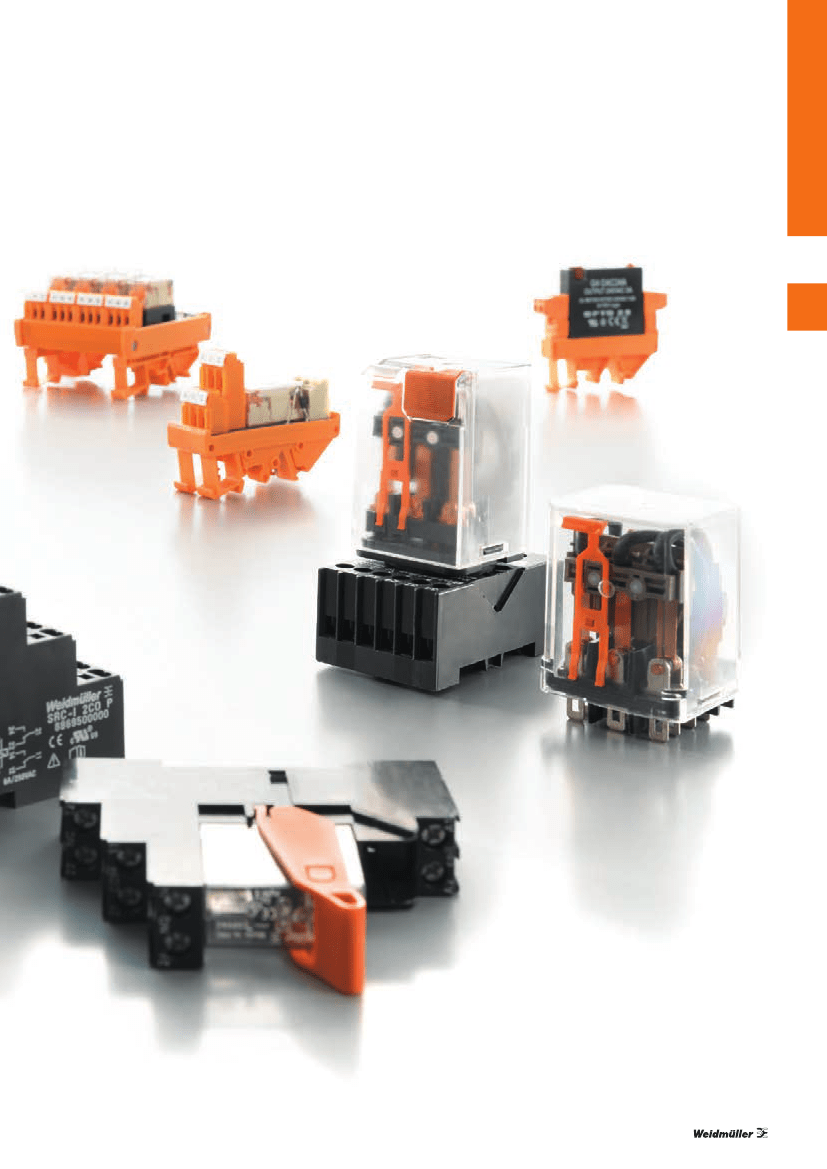

Industrial relay modules and solid-state relays – Overview
1327250000 – 2012/2013
B.3
Industrial relay modules and
solid-state relays
B

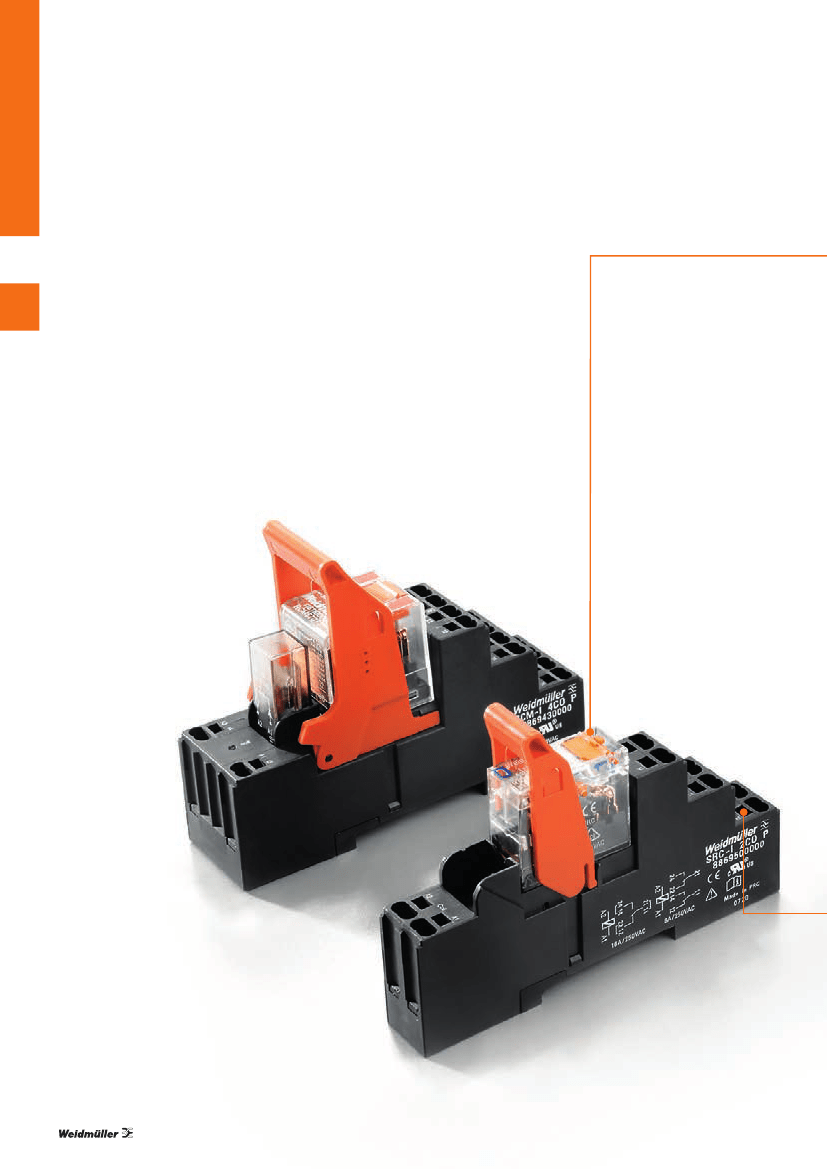

RIDERSERIES – Overview
Industrial relay modules and
solid-state relays
Coupling modules - the industrial standard
Relay module with 1 to 4 CO contacts
ä
B
The RIDER SERIES and its RCI, RCM, RRD and RPW product lines have been
successfully integrated into the entire Weidmüller line of relay products. This
modular-designed product series formally complies with international standards.
A variety of pluggable versions are available with from one to four CO contacts
and your choice of connection method.
Our innovative relay bases with PUSH IN connection systems are available for
both the RCI/RCL and RCM product lines. PUSH IN technology is safe and easy to
use and it allows you to reduce costs with less wiring time. The relay modules are
designed for industrial applications and feature sturdy relay pins and industrial-
standard pinning. A mechanically operated, stay-down test button is integrated
into the design. It enables switching statuses to be simulated during initial
commissioning. Additional product features include LED status indicators and
free-wheel diodes (DC).
Our relay kits are particularly
convenient to use. They include
the relay module with status
display and the base with
ejection lever.
The kits are delivered fully
assembled and with completely
tested functionality. This saves
time during assembly and
educes the number of products
required.
B.4
1327250000 – 2012/2013

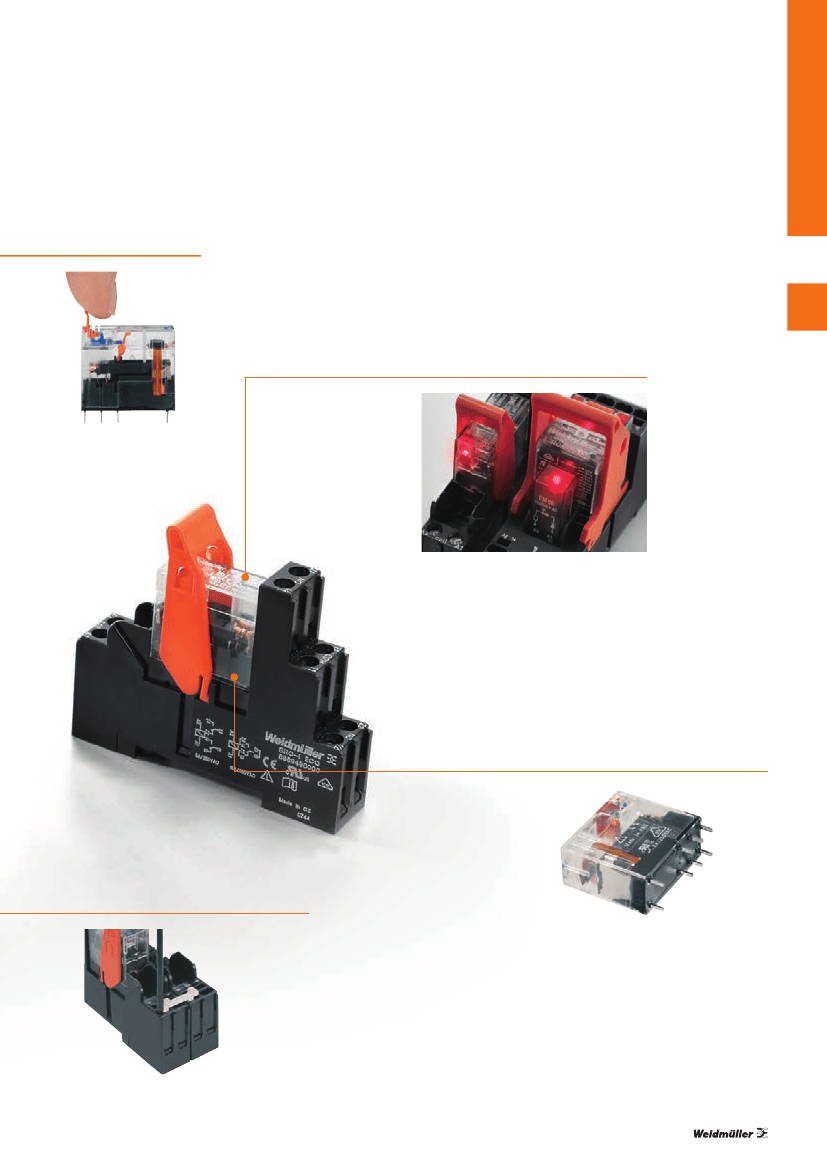

RIDERSERIES – Overview
Simple
The stay-down test button
simplifies commissioning and
service work
Customised
Suppressor circuitry and LED can be integrated
into a relay module or as a pluggable module at
the base
Safe
The heavy-duty industrial pins ensure
a reliable connection
Saves time
No-screw PUSH IN connections and
cross-connections can reduce wiring time by
more than 50 %
1327250000 – 2012/2013
B.5
Industrial relay modules and
solid-state relays
B
