35WA2200MEFCGC18X20 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 35WA2200MEFCGC18X20

Preview

35WA2200MEFCGC18X20: DescriptionAluminum Electrolytic Capacitor, Aluminum (wet); CategoryPassive components capacitor; File Size177KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35WA2200MEFCGC18X20 Overview

Aluminum Electrolytic Capacitor, Aluminum (wet)

35WA2200MEFCGC18X20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Objectid	1949963320
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.13
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.77 mA
length	20 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Radial
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1500 mA
surface mount	NO
Delta tangent	0.18
Terminal pitch	7.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

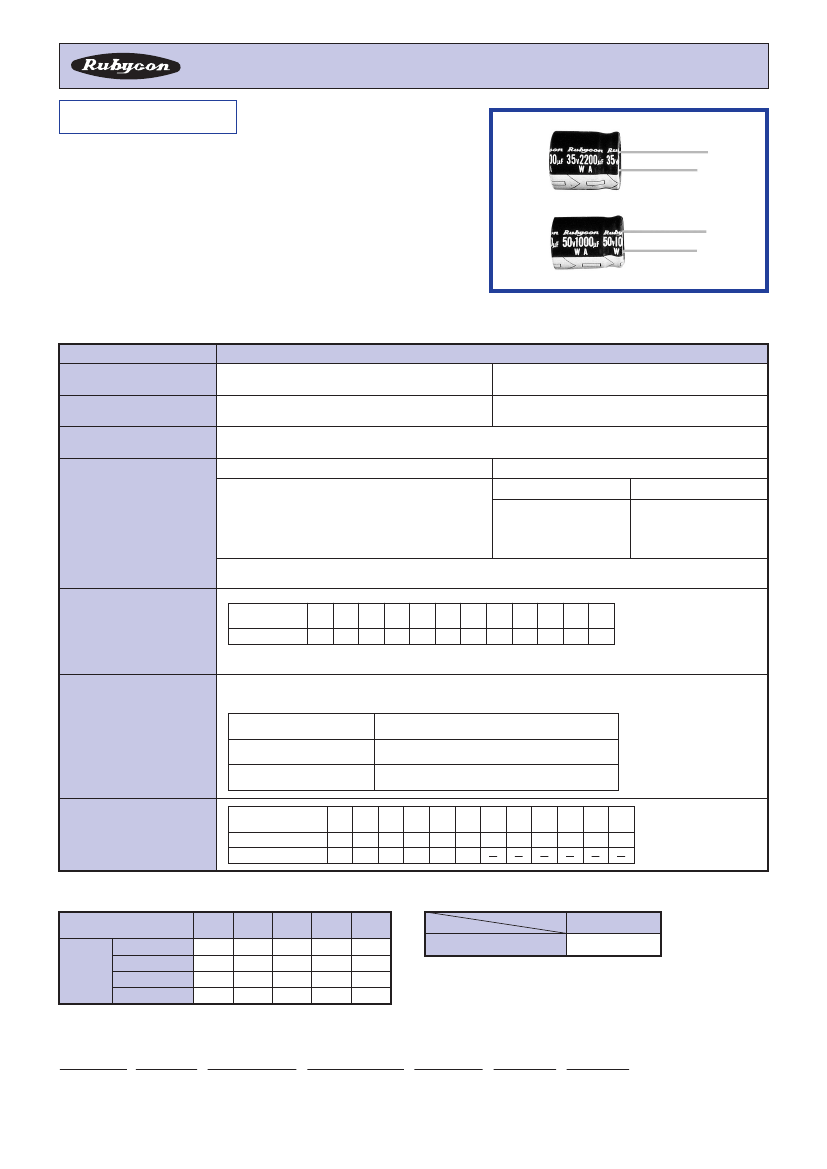

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

WA

SERIES

85℃ Low proﬁle.

◆FEATURES

・

9∼25mm height.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−40∼＋85℃

6.3∼250V.DC

±20%(20℃, 120Hz)

6.3∼50V.DC

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

−25∼＋85℃

350∼450V.DC

160∼450V.DC

CV≦1000

CV＞1000

Leakage Current(MAX)

I=0.1CV＋40

μ

A (1minute)

I=0.04CV＋100

μ

A (1minute)

I=0.03CV＋15

μ

A (5minutes)

I=0.02CV＋25

μ

A (5minutes)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

6.3 10 16 25 35 50 160 200 250 350 400 450

(V)

tanδ

0.26 0.22 0.18 0.16 0.14 0.12 0.20 0.20 0.20 0.20 0.20 0.20

(20℃, 120Hz)

Dissipation Factor(MAX)

(tanδ)

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for 2000 hours at 85℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

6.3

(V)

Z(−25℃)/Z(20℃) 6

Z(−40℃)/Z(20℃) 12

Within ±25％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Low Temperature Stability

Impedance Ratio(MAX)

10

4

10

16

4

8

25

3

6

35

2

4

50 160 200 250 350 400 450

2

3

5

7

(120Hz)

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

◆OPTION

10k≦

1.50

1.20

1.15

PET Sleeve

Code

60 50） 120

（

1.0

500

1.20

1.10

1.05

1k

1.30

1.15

1.10

1.5∼6.8μF 0.65

10∼68μF

0.8

Coeﬃcient

100∼1000μF 0.8

2200∼10000μF 0.8

EFC

◆PART NUMBER

□□□

Rated Voltage

WA

Series

□□□□□

Capacitance

Ｍ

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size
