Part Number

Search

54F821L1MQB

Description
Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CQCC28, CERAMIC, LCC-28
Categorylogic    logic
File Size67KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

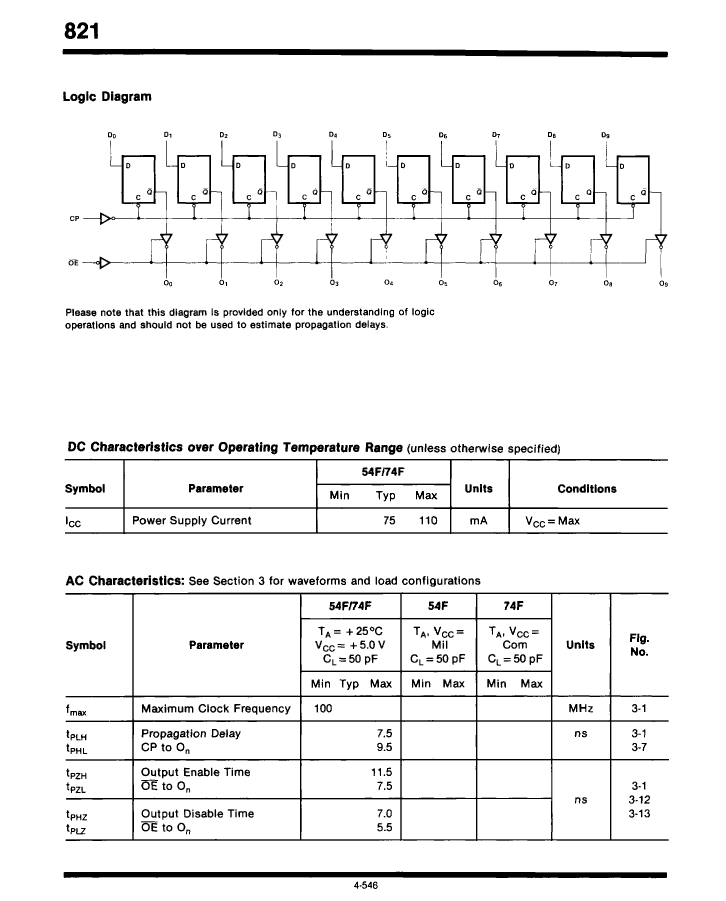

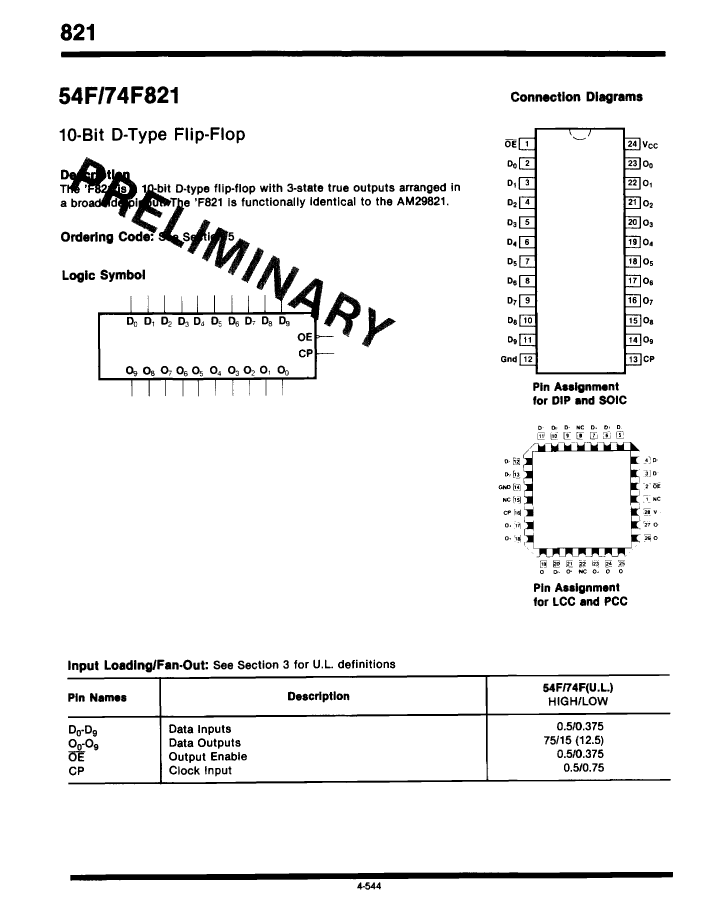

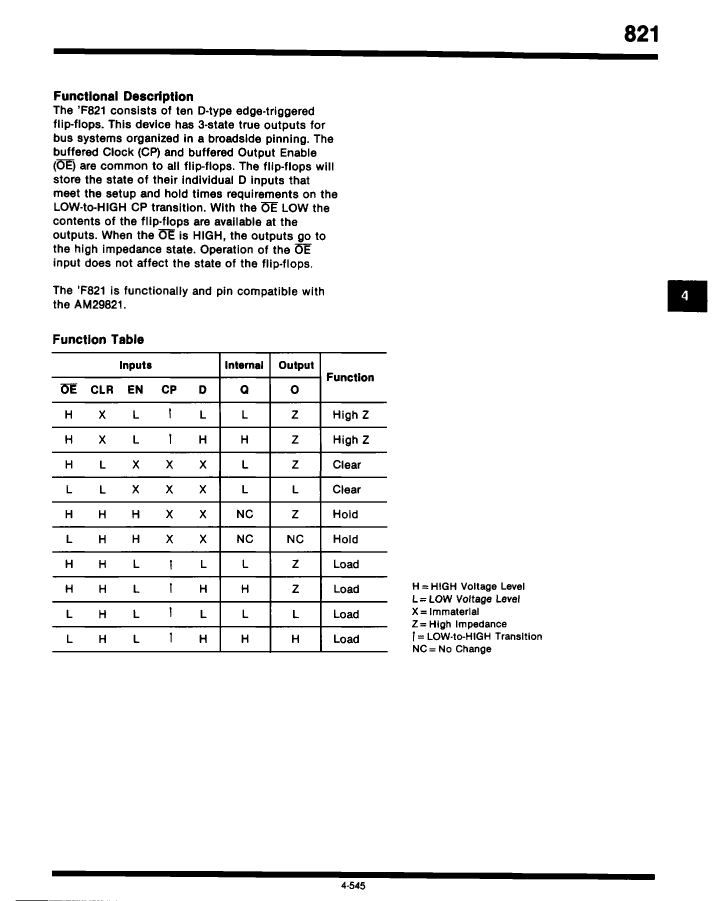

54F821L1MQB Overview

Bus Driver, F/FAST Series, 1-Func, 10-Bit, True Output, TTL, CQCC28, CERAMIC, LCC-28

54F821L1MQB Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeQLCC
package instructionQCCN, LCC28,.45SQ
Contacts28
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeS-CQCC-N28
JESD-609 codee0
length11.43 mm
Logic integrated circuit typeBUS DRIVER
Number of digits10
Number of functions1
Number of ports2
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeQCCN
Encapsulate equivalent codeLCC28,.45SQ
Package shapeSQUARE
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)9.5 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height2.54 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width11.43 mm
Base Number Matches1
