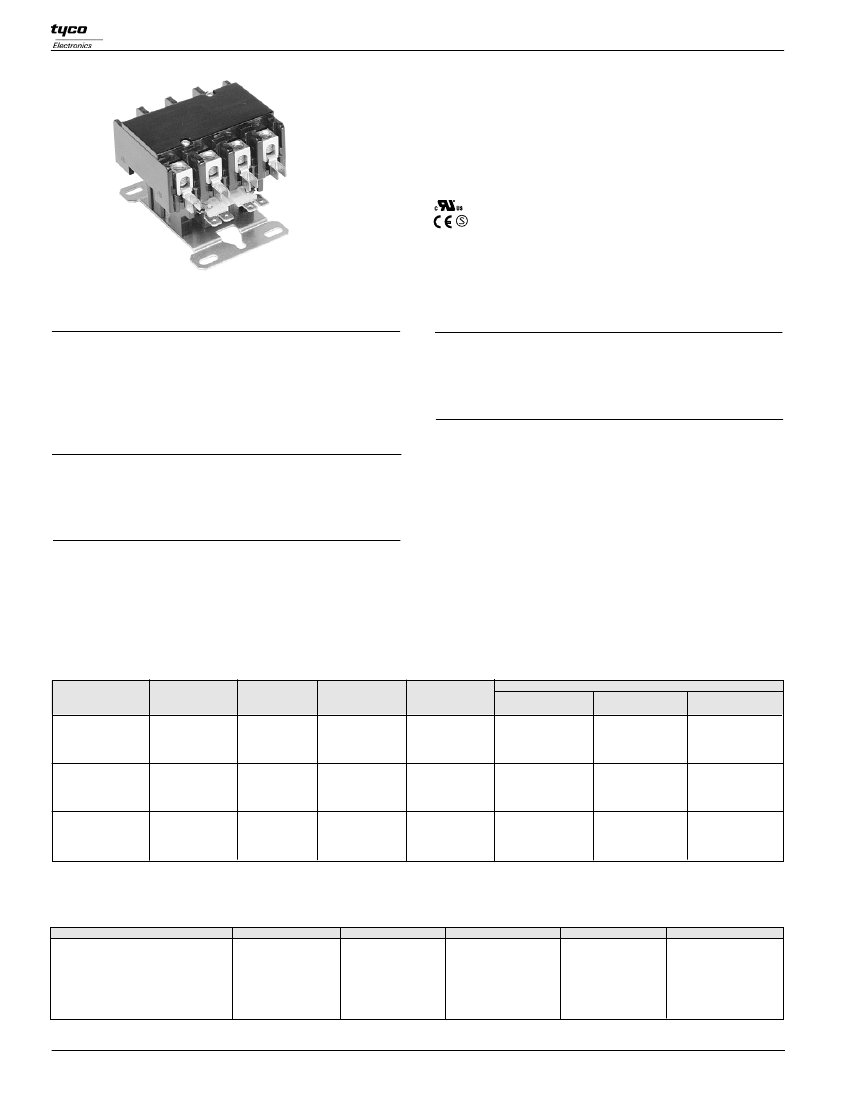

Catalog 1308242
Issued 3-03
PRODUCTS UNLIMITED
Model 93 - 3100
series
Definite Purpose Contactor
4-pole, 25-40 FLA
AC Coil
File E75492
File EN60947-4-1:1991
IEC 947-4-1
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• 4-pole contactors.
• Convenient “universal” mounting plate.
• Optional interlock/auxiliary switches available.
Environmental Data
Temperature Range:
Storage and Operating: -40°C – +65°C.
Flammability:
UL 94-HB housing.
Mechanical Data
Contact Data @ 25°C
Arrangements:
4 Form X (4PST-NO-DM).
Maximum Ratings:
See Contact Ratings Table.
Material:
Silver Cadmium Oxide.
Contact Termination:
25, 30 FLA Models
Type:
#10-32 Screw with quad 0.250” (6.35 mm) quick connects.
Wire Size:
16-8 AWG (Stranding must be split for 8 AWG wire.)
Tightening Torque:
25 in.-lbs.
40 FLA Models
Type:
Box Lug with dual 0.250” (6.35 mm) quick connects.
Wire Size:
14-4 Cu/Al AWG
Tightening Torque:
40 in.-lbs.
Coil Termination:
Dual 0.250” (6.35 mm) quick connects, standard.
A 0.250” quick connect and a #6-32 screw, optional.
Arc Cover:
Optional on 25-30 FLA models, standard on 40 FLA models.
Weight:
24 oz. (683 g) approximately
Coil Data @ 25°C
Voltage:
24 - 480 VAC, 50/60 Hz. See Coil Data Table below.
Insulation Class:
UL Class B (130°C).
Duty Cycle:
Continuous.
Contact Ratings
Full
Load
Amps
25
Number
of
Poles
3
Line
Voltage
240/277
480
600
240/277
480
600
240/277
480
600
Locked
Rotor
Amps
150
125
100
180
150
120
240
200
160
Resistive
Amps
Rating
35
35
35
40
40
40
50
50
50
Voltage
110/120
200/208
240/277
480
110/120
200/208
240/277
480
110/120
200/208
240/277
480
Maximum Horsepower
Single
Phase
2
-
5
-
2
-
5
-
3
-
7.5
-
Three
Phase
-
7.5
10
15
-
10
10
15
-
10
10
20
30
3
40
3
Coil Data
Nominal Coil Voltage
Maximum Pickup Volts
Drop-Out Volts Range
Nominal Inrush VA @ 50 Hz
Nominal Inrush VA @ 60 Hz
Nominal Sealed VA @ 50 Hz
Nominal Sealed VA @ 60 Hz
Nominal DC Resistance - Ohms
24
19.2
6 -15
68
60
14
9
5
120
93
20 - 70
68
60
14
9
148
208/240
177
40 - 140
68
60
14
9.5
520
277
220
50-185
58
52
11
9.5
750
480
384
150 - 270
48
52
11
9
2700
Dimensions are shown for
836
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Catalog 1308242
Issued 3-03
PRODUCTS UNLIMITED
Ordering Information
Typical Part No.
B
3100
-
40
Q
9
999
1. Series:
3100 = 4-pole, 25-40 FLA contactor
2.Packaging:
Y = Individual Pack
- = Bulk Pack
A-ZZZ = Customer specific information (assigned by factory)
3.Pole Configuration:
40 = 4 Form X (4PST-NO-DM)
4.Coil Voltage (50/60 Hz.):
Q = 24VAC
U = 208/240VAC H = 480VAC
J = 120VAC, molded
M = 277VAC, molded
T = 120VAC V = 277VAC
I = 24VAC, molded K = 208/240VAC, molded W = 480VAC, molded
5.Contact Ratings (Inductive):
8 = 25 FLA
9 = 30 FLA
10 = 40 FLA
6.Customer ID Suffix:
999 = Standard Model
000-998 = Factory assigned customer ID
7. Option Code:
Leave Blank = No customer-specific options
A - ZZ = Factory assigned customer-specific options.
Standard part numbers listed below are more likely to be available from stock.
None at present.

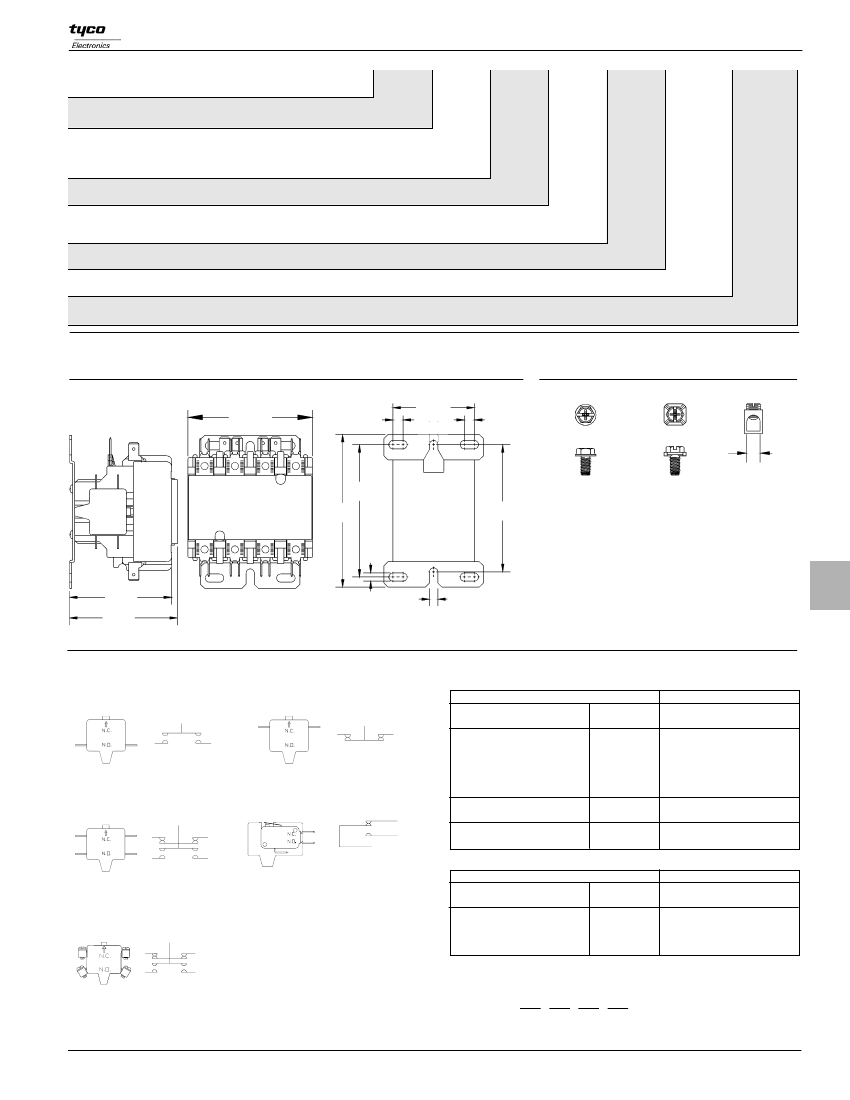

Outline Dimensions
3.055
(77
.6)
.250
(6.35)
2.00
(50.8)
.250
(6.35)
Termination Options
.253
(6.43)
3.25
(82.55)
3.75
(95.25)
3.125
(79.38)
Standard on
25, 30 FLA
#10-32 Combination
Phillips, Slotted &
5/16 Hex Head
#12 Washer
Special on
25, 30 FLA
#10-32 Sems
Screw
with Pressure
Plate
Standard
on 40 FLA
Lug accepts 14-4
Cu/Al AWG
2.493
(63.3)
2.633
(66.9)
.203 TYP
(5.156)
.203 TYP
(5.156)
ORDERING NOTE:
“Standard” terminals need not be specified
in the “Ordering Information” chart above. “Special” terminals
are offered on a special order basis. Special order items may be
subject to extended leadtimes and significant minimum order
quantities. Your Tyco Electronics sales engineer must consult
with the factory before providing price and availability
information regarding items with these options.
Shown with Optional Auxiliary Switch
Auxiliary Switches
Various interlock / auxiliary switches are available for the Model 93 contactor.
Equipped with 0.250” (6.35) Quick Connect Terminals
Factory Modifications
Description
Contact Config.
NO
NC
Single unit interlock
1
0
configurations listed.
0
1
Maximum of two. Must
1
1
be same polarity.
2
0
See footnote (1) for ratings.
0
2
2
2
SPDT Circuit
1
1
See footnote (2) for ratings.
2
2
SPDT Dry Circuit, 0.1 amp max. 1
1
Gold Flashed Contacts
2
2
Field Added Kits
Kit Catalog
Number of
Number
Kits Required
34220-303N
1
34220-331N
1
34220-332N
1
34220-303N
2
34220-331N
2
34220-332N
2
34220-337N
1
34220-337N
2
34220-341N
1
34220-340N
1
NORMALLY OPEN
-303 STYLE
NORMALLY CLOSED
-331 STYLE
NORMALLY OPEN & CLOSED
-332 STYLE
SPDT
-337 & -341 STYLE
Equipped with #6-32 Screw Terminals & Saddle Clamps
Factory Modifications
Field Added Kits
Description
Contact Config.
Kit Catalog
Number of
NO
NC
Number
Kits Required
Single unit interlock
1
0
34220-342N
1
configurations listed.
0
1
34220-343N
1
Maximum of two. Must
1
1
34220-344N
1
be same polarity. (note 1)
Footnotes: Ratings of Auxiliary Interlocks / Switches
(1) Contact Rating Single Circuit NO or NC
(2) Contact Rating SPDT (337):
and two circuit NO/NC:
10A, 1/3 HP 125 or 250 VAC
,
1/2A, 125 VDC; 1/4A, 250 VDC:
120V 240V 480V 600V
Break
3.0A 1.5A 0.75A 0.6A
4A 120 VAC on Lamp Load
Make
30A 15A 7.5A 6A
Continuous 10A 10A 10A 10A
W/ #6-32 SCREW & SADDLE CLAMP
-344 STYLE
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
