168.6585.4202: DescriptionElectric Fuse, 2A, 32VDC, 1000A (IR), Through Hole, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size801KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

168.6585.4202 Overview

Electric Fuse, 2A, 32VDC, 1000A (IR), Through Hole, ROHS COMPLIANT

168.6585.4202 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000A
body width	3.8 mm
body height	8.5 mm
Body length or diameter	11.9 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	3 J
Installation features	THROUGH HOLE
method of packing	BULK
physical size	11.9mm x 3.8mm x 8.5mm
Rated breaking capacity	1000 A
Rated current	2 A
Rated voltage (DC)	32 V
Guideline	UL
surface mount	NO
Terminal surface	TIN
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

Blade Fuses

FP1 MINI

®

STYLE PCB FUSE RATED 32V

Speciﬁcations

Insulating body:

Cover:

Out of thermoplastic (UL 94-V0, heat-resistant)

Out of thermoplastic (V0, transparent),

Visible melting-element

Shunt: Red, not transparent

Soldering pins

Copper alloy, gal. Sn plated

1000 A @ 32 VDC

UL 248 Special Purpose Fuses

File No. E10480

Terminals:

Interrupting Rating:

Complies with:

cULus Recognized:

Ordering Information

Part Number

168.6585.xxx2

168.6585.xxx6

Package Size

1500

100

Description

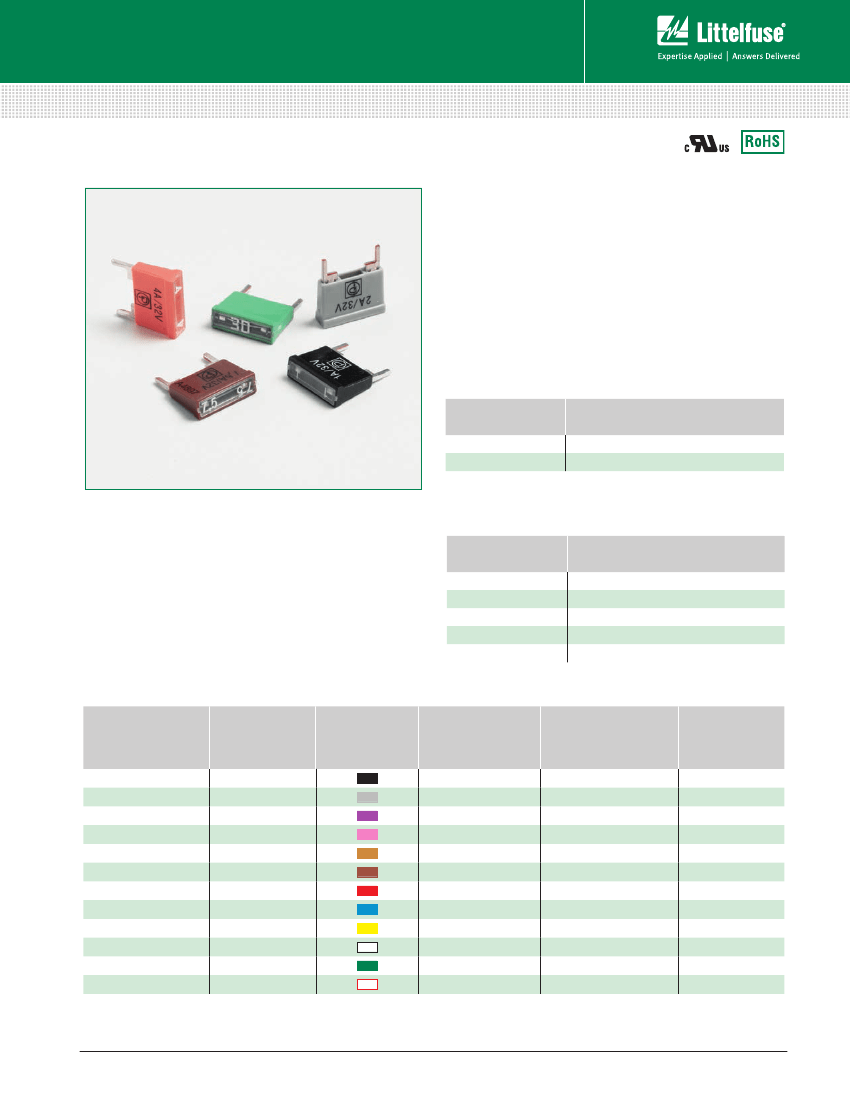

The FP1 is a MINI

®

style fuse for direct trough-hole pcb soldering.

The FP1 has similar performance characteristics as the standard

FK1 fuse.

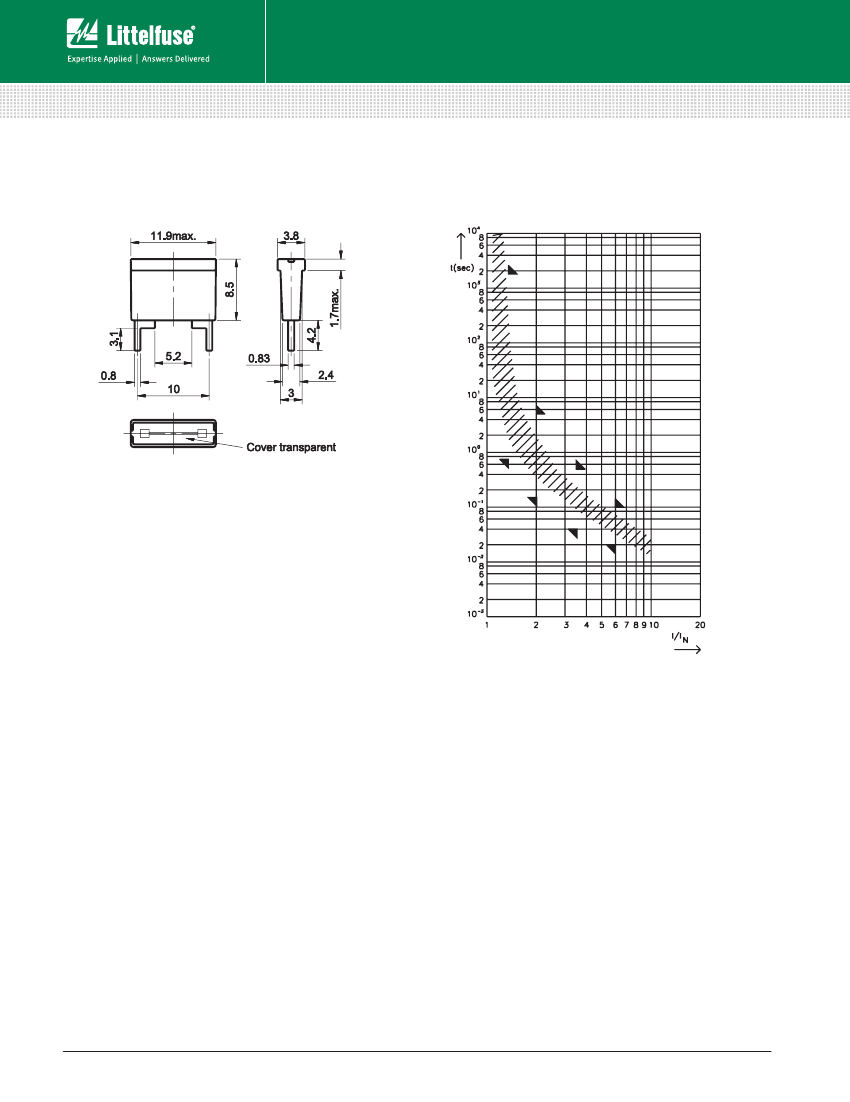

Time-Current Characteristics

% of Rating

110

135

200

350

600

Opening Time Min / Max (s)

360,000 s / –

0.750 s / 1,800 s

0.150 s / 5 s

0.040 s / 0.500 s

0.020 s / 0.100 s

Ratings

Part Number

168.6585.410_

168.6585.420_

168.6585.430_

168.6585.440_

168.6585.450_

168.6585.475_

168.6585.510_

168.6585.515_

168.6585.520_

168.6585.525_

168.6585.530_

160.6585.0002

Current Rating

1A

2A

3A

4A

5A

7.5 A

10 A

15 A

20 A*

25 A*

30 A*

Shunt*

Housing Color

Typ. Voltage Drop

Littelfuse max.

135 mV

110 mV

105 mV

100 mV

110 mV

105 mV

100 mV

105 mV

60 mV

Cold Resistance

100 mΩ

43.0 mΩ

27.0 mΩ

21.3 mΩ

16.2 mΩ

9.70 mΩ

7.40 mΩ

4.50 mΩ

3.10 mΩ

2.60 mΩ

1.90 mΩ

1.35 mΩ

I

2

t

0.83 A²s

3.31 A²s

7.45 A²s

16.7 A²s

19.8 A²s

44.5 A²s

79.2 A²s

178 A²s

331 A²s

653 A²s

1,264 A²s

1,800 A²s

*Not mentioned in the standards

www.littelfuse.com

168.6585.4202 Related Products

	168.6585.4202	168.6585.4402	168.6585.4502	160.6585.0002
Description	Electric Fuse, 2A, 32VDC, 1000A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, 4A, 32VDC, 1000A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, 5A, 32VDC, 1000A (IR), Through Hole, ROHS COMPLIANT	Electric Fuse, 32VDC, Through Hole, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	RATED BREAKING CAPACITY AT 32 VDC: 1000A	RATED BREAKING CAPACITY AT 32 VDC: 1000A	RATED BREAKING CAPACITY AT 32 VDC: 1000A	RATED BREAKING CAPACITY AT 32 VDC: 1000A
body width	3.8 mm	3.8 mm	3.8 mm	3.8 mm
body height	8.5 mm	8.5 mm	8.5 mm	8.5 mm
Body length or diameter	11.9 mm	11.9 mm	11.9 mm	11.9 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	3 J	16 J	19 J	1800 J
Installation features	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE	THROUGH HOLE
physical size	11.9mm x 3.8mm x 8.5mm	11.9mm x 3.8mm x 8.5mm	11.9mm x 3.8mm x 8.5mm	11.9mm x 3.8mm x 8.5mm
Rated voltage (DC)	32 V	32 V	32 V	32 V
Guideline	UL	UL	UL	UL
surface mount	NO	NO	NO	NO
Terminal shape	TAB/BLADE	TAB/BLADE	TAB/BLADE	PIN WIRE
Base Number Matches	1	1	1	1
JESD-609 code	e3	e3	e3	-
method of packing	BULK	BULK	BULK	-
Rated breaking capacity	1000 A	1000 A	1000 A	-
Rated current	2 A	4 A	5 A	-
Terminal surface	TIN	TIN	TIN	-
Manufacturer's serial number	-	168	168	168
