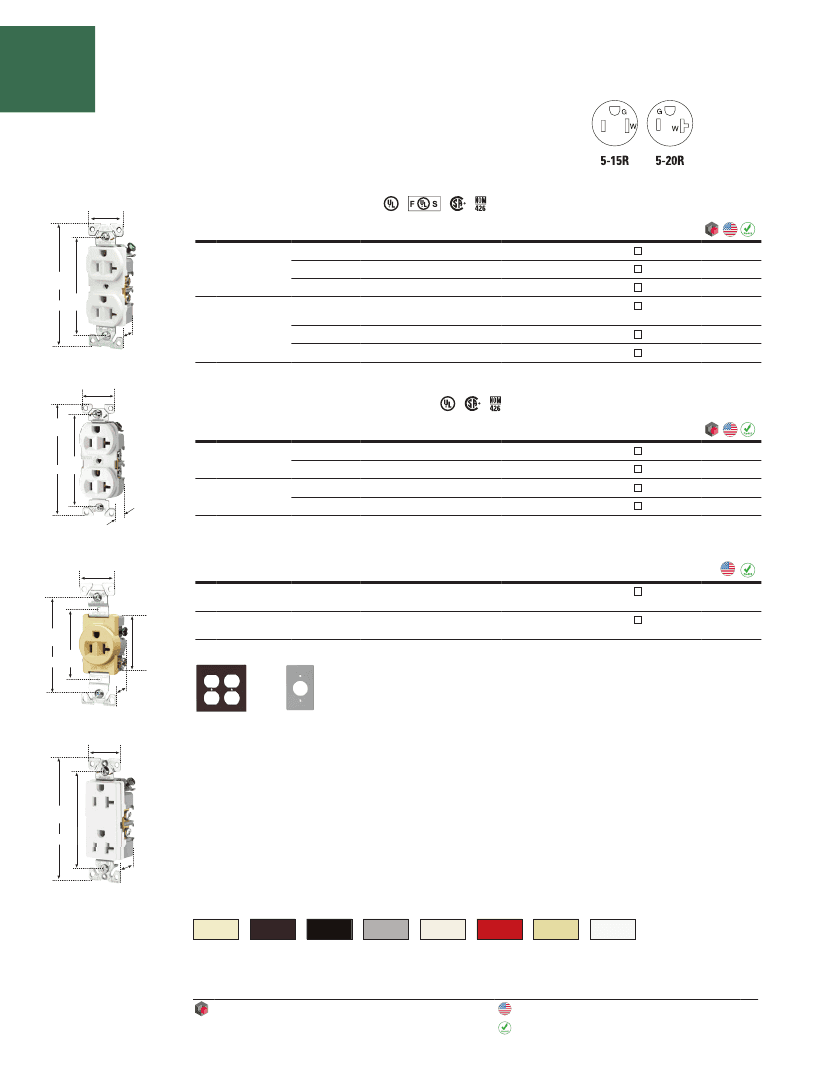

Commercial grade receptacles
Commercial grade straight blade receptacles
Product description
2-pole, 3-wire grounding
15A, 125V/AC
20A, 125V/AC
NEMA 5-15R, 5-20R
1.30"
(33.0mm)
Commercial grade receptacles
A
Rating
V/AC
NEMA
Description
Color suffix
Catalog no.
15 125
4.19"
(106.4mm)
3.28"
(83.3mm)
5-15R
Duplex receptacle, back & side wire
Duplex receptacle, side wire
Single receptacle, side wire
A, B, BK, GY, LA, V, W
A, B, BK, GY, LA, V, W
B, BK, LA, V, W
A, B, BK, GY, LA,
RD, V, W
A, B, BK, GY, LA, V, W
A, B, BK, LA, V, W
BR15__
CR15__
Δ
817__*
BR20__
CR20__
Δ
1877__*
•
•
•
•
•
•
• •
•
• •
• •
•
•
20 125
0.82"
(20.8mm)
5-20R
Duplex receptacle, back & side wire
Duplex receptacle, side wire
Single receptacle, side wire
BR20
1.24
(31.5mm)
* Not Fed Spec, cULus Listed
Δ
Decorator commercial grade receptacles
4.00"
(101.6mm)
A
Rating
V/AC
NEMA
Description
Color suffix
Catalog no.
3.28"
(83.3mm)
15 125
20 125
0.79"
(20.1mm)
†
5-15R
5-20R
Duplex receptacle, back & side wire
Single receptacle, back & side wire
Duplex receptacle, back & side wire
Single receptacle, back & side wire
B, BK, GY, LA, V, W
V, W
A, B, BK, GY, LA, V, W
B, V, W
6252__
†
6250__
6352__
6350__
†
•
•
•
•
• •
• •
• •
• •
Not NOM cert
CR20
1.31"
(33.3mm)
Accessories for construction grade 5-15 & 5-20 receptacles
Description
Color suffix
Catalog no.
2-Gang standard size duplex receptacle wallplate
1-Gang mid-size single receptacle wallplate, 1.4" hole
3.28"
(83.3mm)
2.38"
(60.3mm)
2.07"
(52.6mm)
A, B, BK, GY, LA,
RD, V, W
A, B, BK, GY, LA,
RD, V, W
5150__
PJ7__
• •
•
1877
1.32"
(33.5mm)
0.83"
(21.1mm)
5150B
PJ7GY
4.19"
(106.4mm)
3.28"
(83.3mm)
6352
0.84"
(21.3mm)
Color ordering information:
For ordering devices, include Catalog no. followed by the Color suffix: A (Almond), B (Brown), BK (Black), GY (Gray), LA (Light Almond),
RD (Red), V (Ivory), W (White)
A
B
BK
GY
LA
RD
V
W
(Almond)
(Brown)
(Black)
(Gray)
(Lt. Almond)
(Red)
(Ivory)
(White)
Specification information:
Commercial receptacles: A-38
Compliances, specifications and availability are subject to change without notice.
Build-to-spec customizable devices - Page A-6
Indicates NAFTA compliant - Page Q-30
RoHS compliant – Page Q-30
A-20
EATON
2014 Arrow Hart Buyers Guide
www.eaton.com
www.arrowhart.com
