35NSKV2.2M4X5.5 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 35NSKV2.2M4X5.5

35NSKV2.2M4X5.5: Descriptioncap alum 2.2uf 35v 20% smd; CategoryPassive components capacitor; File Size108KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

35NSKV2.2M4X5.5 Overview

cap alum 2.2uf 35v 20% smd

35NSKV2.2M4X5.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1717
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.00385 mA
Manufacturer's serial number	NSKV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	8.4 mA
size code	1717
surface mount	YES
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	FLAT
Base Number Matches	1

Preview

Download Datasheet

View All

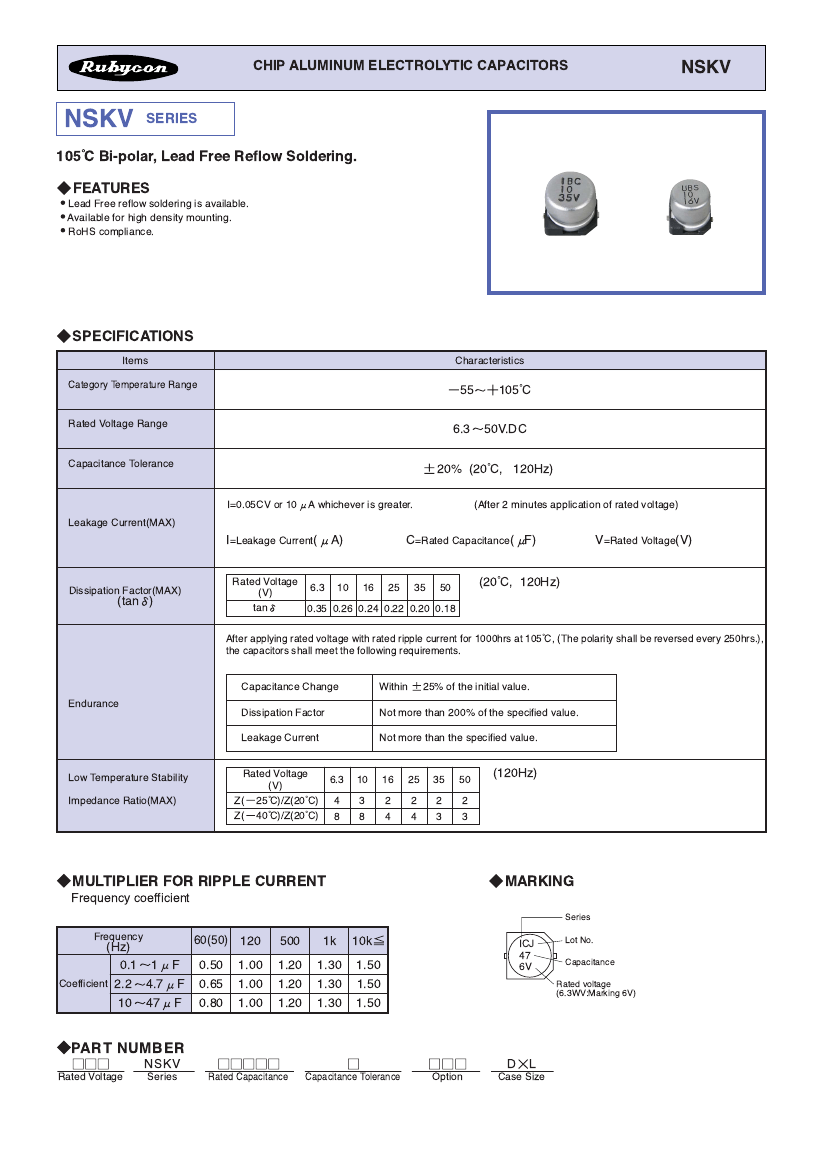

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

NSKV

SERIES

105ûC Bi-polar, Lead Free Reflow Soldering.

Lead Free reflow soldering is available.

Available for high density mounting.

RoHS compliance.

FEATURES

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

I=0.05CV or 10 A whichever is greater.

Characteristics

105ûC

6.3 50V.DC

20% (20ûC, 120Hz)

(After 2 minutes application of rated voltage)

Leakage Current(MAX)

=Leakage Current

( A)

=Rated Capacitance

( F)

(20ûC, 120Hz)

=Rated Voltage

(V)

Dissipation Factor(MAX)

(tan )

Rated Voltage 6.3 10 16 25 35 50

(V)

tan

0.35 0.26 0.24 0.22 0.20 0.18

After applying rated voltage with rated ripple current for 1000hrs at 105ûC, (The polarity shall be reversed every 250hrs.),

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Low Temperature Stability

Impedance Ratio(MAX)

Within 25% of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Rated Voltage 6.3 10 16 25 35 50

(V)

Z( 25ûC)/Z(20ûC) 4 3 2 2 2 2

Z( 40ûC)/Z(20ûC) 8 8 4 4 3 3

(120Hz)

Frequency coefficient

(Hz)

0.1 1 F

Coefficient

2.2 4.7 F

10 47 F

Frequency

MULTIPLIER FOR RIPPLE CURRENT

60(50)

0.50

0.65

0.80

120

1.00

500 1k 10k

1.20 1.30 1.50

MARKING

Series

ICJ

Lot No.

Capacitance

Rated voltage

(6.3WV:Marking 6V)

PART NUMBER

Rated Voltage

NSKV

Series

Rated Capacitance

Capacitance Tolerance

Option

Case Size

D L

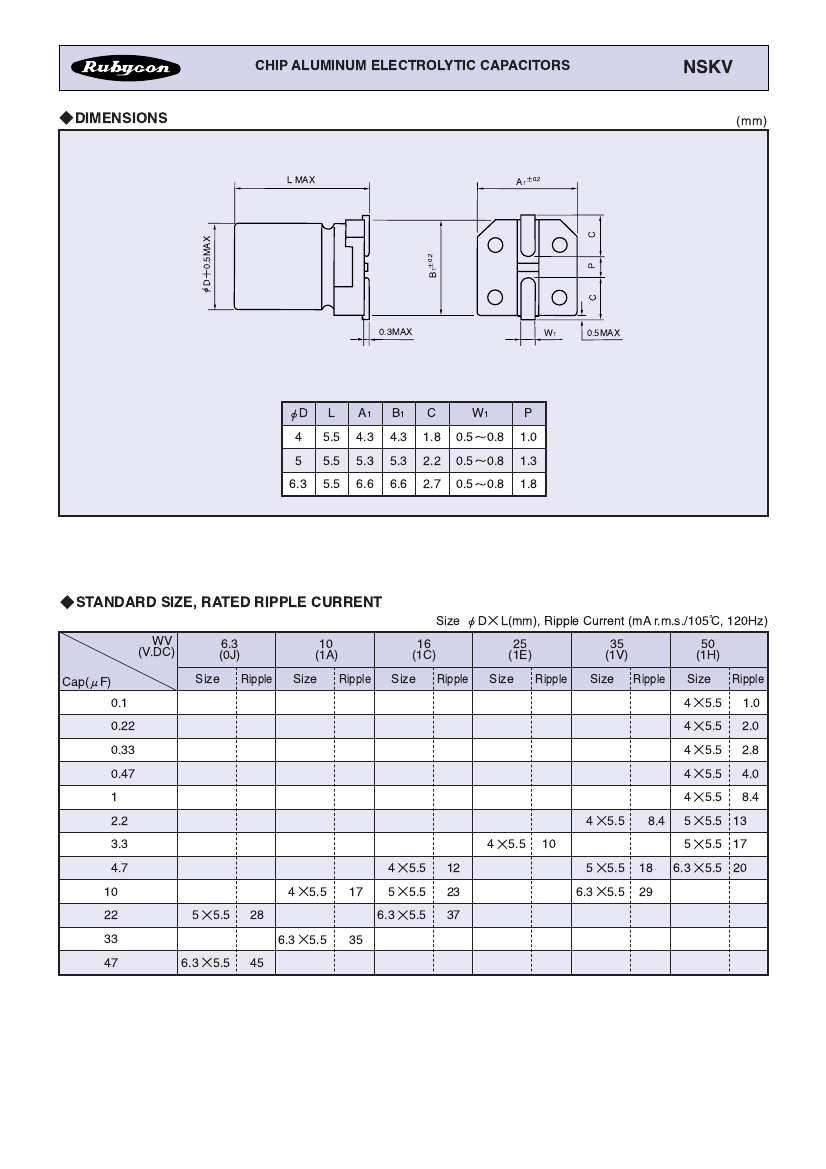

35NSKV2.2M4X5.5 Related Products

	35NSKV2.2M4X5.5	50NSKV2.2M5X5.5	50NSKV0.47M4X5.5	50NSKV1M4X5.5
Description	cap alum 2.2uf 35v 20% smd	cap alum 2.2uf 50v 20% smd	cap alum 0.47uf 50v 20% smd	cap alum 1uf 50v 20% smd
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	, 1717	, 2121	, 1717	, 1717
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	2.2 µF	0.47 µF	1 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e6
leakage current	0.00385 mA	0.0055 mA	0.001175 mA	0.01 mA
Manufacturer's serial number	NSKV	NSKV	NSKV	NSKV
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%
Number of terminals	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED	NON-POLARIZED
positive tolerance	20%	20%	20%	20%
Rated (DC) voltage (URdc)	35 V	50 V	50 V	50 V
ripple current	8.4 mA	13 mA	4 mA	8.4 mA
size code	1717	2121	1717	1717
surface mount	YES	YES	YES	YES
Delta tangent	0.2	0.18	0.18	0.18
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT	FLAT	FLAT	FLAT
Base Number Matches	1	1	1	1
