| Parameter Name | Attribute value |
| Power relay type | standard |
| Terminal limit breaking current (A) | 16 |
| Coil excitation system | Monostable, DC |
| Coil Power Rating Class (mW) | 600 – 800 |
| Coil Power Rating (DC) (mW) | 720 |
| Coil resistance (Ω) | 200 |
| Coil characteristics | UL Coil Insulation Class A |
| Coil Voltage Rating (VDC) | 12 |
| Terminal switch load (minimum) | 100mA @ 5V |
| Terminal switching voltage (max) (VAC) | 250 |
| Terminal switching voltage (max) (VDC) | 30 |
| Terminal Voltage Rating (VAC) | 250 |
| Insulation leakage between terminal and coil | 8 mm [ .315 in ] |
| Insulation initial resistance (MΩ) | 1000 |
| Initial dielectric between terminal and coil (Vrms) | 5000 |
| Insulation leakage type (mm) | 5.5 – 8 |
| Terminal limit continuous current (A) | 16 |
| Terminal limit short-time current (A) | 16 |
| Terminal limit closing current (A) | 16 |
| Open terminal insulation initial dielectric (Vrms) | 1000 |
| Coil/terminal insulation initial dielectric type (V) | 4000 |
| product weight | 13 g [ .459 oz ] |
| Insulating properties | 10000 V initial surge withstand voltage between terminals and coil |
| Terminal arrangement | 1 Form A (NO) |
| Terminal current type (A) | 10 – 20, 16 |
| Contact Current Rating (Max) (A) | 16 |
| Terminal material | AgSnO |
| Number of terminal poles | 1 |
| Terminal type | PCB-THT |
| Relay installation type | A printed circuit board |

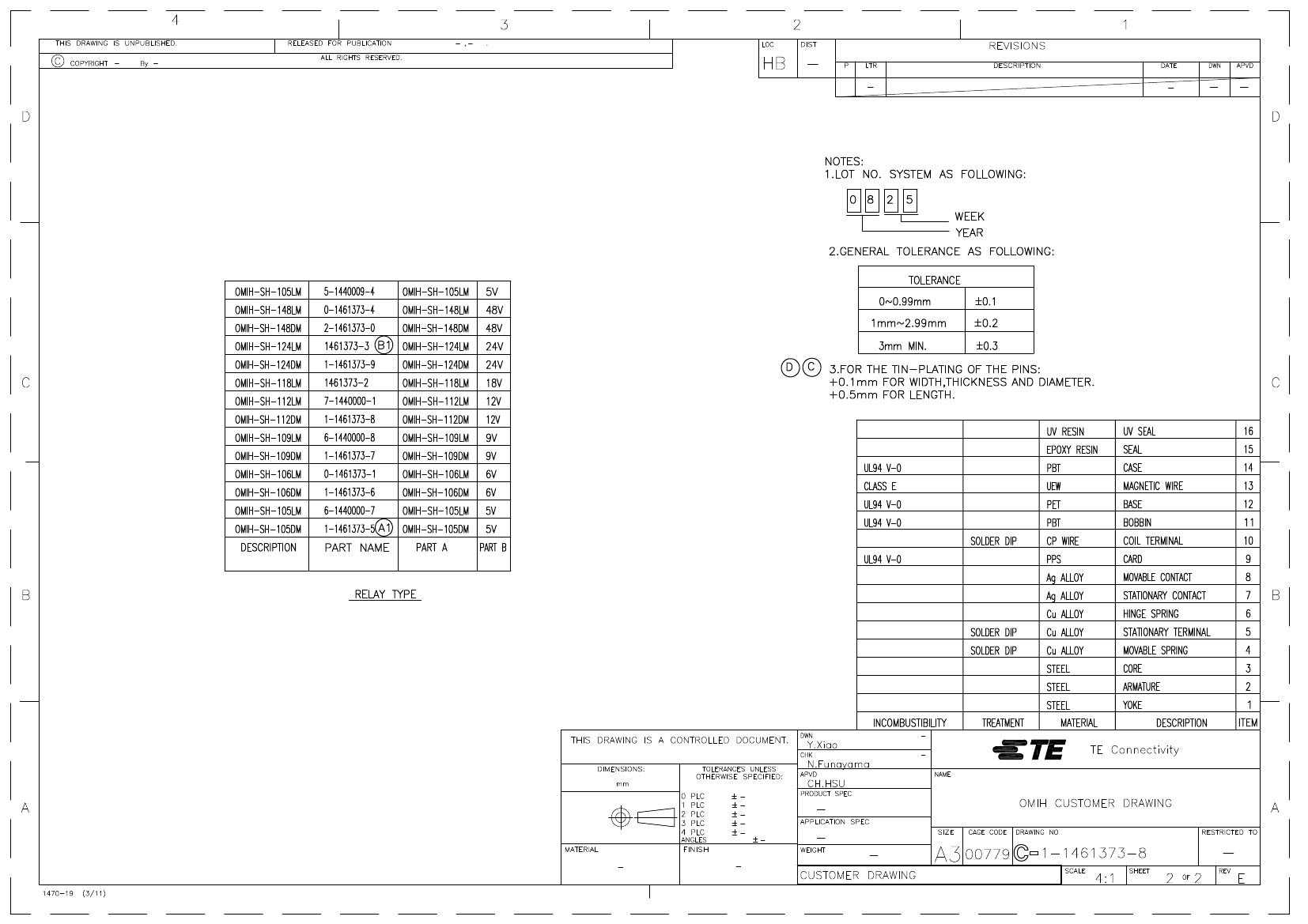

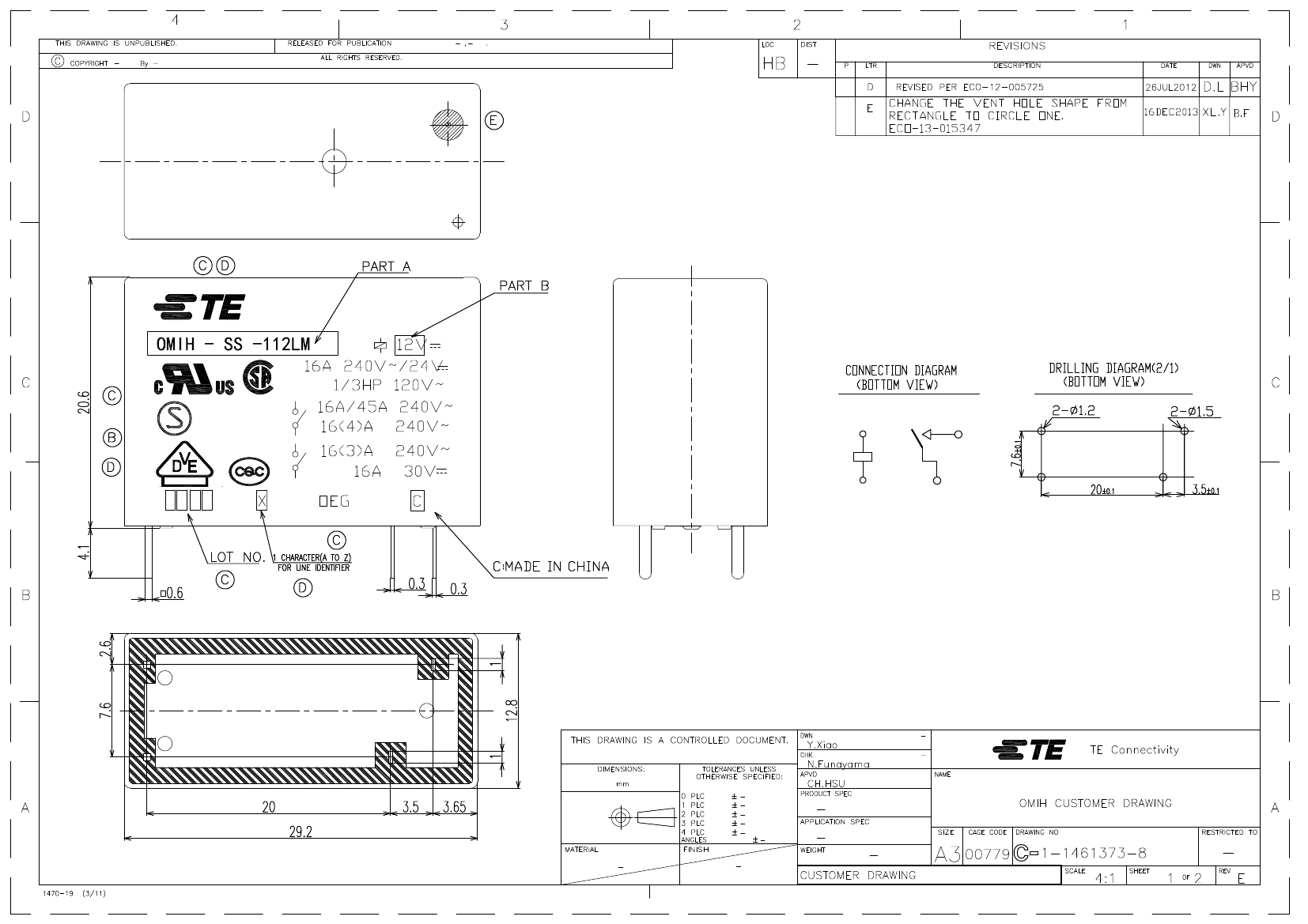

| Product height | 20.6 mm [ .811 in ] |
| Product length | 29.21 mm [ 1.15 in ] |
| Product width | 12.8 mm [ .504 in ] |
| Width type (mechanical) (mm) | 12 – 16 |
| Insulation gap between terminal and coil | 5.5 mm [ .217 in ] |
| Height type (mechanical) (mm) | 20 – 25 |
| Insulation gap type (mm) | 5 – 8 |
| Length type (mechanical) (mm) | 25 – 30 |
| Environmental Protection Category | RTIII |
| Ambient temperature (maximum) | 60 °C [ 140 °F ] |
| Ambient temperature category (°C) | 50 – 70 |
| Encapsulation method | Box & Carton |
