ALE15B18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> ALE15B18

ALE15B18: Descriptionrelay gen purpose spst 16a 18v; CategoryMechanical and electronic products relay; File Size111KB，5 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

ALE15B18 Overview

relay gen purpose spst 16a 18v

ALE15B18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panasonic
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RELEASE TIME WITH DIODE
body width	12.4 mm
body height	24.9 mm
Body length or diameter	28.6 mm
Maximum coil current (DC)	0.022 A
Coil operating voltage (DC)	13.5 V
Coil power	400 mW
Coil release voltage (DC)	0.9 V
Coil resistance	810 Ω
Maximum coil voltage (DC)	18 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@277VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	277 V
Contact/Output Power Type	AC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	ALE
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BOX
physical size	28.6mm x 12.4mm x 24.9mm
Guideline	CSA; SEMKO; TUV; UL; VDE
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

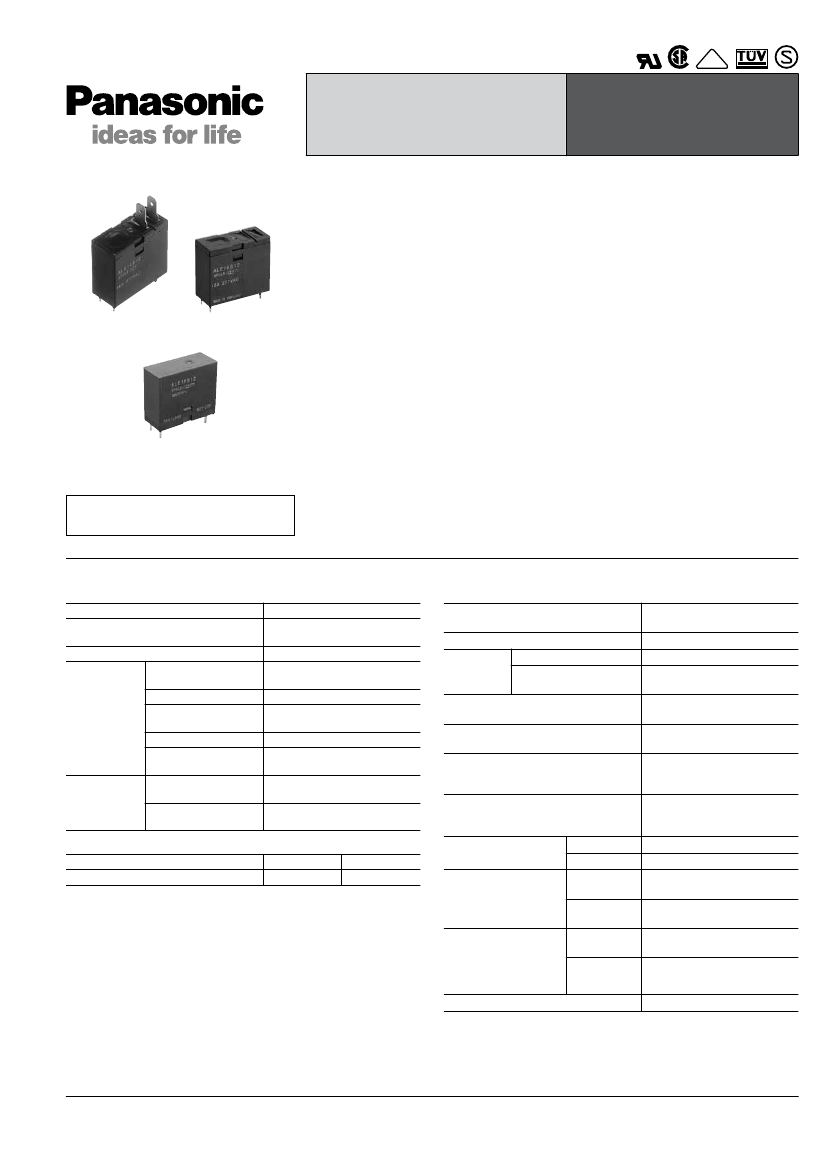

VDE

LE (ALE)

16A POWER RELAY FOR

MICRO WAVE OVEN

LE RELAYS (ALE)

7. Conforms to the various safety

standards:

UL/CSA, TÜV, VDE approved and

SEMKO available

FEATURES

1. Price competitive

having better price competitiveness (New

PCB type 400 mW only)

2. Supports magnetron and heater

loads.

Switching possible for magnetron and

heater loads found in microwave ovens.

3. Excellent heat resistance

Ambient temperature: up to 85°C

185°F

This satisﬁes UL coil insulation class B/

class F available

4. High insulation resistance

Creepage distance and clearances

between contact and coil:

Min. 8 mm

.315 inch

Surge withstand voltage: Min. 10,000V

5. Low operating power

Nominal operating power: 400mW/

200mW (High sensitive type)

6. A wide variety of types

Product line consists of 5 types with

different shapes and pins

TYPICAL APPLICATIONS

• Microwave ovens

• Refrigerators

• OA equipment

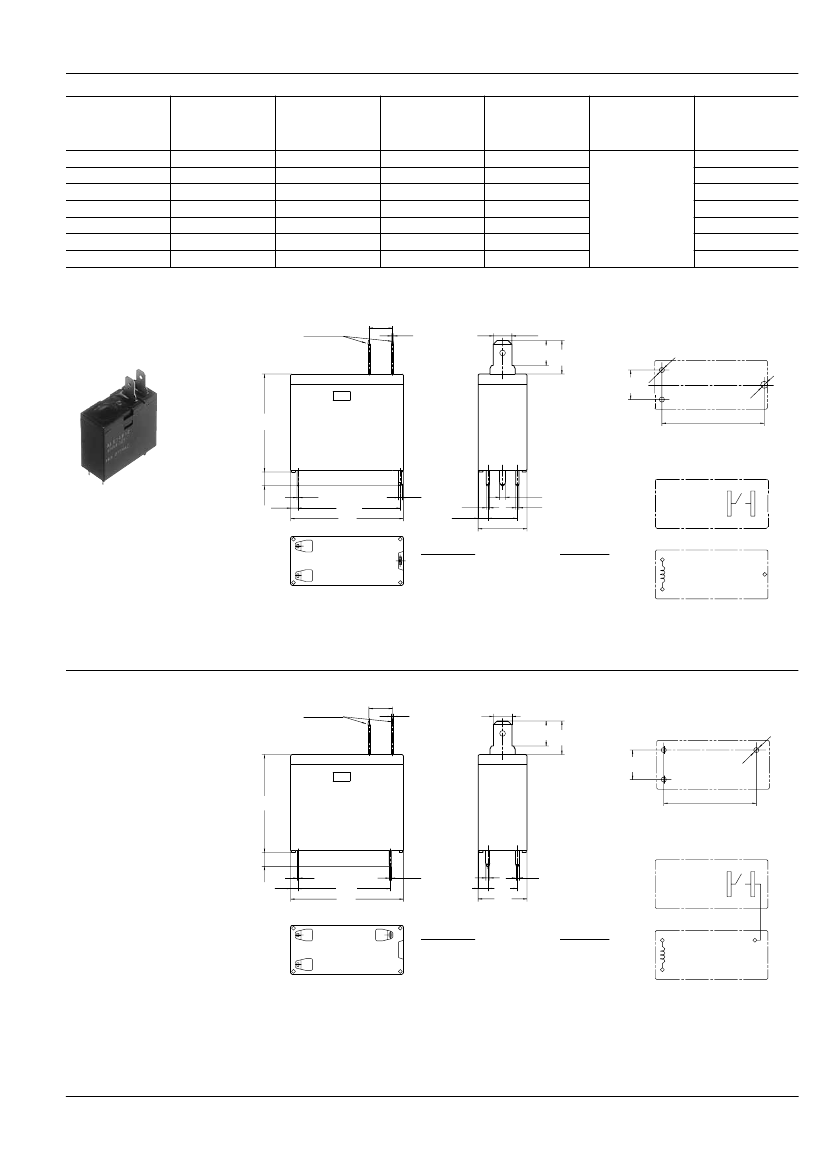

TMP type

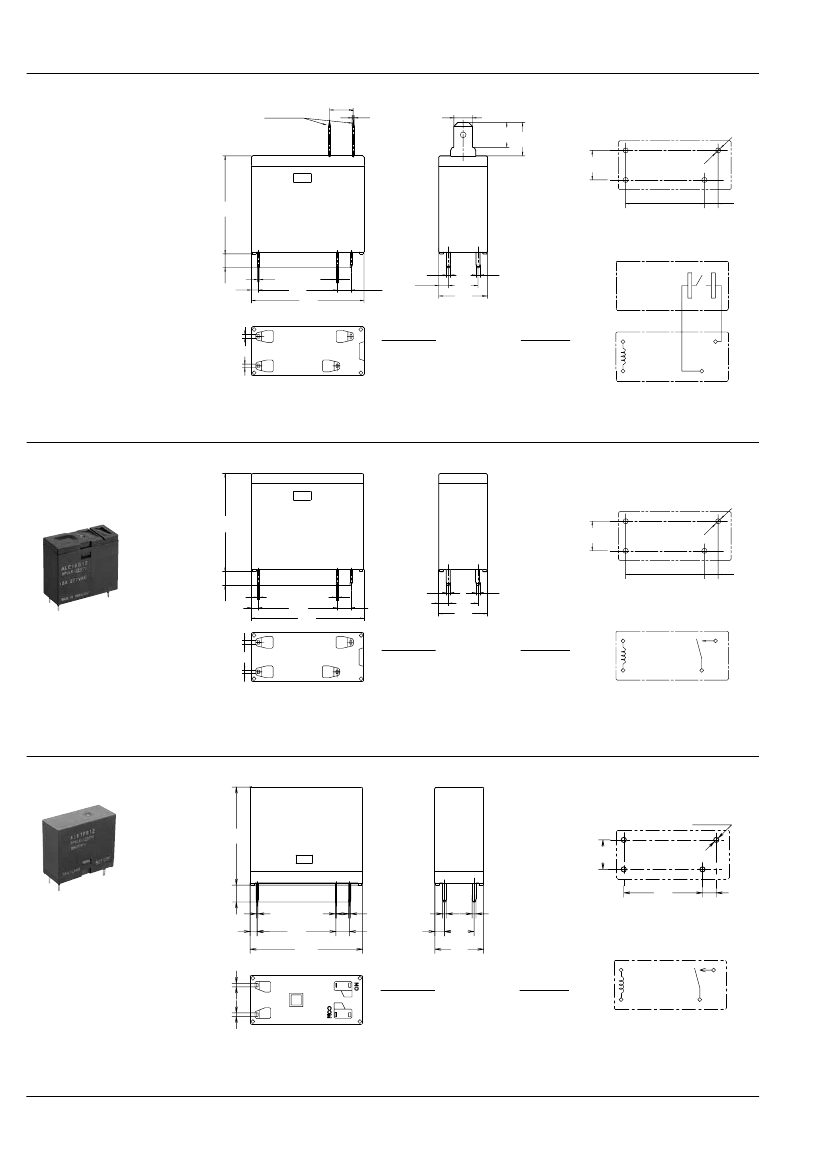

PCB type

New PCB type

RoHS Directive compatibility information

http://www.nais-e.com/

SPECIFICATIONS

Contact

Arrangement

Initial contact resistance, max.

(By voltage drop 6 V DC 1 A)

Contact material

Nominal switching

capacity

Max. switching power

Rating

Max. switching

(resistive

voltage

load)

Max. switching current

Min. switching

capacity

Mechanical

Expected life (at 180 cpm)

(min.

Electrical (at 20 cpm)

operations)

(Resistive load)

1 Form A

100 mΩ

AgSnO

type

16 A 277 V AC

4,432 V A

277 V AC

16 A

100 mA, 5 V DC

Characteristics

Max. operating speed

(at rated load)

Initial insulation resistance*

Between open contacts

Initial

breakdown Between contacts and

voltage*

coil

Initial surge voltage between contact

and coil*

Operate time*

(at nominal voltage) (at 20°C

68°F)

Release time (with diode)*

(at nominal voltage) (at 20°C

68°F)

Temperature rise (at nominal voltage)

(resistance method, contact current

16 A, 20°C

68°F)

Functional*

Shock resistance

Destructive*

Functional*

Vibration resistance

Destructive

Conditions for operation, Ambient

transport and storage*

temp.

(Not freezing and

condensing at low

Humidity

temperature)

Unit weight

20 cpm

Min. 1,000 MΩ (at 500 V DC)

1,000 Vrms for 1 min.

4,000 Vrms for 1 min.

Min. 10,000 V

Max. 20ms

Max. 25ms

(200 mW type)

Max. 55°C

Max. 45°C

(200 mW type)

Min. 200 m/s

{20 G}

Min. 1,000 m/s

{100 G}

10 to 55Hz

at double amplitude of 1.5mm

10 to 55Hz

at double amplitude of 1.5mm

–40°C to +85°C

–40°F to +185°F

5 to 85% R.H.

Approx. 17 g

.60 oz

Coil

Type

Nominal operating power

Standard

400 mW

High sensitive

200 mW

#1 This value can change due to the switching frequency, environmental conditions,

and desired reliability level, therefore it is recommended to check this with the

actual load.

Remarks

* Speciﬁcations will vary with foreign standards certiﬁcation ratings.

Measurement at same location as “Initial breakdown voltage” section.

Detection current: 10mA

Wave is standard shock voltage of

±1.2 ×

50µs according to JEC-212-1981

Excluding contact bounce time.

Half-wave pulse of sine wave: 11 ms; detection time: 10

µs

Half-wave pulse of sine wave: 6 ms

Detection time: 10

µs

Refer to 6. Conditions for operation, transport and storage mentioned in

AMBIENT ENVIRONMENT.
