16JKV10M4X5.5: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1717, ROHS COMPLIANT; CategoryPassive components capacitor; File Size82KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

16JKV10M4X5.5 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1717, ROHS COMPLIANT

16JKV10M4X5.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1770349099
package instruction	, 1717
Reach Compliance Code	unknown
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.35
capacitance	10 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.003 mA
Manufacturer's serial number	JKV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	20 mA
size code	1717
surface mount	YES
Delta tangent	0.2
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	ONE SURFACE

Preview

Download Datasheet

View All

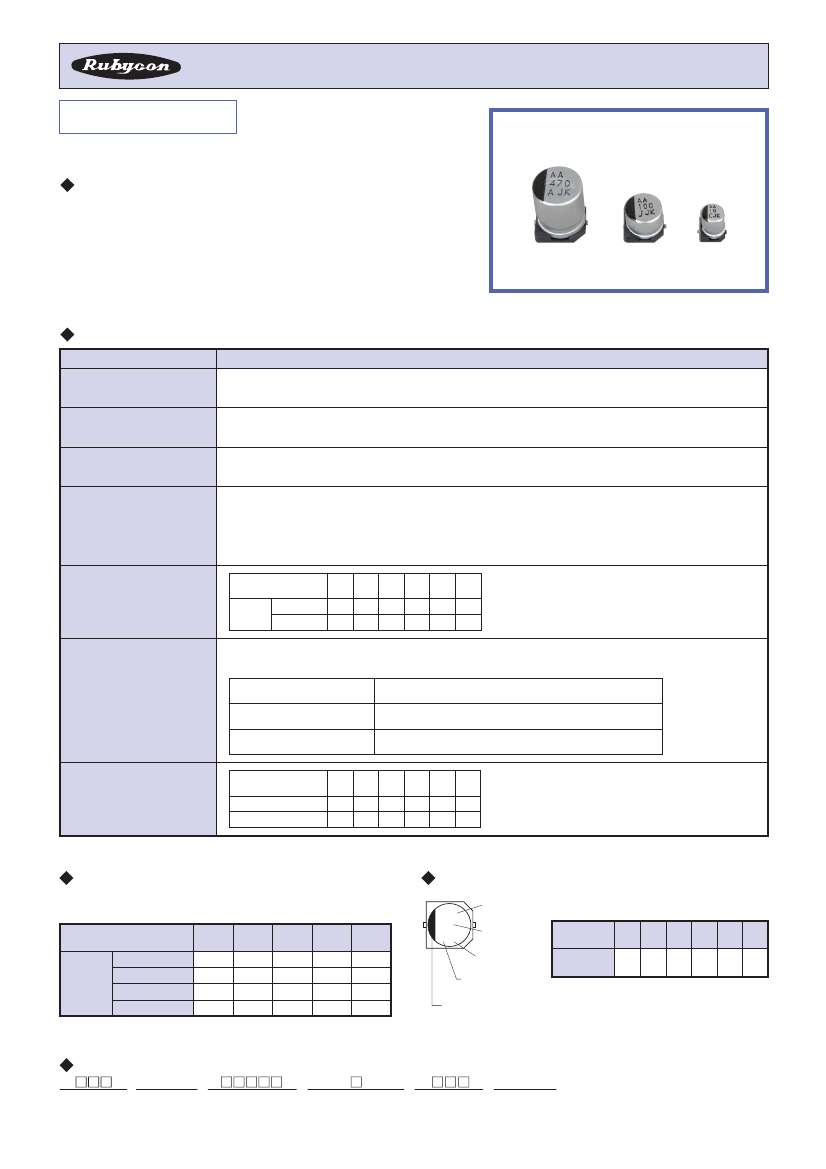

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

JKV

SERIES

105

o

C Standard, High Temperature Reflow Soldering.

FEATURES

•

RoHS compliance.

•

Load Life : 105

°

C

1000 hours.

•

High Temperature reflow soldering is available.

•

Available for high density mounting.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-55

∼

+105

°

C

6.3∼50V.DC

+

-

I

=

0.01CV or 3µA whichever is greater.

Rated Voltage Range

Capacitance Tolerance

20%(20

°

C, 120Hz)

(After 2 minutes application of rated voltage)

Leakage Current(MAX)

I=

Leakage Current

(µA)

C=

Rated Capacitance

(µF)

V=

Rated Voltage

(V)

Dissipation Factor(MAX)

(tan

δ

)

www.BDTIC.com/Rubycon

Rated Voltage

6.3 10 16 25 35 50

(V)

φ

4

∼

φ

6.3 0.30 0.24 0.20 0.16 0.14 0.12

tanδ

φ

8,

φ

10 0.35 0.26 0.20 0.16 0.14 0.12

(20

°

C,120Hz)

After applying rated voltage with rated ripple current for 1000 hrs at 105

°

C, the capacitors shall meet the following requirements.

+

Within - 30% of the initial value. (

φ

8,10: -25%)

Not more than 300% of the specified value. (

φ

8,10:200%)

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

6.3

(V)

Z(

-

25

°

C)/Z(20

°

C) 4

Z(

-

40

°

C)/Z(20

°

C) 8

Low Temperature Stability

Impedance Ratio(MAX)

10

3

8

16

2

4

25

2

4

35

2

3

50

2

3

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

60(50) 120

(Hz)

0.1∼ 1µF

0.50 1.00

2.2∼ 4.7µF

0.65 1.00

Coefficient

10∼ 47µF

0.80 1.00

100∼ 1000µF 0.80 1.00

Frequency

MARKING

AA

47

CJK

Lot No.

Capacitance

Series

Rated voltage code

∗

Polarity of the terminals

∗

Voltage Code

Rated Voltage

6.3

(V)

Rated Voltage code

j

10

A

16

C

25

E

35

V

50

H

500

1.20

1.10

1k

1.30

1.15

10k <

=

1.50

1.20

PART NUMBER

JKV

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

D

×

L

Case Size

16JKV10M4X5.5 Related Products

	16JKV10M4X5.5	16JKV100M6.3X5.5	16JKV47M6.3X5.5	16JKV470M10X10.5	50JKV100M8X10.5	35JKV220M10X10.5
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 1717, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 47uF, Surface Mount, 2626, ROHS COMPLIANT	CAP ALUM 470UF 20% 16V SMD	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 3333, ROHS COMPLIANT	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 4141, ROHS COMPLIANT
capacitance	10 µF	100 µF	47 µF	470µF	100 µF	220 µF
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
Objectid	1770349099	1770349098	1770349105	-	1770349558	1770349305
package instruction	, 1717	, 2626	, 2626	-	, 3333	, 4141
Reach Compliance Code	unknown	compliant	compliant	-	compliant	compliant
Country Of Origin	Japan	Japan	Japan	-	Japan	Japan
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
YTEOL	7.35	7.45	7.45	-	7.75	7.75
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	-	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e6	e6	e6	-	e6	e6
leakage current	0.003 mA	0.016 mA	0.00752 mA	-	0.05 mA	0.077 mA
Manufacturer's serial number	JKV	JKV	JKV	-	JKV	JKV
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	-	20%	20%
Number of terminals	2	2	2	-	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	-	20%	20%
Rated (DC) voltage (URdc)	16 V	16 V	16 V	-	50 V	35 V
ripple current	20 mA	65 mA	56 mA	-	200 mA	360 mA
size code	1717	2626	2626	-	3333	4141
surface mount	YES	YES	YES	-	YES	YES
Delta tangent	0.2	0.2	0.2	-	0.12	0.14
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	-	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	-	ONE SURFACE	ONE SURFACE
