50SJV3.3M4X6.1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 50SJV3.3M4X6.1

50SJV3.3M4X6.1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 1717, LEAD FREE; CategoryPassive components capacitor; File Size152KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50SJV3.3M4X6.1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 3.3uF, Surface Mount, 1717, LEAD FREE

50SJV3.3M4X6.1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2108014435
package instruction	, 1717
Reach Compliance Code	compliant
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.65
capacitance	3.3 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.003 mA
Manufacturer's serial number	SJV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	14 mA
size code	1717
surface mount	YES
Delta tangent	0.14
Terminal surface	TIN
Terminal shape	FLAT

Preview

Download Datasheet

View All

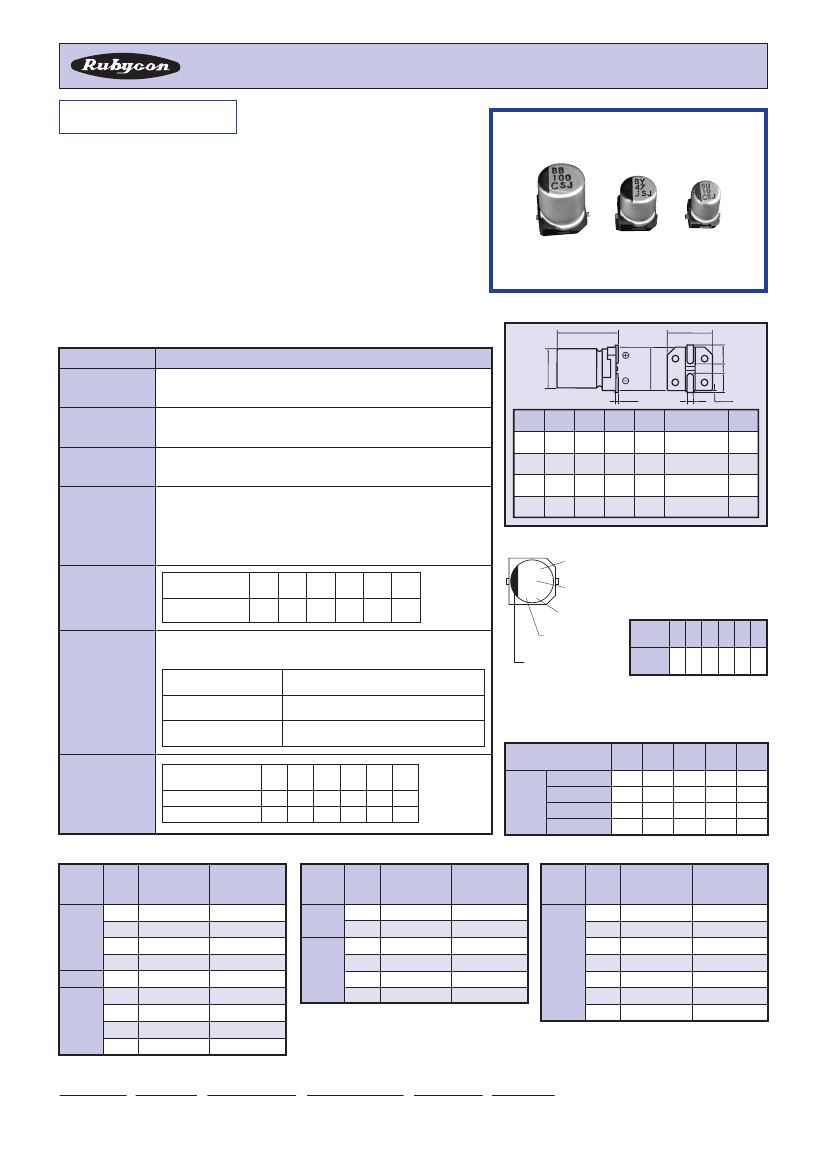

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

SJV

SERIES

105℃ Long Life, Lead Free Reﬂow Soldering.

◆FEATURES

・

Load Life : 105℃ 3000 hours.

・

Lead free reﬂow soldering is available.

・

Available for high density mounting.

・

RoHS compliance.

◆DIMENSIONS

◆SPECIFICATIONS

φD＋0.5MAX

L MAX

1±0.2

(mm)

1±0.2

0.3MAX

0.5MAX

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼50V.DC

±20％

（20℃，

120Hz）

φD

6.1

8.0

4.3

5.3

6.6

4.3

5.3

6.6

1.8

2.2

2.7

Rated Voltage Range

1.0

1.3

1.8

0.5∼0.8

Capacitance Tolerance

6.3

Leakage

Current(MAX)

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes application of rated voltage)

6.3

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(V)

Rated Voltage

(V)

tanδ

◆MARKING

CSJ

Lot No.

Capacitance

Series

※

Rated voltage code

Negative

Dissipation Factor(MAX)

6.3

（20℃，

120Hz）

(tanδ)

0.30 0.24 0.20 0.16 0.14 0.14

※Voltage Code

After applying rated voltage with rated ripple current for 3000 hours at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±30％ of the initial value.

Not more than 300％ of the speciﬁed value.

Not more than the speciﬁed value.

Rated Voltage

6.3 10 16 25 35 50

(V)

Rated Voltage code j

A C E

V H

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

60 50） 120

（

0.50

0.65

0.80

1.00

500

1.20

1.10

1k 10k≦

1.30

1.15

1.50

1.20

Low Temperature

Stability

Impedance Ratio(MAX)

Rated Voltage

6.3

(V)

（−25℃）（20℃） 4

（−40℃）（20℃）14

（120Hz）

0.47∼1μF

2.2∼4.7μF

Coeﬃcient

10∼47μF

100∼220μF

◆STANDARD SIZE

Size φD×L(mm), Ripple Current (mA r.m.s./105℃, 120Hz)

V.DC

Cap

(μF)

Size

(φDxL)

4×6.1

5×6.1

6.3×6.1

6.3×8

5×6.1

4×6.1

5×6.1

6.3×6.1

6.3×8

SJV

Series

Rated Ripple

Current

120

□□□□□

Capacitance

V.DC

(1E)

(1V)

Cap

(μF)

4.7

Size

(φDxL)

6.3×6.1

6.3×8

4×6.1

5×6.1

6.3×6.1

6.3×8

Rated Ripple

Current

V.DC

Cap

(μF)

0.47

2.2

3.3

4.7

Size

(φDxL)

4×6.1

5×6.1

6.3×6.1

6.3×8

Rated Ripple

Current

6.3

(0J) 100

220

10(1A) 33

(1C)

100

□□□

Rated Voltage

(1H)

◆PART NUMBER

Capacitance Tolerance

□□□

Option

D×L

Case Size
