50SKV4.7M5X5.5: Descriptioncap alum 4.7uf 50v 20% smd; CategoryPassive components capacitor; File Size83KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric Compare View All

50SKV4.7M5X5.5 Overview

cap alum 4.7uf 50v 20% smd

50SKV4.7M5X5.5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	rubycon
package instruction	, 2121
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e6
leakage current	0.003 mA
Manufacturer's serial number	SKV
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	18 mA
size code	2121
surface mount	YES
Delta tangent	0.12
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
Base Number Matches	1

Preview

Download Datasheet

View All

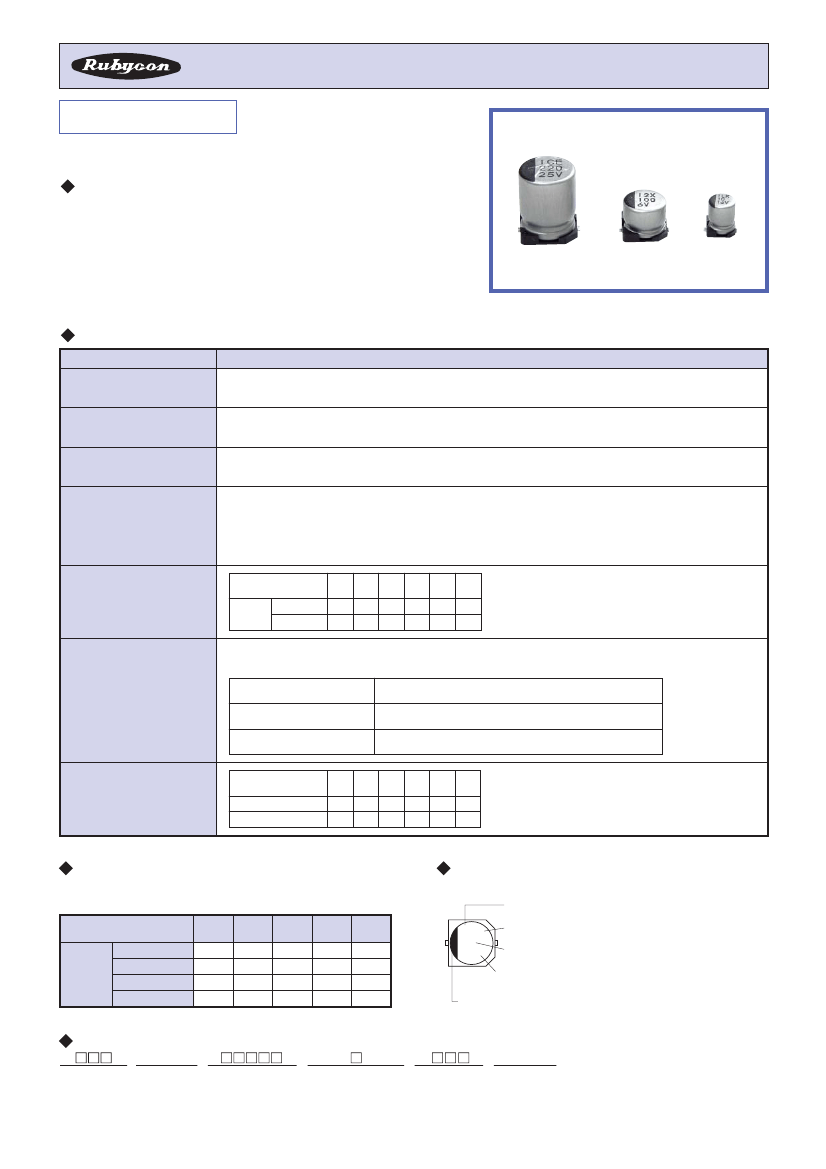

CHIP ALUMINUM ELECTROLYTIC CAPACITORS

SKV

SERIES

105

o

C Standard, Lead Free Reflow Soldering.

FEATURES

•

Load Life : 105

°

C 1000 hours.

•

Lead free reflow soldering is available.

•

Available for high density mounting.

•

RoHS compliance.

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-55

∼

+105

°

C

6.3∼50V.DC

20%(20

°

C,120Hz)

I＝0.01CV

or 3μA whichever is greater.

(After 2 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I=

Leakage Current

(µA)

C=

Rated Capacitance

(µF)

V=

Rated Voltage

(V)

Dissipation Factor(MAX)

(tan

δ

)

www.BDTIC.com/Rubycon

Rated Voltage

6.3 10 16 25 35 50

(V)

φ

4

∼

φ

6.3 0.30 0.24 0.20 0.16 0.14 0.12

tanδ

φ

8,

φ

10 0.35 0.26 0.20 0.16 0.14 0.12

(20

°

C,120Hz)

After applying rated voltage with rated ripple current for 1000 hrs at 105

°

C, the capacitors shall meet the following requirements.

+

Within - 30% of the initial value. (φ 8,10: -25％)

Not more than 300% of the specified value. (φ 8,10:200%)

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

6.3

(V)

Z(

-

25

°

C)/Z(20

°

C) 4

Z(

-

40

°

C)/Z(20

°

C) 8

Low Temperature Stability

Impedance Ratio(MAX)

10

3

8

16

2

4

25

2

4

35

2

3

50

2

3

(120Hz)

MULTIPLIER FOR RIPPLE CURRENT

Frequency coefficient

MARKING

Series

60(50) 120

(Hz)

0.1∼1µF

0.50 1.00

2.2∼4.7µF

0.65 1.00

Coefficient

10∼47µF

0.80 1.00

100∼1000µF 0.80 1.00

Frequency

500

1.20

1.10

1k

1.30

1.15

10k<

=

1.50

1.20

IAA

47

16V

Lot No.

Capacitance

Rated voltage

(6.3WV:Marking 6V)

Polarity of the terminals

PART NUMBER

SKV

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

D

×

L

Case Size

50SKV4.7M5X5.5 Related Products

	50SKV4.7M5X5.5	50SKV3.3M4X5.5	35SKV4.7M4X5.5	35SKV220M10X10.5	6.3SKV100M6.3X5.5	35SKV22M6.3X5.5	35SKV10M5X5.5	10SKV33M5X5.5	6.3SKV47M5X5.5
Description	cap alum 4.7uf 50v 20% smd	cap alum 3.3uf 50v 20% smd	cap alum 4.7uf 35v 20% smd	cap alum 220uf 35v 20% smd	cap alum 100uf 6.3V 20% smd	cap alum 22uf 35v 20% smd	cap alum 10uf 35v 20% smd	cap alum 33uf 10v 20% smd	cap alum 47uf 6.3V 20% smd
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	, 2121	, 1717	, 1717	, 4141	, 2626	, 2626	, 2121	, 2121	, 2121
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4.7 µF	3.3 µF	4.7 µF	220 µF	100 µF	22 µF	10 µF	33 µF	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e6	e6	e3	e6	e6	e6	e6	e6	e6
leakage current	0.003 mA	0.003 mA	0.001645 mA	0.077 mA	0.0063 mA	0.0077 mA	0.0035 mA	0.0033 mA	0.003 mA
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	50 V	50 V	35 V	35 V	6.3 V	35 V	35 V	10 V	6.3 V
ripple current	18 mA	13 mA	14 mA	360 mA	57 mA	46 mA	24 mA	34 mA	37 mA
size code	2121	1717	1717	4141	2626	2626	2121	2121	2121
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Delta tangent	0.12	0.12	0.14	0.14	0.3	0.14	0.14	0.24	0.3
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin (Sn)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Maker	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	rubycon	-	rubycon
Base Number Matches	1	1	-	1	1	1	1	1	1
