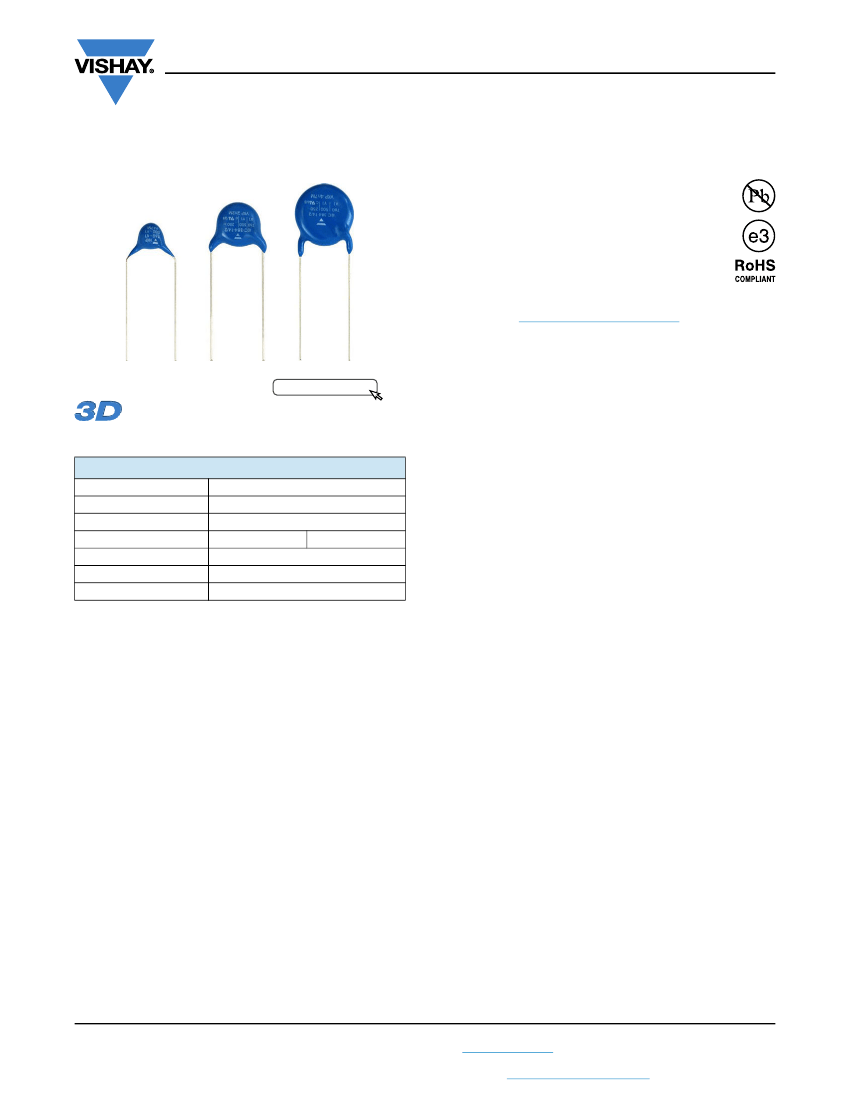

VKP Series
www.vishay.com
Vishay Draloric
AC Line Rated Ceramic Disc Capacitors
Class X1, 760 V
AC
, Class Y1, 500 V
AC
FEATURES
• Complying with IEC 60384-14 4
th
edition
• High reliability
• Wide range of different leadstyles
• Small dimensions
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y1 according to IEC 60384-14.4
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
• Across-the-line
• Line-by-pass
• Antenna coupling
DESIGN
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
760
470
4700
Radial
VALUE
2
Y5U
500
The capacitors consist of ceramic disc both sides of which
are silver plated. Connection leads are made of tinned
copper having diameters of 0.6 mm or 0.8 mm.
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 10.0 mm or 12.5 mm.
Coating is made of blue colored flame retardant epoxy resin
in accordance with UL 94 V-0.
CAPACITANCE RANGE
470 pF to 4.7 nF
MARKING
Marking indicates series, AC rating, capacitance, tolerance
code, and approvals.
TOLERANCE ON CAPACITANCE
± 10 %, ± 20 %
OPERATING TEMPERATURE RANGE
-40 °C to +125 °C
RATED VOLTAGE
• X1:
• Y1:
760 V
AC
, 50 Hz (IEC 60384-14.4)
760 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
500 V
AC
, 50 Hz (IEC 60384-14.4)
500 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
TEMPERATURE CHARACTERISTICS
Class 2
Y5U
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60058-1)
Class 2
40/125/21
TEST VOLTAGE
• 4000 V
AC
, 50 Hz, 2 s
• 4000 V
AC
, 50 Hz, 60 s
• 4000 V
AC
, 50 Hz, 60 s
Component test (100 %)
Random sampling test (destructive)
Voltage proof of coating (destructive)
APPROVALS
IEC 60384-14.4
UL 60384-14.1
CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
INSULATION RESISTANCE AT 500 V
DC
10
000 M (60 s)
DISSIPATION FACTOR
Class 2:
max. 2.5 % (1 kHz)
Revision: 29-Mar-18
Document Number: 22205
1
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VKP Series
www.vishay.com
Vishay Draloric

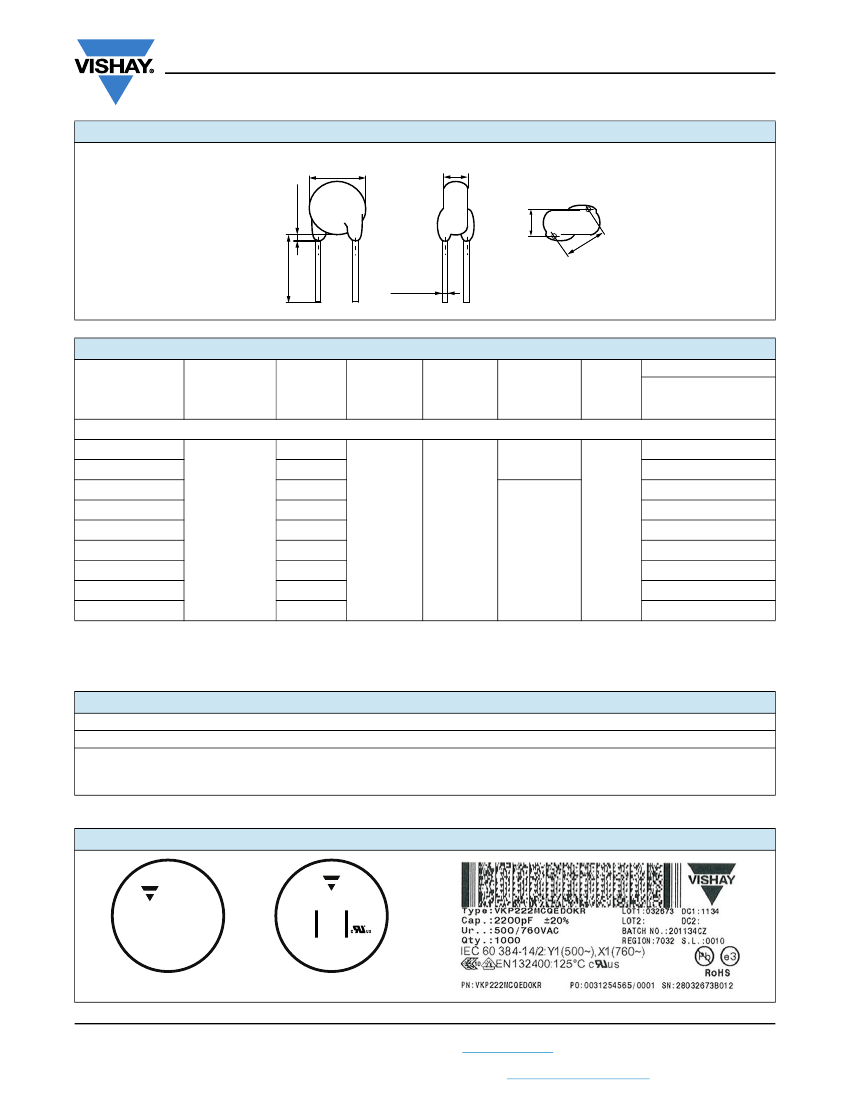

DIMENSIONS
in millimeters
D
max.
3.0 max.
S
max.
V
F
30 - 3
or 10 ± 1
Ø d ± 0.05
TECHNICAL DATA
CAPACITANCE
C (pF)
Y5U (2E3)
470
680
1000
1500
2200
2700
3300
3900
4700
± 10,
± 20
8.0
8.0
9.0
10.0
12.0
13.0
15.0
15.0
17.0
5.0
12.5
0.8
2.1
0.6
VKP471#CQ###KR
VKP681#CQ###KR
VKP102#CQ###KR
VKP152#CQ###KR
VKP222#CQ###KR
VKP272#CQ###KR
VKP332#CQ###KR
VKP392#CQ###KR
VKP472#CQ###KR
(2)
CAPACITANCE
TOLERANCE
(%)
BODY
DIAMETER
D
MAX.
(mm)
BODY
THICKNESS
S
MAX.
(mm)
LEAD
SPACING
(1)
F (mm)
± 1 mm
LEAD
DIAMETER
(1)
d (mm)
± 0.05 mm
WIDTH
(1)
V (mm)
± 0.5 mm
PART NUMBER
MISSING DIGITS
SEE ORDERING CODE
BELOW
Notes
(1)
Standard lead configuration, other lead spacing and diameter available on request
(2)
When capacitance values less than 470 pF are required, the usage of WKP series is recommended
ORDERING CODE
#
###
Example
10
th
7
th
digit
to
12
th
digit
VKP
Series
Capacitance tolerance
Lead configuration
222
Capacitance
value
M
Tolerance code
± 10 % = K, ± 20 % = M
see “General Information”
CQ
Voltage code
ED0
Lead
configuration
K
Internal code
R
RoHS
compliant
MARKING
VKP
760~X1
500~Y1
n47 M
VKP 470 pF to 1.5 nF
IEC 384-14/2
760 500 250~
X1 Y1
VKP 2n2 M
VKP 2.2 nF to 4.7 nF
Revision: 29-Mar-18
Document Number: 22205
2
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VKP Series
www.vishay.com
Vishay Draloric
APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Test Certificate
Y1 Capacitor: CB-test certificate:
X1 Capacitor: CB-test certificate:
Minimum thickness of insulation: 0.4 mm
VDE
Y1 Capacitor: VDE marks approval:
X1 Capacitor: VDE marks approval:
US-26551-UL
US-26551-UL
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
500 V
AC
760 V
AC
136494
136494
470 pF to 4.7 nF
470 pF to 4.7 nF
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Minimum thickness of insulation: 0.4 mm
Underwriters Laboratories Inc. / Canadian Standards Association
Y1 Capacitor: UL-test certificate:
X1 Capacitor: UL-test certificate:
E183844
E183844
470 pF to 4.7 nF
470 pF to 4.7 nF
500 V
AC
760 V
AC
UL 60384-14.1, CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
Across-the-line, antenna-coupling and line-by-pass component
Minimum thickness of insulation: 0.4 mm

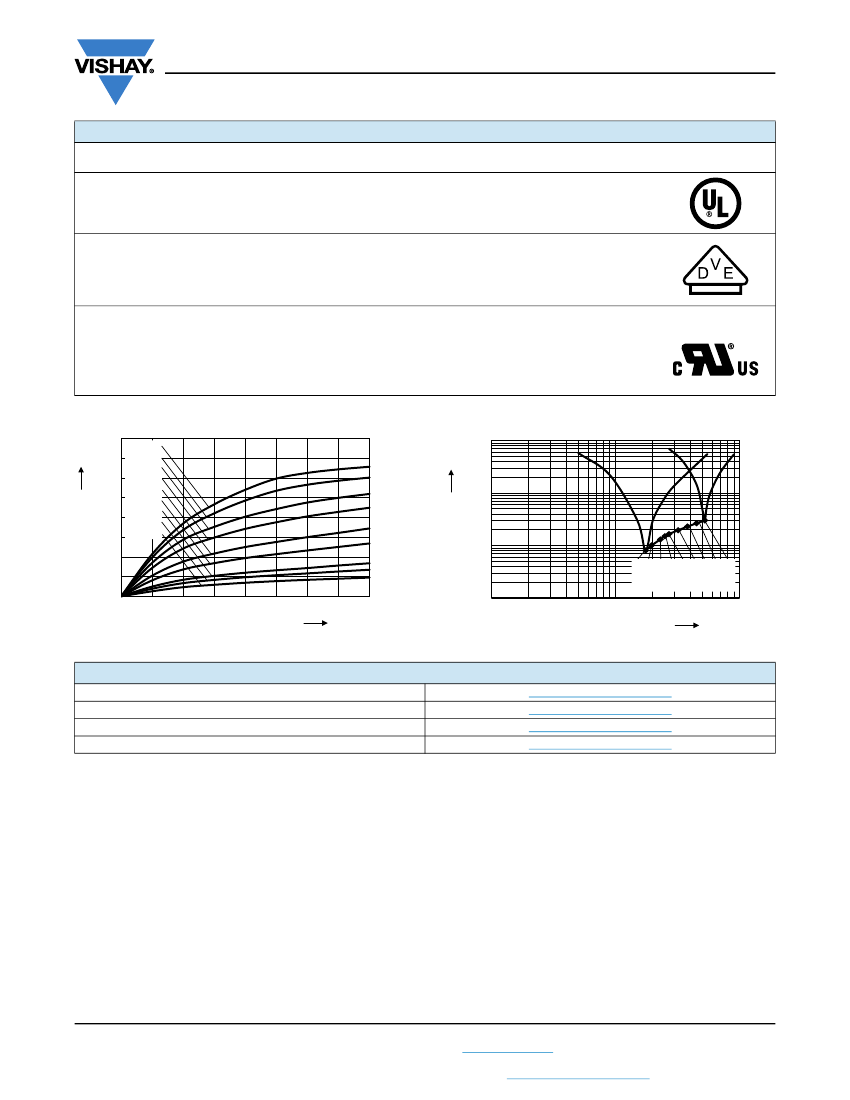

LEAKAGE CURRENT VS. VOLTAGE
(typical)
I (μA)
4000
3500
3000
2500
2000
1500
1000
500
0
0
500
1000 1500 2000 2500 3000 3500 4000
4.7 nF
3.9 nF
3.3 nF
2.7 nF
2.2 nF
1.5 nF
1.0 nF
680 pF
470 pF
IMPEDANCE VS. FREQUENCY
(typical)
Z (Ω)
10
1
0.1
0.01
1
10
100
U
R
(V~)
RELATED DOCUMENTS
General Information
CB-Test Certificate
VDE Marks Approval
UL-Test Certificate
www.vishay.com/doc?22001
www.vishay.com/doc?22211
www.vishay.com/doc?22212
www.vishay.com/doc?22213
Revision: 29-Mar-18
Document Number: 22205
3
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
4.7 nF
3.9 nF
3.3 nF
2.7 nF
2.2 nF
1.5 nF
1.0 nF
660 pF
470 pF
f (MHz)
