RSF/RSMF Series
General Purpose Metal Oxide Resistor
Features:
•
•
•
•
•
•
•
Stackpole Electronics, Inc.
Resistive Product Solutions
Lower-cost alternative to carbon comps and wirewounds
Coating meets UL 94V-0
Meets solvent test of Mil Standard 202, Method 215
Cut and formed product is available on select sizes;
contact factory for details
Higher or lower resistance values may be possible;
contact factory
Flameproof
RoHS compliant / lead-free

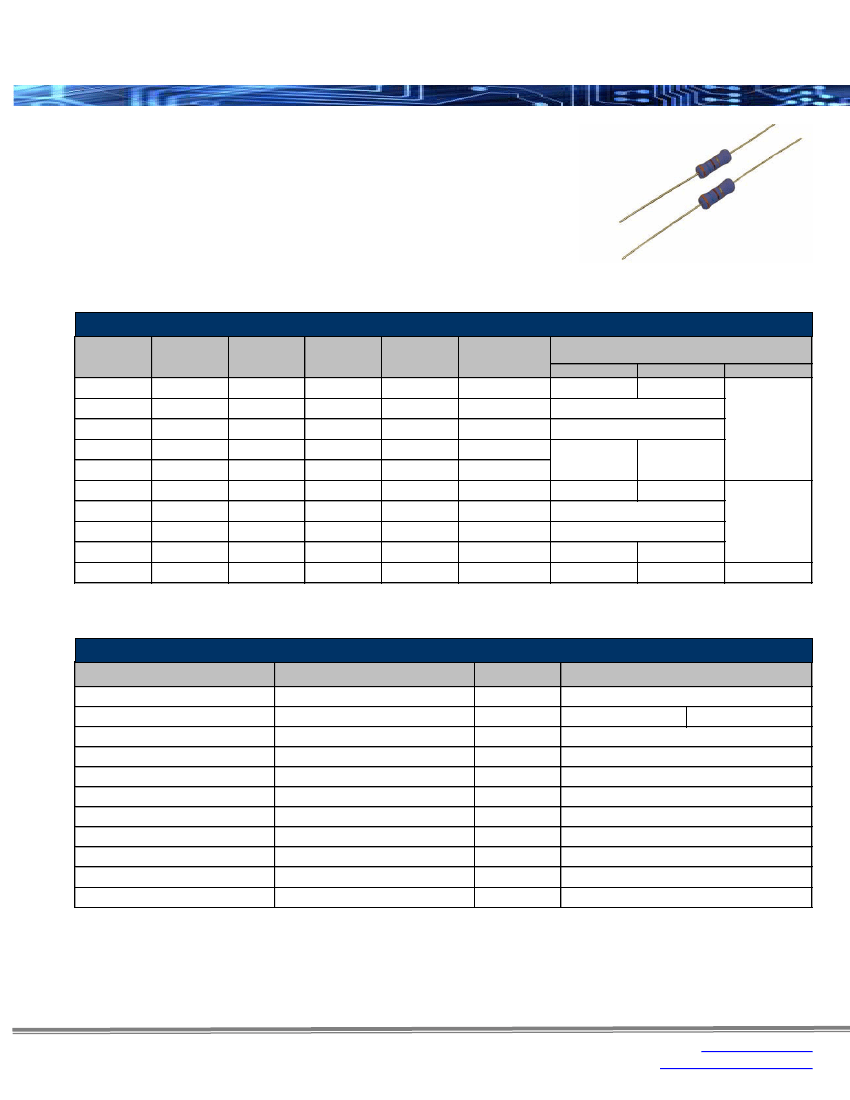

Electrical Specifications
Type / Code
RSF12
RSF1
RSF2
RSF3
RSF5
RSMF12
RSMF1
RSMF2
RSMF3
RSMF5
Power Rating
(Watts)
@ 70ºC
0.5W
1W
2W
3W
5W
0.5W
1W
2W
3W
5W
Maximum
Working
Voltage (1)
250V
350V
350V
800V
1,000V
250V
350V
350V
500V
1,000V
Maximum
Overload
Voltage
400V
600V
600V
1,000V
1,000V
400V
600V
600V
800V
1,000V
Dielectric
Withstanding
Voltage
350V
600V
600V
750V
750V
350V
500V
500V
600V
750V
Resistance
Temperature
Coefficient
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
0.1 - 46.4K
0.1 - 47K
0.1 - 470K
Ohmic Range (Ω) and Tolerance
1%
0.1 - 150K
0.1 - 100K
0.1 - 120K
0.1 - 470K
0.1 - 560K
0.1 - 1M
2%
0.1 - 75K
5%
0.1 - 75K
0.1 - 100K
0.1 - 118K
0.1 - 470K
0.1 - 120K
0.1 - 560K
0.1 - 1M
(1) Lesser of √PR or maximum working voltage
Performance Characteristics
Test
Insulation Resistance
Voltage Proof
Short Time Overload
Resistance to Solder Heat
Endurance at 70°C
Robustness of Terminations
Damp Heat (Steady state)
Rapid Change of Temperature
Resistance to Solvents
Intermittent Overload
Accidental Overload (Flame resistance)
Standard / Method
JIS C5201-1, IEC60115-1, 4.6
JIS C5201-1, IEC60115-1, 4.7
JIS C5201-1, IEC60115-1, 4.13
JIS C5201-1, IEC60115-1, 4.18
JIS C5201-1, IEC60115-1, 4.25.1
JIS C5201-1, IEC60115-1, 4.16
JIS C5201-1, IEC60115-1, 4.24
JIS C5201-1, IEC60115-1, 4.19
JIS C5201-1, IEC60115-1, 4.29
JIS C5201-1, IEC60115-1, 4.39
JIS C5201-1, IEC60115-1, 4.26
Typical Results
≥ 1GΩ
<± 0.25%
<± 0.1%
<± 1.0%
<± 2.0%
<± 0.10%
<± 1.5%
<± 0.2%
Pass
<± 0.3%
Pass
≤
± (0.5% + 0.05Ω)
Test Limits
≥
1GΩ
No mechanical damage.
≤
± (0.75% + 0.05Ω)
≤ ± (2.0% + 0.05Ω)
≤±
(5.0% + 0.05Ω)
≤ ± (1.0% + 0.05Ω)
≤±
(5% + 0.05Ω)
≤±
(1% + 0.05Ω)
No damage to component or removal of marking.
≤±
(2% + 0.05Ω)
No flaming of gauze.
Operating Temperature Range: -55ºC to +200ºC (RSF12, RSMF12, RSMF1)
-55ºC to +235ºC (All others)
Rev Date: 04/17/2015
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com

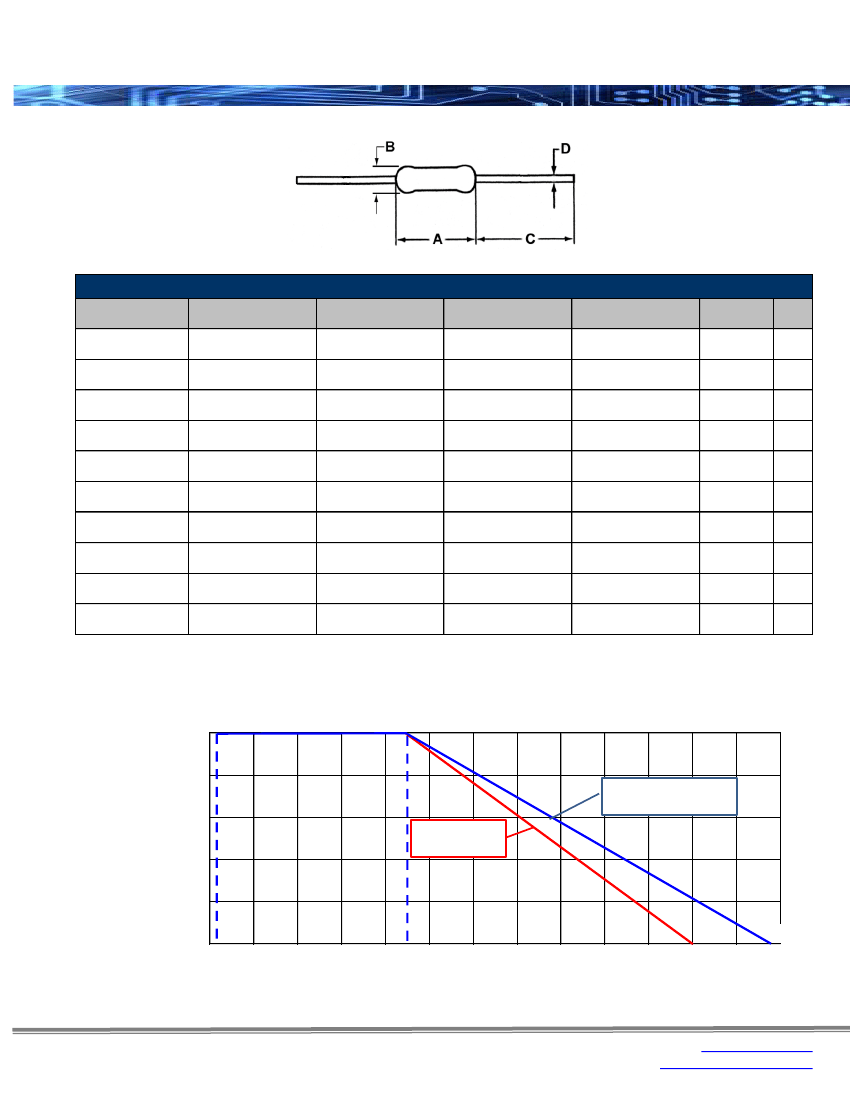

RSF/RSMF Series
General Purpose Metal Oxide Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

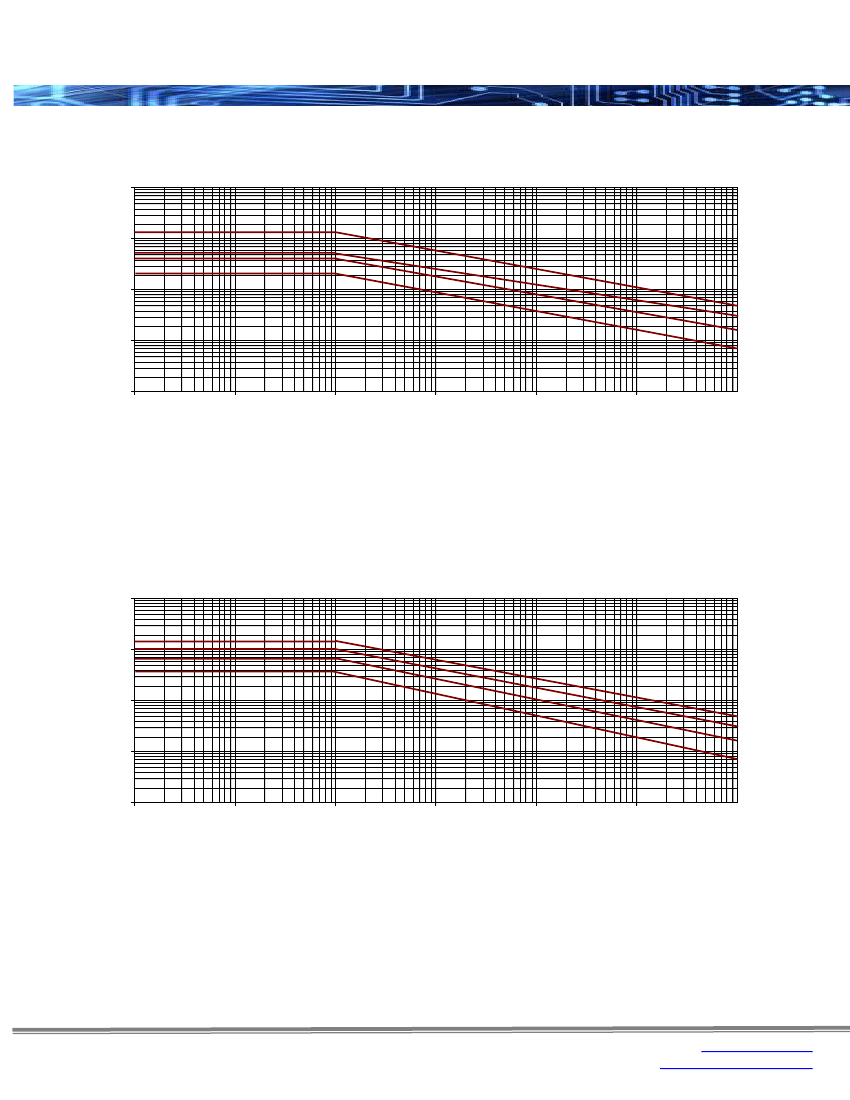

Pulse Limiting Power (One Pulse) / RSMF Series ≤ 5Ω
10,000
1,000
1,300
560
440
215
1,300
560
440
215
1,300
560
440
215
560
270
190
95
250
135
84
42
Pulse Power (Watts)
100
110
66
37
18
10
48
RSMF3
32
RSMF2
16
RSMF1
8
RSMF12
1
1μ
10μ
100μ
1m
10m
100m
1
Pulse Width (sec.)
Pulse Limiting Power (One Pulse) / RSMF Series ≥ 5Ω
10,000
Pulse Power (Watts)
1,000
1,000
1,500
700
400
1,500
1,000
700
400
1,500
1,000
700
400
100
800
420
300
150
300
180
115
56
130
76
43
21
10
48
RSMF3
32
RSMF2
16
RSMF1
8
RSMF12
1
1μ
10μ
100μ
1m
10m
100m
1
Pulse Width (sec.)
Rev Date: 04/17/2015
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
RSF/RSMF Series
General Purpose Metal Oxide Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
How to Order
1
2
3
4
5
6
7
8
9
10
11
R
S
F
1
2
J
T
R
4
7
0
Product Series
Metal Oxide
RSF
RSMF
Mini
PRSF
(1)
Panasert
PRSM
(1)
Panasert Mini
Size
12
1
2
3
5
Power
0.5W
1W
2W
3W
5W
Tolerance
Code Tol
Value
F
1%
E96
G
2%
E24
J
5%
Packaging
Code
Description
Size
Quantity
RSMF12
5,000
RSF12, RSF1
2,500
RSMF1, RSMF2, PRSM2
RSF2, RSMF3
1,000
RSF3, RSMF5
500
RSF5
5,000
RSMF12
RSF12; RSMF1
2,000
RSF1, RSF2, RSMF2,
1,000
PRSM2, RSMF3
500
RSF3, RSF5, RSMF5
All Sizes
1,000
Resistance Value
Four characters with
the multiplier used as
the decimal holder.
0.22 ohm = R220
33.2 ohm = 33R2
10.2 Kohm = 10K2
1 Mohm = 1M00
T
Tape and Reel
(1) For packaging information see
Radial Leaded Packaging Spec page
A
Ammo
B
Bulk
Rev Date: 04/17/2015
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
