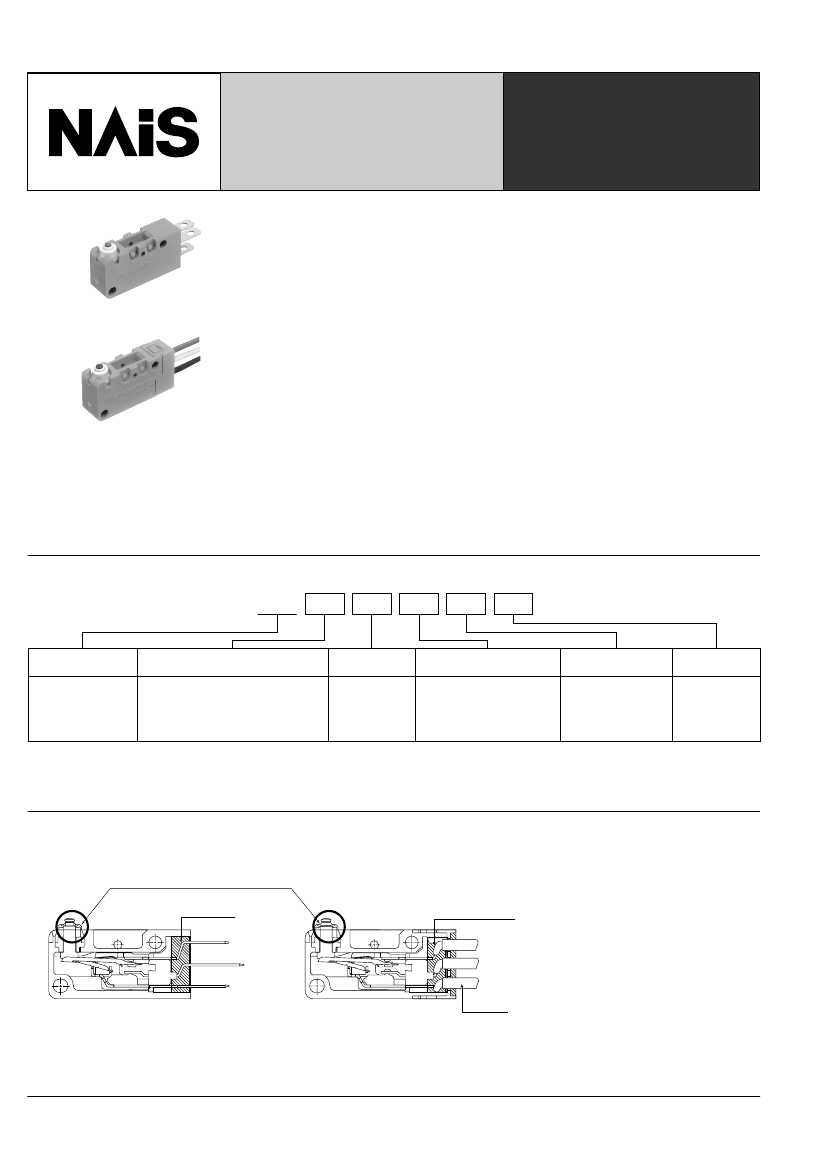

ABV1
HIGH ENVIRONMENTAL
RESISTANCE
TURQUOISE
SWITCHES
V TYPE (ABV)
FEATURES
• Miniature size (33×15.9×10.3 mm)
(1.299×.626×.406 inch)
• Sealed construction for use in adverse environment−Sealed construction by ep-
oxy resin and rubber cap keeps off the cause of miscontact such as dust Con-
forming to IP67* of IEC protective construction classification
• Elastomer double molding technology, an industry first and ultrasonic swaging
technology contribute to uniform seling in high production quantities
• UL/CSA/VDE/SEMKO approved
*Based on the protective construction classification of IED, items which satisfy the test
requirements are denoted with an IP designation.
TYPICAL APPLICATIONS
• Automotives
• Agricultural devices
• Industrial equipment
ORDERING INFORMATION
Ex.
ABV1
2
1
0
6
1
Type of switch
ABV1:
Turquoise switch
V type
Terminal
2: .187 quick-connect terminal
6: Wire leads
Contact
arrangement
1: SPDT
2: SPST-NC
3: SPST-NO
Actuator
0: Pin plunger
2: Hinge lever
4: Simulated roller lever
5: Short roller lever
6: Roller lever
Operating force by
pin plunger (max.)
4: 0.98 N {100 gf}
5: 1.96 N {200 gf}
6: 2.94 N {300 gf}
Contact
1: Gold-clad
0: Silver-alloy
Remarks: 1. Standard packing: Dust protected type 50 pcs./carton, 500 pcs./case; Immersion protected type 50 pcs./case.
2. Not every combination is available. Please refer to the following table, “PRODUCT TYPES”.
CONSTRUCTION
.187 quick-connect terminal
Rubber cap
Ultrasonic swaging technology contribute for sealing
Epoxy resin
Wire leads
Epoxy resin (include)
Wire leads
38
ABV1
PRODUCT TYPES
Silver-alloy
Contact
Actuator
Contact
Arrangement
SPDT
Operating force, Max.
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
187 Quick-connect terminal
ABV121040
ABV121050
ABV121060
ABV122040
ABV122050
ABV122060
ABV123040
ABV123050
ABV123060
ABV121240
ABV121250
ABV121260
ABV122240
ABV122250
ABV122260
ABV123240
ABV123250
ABV123260
ABV121440
ABV121450
ABV121460
ABV122440
ABV122450
ABV122460
ABV123440
ABV123450
ABV123460
ABV121540
ABV121550
ABV121560
ABV122540
ABV122550
ABV122560
ABV123540
ABV123550
ABV123560
ABV121640
ABV121650
ABV121660
ABV122640
ABV122650
ABV122660
ABV123640
ABV123650
ABV136660
Wire Leads
ABV161040
ABV161050
ABV161060
ABV162040
ABV162050
ABV162060
ABV163040
ABV163050
ABV163060
ABV161240
ABV161250
ABV161260
ABV162240
ABV162250
ABV162260
ABV163240
ABV163250
ABV163260
ABV161440
ABV161450
ABV161460
ABV162440
ABV162450
ABV162460
ABV163440
ABV163450
ABV163460
ABV161540
ABV161550
ABV161560
ABV162540
ABV162550
ABV162560
ABV163540
ABV163550
ABV163560
ABV161640
ABV161650
ABV161660
ABV162640
ABV162650
ABV162660
ABV163640
ABV163650
ABV163660
Pin plunger
SPST-NC
SPST-NO
SPDT
Hinge lever
SPST-NC
SPST-NO
SPDT
Silver-alloy
Simulated roller lever
SPST-NC
SPST-NO
SPDT
Short roller lever
SPST-NC
SPST-NO
SPDT
Roller lever
SPST-NC
SPST-NO
Remarks: When ordering UL/CSA approved types, please attach suffix “9” to the part number.
When ordering VDE/SEMKO approved types, please attach suffix “8” to the part number.
39
ABV1
Gold-clad
Contact
Actuator
Contact
Arrangement
SPDT
Operating force, Max.
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.98 N {100 gf}
1.96 N {200 gf}
2.94 N {300 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
1.08 N {110 gf}
2.16 N {220 gf}
3.14 N {320 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
0.59 N {60 gf}
1.18 N {120 gf}
1.77 N {180 gf}
187 Quick-connect terminal
ABV121041
ABV121051
ABV121061
ABV122041
ABV122051
ABV122061
ABV123041
ABV123051
ABV123061
ABV121241
ABV121251
ABV121261
ABV122241
ABV122251
ABV122261
ABV123241
ABV123251
ABV123261
ABV121441
ABV121451
ABV121461
ABV122441
ABV122451
ABV122461
ABV123441
ABV123451
ABV123461
ABV121541
ABV121551
ABV121561
ABV122541
ABV122551
ABV122561
ABV123541
ABV123551
ABV123561
ABV121641
ABV121651
ABV121661
ABV122641
ABV122651
ABV122661
ABV123641
ABV123651
ABV136661
Wire Leads
ABV161041
ABV161051
ABV161061
ABV162041
ABV162051
ABV162061
ABV163041
ABV163051
ABV163061
ABV161241
ABV161251
ABV161261
ABV162241
ABV162251
ABV162261
ABV163241
ABV163251
ABV163261
ABV161441
ABV161451
ABV161461
ABV162441
ABV162451
ABV162461
ABV163441
ABV163451
ABV163461
ABV161541
ABV161551
ABV161561
ABV162541
ABV162551
ABV162561
ABV163541
ABV163551
ABV163561
ABV161641
ABV161651
ABV161661
ABV162641
ABV162651
ABV162661
ABV163641
ABV163651
ABV163661
Pin plunger
SPST-NC
SPST-NO
SPDT
Hinge lever
SPST-NC
SPST-NO
SPDT
Gold-clad
Simulated roller lever
SPST-NC
SPST-NO
SPDT
Short roller lever
SPST-NC
SPST-NO
SPDT
Roller lever
SPST-NC
SPST-NO
Remarks: When ordering UL/CSA approved types, please attach suffix “9” to the part number.
When ordering VDE/SEMKO approved types, please attach suffix “8” to the part number.
40
ABV1

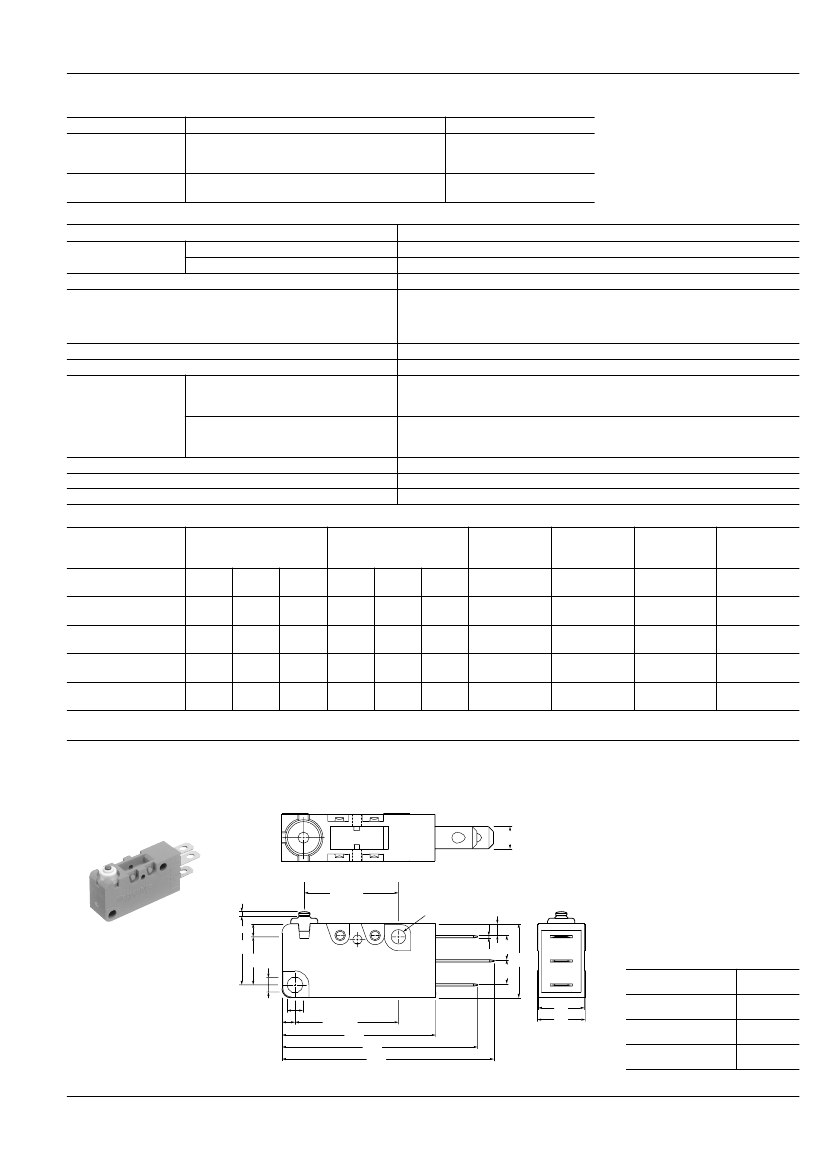

SPECIFICATIONS
1. Contact rating
Type
Gold-clad contact
Silver-alloy
Standard rating
3 A 250 V AC (O.F. 1.96 N {200gf}, 2.94 N {300gf})
1 A 250 V AC (O.F. 0.98 N {100gf})
5 A 250 V AC (O.F. 1.96 N {200gf}, 2.94 N {300gf})
3 A 250 V AC (O.F. 0.98 N {100gf})
Low-level rating
5 mA 6 V DC
2 mA 12 V DC
1 mA 24 V DC
—
2. Characteristics
Mechanical life (O.T.: Specified value)
Nominal rating (O.T.: Max.)
Electrical life
Low-level rating (O.T.: Specified value)
Insulation resistance
Dielectric strength
Between non-continuous terminals
Between each terminal and other exposed metal parts
Between each terminal and ground
Vibration resistance
Shock resistance
Silver alloy contact type
Contact resistance
Gold-clad contact type
Allowable operating speed (at no load)
Ambient temperature (at no load)
Unit weight
Min. 5x10
6
(at 60 cpm)
Min. 10
5
(at 20 cpm)
Min. 10
6
(at 20 cpm)
Min. 100 MΩ (at 500 V DC insulation resistance meter)
1,000 Vrms
2,000 Vrms
2,000 Vrms
10 to 55 Hz at single amplitude of 0.75 mm (Contact opening: max. 1 msec.)
Min. 294 m/s
2
{30 G} (Contact opening: Max. 1 msec.)
Dust protected type (IP50): Max. 50 mΩ
Immersion protected type (IP67): Max. 100 mΩ
(By voltage drop 1 A 6 to 8 V DC)
Dust protected type (IP50): Max. 50 mΩ
Immersion protected type (IP67): Max. 100 mΩ
(By voltage drop 0.1 A 6 to 8 V DC)
1 to 500 mm/sec.
−40°C
to +85°C
–40°F to +185°F
Approx. 7 g .247
oz
(IP50 type)
3. Operating characteristics
Type of actuator
Pin plunger
Hinge lever
Simulated roller lever
Short roller lever
Roller lever
( ): Low force type
Operating force, Max.
2.94N
{300gf}
1.77N
{180gf}
1.77N
{180gf}
3.14N
{320gf}
1.77N
{180gf}
1.96N
{200gf}
1.18N
{120gf}
1.18N
{120gf}
2.16N
{220gf}
1.18N
{120gf}
0.98N
{100gf}
0.59N
{60gf}
0.59N
{60gf}
1.08N
{110gf}
0.59N
{60gf}
Release force, Min.
0.59N
{60gf}
0.20N
{20gf}
0.20N
{20gf}
0.59N
{60gf}
0.20N
{20gf}
0.39N
{40gf}
0.13N
{13gf}
0.13N
{13gf}
0.39N
{40gf}
0.13N
{13gf}
0.25N
{25gf}
0.098N
{10gf}
0.098N
{10gf}
0.20N
{20gf}
0.098N
{10gf}
Pretravel,
Max. mm
inch
1.6
.063
3.2
.126
3.2
.126
1.6
.063
3.2
.126
Movement
differential,
Max. mm
inch
0.4
.016
1.2
.047
1.2
.047
0.5
.020
1.2
.047
Overtravel,
Min. mm
inch
0.8
.031
1.2
.047
1.2
.047
0.8
.031
1.2
.047
Operating
position,
mm
inch
14.7±0.6
.579
±
.024
15.3±1.2
.602
±
.047
18.5±1.2
.728
±
.047
20.7±0.8
.815
±
.031
20.7±1.2
.815
±
.047

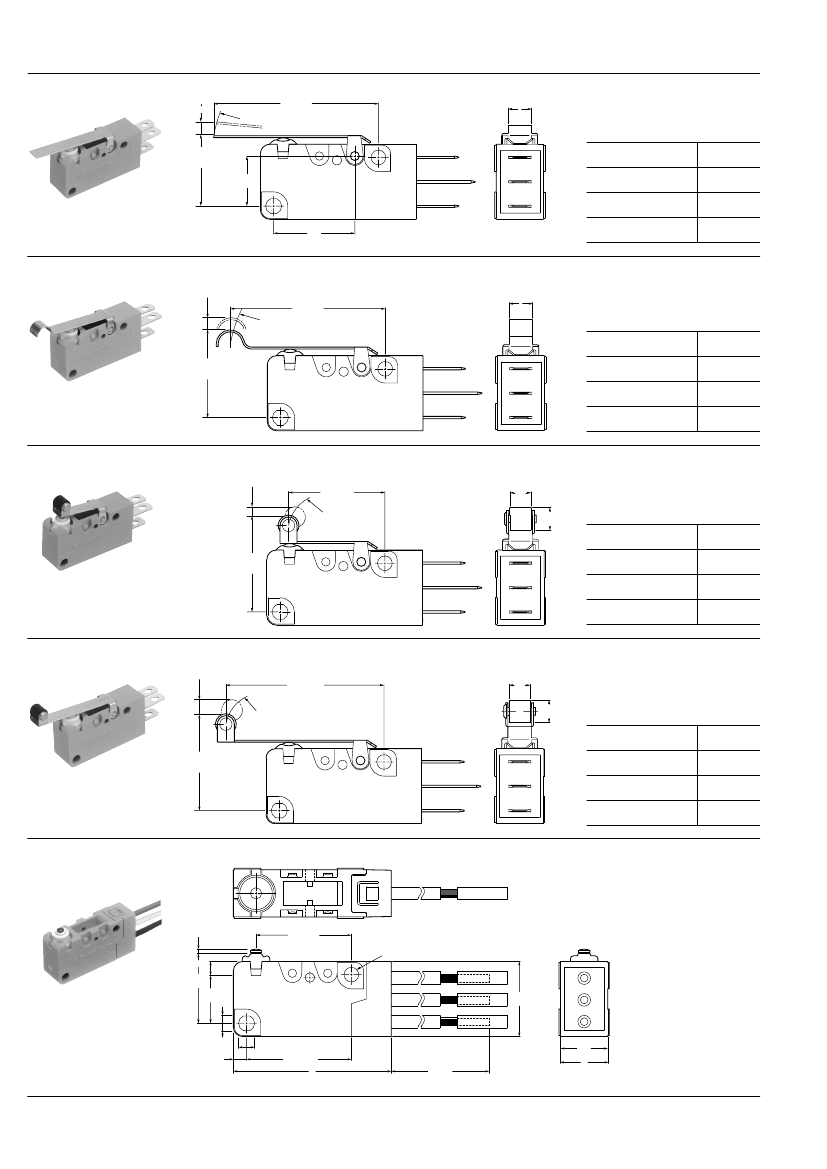

DIMENSIONS
1. Dust protected type
1-(1) .187 quick-connect terminal
Pin plunger
4.75
.187
mm
inch
General tolerance:
±0.4
±
.016
Pretravel
1.6 max
.063
20.2±0.3
.795±.012
3.1
-0.05
dia.
+.010
.122
-.002
dia.
+0.25
2.5
.098
Operating 2.8
.110
Position
14.7±0.6
.579±.024
10.3±-0.1
.406±.004
0.5
.020
5.2
.205
5.2
.205
15.9
.626
3.1
-0.05
+.010
.122
-.002
+0.25
3.4
.134
2.8
.110
22.2±-0.1
.874±.004
33
1.299
10
.394
10.3
.406
42
1.654
45.5
1.791
Pretravel,
Max. mm
inch
Movement differential,
Max. mm
inch
Overtravel,
Min. mm
inch
Operating position,
mm
inch
1.6
.063
0.4
.016
0.8
.031
14.7±0.6
.579
±
.024
41
ABV1
Hinge lever
Pretravel
3.2 max.
.126 max.
R30.8
1.213
35.8±0.5
1.409±.020
5
.197
mm
inch
General tolerance:
±0.25
±
.010
Operating Position
15.3±1.2
.602±.047
10.6
.417
17.2
.677
Pretravel,
Max. mm
inch
Movement differential,
Max. mm
inch
Overtravel,
Min. mm
inch
Operating position,
mm
inch
3.2
.126
1.2
.047
1.2
.047
15.3±1.2
.602
±
.047
Simulated roller lever
Pretravel
3.2 max.
.126 max.
32.8±0.5
1.291±.020
R27.8
1.094
5
.197
Operating Position
18.5±1.2
.728±.047
Pretravel,
Max. mm
inch
Movement differential,
Max. mm
inch
Overtravel,
Min. mm
inch
Operating position,
mm
inch
3.2
.126
1.2
.047
1.2
.047
18.5±1.2
.728
±
.047
Short roller lever
Pretravel
1.6 max.
.063 max.
20.6±0.5
.811±.020
R17.2
.677
4.9
.193
4.8 dia.
.189 dia.
Operating Position
20.7±0.8
.815±.031
Pretravel,
Max. mm
inch
Movement differential,
Max. mm
(inch
Overtravel,
Min. mm
(inch
Operating position,
mm
inch
1.6
.063
0.5
.020
0.8
.031
20.7±0.8
.815
±
.031
Roller lever
Pretravel
3.2 max.
.126 max.
34.2±0.5
1.346±.020
4.9
.193
4.8 dia.
.189 dia.
R30.0
1.181
Operating Position
20.7±1.2
.815±.047
Pretravel,
Max. mm
inch
Movement differential,
Max. mm
inch
Overtravel,
Min. mm
(inch
Operating position,
mm
inch
3.2
.126
1.2
.047
1.2
.047
20.7±1.2
.815
±
.047
2. Immersion protected type
Wire Leads
Pretravel
1.6 max.
.063 max.
20.2±0.3
.795±.012
3.1
-0.05
dia.
+.010
.122
-.002
dia.
+0.25
Operating
Position
14.7±0.6
.579±.024
10.3±0.1
.406±.004
15.9
.626
3.1
-0.05
+.010
.122
-.002
2.8
.110
+0.25
3.4
.134
22.2±0.1
.874±.004
36
1.417
10
.394
300±10
11.8±.394
10
.394
Thickness of the lead wire:
Standard type: 0.75mm
2
UL/CSA approved type:
AWG #18
Color of the lead wire
COM ...black
N.C. ...red
N.O. ...white
42
京公网安备 11010802033920号
EEWORLD
