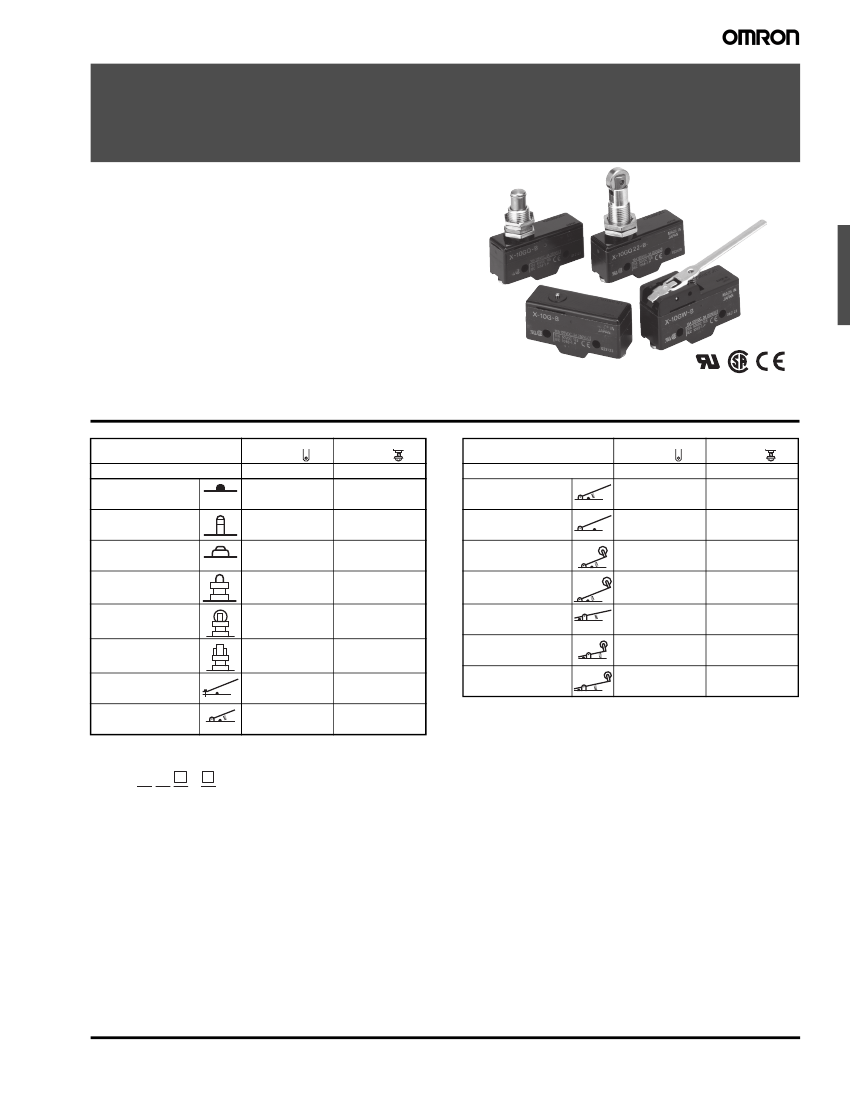

General-purpose Basic Switch
X
Direct Current Switch with Built-in
Magnetic Blowout
• Incorporates a small permanent magnet in the contact
mechanism to deflect the arc to effectively extinguish it.
• Ideal for switching DC circuits
• Wide variety of actuators for a wide scope of applications
• Same shape and mounting procedures as Omron’s Model
Z snap action switches.
Ordering Information
Terminal
Actuator
Pin plunger
Slim spring plunger
Short spring plunger
Panel mount plunger
Panel mount roller
plunger
Panel mount cross
roller plunger
Leaf spring
Short hinge lever
Solder
terminal
Model
X-10G
X-10GS
X-10GD
X-10GQ
Screw
terminal
Model
X-10G-B
X-10GS-B
X-10GD-B
X-10GQ-B
Actuator
Hinge lever
Low-force hinge lever
Short hinge roller
lever
Hinge roller lever
Reverse hinge lever
Reverse short hinge
roller lever
*
Reverse hinge roller
lever
*
Terminal
Solder
terminal
Model
X-10GW
X-10GW4
X-10GW22
X-10GW2
X-10GM
X-10GM22
X-10GM2
Screw
terminal
Model
X-10GW-B
X-10GW4-B
X-10GW22-B
X-10GW2-B
X-10GM-B
X-10GM22-B
X-10GM2-B
X-10GQ22
X-10GQ22-B
X-10GQ21
X-10GL
X-10GW21
X-10GQ21-B
X-10GL-B
X-10GW21-B
* The plungers of reverse-type models are continuously pressed by the
compression coil springs and the plungers are freed by operating the levers.
Model Number Legend
X - 10 G
-
1 2 3 4
1. Ratings
10: 10 A (125 VDC)
2. Contact Gap
G: 0.9 mm
4. Terminals
3. Actuator
None: Solder terminal
None: Pin plunger
B:
Screw terminal
D:
Short spring plunger
(with toothed
washer)
S:
Slim spring plunger
Q:
Panel mount plunger
Q21: Panel mount cross roller plunger
Q22: Panel mount roller plunger
L:
Leaf spring
W:
Hinge lever
W2:
Hinge roller lever
W21:
Short hinge lever
W22:
Short hinge roller lever
W4:
Low-force hinge lever
M:
Reverse hinge lever
M2: Reverse hinge roller lever
M22: Reverse short hinge roller lever
General-purpose Basic Switch
X
141
Specifications
■
Characteristics
Operating speed
Operating frequency
Contact resistance
Insulation resistance
Dielectric strength
Mechanical
Electrical
0.1 mm to 1 m/s (See note 1)
240 operations/min
20 operations/min
15 mΩ max. (initial value)
100 MΩ min. (at 500
VDC)
1,500
VAC,
50/60 Hz for 1 min between terminals of the same polarity, between
current-carrying metal parts and the ground, and between each terminal and
non-current-carrying metal parts
Malfunction
Destruction
Malfunction
Degree of protection
Degree of protection against electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Service life
Weight
Note: 1.
The values are for the pin plunger models.
2.
Malfunction: 1 ms max.
Mechanical
Electrical
10 to 55 Hz, 1.5-mm double amplitude (See note 2)
1,000 m/s
2
max.
300 m/s
2
max. (See notes 1 and 2)
IP00
Class I
175
−25°C
to 80°C (with no icing)
35% to 85%RH
1,000,000 operations min.
100,000 operations min.
Approx. 27 to 63 g
Vibration resistance
Shock resistance
■
Ratings
Non-inductive load (A)
Rated
voltage
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
Resistive load
NC
10
10
10
10
3
NO
NC
3
3
3
3
1.5
Lamp load
NO
1.5
1.5
1.5
1.5
0.75
NC
10
10
10
7.5
2
Inductive load (A)
Inductive load
NO
10
10
10
6
1.5
NC
5
5
5
5
2
Motor load
NO
2.5
2.5
2.5
2.5
1.5
Note: 1.
The above values are for the steady-state current.
2.
Inductive load has a power factor of 0.4 min. (AC) and a time
constant of 7 ms max. (DC).
3.
Lamp load has an inrush current of 10 times the steady-
state current.
4.
Motor load has an inrush current of 6 times the steady-state
current.
5.
The above electrical ratings also apply to the AC voltage.
6.
With the reverse-type models (X-10GM@), the normally
closed circuits and normally open circuits are reversed.
7.
The ratings values apply under the following test conditions:
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency: 20 operations/min
■
Contact Specification
Contacts
Inrush current
Material
Gap (standard value)
NC
NO
Silver
0.9 mm
30 A max.
15 A max.
■
Safety Standards Ratings
UL/CSA
Rated voltage
125 VDC
250 VDC
X-10G
10 A
3A
EN (CE)
(Conform to EN61058-1)
Rated voltage
125 VDC
X-10
10 A
142
General-purpose Basic Switch
X
Engineering Data
■
Mechanical Durability
(X-10G)
Durability (x10
4
operations)
5,000
3,000
Ambient temperature: 20±2°C
Ambient humidity: 65±5%RH
Without
load
Operating frequency: 240 operations/min
1,000
700
500
300
200
100
70
50
30
20
10
0
0.1
0.2
0.3
0.4
0.5
0.6 0.7 0.8 0.9
Overtravel (mm)
■
Electrical Durability
(X-10G)
Durability (x10
4
operations)
500
300
200
100
70
50
30
20
10
7
5
3
2
1
0
2
4
6
8
10
12
14
Switching current (A)
125 VDC
L/R = 7 ms
Ambient temperature: 20±2°C
Ambient humidity: 65±5%RH
Operating frequency: 20 operations/min
125 VDC L/R = 0
■
Structure
Contact Form (SPDT)
(+) COM
NC
NO
Note:
With the reverse-type models (X-10GM@), the
NC
and
NO
terminal arrangements are reversed.
Dimensions
Note:
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.
■
Terminals
Screw Terminals (-B)
Solder Terminal (Blank)
9.2
20
20
6.4
25.4
±
0.1
17.45
±
0.2
NC
3
1 NO
COM
NC
2
11.9
17.45
±
0.2
COM
NO
1
3
2
49.2
Three, M4 x 5.5
Terminal screws
(with toothed
washer)
49.2
Note: 1.
Appropriate terminal screw tightening torque: 0.78 to 1.18
N·m.
2.
In case of DC voltage, set the COM to the positive terminal.
■
Mounting
All switches can be mounted using M4 mounting screws with plane
washers or spring washers to securely mount the Switch. Tighten the
screws to a torque of 1.18 to 1.47
N·m.
Two, 4.2-dia. mounting
holes or M4 screw holes
Versions
with panel mount plungers can be panel mounted via the
plunger, provided that the hexagonal nut of the actuator is tightened
to a torque of 2.94 to 4.9
N·m.
Panel Mount Plunger
12.5
+0.2
0
dia.
Panel Mount Roller Plunger
12.5
+0.2
dia.
0
5
+0.2
0
13
+0.2
0
25.4
±
0.1
Note:
Mount using either the side mounting holes or the panel mount plunger, not both. If using the side mounting holes, then remove the hexagonal nut(s)
from the panel mount plunger.
Accessories (Terminal Covers, Actuators, and Separators): Refer to ‘Z/A/X/DZ Common Accessories’ datasheet
General-purpose Basic Switch
X
143
Note: 1.
All drawings show the switches with screw terminals. For solder terminals, remove the “-B” from the end of the part number
2.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.

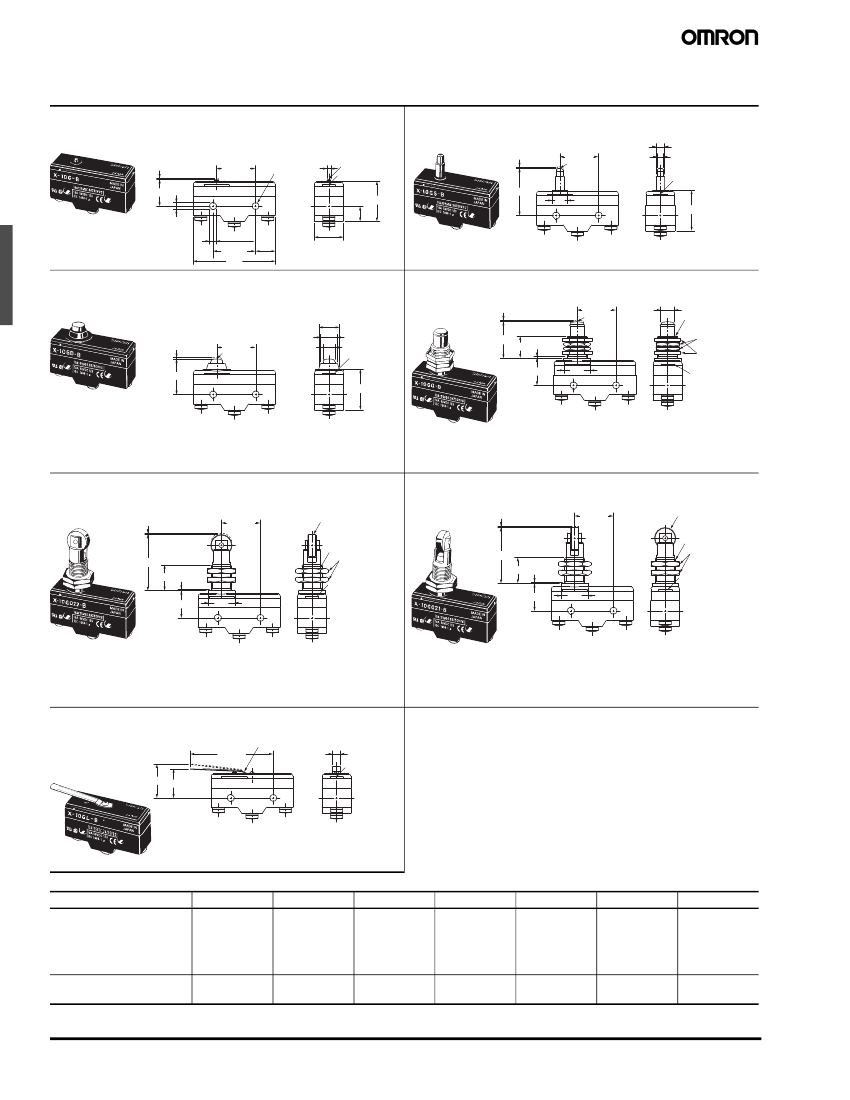

Pin Plunger
X-10G-B
PT
23.3
±
0.25
4.2
+0.075
dia. hole
-0.025
2.3 dia.
2.3SR *1
*2
Slim Spring Plunger
X-10GS-B
PT
23.3
±
0.25
*1
5.2 dia.
4 dia.
*2
OP
24.2
9.2
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
17.45
±
0.2
*1. Stainless-steel pin plunger
*2. Three
vent
holes
OP
9 dia.
24.2
*1. Stainless-steel pin plunger (flat, 1R chamfering)
*2. Three
vent
holes
Short Spring Plunger
X-10GD-B
12.3 dia.
10 dia.
7.15 dia.
*2
Panel Mount Plunger
X-10GQ-B
PT
23.3
±
0.25
11.9SR
*1
13.1 *3
8.35
dia.
M12 x 1 mounting screw
Two hexagonal nuts
(2 t x 14
width
across flats)
Two lock nuts
(2 t x 15.6
width
across flats)
*2
OP
PT
23.3
±
0.25
12SR *1
OP
24.2
16.3
16 dia.
*1. Plated iron plunger
*2. Three
vent
holes
*1. Stainless-steel pin plunger
*2. Three
vent
holes
*3. Incomplete screw part
with
a maximum length of 1.5 mm.
Note:
Do not use both the M12 mounting screw and the mounting holes in the
case at the same time. Doing so will cause stress to be applied to the
Switch, possibly damaging the case or cover.
Panel Mount Roller Plunger
X-10GQ22-B
PT
23.3
±
0.25
12.7 dia. x 4.8 *1
Panel Mount Cross Roller Plunger
X-10GQ21-B
PT
23.3
±
0.25
12.7 dia. x 4.8 *1
M12 x 1 mounting screw
M12 x 1 mounting screw
OP
15.5 *3
*2
16.3
16 dia.
Two hexagonal nuts
(3 t x 17
width
across flats)
OP
15.5 *3
*2
16.3
16 dia.
Two hexagonal nuts
(3 t x 17
width
across flats)
*1. Stainless-steel roller
*2. Three
vent
holes
*3. Incomplete screw part
with
a maximum length of 1.5 mm.
*1. Stainless-steel roller
*2. Three
vent
holes
*3. Incomplete screw part
with
a maximum length of 1.5 mm.
Note:
Do not use both the M12 mounting screw and the mounting holes in the
case at the same time. Doing so will cause stress to be applied to the
Switch, possibly damaging the case or cover.
Note:
Do not use both the M12 mounting screw and the mounting holes in the
case at the same time. Doing so will cause stress to be applied to the
Switch, possibly damaging the case or cover.
Leaf Spring
X-10GL-B
49.6
±
0.8
FP
t = 0.3 *1
4.8
*2
OP
*1. Stainless-steel spring lever
*2. Three
vent
holes
Operating Characteristics
OF max.
RF min.
PT max.
OT min.
MD max.
FP max.
OP
X-10G-B
510 gf
114 gf
0.9 mm
0.13 mm
0.18 mm
−
15.9±0.4 mm
X-10GS-B
510 gf
114 gf
0.9 mm
1.6 mm
0.18 mm
−
28.2±0.5 mm
X-10GD-B
510 gf
114 gf
0.9 mm
1.6 mm
0.18 mm
−
21.2±0.5 mm
X-10GQ-B
510 gf
114 gf
0.9 mm
5.5 mm
0.18 mm
−
21.8±0.8 mm
X-10GQ22-B
510 gf
114 gf
0.9 mm
3.6 mm
0.18 mm
−
33.4±1.2 mm
X-10GQ21-B
510 gf
114 gf
0.9 mm
3.6 mm
0.18 mm
−
33.4±1.2 mm
X-10GL-B
200 gf
14 gf
−
1.6 mm *
2.3 mm
22.1 mm
17.4±0.8 mm
* Be sure to use the switch at the rated OT value of 1.6 mm.
144
General-purpose Basic Switch
X
Note: 1.
All drawings show the switches with screw terminals. For solder terminals, remove the “-B” from the end of the part number
2.
Unless otherwise specified, all units are in millimeters and a tolerance of
±
0.4 mm applies to all dimensions.

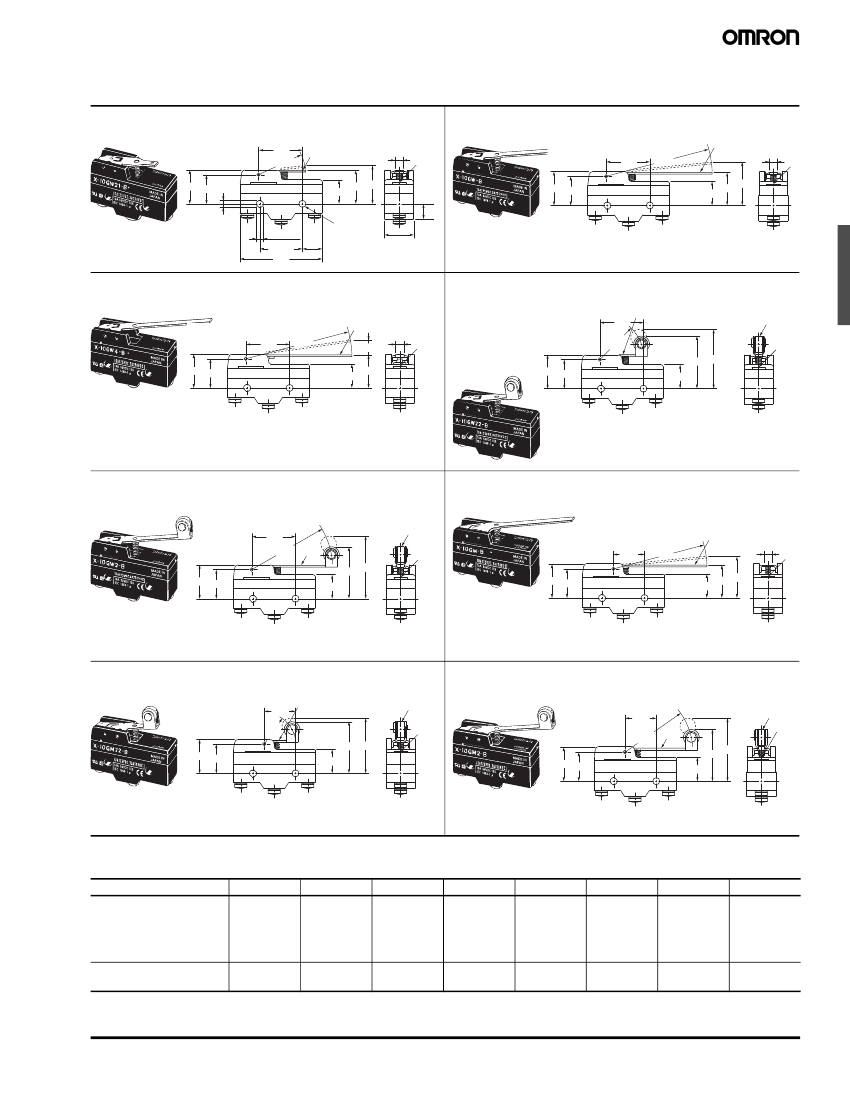

Short Hinge Lever
X-10GW21-B
26.2
2
8
.
2R
Hinge Lever
X-10GW-B
t = 1 *1
t = 1 *1
4.9
*2
OP
FP
26.2
R
63.5
4.9
*2
OP
FP
20.2 17.4
14.4
20.2 17.4
9.2
14.4
4.2
+0.075
-0.025
4.36
+0.1
dia.
-0.05
25.4
±
0.1
49.2
11.9
4.2
+0.075
dia. holes
-0.025
17.45
±
0.2
*1. Stainless-steel lever
*2. Three
vent
holes
*1. Stainless-steel lever
*2. Three
vent
holes
Low-force Hinge Lever
X-10GW4-B
t = 1 *1
26.2
63.5
R
Short Hinge Roller Lever
X-10GW22-B
t = 1 *1
26.2
.6
R
9.5 dia. x 4
plastic roller
4.9
PT
OP
*2
20.2 17.4
26
*2
OP
FP
20.2 17.4
14.4
14.4
*1. Stainless-steel lever
*2. Three
vent
holes
*1. Stainless-steel spring lever
*2. Three
vent
holes
Hinge Roller Lever
X-10GW2-B
26.2
4
8
.5R
Reverse Hinge Lever
X-10GM-B
9.5 dia. x 4
plastic roller
*1
t=1
*2
OP
FP
20.2 17.4
14.4
OP
FP
t = 1 *1
4.9
18.65
56R
*2
20.2 17.4
14.4
*1. Stainless-steel lever
*2. Three
vent
holes
*1. Stainless-steel lever
*2. Three
vent
holes
Reverse Short Hinge Lever
X-10GM22-B
t = 1*1
18.65
1
8
.5R
9.5 dia. x 4
plastic roller
Reverse Hinge Roller Lever
X-10GM2-B
18.65
9.5 dia. x 4
plastic roller
*2
OP
FP
*1
.6R
t = 1
*2
OP
FP
20.2 17.4
40
20.2 17.4
14.4
14.4
*1. Stainless-steel lever
*2. Three
vent
holes
*1. Stainless-steel lever
*2. Three
vent
holes
Operating Characteristics X-10GW21-B
OF max.
RF min.
PT max.
OT min.
MD max.
FP max.
OP
250 gf
32 gf
−
2.1 mm
1.7 mm
X-10GW-B
110 gf
14 gf
−
4.8 mm
3.9 mm
X-10GW4-B X-10GW22-B X-10GW2-B
25 gf
5 gf
14.3 mm
4.8 mm
3.9 mm
220 gf
35 gf
−
2.4 mm
1.7 mm
145 gf
21 gf
−
4 mm
3 mm
X-10GM-B
220 gf
25 gf
−
5.5 mm
2.1 mm
X-10GM22-B
700 gf
155 gf
−
2 mm
0.75 mm
X-10GM2-B
320 gf
50 gf
−
4 mm
1.5 mm
25.5 mm
34.6 mm
−
37.1 mm
40.5 mm
26.8 mm
36.1 mm
37.4 mm
20.7±0.8 mm 21.1±0.8 mm 21.1±0.8 mm 32.2±0.8 mm 32.2±0.8 mm 21.1±0.8 mm 32.2±0.8 mm 32.2±0.8 mm
General-purpose Basic Switch
X
145
京公网安备 11010802033920号
EEWORLD
