EHL
SERIES
105℃ 5000 hours assured life.
Directly mountable on printed circuit board without holders.
Low ESR and long life.
Terminal spacing fixed at 10mm for PC board plug in.
Aluminum case designed explosion‐proof vent.
Characteristics
Voltage Range
Capacitance Range
Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor (tanδ)
10 ~ 100V
160 ~ 400V
560 ~ 47000uF
68 ~ 1500uF
-40 ~ +105
℃
-25 ~ +105
℃
±20%
at 120Hz , 20
℃
( 10% Tol. is available upon request)
I=3
CV
uA max C: Capacitance, V:W.V. (After 5 minutes)
Rated voltage
10
16
25
35
50
63 ~ 100 160 ~ 400
0.55
0.40
0.30
0.25
0.20
0.15
0.15
tanδ
at 20
℃
, 120Hz
Stability at Low Temperature
Impedance ration at 120Hz between the -25℃ or -40℃ value and 20℃ value shall not exceed the
values given below.
Rated Voltage (V)
10, 16
25
35
50, 63
80, 00
160 ~ 350
4
3
3
2
2
4
Z-25
℃
/Z 20
℃
15
10
8
6
5
-
Z-40
℃
/Z 20
℃
The following specifications shall satisfied when the capacitors are restored to 20
℃
after rated
Load Life
working voltage applied for 5,000 hours at max. Operating temperature with the rated ripple current
applied.
Capacitance change
≦±25%
of the initial value.
Dissipation factor
≦±250%
of the initial specified value
Leakage current
≦The
initial specified value.
After storage for 1000 hours at 105
℃
with no voltage applied, the capacitor shall meet the specified
Shelf Life
limit in load life.

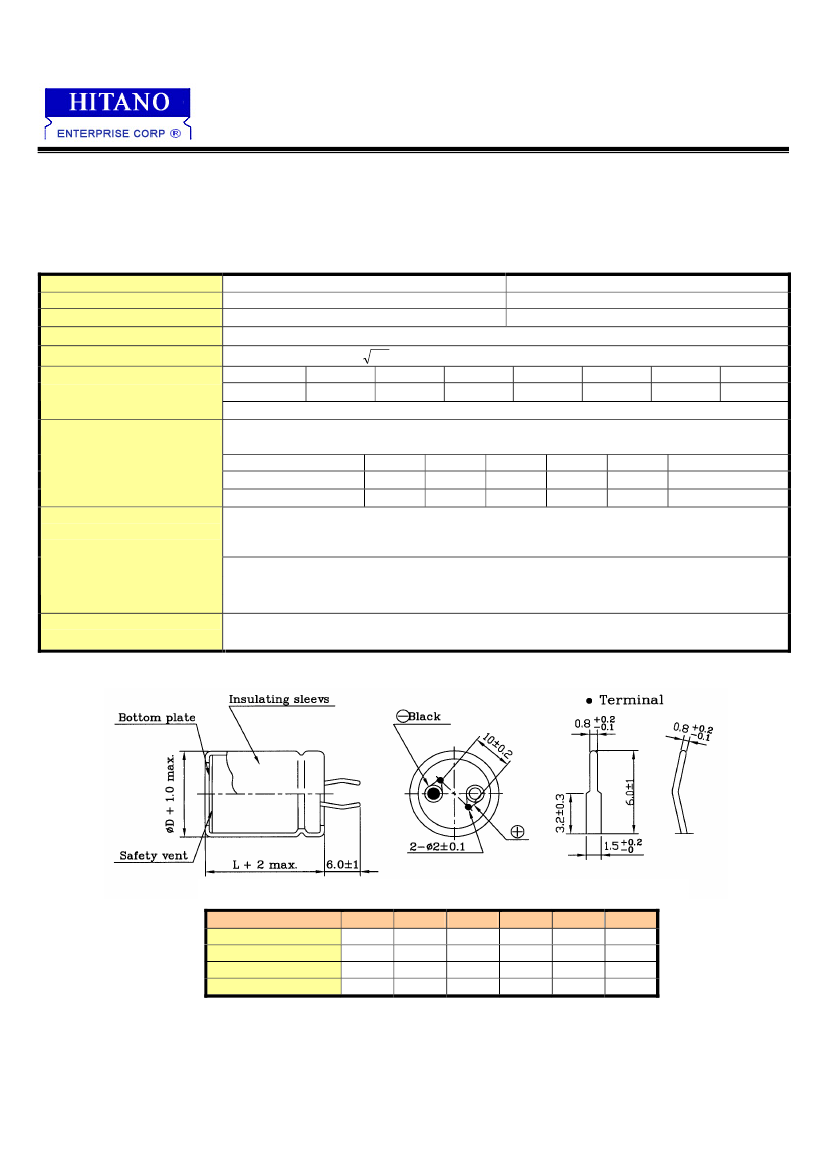

Diagram of dimensions
Multiplier for Ripple Current VS Frequency
Rated Voltage\\ (Hz)
10 ~ 50 VDC
63 ~ 100 VDC
160 ~ 250 VDC
350 ~ 400 VDC
50/60
0.95
0.93
0.81
0.77
120
1
1
1
1
300
1.03
1.07
1.17
1.16
1K
1.05
1.13
1.32
1.30
10K
1.08
1.19
1.45
1.41
50K
1.08
1.20
1.50
1.43
