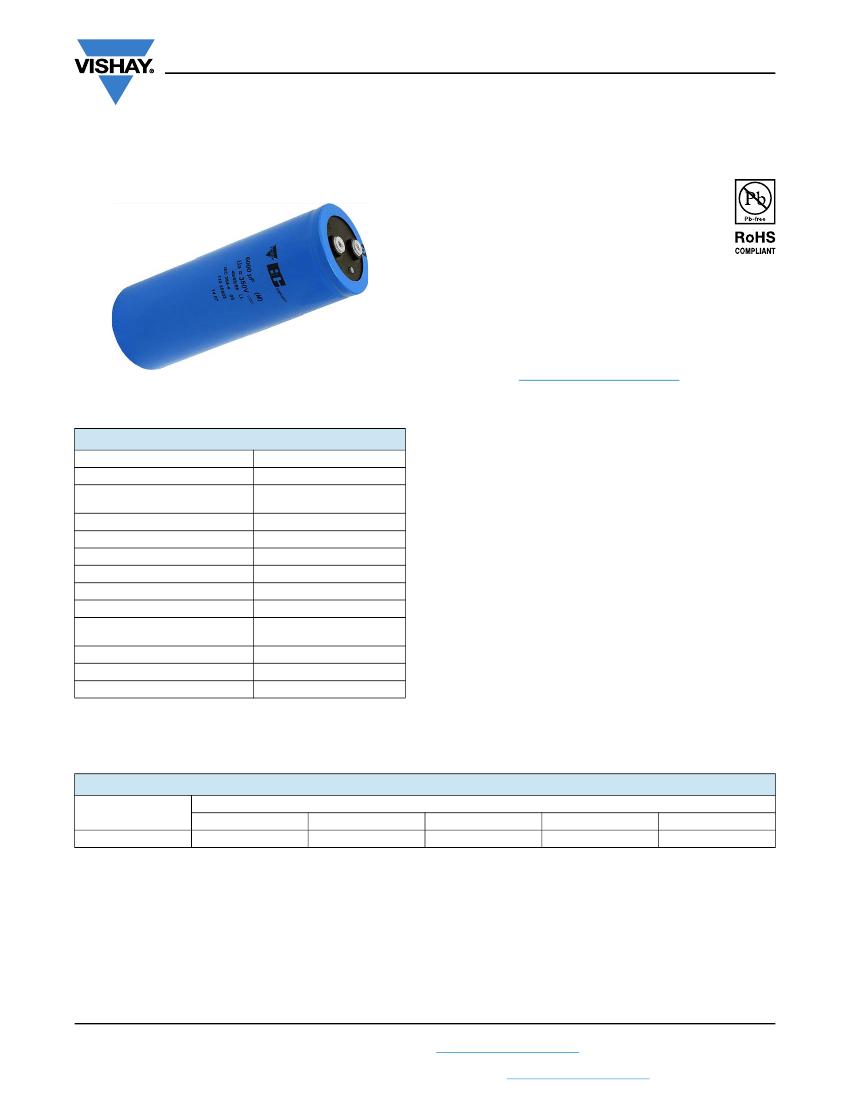

110 PHT-ST
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors,
Power High Ripple for Traction, Screw Terminals
FEATURES
• Long useful life: > 10 000 h at +85 °C
• Available in case sizes up to Ø 90 mm x 220 mm
• Low ESR
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, cylindrical aluminum case, insulated with a
blue sleeve
• Pressure relief in the sealing
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• Traction (metro / subway, light rail, streetcars / tram)
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size (Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 70 °C
Useful life at 40 °C,
1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
Note
(1)
Other values available on request
VALUE
76 x 146 to 76 x 220
(1)
6000 μF
(1)
-10 % / +30 %
250 V to 450 V
(1)
-40 °C to +85 °C
2000 h
> 10 000 h
> 40 000 h
> 400 000 h
500 h
IEC 60384-4 / EN 130300
40 / 085 / 056
• Heavy duty applications
• Various industrial applications
MARKING
The capacitors are marked with the following information:
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (Q for -10 % / +30 %)
• Rated voltage (in V)
• Date code (YYMM or in 2 digits according to IEC 60062)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
6000
U
R
(V)
250
76 x 146
300
76 x 220
350
76 x 220
400
76 x 220
450
76 x 220
Note
• Other values available on request
Revision: 06-Sep-17
Document Number: 28411
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
110 PHT-ST
www.vishay.com
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
L
t
Safety
vent
Thread M x S
d
1
P
B
H
T
T
Vishay BCcomponents
L
t
L
d
1
D
B
H
Threaded
stud
mounting (STB)
L
l
b
D
M
b
Standard
M5 disc
Clamp mounting (ST)
Fig. 1A - Mechanical drawings for standard M5 disc versions.
For details refer to Table 1
Safety
vent
Thread M x S
d
1
P
B
H
T
L
t
L
d
1
D
B
H
T
Clamp mounting (ST)
L
t
L
l
b
M
b
D
High current M6 disc
Threaded
stud
mounting (STB)
Fig. 1B - Mechanical drawings for high current M6 disc versions.
For details refer to Table 1
Note
• Maximum permissible torque which may be applied to the termination screws: 2 Nm for M5; 2.5 Nm for M6 and 1/4-28 UNF.
For accessories refer to document “Mounting Accessories”, see
www.vishay.com/doc?28348
The capacitors are delivered with screws and washers
Table 1
DIMENSIONS
in millimeters,
MASS, AND PACKAGING QUANTITIES
DESIGN
76 x 146 M5-13 mm
76 x 146 M6-13 mm
76 x 146 M6-18 mm
76 x 146 1/4-28 UNF
76 x 220 M5-13 mm
76 x 220 M6-13 mm
76 x 220 M6-18 mm
76 x 220 1/4-28 UNF
DRAWING L ± 1 L
t
± 1 D ± 1 P ± 0.3
1A
1A
1B
1B
1A
1A
1B
1B
145.8 150.2 76.4
145.8 150.2 76.4
145.8 153.0 76.4
145.8 153.0 76.4
219.8 224.2 76.4
219.8 224.2 76.4
219.8 227.0 76.4
219.8 227.0 76.4
31.8
31.8
31.8
31.8
31.8
31.8
31.8
31.8
T
5.5
5.5
7.9
7.9
5.5
5.5
7.9
7.9
H ± 0.3 B ± 0.3 d
1
± 0.1
3.5
3.5
n/a
n/a
3.5
3.5
n/a
n/a
18.3
18.3
18.3
18.3
18.3
18.3
18.3
18.3
13.0
13.0
17.3
17.3
13.0
13.0
17.3
17.3
M
M5
M6
M6
M5
M6
M6
S ± 1 M
b
I
b
± 0.1
9.5 M12
9.5 M12
10.0 M12
9.5 M12
9.5 M12
10.0 M12
16
16
16
16
16
16
16
16
MASS
(g)
1000
1000
1000
1000
1500
1500
1500
1500
1/4-28 UNF 10.0 M12
1/4-28 UNF 10.0 M12
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
DESIGN
76 x 146
76 x 220
Note
• For STB version holds:
H cardbox box: +10 mm
PACKAGING QUANTITIES
(units per box)
12
18
CARDBOX DIMENSIONS
LxWxH
(mm)
377 x 375 x 168
520 x 270 x 280
Revision: 06-Sep-17
Document Number: 28411
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
110 PHT-ST
www.vishay.com
Vishay BCcomponents
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz, tolerance -10 % / +30 %
Rated RMS ripple current at 100 Hz, 85 °C
Max. leakage current after 5 min at U
R
Max. equivalent series resistance at 100 Hz
Max. impedance at 20 kHz
Note
• Unless otherwise specified, all electrical values in Table 2 apply at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
CASE SIZE
ØDxL
(mm)
I
R
100 Hz
85 °C
(A)
18.35
I
L
5 min
(mA)
ESR
(m)
MAX.
TYP.
Z
(m)
MAX.
TYP.
ORDERING CODE
(1)
ST
MAL211013602E3
MAL211033602E3
MAL211053602E3
MAL211073602E3
MAL211010602E3
MAL211030602E3
MAL211050602E3
MAL211070602E3
MAL211015602E3
MAL211035602E3
MAL211055602E3
MAL211075602E3
MAL211016602E3
MAL211036602E3
MAL211056602E3
MAL211076602E3
MAL211017602E3
MAL211037602E3
MAL211057602E3
MAL211077602E3
STB
MAL211023602E3
MAL211043602E3
MAL211063602E3
MAL211083602E3
MAL211020602E3
MAL211040602E3
MAL211060602E3
MAL211080602E3
MAL211025602E3
MAL211045602E3
MAL211065602E3
MAL211085602E3
MAL211026602E3
MAL211046602E3
MAL211066602E3
MAL211086602E3
MAL211027602E3
MAL211047602E3
MAL211067602E3
MAL211087602E3
250
6000
76 x 146
3.0
17.6
9.7
11.5
6.9
300
6000
76 x 220
18.35
3.6
25.3
13.9
20.0
12.0
350
6000
76 x 220
18.49
4.2
24.0
13.2
18.6
11.2
400
6000
76 x 220
18.45
4.8
23.8
13.1
18.6
11.2
450
6000
76 x 220
19.76
5.4
19.1
10.5
13.6
8.2
Note
(1)
Underlined 8
th
digit determines form: for details see “Part Number Explanation” table
PART NUMBER EXPLANATION
(Example: 350 V, 6000 μF, M6-13 mm disc)
1234
MAL2
PREFIX
567
110
SERIES NAME
8
3
FORM
1
= high current M5-13 mm disc (ST)
2
= high current M5-13 mm disc,
with mounting bolt (STB)
3
= high current M6-13 mm disc (ST)
4
= high current M6-13 mm disc,
with mounting bolt (STB)
5
= high current M6-18 mm disc (ST)
6
= high current M6-18 mm disc,
with mounting bolt (STB)
7
= US tread 1/4-28 UNF (ST)
8
= US tread 1/4-28 UNF,
with mounting bolt (STB)
9
5
VOLTAGE
3
= 250 V
0
= 300 V
5
= 350 V
6
= 400 V
7
= 450 V
10 11 12
602
CAPACITANCE
602
= 6000 μF
Lead (Pb)-free
(RoHS-compliant)
13 14
E3
Note
• Other values or designs are available on request.
For more information, please visit the “Product Coding” page:
www.vishay.com/doc?28394
Revision: 06-Sep-17
Document Number: 28411
3
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
110 PHT-ST
www.vishay.com
Vishay BCcomponents
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Note
(1)
Low ESL designs available on request
Typ. 20 nH
(1)
After 1 min at U
R
After 5 min at U
R
I
L1
0.006 C
R
x U
R
I
L5
0.002 C
R
x U
R
U
S
= 1.1 x U
R
U
rev
1 V
CONDITIONS
VALUE
RIPPLE CURRENT AND USEFUL LIFE
1.5
1.4
1.3
I
R
Forced
I
R
Free
1.2
1.1
1
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
Air Velocity (m/s)
Fig. 2 - Multiplier of ripple current (I
R
) as a function of air flow
MAXIMUM RIPPLE CURRENT
PARAMETER
Ambient temperature (T
amb
)
Operating frequency (f)
Air flow
CONDITION
70 °C
400 Hz
2 m/s
MAXIMUM RIPPLE CURRENT MULTIPLIER
From nomogram; see Fig. 3
From frequency; see Table 3
From air flow; see Fig. 2
VALUE
1.6
1.3
1.25
Note
• Calculation example for 110 series. maximum ripple current multiplier = 1.6 x 1.3 x 1.25 = 2.6
Revision: 06-Sep-17
Document Number: 28411
4
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
110 PHT-ST
www.vishay.com
Table 3
Vishay BCcomponents
ENDURANCE TEST DURATION AND USEFUL LIFE
ENDURANCE
AT 85 °C
(h)
2000
Note
• Multiplier of useful life code: CCC205-05
CCC205-05
USEFUL LIFE
AT 85 °C
(h)
> 10 000
2.6
I
A
I
R
2.4
2.2
2.0
1.8
1.6
1.4
lifetime multiplier
1.2
(1)
I
A
= Actual ripple current at 100 Hz
I
R
= Rated ripple current at 100 Hz and 85 °C
(1)
1.0
20
40
30
2.0
4.0
3.0
1.5
6.0
10
1.0
0.8
0.5
0.0
40
50
60
70
80
Useful life at 85 °C and I
R
applied: 10 000 h
90
T
amb
(°C)
100

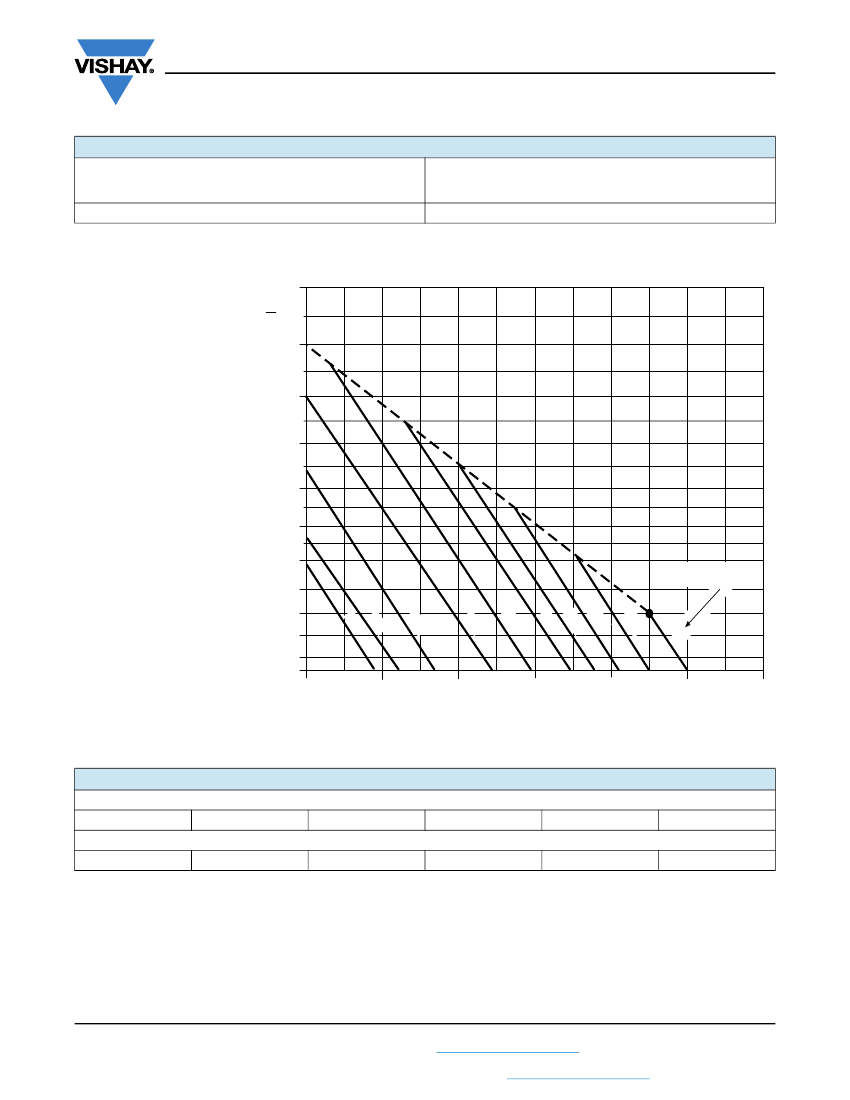

Fig. 3 - Multiplier of useful life as a function of ambient temperature and ripple current load
Table 4
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY (Hz)
50
100
200
I
R
MULTIPLIER
0.90
1.00
1.20
1.30
1.40
1.50
400
1000
10 000
Revision: 06-Sep-17
Document Number: 28411
5
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
