BG042-027-A-0600-0300-N-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BG042-027-A-0600-0300-N-D

Preview

BG042-027-A-0600-0300-N-D: DescriptionBoard Connector, 27 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG042-027-A-0600-0300-N-D Overview

Board Connector, 27 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,

BG042-027-A-0600-0300-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304448960
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.295 inch
subject depth	0.1 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	600VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e4
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	27

Preview

Download Datasheet

View All

1

2

3

4

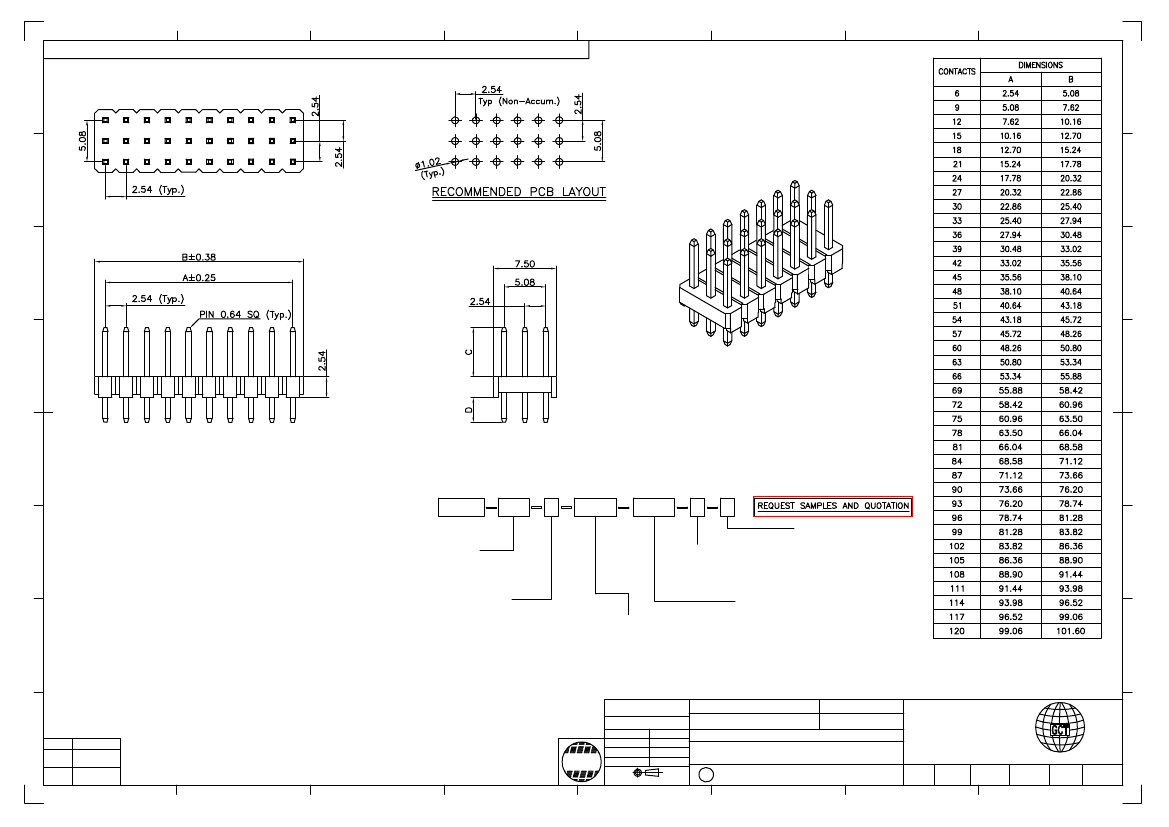

Global Connector Technology Ltd. - BG042: 2.54mm PITCH PIN HEADER, TRIPLE ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

F

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

G

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BG153

BG161

E

Ordering Grid

BG042

No. of Contacts

06 to 120

e.g. 12 = 012

XXX

X

XXXX

X

Packing

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

F

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Dimension C (1/100mm)

(Post Height)

Standard - 6.00mm = 0600

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension D

e.g. 2.50mm = 0250

TOL.: ±0.2mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

.XX°±1°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG042

Description:-

02 APR 07

H

By

DETAIL

REV

DATE

BC

DRAWING

RELEASE

A

02/04/07

RoHS

2

3

4

2.54mm PITCH PIN HEADER, TRIPLE ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

H

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

A

Drawn by

BC

1

5

6

7

8
