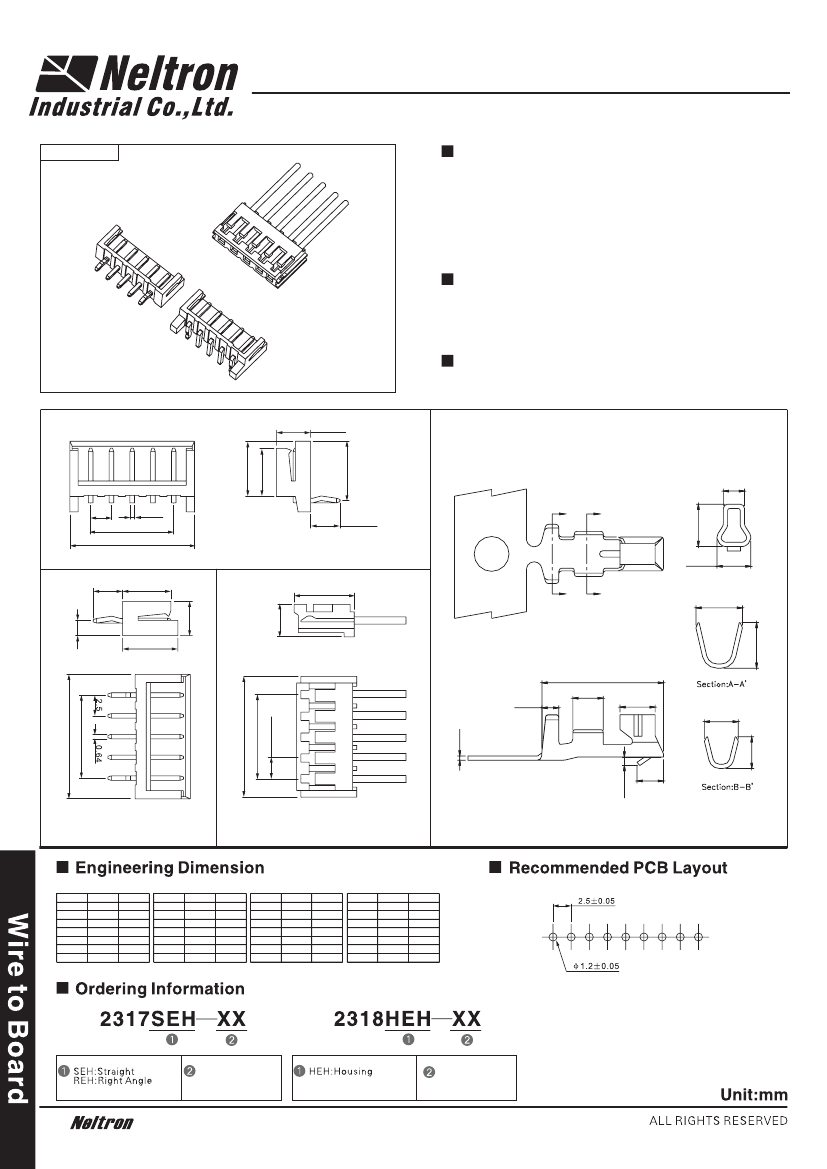

2.5mm Wire to Board Connectors
2317 & 2318 Series
RoHS Compliant
Specifications
Current rating:3.0A AC/DC
Voltage rating:250V AC/DC
Contact resistance:20m ohm. max.
Insulation resistance:1000M ohm. Min.
Withstanding voltage:1000V AC for one minute
Operating temperature range:-40
℃
to +85
℃
Application: Wire Awg 22 to 30
HE
H-
XX
23
18
23
17
SE
Material and Finish
A.Housing Insulator:Nylon 66(UL94V-0)
B.Crimp Terminal :Phosphor Bronze Tin Plated
C.Wafer Insulator:Nylon 66(UL94V-0)
Contact Pin:Brass Tin Plated
H-
XX
23
17
RE
H-
XX
Connection
2318HEH Mates With 2317S(R)EH-XX
4.2±0.2
6.0±0.2
5.1±0.2
6.7±0.2
1.05
Dim.A±0.2
Dim.B±0.2
3.3±0.3
P/N:231 7R EH-XX
1.50
3.2
5.2
7.2
A
B
2.90±0.1
3.8
3.9
2.10
2.5
0.64
A
B
6.0
2.5
0.64
4.60
1.35
1.33
1.74±0.1
2.25±0.1
Dim.B
Dim.A
0.16
P/N:231 7S EH-XX
P/N:2318HEH-XX
P/N:2318 T EH
P/N:2317SEH(REH)-XX
Circuits
2
3
4
5
6
7
8
Dim. A
2.50
5.00
7.50
10.00
12.50
15.00
17.50
Dim. B
7.50
10.00
12.50
15.00
17.50
20.00
22.50
Circuits
9
10
11
12
13
14
15
Dim. A
20.00
22.50
25.00
27.50
30.00
32.50
35.00
Dim. B
25.00
27.50
30.00
32.50
35.00
37.50
40.00
P/N:2318HEH-XX
Circuits
2
3
4
5
6
7
8
Dim. A
2.50
5.00
7.50
10.00
12.50
15.00
17.50
Dim. B
7.00
9.50
12.00
14.50
17.00
19.50
22.00
Circuits
9
10
11
12
13
14
15
Dim. A
20.00
22.50
25.00
27.50
30.00
32.50
35.00
Dim. B
24.50
27.00
29.50
31.40
33.90
36.40
38.90
P/N:2317SEH(REH)-XX
No. Of Contacts
No. Of Contacts
24
0.32
0.64
1.00
2007-2012
1.6±0.1
2.60±0.1
1.6
Dim.A
Dim.B
