LLS2Z222MHLC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> LLS2Z222MHLC

LLS2Z222MHLC: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size98KB，5 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

LLS2Z222MHLC Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 180V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED

LLS2Z222MHLC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1934598148
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	6.3mm Terminals Available
diameter	35 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	1.88 mA
length	25 mm
Manufacturer's serial number	LS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	180 V
ripple current	4830 mA
series	LS
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	10 mm
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

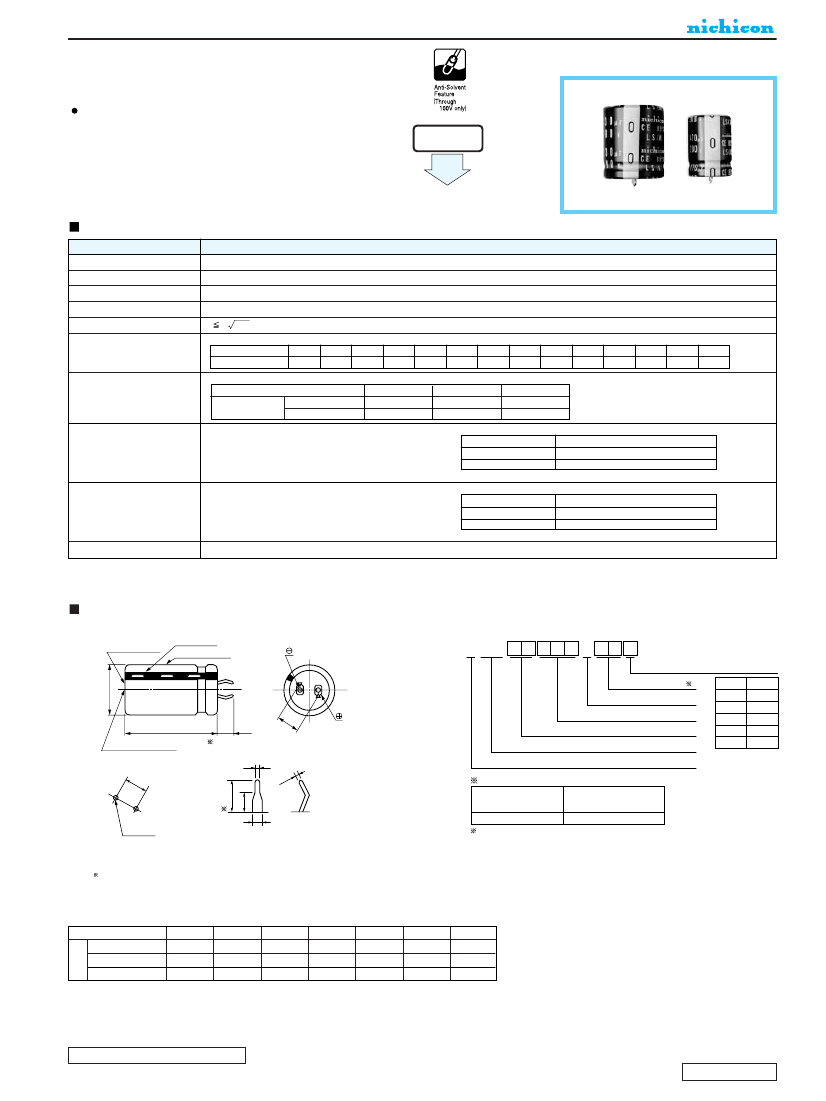

ALUMINUM ELECTROLYTIC CAPACITORS

Snap-in Terminal Type, Standard

series

Withstanding 3000 hours application of rated ripple current at 85°C.

Smaller

Specifications

Item

Performance Characteristics

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

– 40 ~ +85°C (16~250V), – 25 ~ +85°C (350 ~ 450V)

16 ~ 450V

56 ~ 56000µF

± 20% at 120Hz, 20°C

3 CV

(µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage(V)]

Rated voltage (V)

tan

(MAX.)

0.50

0.40

0.35

0.30

16 ~ 100

0.25

0.20

100

0.20

Measurement frequency :120Hz, Temperature : 20°C

180

200

250

350

400

450

0.15

0.20

160

350 ~ 450

—

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio

ZT/Z20(MAX.)

Z—25°C/ Z+20°C

Z—40°C/ Z+20°C

160 ~ 250

Endurance

After an application of DC voltage (in the range of rated

DC voltage even after over-lapping the specified ripple

current) for 3000 hours at 85°C, capacitors meet the

characteristic requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

After leaving capacitors under no load at 85°C

for 1000 hours, they meet the requirements listed at right.

Capacitance change

tan

Leakage current

Within ±15% of initial value

150% or less of initial specified value

Initial specified value or less

Marking

Printed with white color letter on black sleeve.

Drawing

Bottom plate

(code HL only)

Polarity bar

Sleeve (P.E.T.)

Type numbering system ( Example

200V 390

9 10 11 12

L L S 2 D 3 9 1 ME L Z

Case dia.code

Configuration

φD

+1MAX.

Capacitance tolerane(±20%)

L±

Rated Capacitance(390µF)

Rated voltage(200V)

Pressure relief vent

4.0±0.5

0.8

+0.2

-0.1

4.0±0.5

Series name

Code

0.1

0.8

+0 1

-0.

Type

1 Configuration

Pb-free terminal

Pb-free PET sleeve

Whithout bottom plate

Sn-Pb finished terminal

PVC sleeve (containing Pb)

Whithout bottom plate

2.5

2-2φ±

0.1

1.5

+0.2

-0.1

(Terminal dimensions)

Please contact to us if other configurations are required.

(PC board hole dimensions)

The other terminal is also available upon request.

Please refer to page 202 for schematic of dimensions.

●

Frequency coefficient of rated ripple current

Frequency (Hz)

16~ 100V

160~ 250V

350~ 450V

0.88

0.81

0.77

0.90

0.85

0.82

120

1.00

300

1.07

1.17

1.16

1.15

1.32

1.30

10k

1.15

1.45

1.41

50k~

1.15

1.50

1.43

Minimum order quantity : 50pcs.

●

Coeff.

Dimension table in next page.
