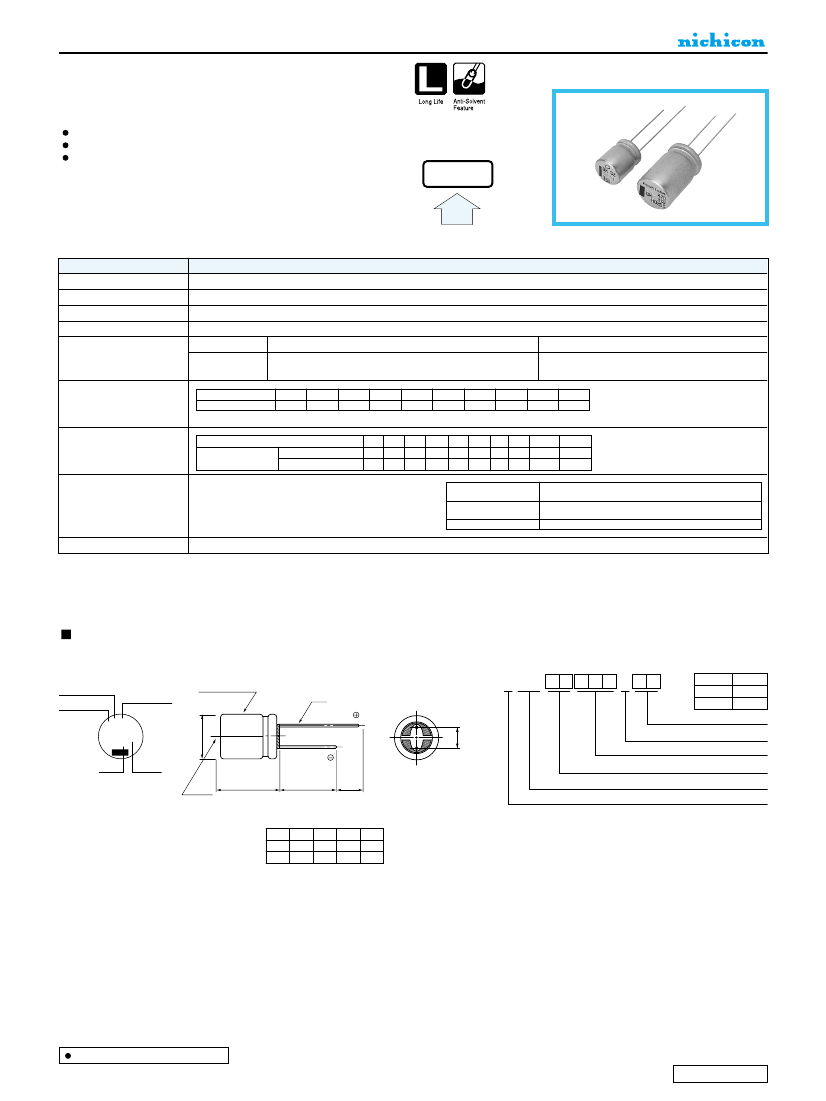

ALUMINUM ELECTROLYTIC CAPACITORS
BX
High Temperature Range, For +150°C Use
series
Laminated case series.
Suited for automobile electronics where heavy duty services are indispensable.
Compliant to the RoHS directive (2002/95/EC).
BX
High
Temperature
BW
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Performance Characteristics
– 55 to +150°C (10 to 100V), – 40 to +150°C (160
·
200V), – 25 to +150°C (350
·
400V)
10 to 400V
1 to 4700µF
± 20% at 120Hz, 20°C
Rated Voltage (V)
Leakage current
10 to 100
After 1 minute's application of rated voltage, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
160 to 400
<
CV = 1000 :
I
= 0.1CV+40 (µA) max. (1 minute's)
CV > 1000 :
I
= 0.04CV+100 (µA) max. (1 minute's)
120Hz 20°C
Tangent of loss angle (tan
δ)
Rated voltage (V)
10
16
25
35
50
63
80
100
tan
δ
(MAX.)
0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Z– 25°C / Z+20°C
Z– 40°C / Z+20°C
160
·
200 350
·
400
0.20
0.24
Stability at Low Temperature
Impedance ratio
ZT / Z20 (MAX.)
10
3
4
16
2
4
25
2
4
35
2
4
50
2
4
63
2
4
80 100
160
·
200 350
·
400
2
2
3
6
4
4
6
-
120Hz
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 2000 hours (1000 hours for
φD=10
and 12.5) at 150°C, the peak voltage shall not
exceed the rated voltage.
Black print on the case top.
Capacitance change
Dissipation Factor
Leakage current
Within ±30% of the initial capacitance value (10 to 100V)
Within ±20% of the initial capacitance value (160 to 400V)
300% or less than the initial specified value (10 to 100V)
200% or less than the initial specified value(160 to 400V)
Less than or equal to the initial specified value
Marking
Radial Lead Type
Type numbering system (Example : 10V 3300µF)
1
2
3
4
5
6
7
8
9 10 11
φD
10
12.5 to 18
Code
PL
HL
Rated Capacitance
Trade mark
nichicon
Laminated case
Rated Voltage
φD
+
0.5 MAX.
φ
d
UB X 1 A 3 3 2 MH L
3300
BX 10V
H1001
Configuration
P
±
0.5
Capacitance tolerance (±20%)
Rated capacitance (3300µF)
Rated voltage (10V)
Series
Lot No.
Pressure
relief vent
L+
1.5MAX.
15
MIN
4
MIN
Series name
Type
(mm)
φD
P
φd
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
•
Please refer to page 20 about the end seal configulation.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
CAT.8100Z
PCB Design
