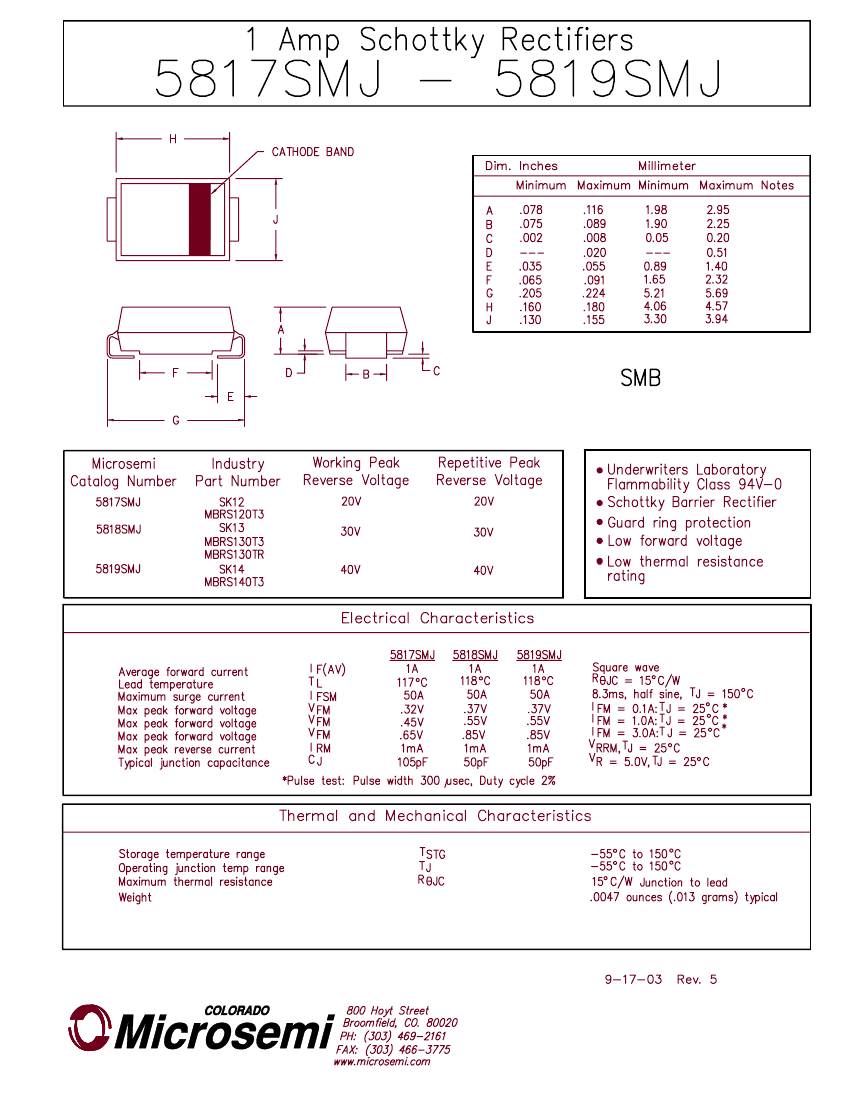

5819SMJE3 datasheet, PDF - EEWORLD Datasheet

5819SMJE3: DescriptionRectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214BA, ROHS COMPLIANT, DO-214BA, 2 PIN; CategoryDiscrete semiconductor diode; File Size131KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com; Environmental Compliance

Download Datasheet Parametric Compare View All

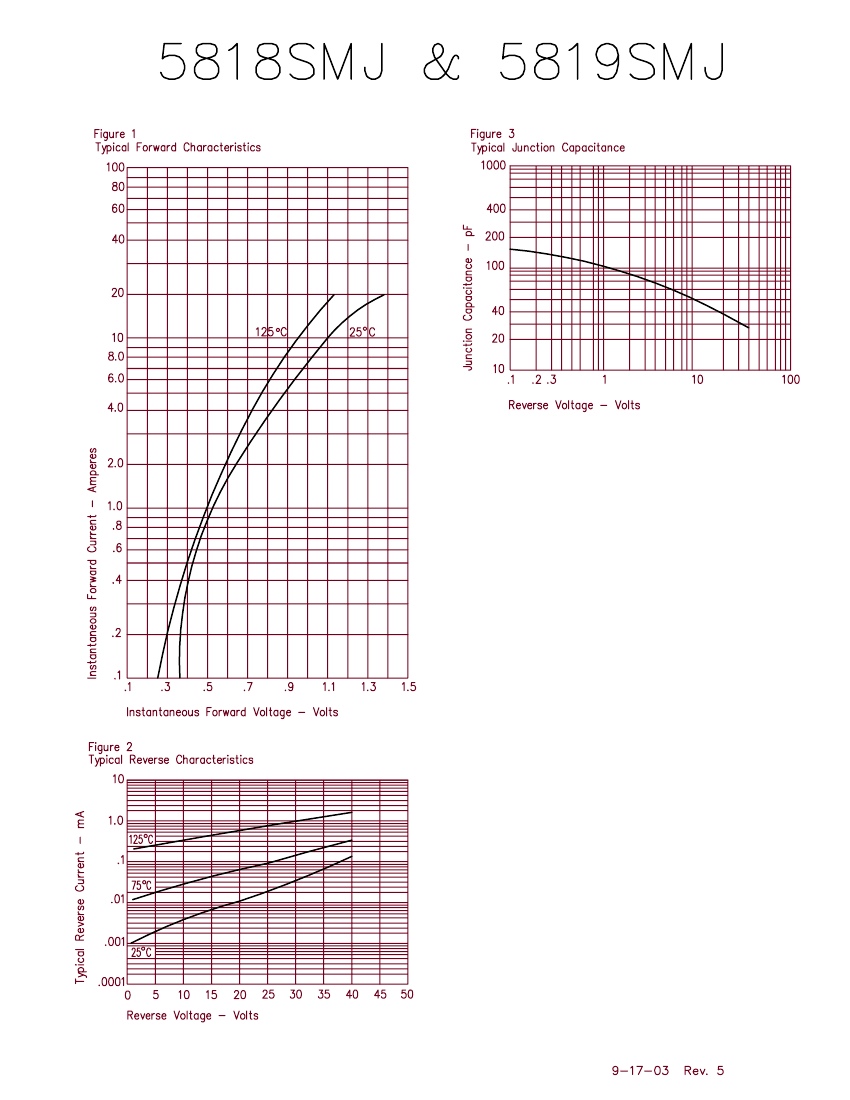

5819SMJE3 Overview

Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214BA, ROHS COMPLIANT, DO-214BA, 2 PIN

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DO-214BA
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-214BA
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

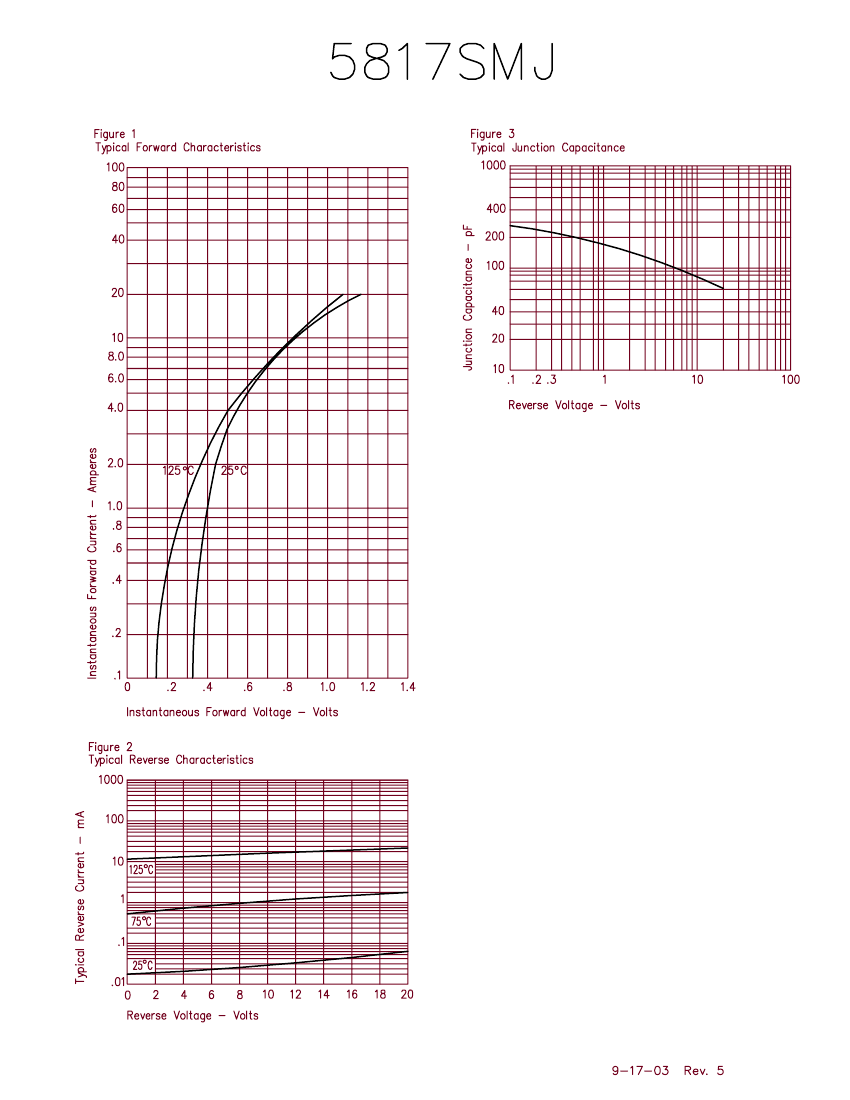

	5819SMJE3	5817SMJE3	SK14E3
Description	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214BA, ROHS COMPLIANT, DO-214BA, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 20V V(RRM), Silicon, DO-214BA, ROHS COMPLIANT, DO-214BA, 2 PIN	Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-214BA, ROHS COMPLIANT, DO-214BA, 2 PIN
Parts packaging code	DO-214BA	DO-214BA	DO-214BA
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Contacts	2	2	2
Reach Compliance Code	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	REVERSE ENERGY TESTED
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214BA	DO-214BA	DO-214BA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	20 V	40 V
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	-
