Preview

5429-2-06-1: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5429-2-06-1 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

5429-2-06-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.197 inch
subject depth	0.142 inch
body length	0.38 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5429
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	6
Evacuation force-minimum value	.973 N
Base Number Matches	1

Preview

Download Datasheet

View All

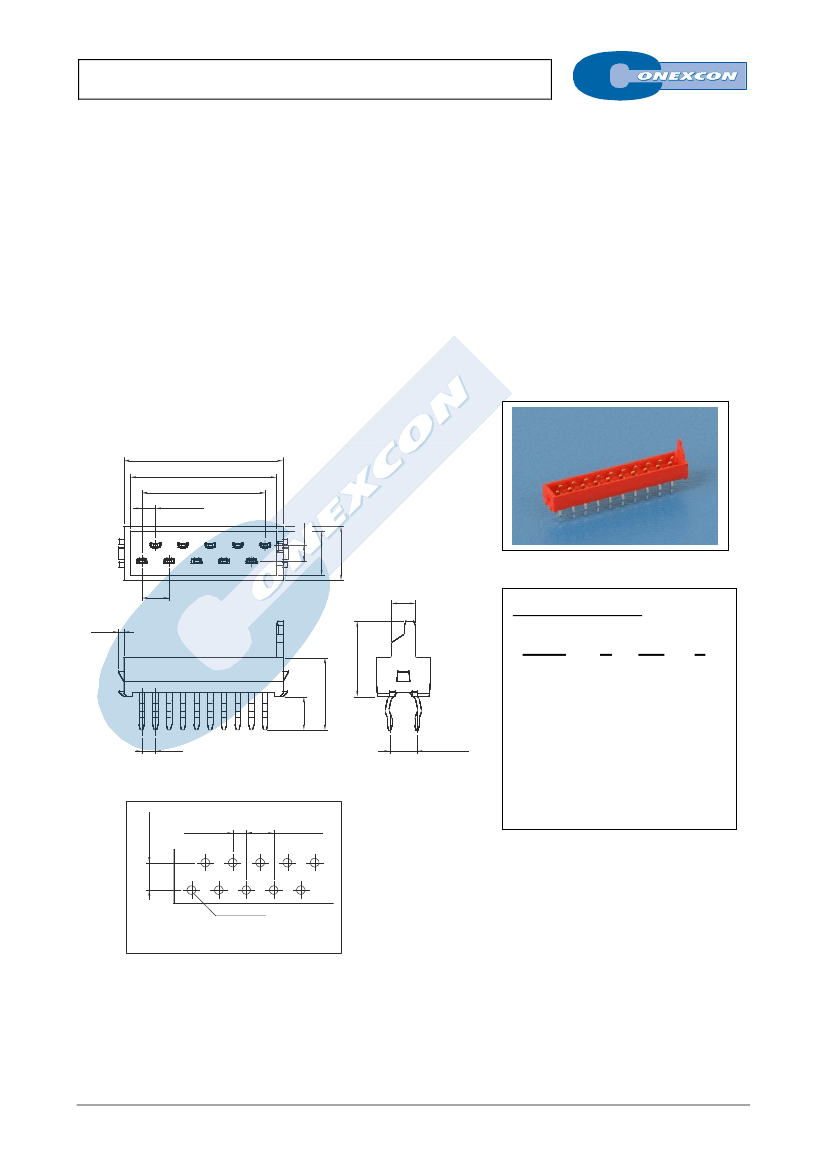

D/ ROW TOP ENTRY PCB MALE CONNECTOR

5429 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Mates with 2.54 mm. PCB connectors 5431, 5432

and 5434 series

Allows connections cable to PCB and PCB to PCB



Voltage rating: < 230V

Current rating: < 1.50 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 0.50 Kgf

Mating force: < 0.50 Kgf per contact

Un-mating force: > 0.10 Kgf per contact

Durability: 25 Cycles



Insulator: glass filled polyester UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimension Information

B±0.30

C±0.20

A±0.10

1.27±0.05

.050±.002

1.50

.059

2.54

.100

0.50

.020

7.0

.276

4.10

.161

5.0

.197

2.20

.087

Ordering Information:

5429 -

1

T-

2

XX-

3

1

4

3.1

.122

6.70

.264

1. Connector Series

2.54±0.30

.100±.012

1.27

.050

2. (T) Contact Plating



T =

2.

Tin plated

3. (XX) Number of circuits

2.54±0.05

.100±.002

Available in 4 through 26 circuits

1.27±0.05

.050±.002

2.54±0.05

.100±.002

Dimensions:

ø0.80±0.10

.050±.002

RECOMMENDED HOLE PATTERN

A

= 1.27 x (XX-1)

B

= 1.27 x (XX)+2.03

C

= 1.27 x (XX)+0.83

(XX) = Number of circuits

A-XX

FULL LINE CATALOGUE
