Low Capacity Standard Size Toggles
GENERAL SPECIFICATIONS FOR S100s
Series S
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Electrical Capacity (Resistive & Inductive Load)
Power Level:
Shown in the following table
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Operating Temp Range:
10 milliohms maximum
200 megohms minimum @ 500V DC
1,500V AC minimum for 1 minute minimum
30,000 operations minimum
10,000 operations minimum
–10°C through +70°C (+14°F through +158°F)
Materials & Finishes
Toggle:
Bushing:
Case:
Case Cover:
Movable Contactor Plate:
Movable & Stationary Contacts:
Terminals:
Brass with chrome plating
Brass with chrome or nickel plating
Phenolic resin
Steel with zinc plating
Copper with silver plating
Silver alloy plus copper with silver plating
Copper with silver plating
Environmental Data
Operating Temp Range:
–10°C through +70°C (+14°F through +158°F)
Installation
Mounting Torque:
Soldering Time & Temperature:
2.94Nm (26 lb
•
in) for double nut
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
CSA:
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” to end of part number to order CSA certified switch.
Certified at 5A @ 125V AC & 2A @ 250V AC.
www.nkkswitches.com

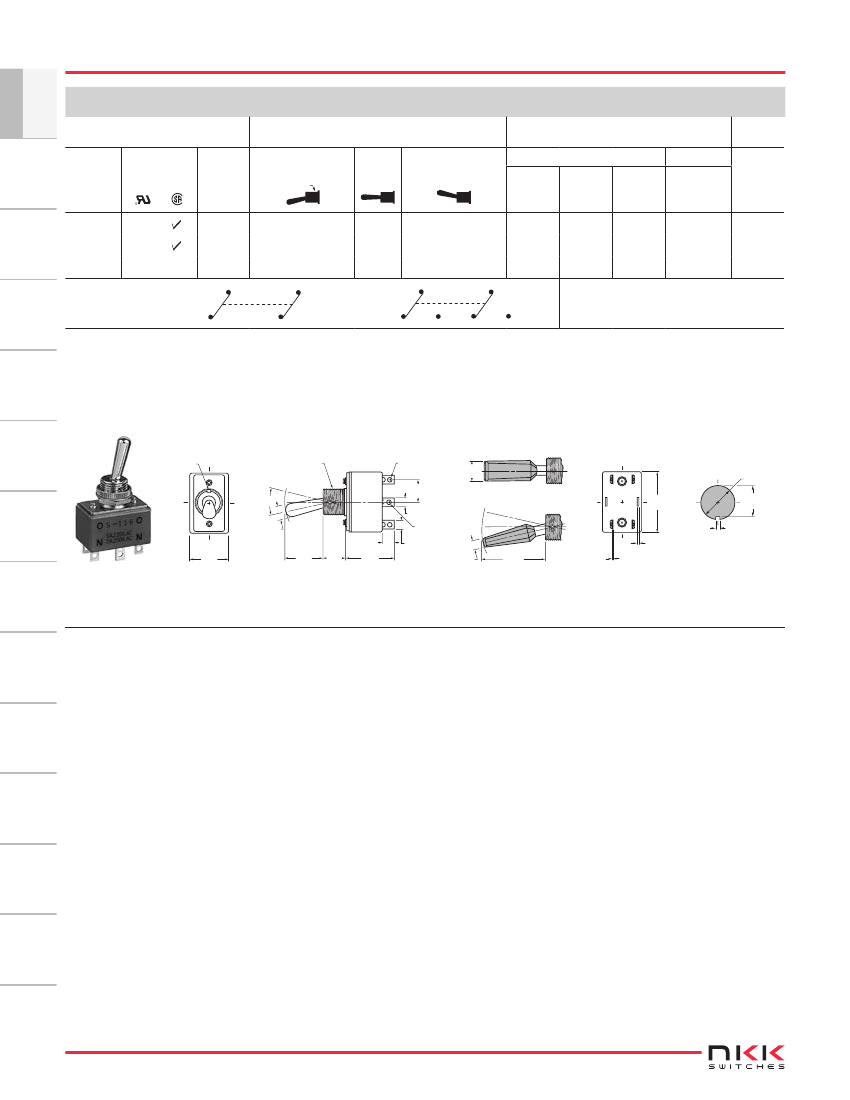

A101

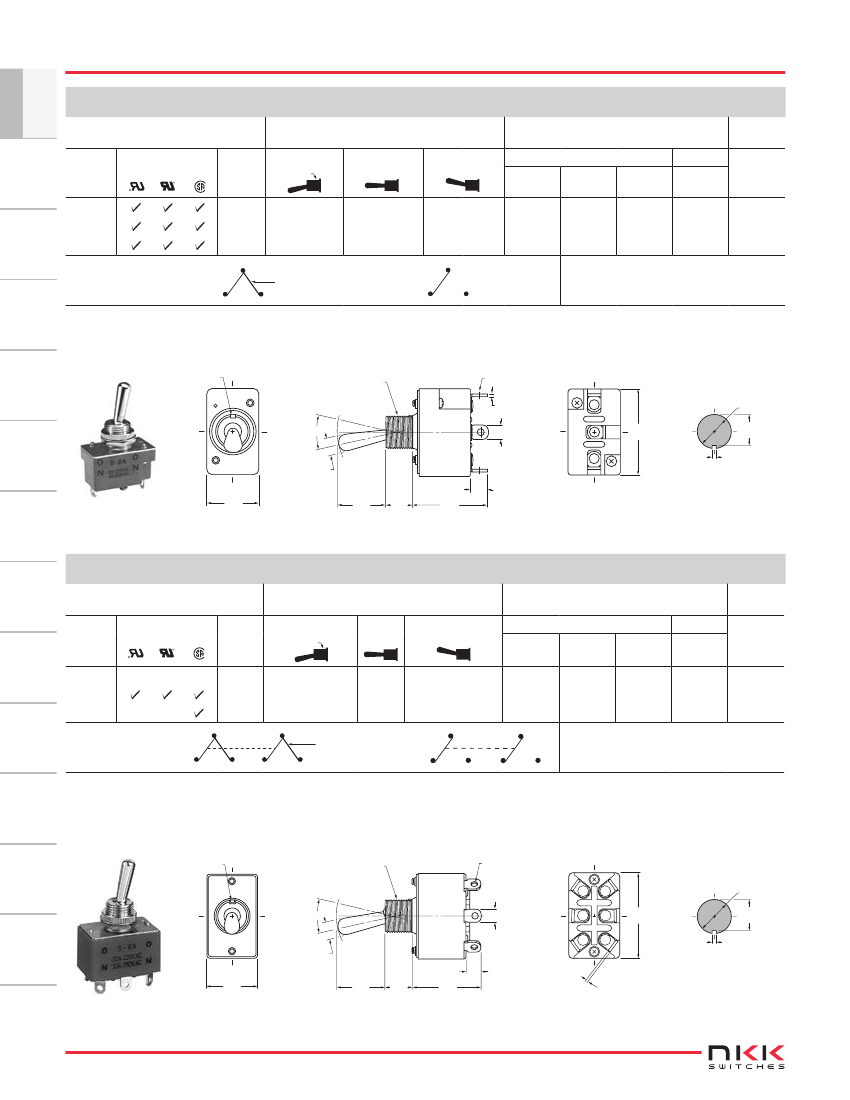

Series S
Toggles
Low Capacity Standard Size Toggles
DOUBLE POLE WITH SOLDER LUG
A
* CSA certified only when ordered with
marking on switch (see General Specs)
Toggle Position/Connected Terminals
Down
Center
Up
AC
125V
Electrical Capacity
Resistive
AC
250V
DC
30V
Rockers
* Approvals
Model
R
Inductive
AC 125V
PF 0.6
Angle
of Throw
Pole &
Throw
––
––
––
––
DPST
1
Keyway
Pushbuttons
S114
S116
S116R
Throw &
Schematics:
DPST
DPDT
DPDT
2
ON
ON
ON
(COM)
4
5
2-1 5-4
2-1 5-4
2-1 5-4
NONE
NONE
NONE
DPDT
1
OFF
ON
ON
2
—
2-3 5-6
2-3 5-6
(COM)
3
4
5
6
5A
5A
5A
2A
2A
2A
5A
5A
5A
3A
3A
3A
25°
25°
25°
Programmable Illuminated PB
Note: Terminal numbers are
actually on the switch
Notes:
Standard Hardware: AT504M Knurled Nut, AT508 Lockwasher, AT527M Backup Hex Nut. See Accessories & Hardware section.
Optional Splashproof Boot Assemblies (only for bat lever models): AT401 & AT4181 boots plus hex nut and o-ring. See Accessories & Hardware section.
S114 & S116
S116R Black Polyamide Paddle
Keylocks
Keyway
M12 P1
(2.0) Dia Typ
.079
(10.35) Typ
.407
(4.0)
.157
(2.3) Dia
.090
(3.8) Typ
.150
(9.0)
.354
6
5
4
3
2
1
(12.5) Dia
.492
(27.8)
1.094
(1.5)
.060
(0.8) Typ
.031
(11.5)
.453
25°
Rotaries
(6.0) Dia
.236
(17.6)
.693
(18.0)
.709
(10.0)
.394
(22.9)
.902
(5.5)
.217
(4.0)
.157
(29.0)
1.142
(0.3) Typ
.012
S116
S114 does not have terminals 3 & 6
Maximum
Panel Thickness:
.158” (4.0mm)
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
A102
www.nkkswitches.com
Medium Capacity Standard Size Toggles
GENERAL SPECIFICATIONS FOR S1 ~ S29
Electrical Capacity (Resistive & Inductive Load)
Power Level:
Series S
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Shown in the following tables
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Angle of Throw (α):
10 milliohms maximum
1,000 megohms minimum @ 500V DC
2,000V AC minimum for 1 minute minimum
30,000 operations minimum for S5AW, S8AW, S9AW, S25AW, S28AW, S29AW
50,000 operations minimum for all other models
25,000 operations minimum
Shown in tables on following pages
Materials & Finishes
Toggle:
Bushing:
Case:
Case Cover:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
Terminals:
Brass with chrome plating
Brass with chrome plating
Phenolic resin
Steel with zinc plating
Copper with silver plating
Silver alloy capped on copper with silver plating
Silver alloy capped on copper with silver plating
Brass with tin plating
Environmental Data
Operating Temp Range:
Sealing:
–30°C through +70°C (–22°F through +158°F) for Splashproof models;
–10°C through +70°C (+14°F through +158°F) for all other models
Splashproof & lever lock panel seal models meet IP67 standard
Installation
Mounting Torque:
Maximum Panel Thickness:
Soldering Time & Temperature:
1.47Nm (13 lb
•
in) for single nut on AW & AL models
2.94Nm (26 lb
•
in) for double nut on other models
Shown beneath panel cutout in switch dimension drawings
Manual Soldering: See Profile A in Supplement section.
Standards & Certifications
UL:
File No. E44145 - Recognized only when ordered with marking on switch.
Add “/U” or “/CUL” to end of part number to order UL recognized switch.
UL or cULus recognition designated beside part numbers on following pages.
See Supplement section to find UL or cULus rating details.
File No. 023535_0_000 - Certified only when ordered with marking on switch.
Add “/C” to end of part number to order CSA certified switch.
CSA certification designated beside part numbers on following pages.
See Supplement section to find CSA rating details.
CSA:
www.nkkswitches.com
A103
7/28/17
Series S
Toggles
Medium Capacity Standard Size Toggles
SINGLE POLE WITH SOLDER LUG
A
* UL, cULus & CSA recognized only when ordered
with marking on switch (see General Specs)
Toggle Position/Connected Terminals
Down
Center
Up
AC
125V
Electrical Capacity
Resistive
AC
250V
DC
30V
Rockers
* Approvals
Model
S1A
S2A
S3A
Throw &
Schematics:
SPST
1
3
R
Inductive
AC 125V
PF 0.6
Angle
of Throw
R
C
US
Pole &
Throw
SPST
SPDT
SPDT
Keyway
ON
ON
ON
1-3
2-3
2-3
NONE
NONE
OFF
SPDT
3
OFF
ON
ON
—
2-1
2-1
2 (COM)
1
15A
15A
15A
6A
6A
6A
20A
20A
20A
8A
8A
8A
25°
25°
25°
Pushbuttons
Programmable Illuminated PB
INTERNAL
CONNECTION
Note: Terminal numbers are
actually on the switch
Notes:
Standard Hardware: AT504M Knurled Nut, AT508 Lockwasher, AT527M Backup Hex Nut. See Accessories & Hardware section.
Optional Splashproof Boot Assemblies: AT401 & AT4181 boots plus hex nut & o-ring. See Accessories & Hardware section.
Keyway
(2.4) Dia Typ
.094
(0.8) Typ
.031
25°
(4.8) Typ
.189
(12.5) Dia
.492
(30.0)
1.181
(1.5)
.060
(11.5)
.453
M12 P1
3
2
1
Keylocks
(6.0) Dia
.236
(5.7)
.224
(17.5)
.689
(10.0)
.394
(23.7)
.933
Rotaries
(18.0)
.709
S2A
S1A does not have terminal 2
Maximum
Panel Thickness:
.158” (4.0mm)
DOUBLE POLE WITH SOLDER LUG
Slides
* UL, cULus & CSA recognized only when ordered
with marking on switch (see General Specs)
Toggle Position/Connected Terminals
Down
Center
Up
AC
125V
Electrical Capacity
Resistive
AC
250V
DC
30V
* Approvals
Tactiles
Inductive
AC 125V
PF 0.6
Model
S21A
S6A
S7A
R
R
C
US
Pole &
Throw
––
DPST
DPDT
DPDT
Keyway
α
=
Angle
of Throw
––
––
––
––
DPST
ON
ON
ON
1-3 4-6
2-3 5-6
2-3 5-6
NONE
NONE
OFF
DPDT
OFF
ON
ON
—
2-1 5-4
2-1 5-4
2
(COM)
1
6
5
15A
20A
20A
15A
10A
10A
15A
20A
20A
8A
8A
8A
21°
21°
28°
Tilt
Throw &
Schematics:
1
3
4
6
INTERNAL
CONNECTION
3
4
Note: Terminal numbers are
actually on the switch
Touch
Notes:
Standard Hardware: AT504M Knurled Nut, AT508 Lockwasher, AT527M Backup Hex Nut. See Accessories & Hardware section.
Optional Splashproof Boot Assemblies: AT401 & AT4181 boots plus hex nut & o-ring. See Accessories & Hardware section.
Indicators
Keyway
M12 P1
(2.4) Dia Typ
.094
(12.5) Dia
.492
(31.2)
1.228
5
4
2
1
6
3
α
Accessories
(4.8) Typ
.189
(11.5)
.453
(1.5)
.060
(6.0) Dia
.236
(5.7)
.224
(18.6)
.732
(17.5)
.689
(10.0)
.394
(25.7)
1.012
(0.8) Typ
.031
Supplement
S6A
S21A does not have terminals 2 & 5
Maximum
Panel Thickness:
.158” (4.0mm)
A104
www.nkkswitches.com

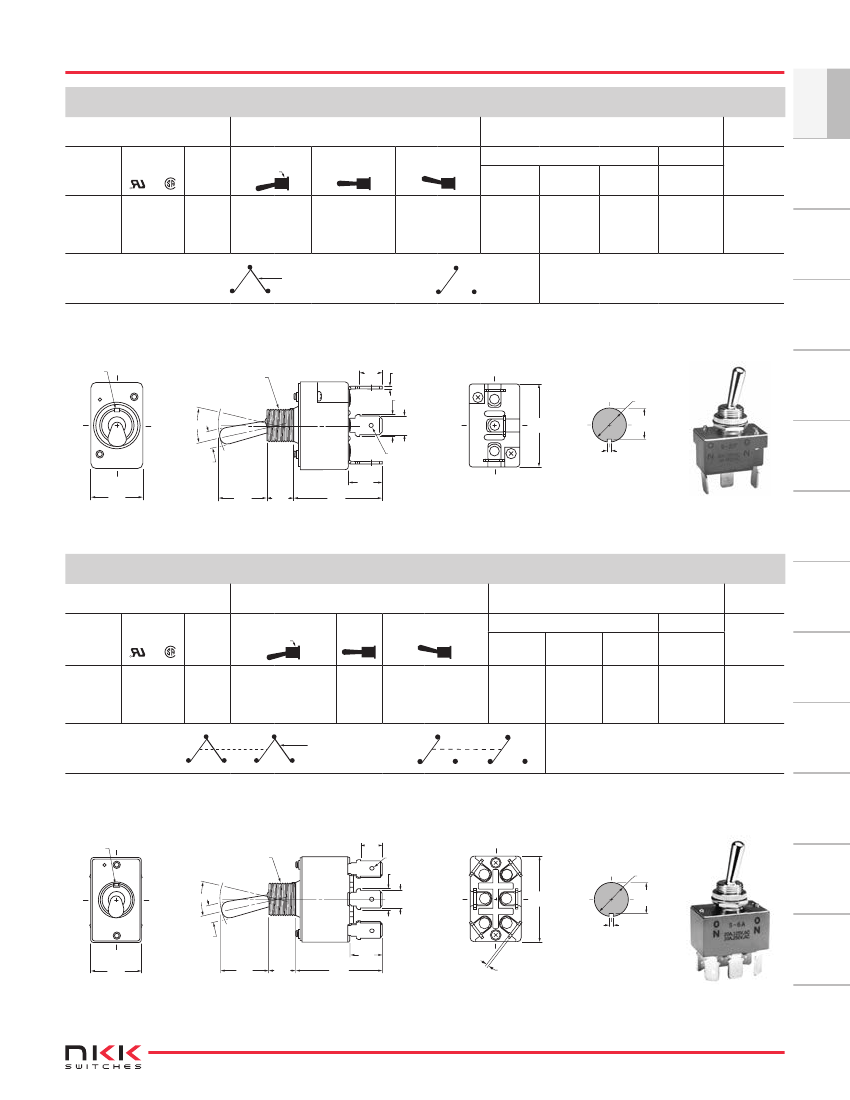

Medium Capacity Standard Size Toggles
SINGLE POLE WITH QUICK CONNECT
Toggle Position/Connected Terminals
Approvals
Model
S1F
S2F
S3F
R
Series S
A
Inductive
DC
30V
AC 125V
PF 0.6
Angle
of Throw
Electrical Capacity
Rockers
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
α
=
Angle
of Throw
Pushbuttons
Down
Pole &
Throw
Keyway
Center
Up
AC
125V
Resistive
AC
250V
––
––
––
––
––
––
SPST
SPDT
SPDT
SPST
ON
ON
ON
1-3
2-3
2-3
INTERNAL
CONNECTION
NONE
NONE
OFF
SPDT
OFF
ON
ON
—
2-1
2-1
2 (COM)
3
1
15A
15A
15A
6A
6A
6A
20A
20A
20A
8A
8A
8A
25°
25°
25°
Throw &
Schematics:
1
3
Note: Terminal numbers are
actually on the switch
Notes:
Standard Hardware: AT504M Knurled Nut, AT508 Lockwasher, AT527M Backup Hex Nut. See Accessories & Hardware section.
Optional Splashproof Boot Assemblies: AT401 & AT4181 boots plus hex nut & o-ring. See Accessories & Hardware section.
Keyway
(7.9)
.311
(0.8) Typ
.031
(7.5) Typ
.295
25°
(6.35) Typ
.250
M12 P1
3
2
1
(12.5) Dia
.492
(30.0)
1.181
(1.5)
.060
(11.5)
.453
(6.0) Dia
.236
(11.7)
.461
(17.5)
.689
(10.0)
.394
(29.7)
1.169
(1.5) Dia Typ
.060
(18.0)
.709
S1F does not have terminal 2
Maximum
Panel Thickness:
.158” (4.0mm)
S2F
DOUBLE POLE WITH QUICK CONNECT
Toggle Position/Connected Terminals
Approvals
Model
S21F
S6F
S7F
R
Electrical Capacity
Resistive
AC
125V
AC
250V
DC
30V
Down
Pole &
Throw
Keyway
Center
Up
Inductive
AC 125V
PF 0.6
––
––
––
––
––
––
DPST
DPST
DPDT
DPDT
ON
ON
ON
1-3 4-6
2-3 5-6
2-3 5-6
NONE
NONE
OFF
OFF
ON
ON
DPDT
—
2-1 5-4
2-1 5-4
2
(COM)
1
6
5
15A
20A
20A
15A
10A
10A
15A
20A
20A
8A
8A
8A
21°
21°
28°
Throw &
Schematics:
1
3
4
6
INTERNAL
CONNECTION
3
4
Note: Terminal numbers are
actually on the switch
Notes:
Standard Hardware: AT504M Knurled Nut, AT508 Lockwasher, AT527M Backup Hex Nut. See Accessories & Hardware section.
Optional Splashproof Boot Assemblies: AT401 & AT4181 boots plus hex nut & o-ring. See Accessories & Hardware section.
(7.9)
.311
M12 P1
Keyway
(1.5) Dia Typ
.060
(7.5) Typ
.295
(6.35) Typ
.250
6
3
(12.5) Dia
.492
(31.2)
1.228
(11.5)
.453
(1.5)
.060
α
5
4
2
1
(6.0) Dia
.236
(11.8)
.465
(18.6)
.732
(17.5)
.689
(10.0)
.394
(31.8)
1.253
Note: S21F
(11.7)
.461
(0.8) Typ
.031
S21F does not have terminals 2 & 5
Maximum
Panel Thickness:
.158” (4.0mm)
S6F
www.nkkswitches.com
A105
Toggles
京公网安备 11010802033920号
EEWORLD
