DHD-RB50-30AS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DHD-RB50-30AS

Preview

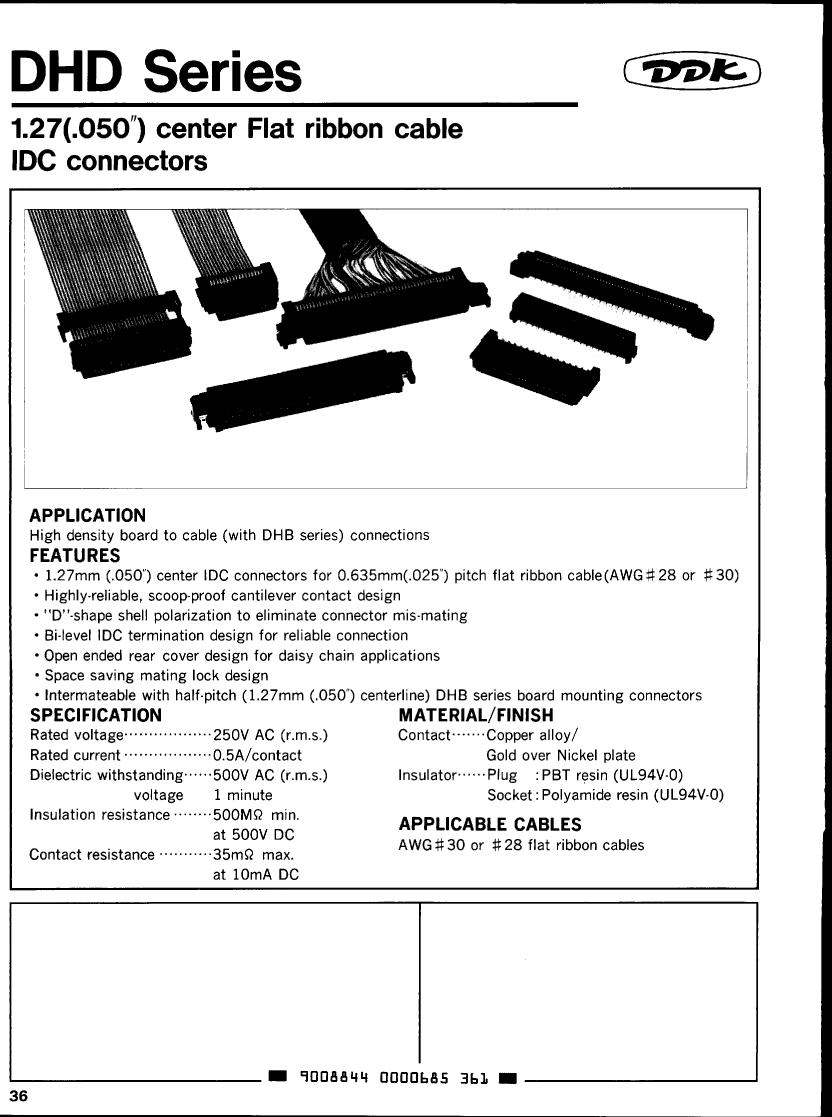

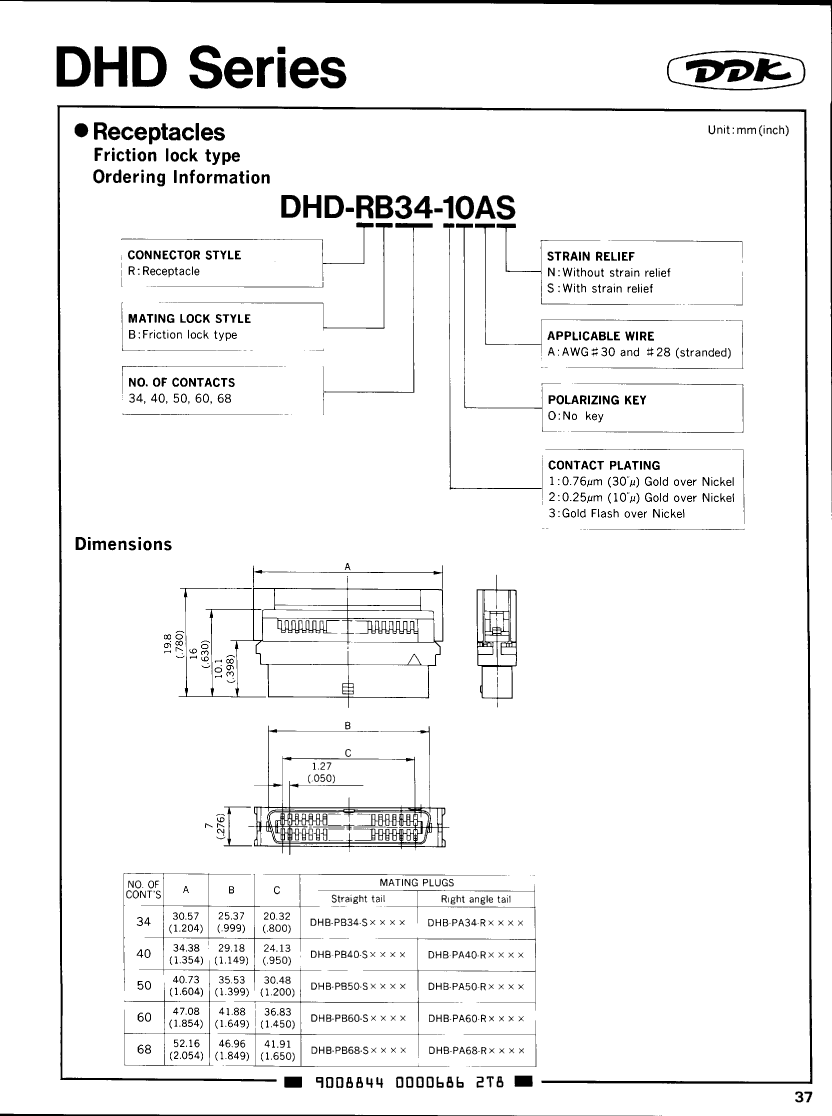

DHD-RB50-30AS: DescriptionD Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug; CategoryThe connector The connector; File Size140KB，2 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

DHD-RB50-30AS Overview

D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug

DHD-RB50-30AS Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	WITH STRAIN RELIEF
body width	0.276 inch
subject depth	0.302 inch
body length	1.604 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	POLYAMIDE RESIN
Manufacturer's serial number	DHD
Plug contact pitch	0.05 inch
Installation option 1	LOCKING MECH
Number of rows loaded	2
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	50
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

DHD-RB50-30AS Related Products

	DHD-RB50-30AS	DHD-RB50-30AN	DHD-RB40-30AN	DHD-RB34-20AS	DHD-RB34-10AN	DHD-RB34-10AS	DHD-RB34-20AN	DHD-RB34-30AS
Description	D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 50 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 40 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug	D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Locking Mech, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH STRAIN RELIEF	WITHOUT STRAIN RELIEF	WITHOUT STRAIN RELIEF	WITH STRAIN RELIEF	WITHOUT STRAIN RELIEF	WITH STRAIN RELIEF	WITHOUT STRAIN RELIEF	WITH STRAIN RELIEF
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.302 inch	0.302 inch	0.302 inch	0.302 inch	0.302 inch	0.302 inch	0.302 inch	0.302 inch
body length	1.604 inch	1.604 inch	1.354 inch	1.204 inch	1.204 inch	1.204 inch	1.204 inch	1.204 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN	POLYAMIDE RESIN
Manufacturer's serial number	DHD	DHD	DHD	DHD	DHD	DHD	DHD	DHD
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Number of rows loaded	2	2	2	2	2	2	2	2
Plating thickness	FLASH inch	FLASH inch	FLASH inch	10u inch	30u inch	30u inch	10u inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	50	50	40	34	34	34	34	34
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
ECCN code	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
