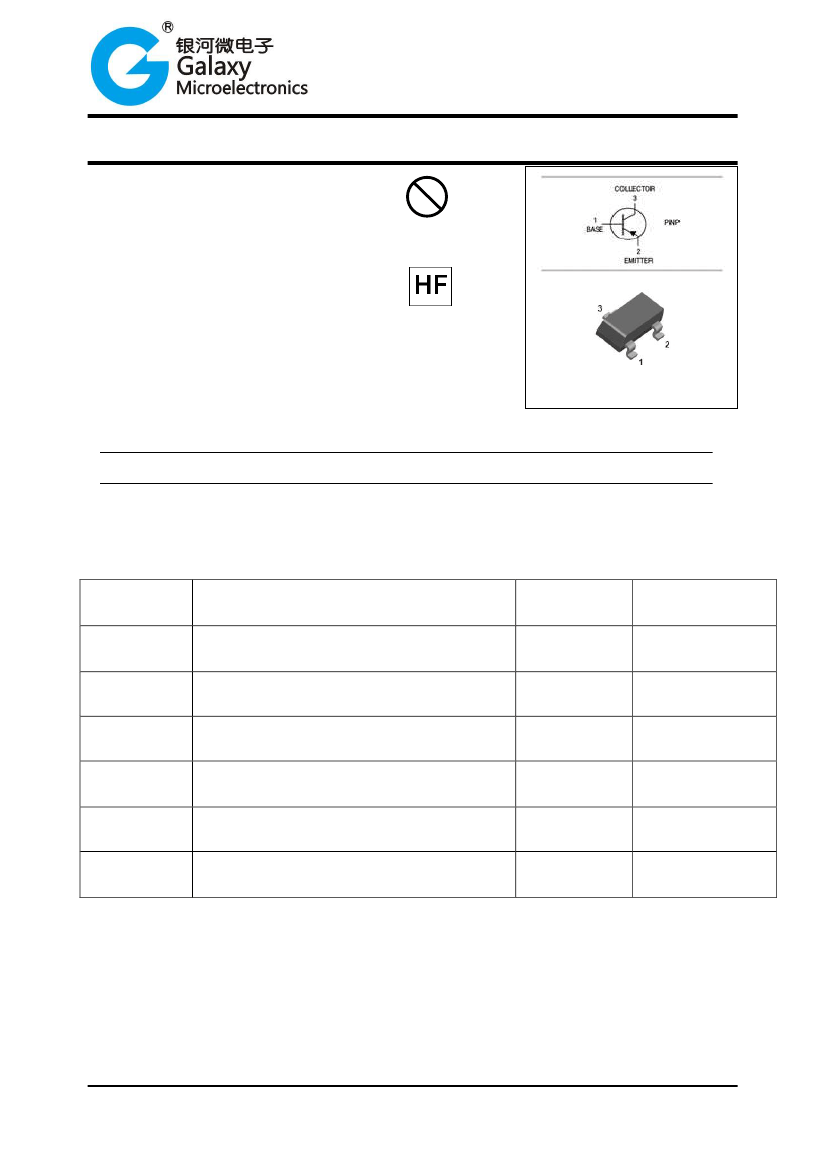

Product specification
Silicon Epitaxial Planar Transistor
FEATURES
Excellent h
FE
Linearity.
Complments the 2SC2412.
2SA1037
Pb
Lead-free
APPLICATIONS
Ideal for low-voltage operation.
SOT-23
ORDERING INFORMATION
Type No.
2SA1037
□
□:
none is for Lead Free package;
“G” is for Halogen Free package.
Marking
FQ/FR/FS
Package Code
SOT-23
MAXIMUM RATING
@ Ta=25℃ unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j,
T
stg
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Dissipation
Junction and Storage Temperature
Value
-60
-50
-6
-150
200
-55 to +150
Units
V
V
V
mA
mW
℃
STM0068A
www.gmesemi.com
1
Product specification
Silicon Epitaxial Planar Transistor
2SA1037
ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Transition frequency
Collector output capacitance
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
V
CE(sat)
f
T
C
ob
Test conditions
I
C
=-50μA,I
E
=0
I
C
=-1mA,I
B
=0
I
E
=-50μA,I
C
=0
V
CB
=-60V,I
E
=0
V
EB
=-6V,I
C
=0
V
CE
=-6V,I
C
=-1mA
I
C
=-50mA, I
B
=-5mA
V
CE
=-12V, I
C
=-2mA
f=30MHz
V
CB
=-12V,I
E
=0,f=1MHz
120
MIN
-60
-50
-6
-0.1
-0.1
560
-0.5
140
4.0
5.0
V
MHz
pF
TYP
MAX
UNIT
V
V
V
μA
μA
CLASSIFICATION
Rank
Range
Marking
OF h
FE(1)
Q
120-270
FQ
R
180-390
FR
S
270-560
FS
STM0068A
www.gmesemi.com
2
Product specification
Silicon Epitaxial Planar Transistor
2SA1037

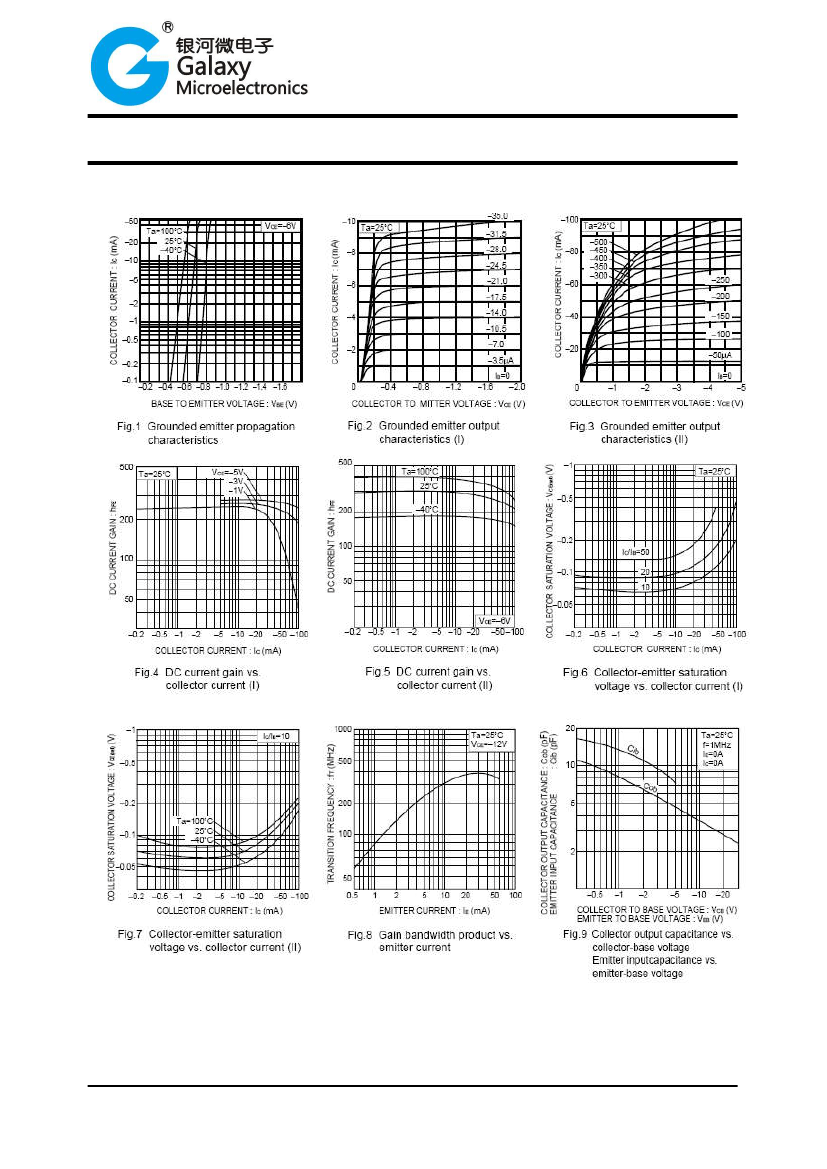

TYPICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified
STM0068A
www.gmesemi.com
3
Product specification
Silicon Epitaxial Planar Transistor

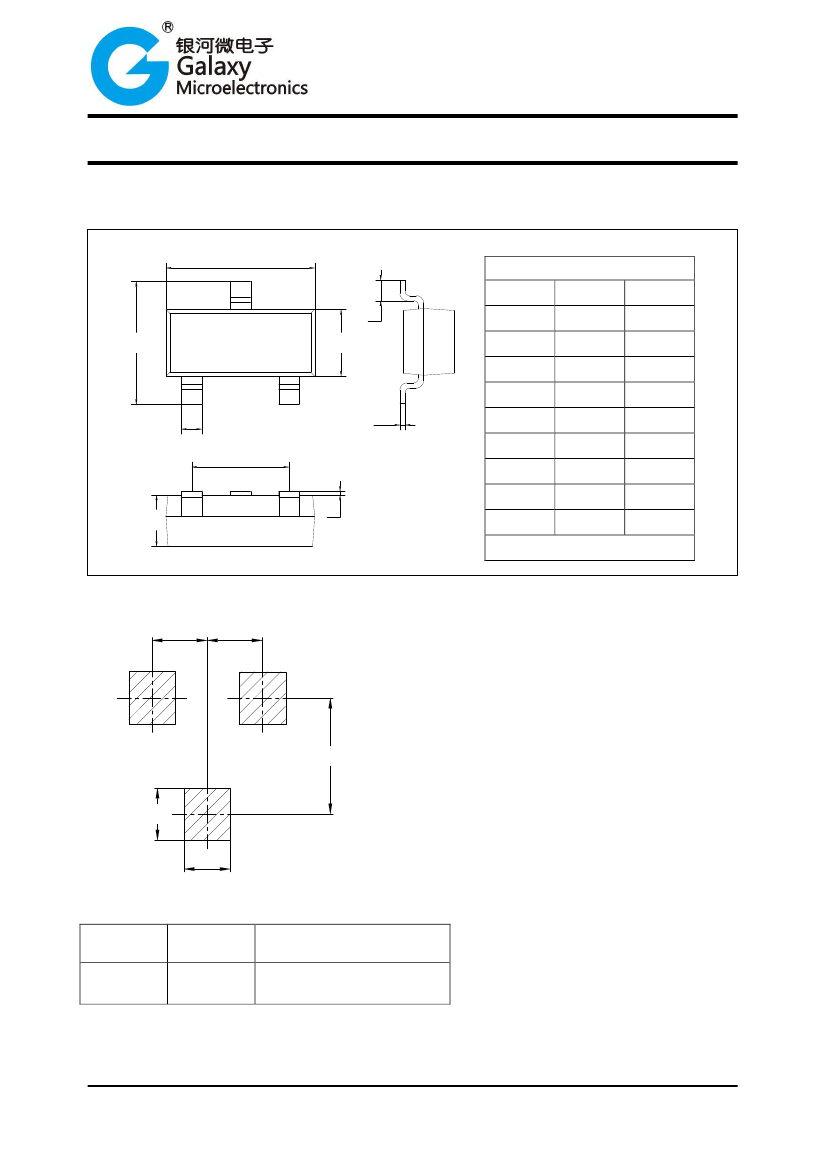

PACKAGE OUTLINE
Plastic surface mounted package
A
2SA1037
SOT-23
SOT-23
Dim
E
Min
2.70
1.10
0.90
0.30
0.35
1.80
0.02
0.05
2.20
Max
3.10
1.50
1.10
0.50
0.48
2.00
0.10
0.15
2.60
A
B
C
D
K
B
D
G
J
E
G
H
H
C
J
K
All Dimensions in mm
SOLDERING FOOTPRINT
0.95
0.95
2.00
0.90
0.80
Unit : mm
PACKAGE INFORMATION
Device
2SA1037
Package
SOT-23
Shipping
3000/Tape&Reel
STM0068A
www.gmesemi.com
4
