High Performance Thermal Circuit Breaker 583-...

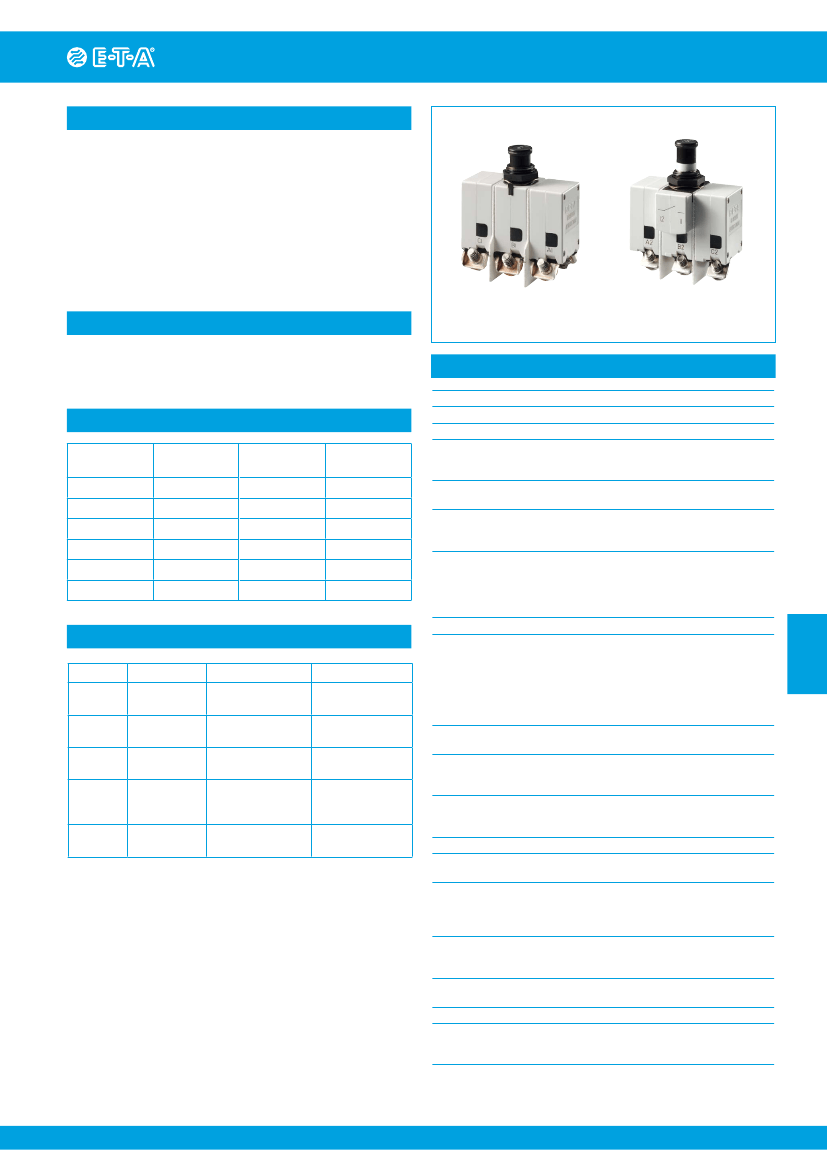

Description
Three pole, miniaturised, aircraft style thermal circuit breaker with
tease-free, trip-free, snap action mechanism and push/pull on/off
manual actuation (M-type TO CBE to EN 60934). An indicator band
on the push button clearly shows the tripped/off position. Threadneck
panel mounted, available in metric and US (AS 14154) configurations.
Advanced two-chamber design minimises contact contamination to
provide fail-safe operation. Temperature compensated with optional
auxiliary contacts, and fully approved for use on a wide range of
aircraft and equipment.
Various dummies are available without protective function, allowing
connection of pre-installed wiring without loads.
Typical applications
Aircraft systems and equipment (fixed wing and helicopters); other extra
low voltage wiring applications; defence equipment; communications
systems.
without auxiliary contact
583-...
with auxiliary contact
Technical data
Voltage rating
Current rating range
Auxiliary circuit
Typical life
3 AC 200 V (300 Hz to 800 Hz); DC 28 V
1...30 A
0.5 A, DC 28 V
20,000 operations mechanical
10,000 operations at I
N
(≤ 25 A)
4,000 operations at I
N
(30 A)
-55...+125 °C (-67...+257 °F) ≤ 15 A
-55...+90 °C (-67...+194 °F) > 15 A
rated impulse
pollution
withstand voltage
degree
1.5 kV
3
test voltage
AC 1,500 V
AC 1,500 V
AC 1,500 V
> 100 MΩ (DC 500 V)
Standard current ratings and typical volt drop values
Current
rating (A)
1
2
2.5
3
4
5
Volt drop per
pole (mV)
750
520
400
360
350
260
Current
rating (A)
7.5
10
15
20
25
30
Volt drop per
pole (mV)
230
190
190
200
170
160
Ambient temperature
Insulation co-ordination
(IEC 60664 and 60664A)
Dielectric strength
(IEC 60664 and 60664A)
operating area
pole/pole
main to aux. circuit
Insulation resistance
Interrupting capacity I
cn
3 AC 200 V (400 Hz):
Approvals
Authority
Bw
Airbus
Airbus
Bw
Standard
LN 29887
EN 2996-004
EN 2996-005
VG 95345-11
Voltage ratings
AC 115/200 V
400 Hz
AC 115/200 V
400 Hz
AC 115/200 V
400 Hz
AC 115/200 V
400 Hz bzw.
DC 28 V
AC 115/200 V
400 Hz
Current ratings
5 … 25 A
1 … 25 A
1 … 25 A
1 … 25 A
Dept. of
the Navy
AS14154
1 … 20A
≤4A
1,000 A
5A
2,000 A
7.5...25 A 2,500 A
30 A
1,500 A
DC 28 V: 1...25 A
6,000 A
30 A
4,000 A
Degree of protection
operating area IP40
(IEC 60529/DIN 40050)
terminal area IP00
Vibration
10 g (57-2000 Hz), ± 0.76 mm (5-57 Hz)
(sinusoidal)
to VG 95210, sheet 19,
IEC 60068-2-6, test Fc, ISO 7137
Vibration (random)
16.4 g rms, 0.2 g
2
Hz ± 1.5 dB,
to VG 95210, sheet 29,
IEC 60068-2-6, test Fc, ISO 7137
Acceleration
17 g, to ISO 2669
Shock
50 g (11 ms), to VG 95210, sheet 28,
IEC 60068-2-27, test Ea, ISO 7137
Corrosion
96 hours at 5 % salt mist
48 hours at 20 % salt mist
to VG 95210, sheet 2,
IEC 60068-2-11, test Ka, ISO 7137
Humidity
240 hours at 95 % RH,
to VG 95210, sheet 7,
IEC 60068-2-3, test C/ISO 7137
Explosion
to VG 95210, sheet 10,
MIL-STD-202, meth. 109
Altitude
≤ 25,000 m above sea level
Mass
max. 67 g with auxiliary contact
max. 63 g without auxiliary contact
Mass reduction through aluminium threadneck approx. 3 g
5
2015/16
www.e-t-a.de
5
- 55
High Performance Thermal Circuit Breaker 583-...
Ordering information
Type No.
583
three pole, with temperature compensation
Mounting
G
threadneck panel mounting
Threadneck design
1
M12x1x6.4x8.8 dia. with mounting plate (aux. contact version)
3
MJ12x1x6.4x8.8 dia. (only without aux. contact)
4
M12x1x6.4x8.8 dia. (only without aux. contact)
5
7/16-32UNx6.4x7.8 (only without aux. contact)
7
7/16-32 UNx6.4x7.8 dia. with mounting plate
(aux.contact version)
8
M12x1x6.4xø8.8 with mounting plate, aluminium threadneck
9
M12x1x6.4xø8.8, aluminium threadneck
Hardware for threadneck (washers)
0
without hardware
1
corrugated washer 12/15, fitted
2
serrated lock washer 12.1/17.2, fitted
3
toothed washer 11.3/14.9, fitted
5
serrated lock washer 12.1/17.2, bulk shipped
Hardware for threadneck (nuts)
0
without hardware
1
hex nut M12x1
3
hex nut 7/16-32UN
5
hex nut MJ12x1 (only with threadneck design 3)
7
hex nut M12x1, aluminium, bulk shipped
Terminal design (main terminals)
K
screw terminals with metric thread
1
K14 (M4, MJ4)
J
screw terminals with inch thread
1
J14 (8-32UNC-2B)
Characteristic curve
M1
thermal, 1.15-1.38 I
N
Terminal screws
A
Phillips screw M4x6
B
Phillips screw 8-32UNC-2Ax6 (MS 51957-41)
K
hex screw with Phillips head
8-32UNC-3Ax7.6
L
Phillips screw MJ4x6
Z
without accessories
Terminal washers
0
without lock washer
1
lock washer B4
2
lock washer 4.3 (MS 35338-137)
5
lock washer 4.3/9
Auxiliary contact
S0
without auxiliary contact
S1
with auxiliary contact (N/C) (connector
to EN 3155-016M2018, size 20)
S5
with polarized auxiliary contact (N/C)
Barrier
T
barrier 25.5 mm wide,
37.7 mm long (-S0 only)
U
barrier 19.5 mm wide, 37.7 mm long
X
barrier 19.5 mm wide, 34.1 mm long
Colour of the push button
(blank)
black (standard) (e.g. 7.5)
G
green to EN (e.g. 7 1/2)
N
black to EN (e.g. 7 1/2)
Current ratings
1...30 A
583 - G 4 1 1 - K 1 M1 - A 1 S0 T
. - 5A
ordering example

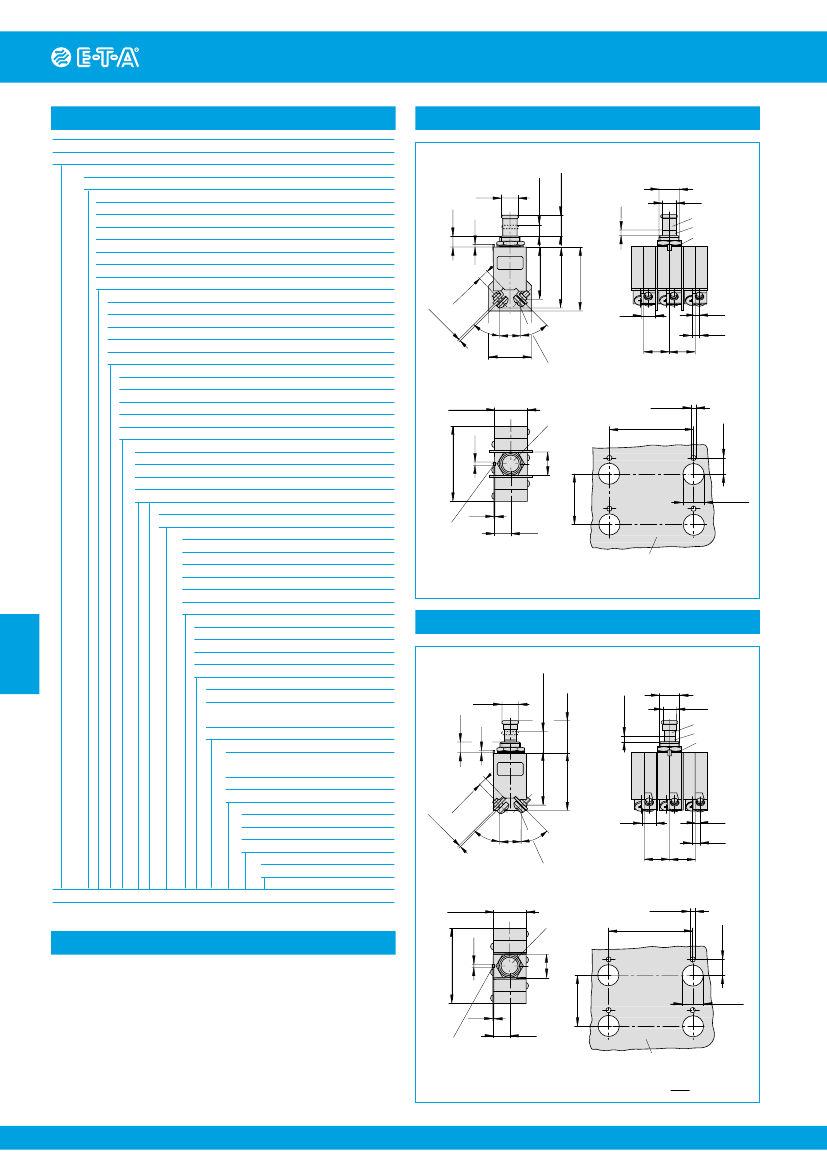

Dimensions 583-G411-K1M1-A1S0TN (VG 95345 T11)
6.35
.250
1.5
.059
31
1.22
36.5
1.44
38
1.50
3.5
.138
ø10
.394
6.5 ON
.256
12.5 OFF
.492
tightening torque max. 4 Nm
M12x1
ø8.4
.331
black
white
lock washer
in
.4
.6
m
in
18
..
1
C1
8.5
.335
B1
A1
2.5
.098
5
.197
m
m
.5
. 1 59
ax . .0
ax
m
45°
12.8
terminals:
45°
A1, B1, C1 - input
.504
A2, B2, C2 - output
15
15
25.5
.591 .591
1.00
teminal screw ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
mounting holes
max. 19.8
max .780
max. 47
max. 1.85
2
.079
SW14
.551
5
min. 30
min. 1.18
location pin
0.8
.031
9.5
.374
thickness 1.5 - 3 mm
.059 - .118 in.
Dimensions 583-G533-J1M1-B2S0XN (AS14154)
5
min. 11.9 ON
max. 31
min .469
max. 1.22
max. 35.1
max. 19 OFF
max. 1.38 max .748
tightening torque max. 3 Nm
7/16-32-UN-2A THD
min. 3
min .118
ø8.4
.331
black
white
lock washer
ø10
.394
6.35
.250
1.5
.059
C1
B1
A1
in
.4
m
in
m
1
..
81
.6
45°
12.8
.504
45°
terminals:
A1, B1, C1 - input
A2, B2, C2 - output
8.5
.335
15
.591
15
.591
2.5
.098
5
.197
teminal screw MS 51957-41 (8-32 UNC-2A)
with lock washer MS 35338-137
tightening torque max. 1.2 Nm
max. 19.8
max .780
max. 46.7
max. 1.84
2
.079
Ordering information for approved devices
583-G411-K1M1-A1S0TN (583-96-TC-K14)
Metric threadneck M12x1 and terminal design -K14 (M4x6), listed
by the German Materialamt der Bundeswehr to VG 95345 T11.
583-G533-J1M1-B2S0XN (AS 14154)
Threadneck size 7/16-32UNSx6.4 and terminal design -J14 (inch
thread 8-32), approved to AS 14154.
SW14
.551
5
min. 30
min. 1.18
0.8
.031
location pin
9.5
.374
thickness 1.5 - 3 mm
.059 - .118 in.
This is a metric design and millimeter dimensions take precedence ( mm )
inch
5
- 56
www.e-t-a.de
9.5
±0.2
.374
±.008
ø11.5
+0.2
.453
+.008
mounting holes
ø3.2
+0.15
.126
+.006
current rating in A
min. 50
min. 1.97
9.5
±0.2
.374
±.008
ø12.5
+0.2
.492
+.008
current rating in A
ø3.2
+0.15
.126
+.006
min. 50
min. 1.97
.5
. 1
59
ax
.0
m
x.
a
m
2015/16
High Performance Thermal Circuit Breaker 583-...

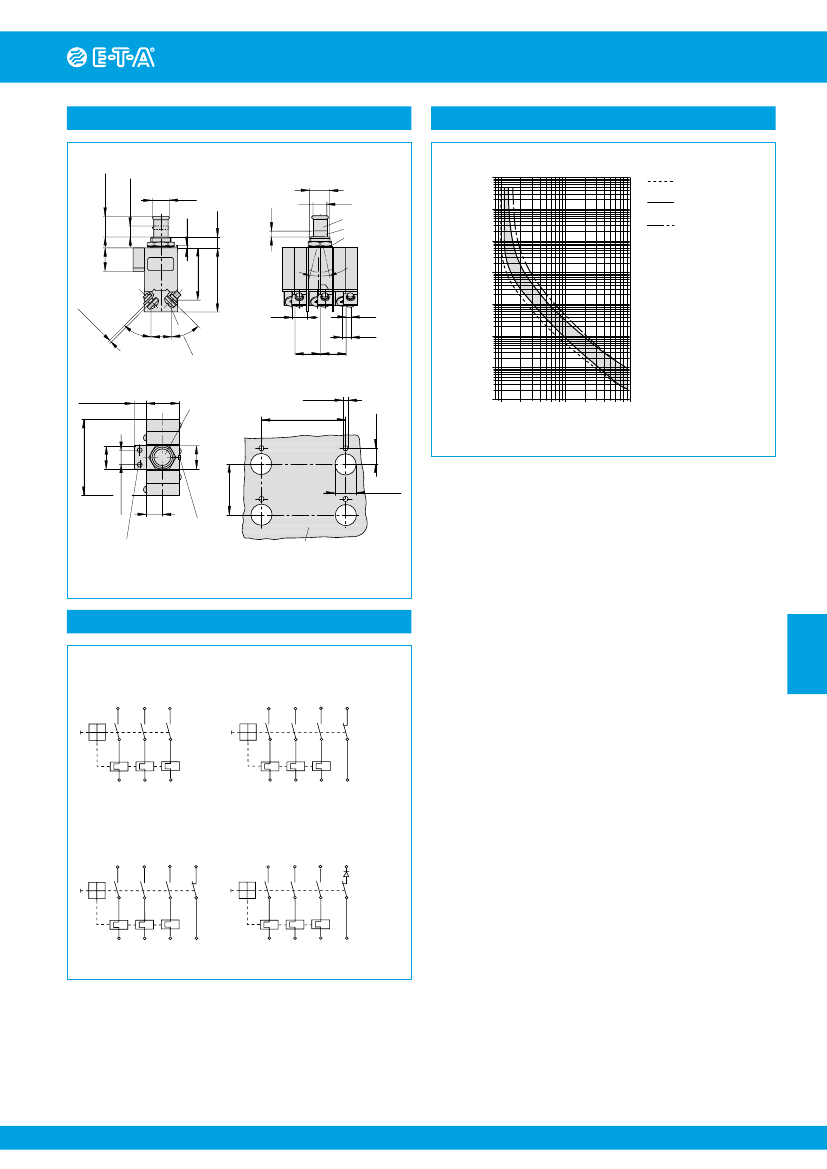

Dimensions 583-G111-K1M1-A1S1UN (VG 95345 T11)
Typical time/current characteristics
12.5 OFF
.492
6.5 ON
.256
1.5
.059
6.35
.250
3.5
.138
ø10
.394
tightening torque max. 4 Nm
M12x1
ø8.4
.331
black
white
lock washer
10000
1000
Trip time in seconds
+90 °C
+194 °F
+ 23 °C
+ 73.4 °F
-55 °C
-67 °F
100
16.2
.638
31
1.22
38
1.50
22°
A2
B2
C2
10
45°
12.8
.504
45°
terminals:
A1, B1, C1 - input
A2, B2, C2 - output
8.5
.335
teminal screw ISO 7045-M4x6
with lock washer DIN 137 B4
tightening torque max. 1.2 Nm
max. 6.5
max .256
19.5
.768
current rating in A
15
.591
15
.591
2.5
.098
5
.197
1
SW14
.551
45
1.77
14.2
.559
max. 10.5
max .413
min. 30
min. 1.18
9.5
.374
location pin
thickness 1.5 - 3 mm
.059 - .118 in.
aux. contact
(connector to EN 3155-016 M2018)
Internal connection diagrams
with auxiliary contact
EN 2996-004
line A2
B2
C2
line A1
B1
C1
3
9.5
±0.2
.374
±.008
2015/16
.5
.1
9
ax
5
m
x. .0
a
m
0.1
0.01
mounting holes
ø3.2
+0.15
.126
+.006
min. 50
min. 1.97
0.001
1
2
4 6 810 20 40 6080100
… times rated current
5
ø12.5
+0.2
.492
+.008
5
A1
B1
C1
A2
B2
C2
4
with auxiliary contact
VG 95345 T11
line A1
B1
C1
11
with polarized auxiliay contact
EN 2996-005
line A1
B1
C1
3
A2
B2
C2
12
A2
B2
C2
5
www.e-t-a.de
5
- 57
High Performance Thermal Circuit Breaker 583-...
Accessories
Splash cover/hex nut assembly with O ring
(IP66 and IP67)
(approved to VG 95345, part 23)
X 200 801 08 nickel plated nut, transparent cover
X 200 801 03 matt black finish nut, black cover
X 200 801 09 matt black finish nut 7/16-32, black cover
X 200 801 12 with blackened nut and transparent cover
.071
M12x1 or
7/16-32
Splash cover black/hex nut assembly with O ring
(IP54)
only for threadneck nut M12 (to VG 95345, sheet 23)
X 200 802 01 nickel plated nut
X 200 802 02 matt black finish nut
1.8
M12x1
Actuator extension
(black) to be fitted on the push button
(approved to VG 95345, T23)
X 200 803 01
ø20
ø.787
5
Identification collar
to be snapped on the push button
Y 307 004 01 black
Y 307 004 02 white
Y 307 004 03 red
Y 307 004 04 green
ø14
Y 307 004 05 blue
.551
ø6.85
.270
.252
6.4
ø12.35
.486
0.65
.026
Lock out ring
to block the push button in OFF position
Y 307 005 01 red
Y 307 005 02 black
ø14.6
.575
ø10.9
.429
7.7
.303
.669
17
This is a metric design and millimeter dimensions take precedence ( mm )
inch
0.8
.031
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved. Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
5
- 58
www.e-t-a.de
2015/16
京公网安备 11010802033920号
EEWORLD
