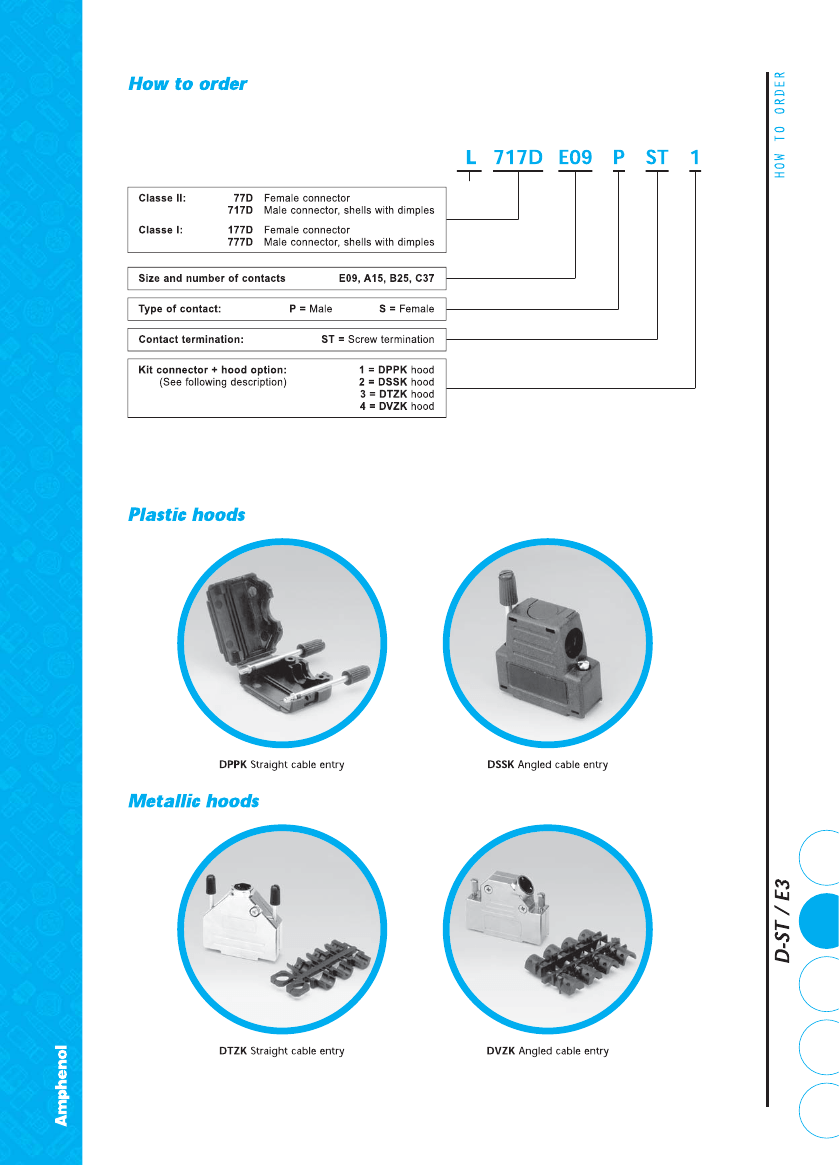

L77DE09PST2

Description
D Type Connector, 9 Contact(s), Screw Terminal, Locking
CategoryThe connector    The connector
File Size655KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

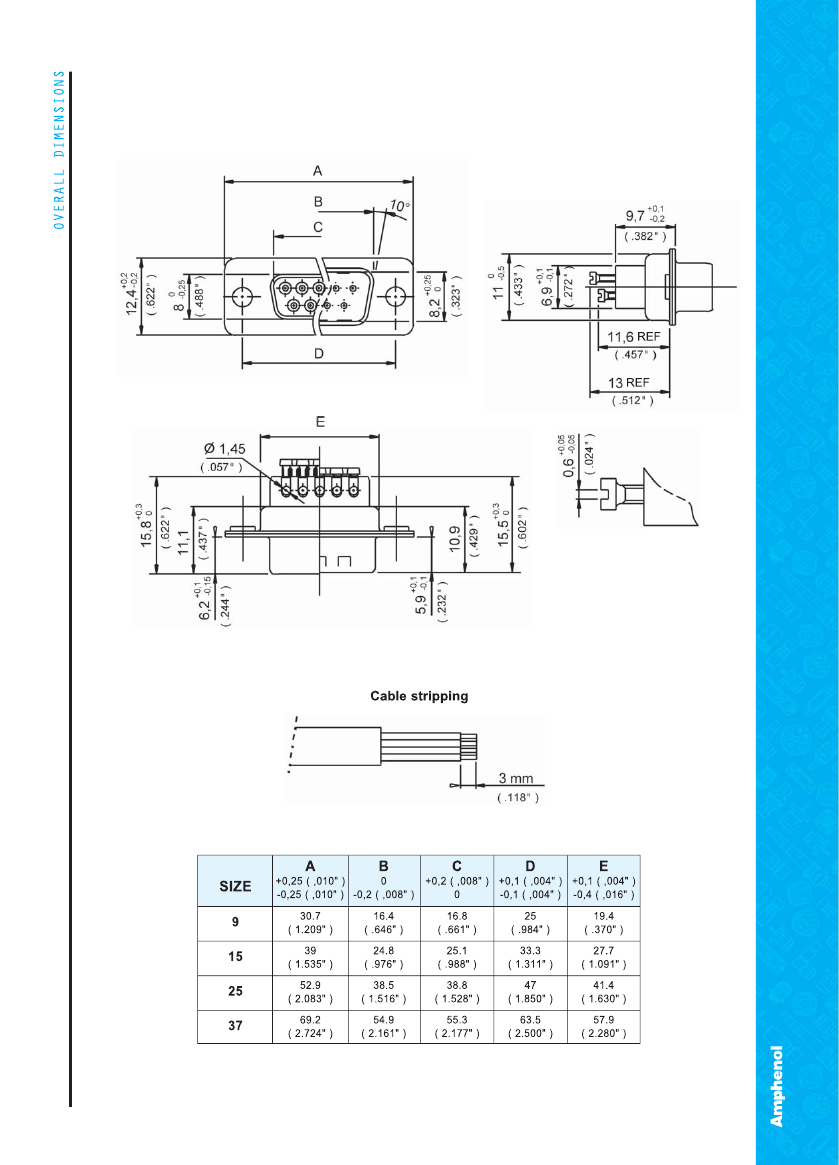

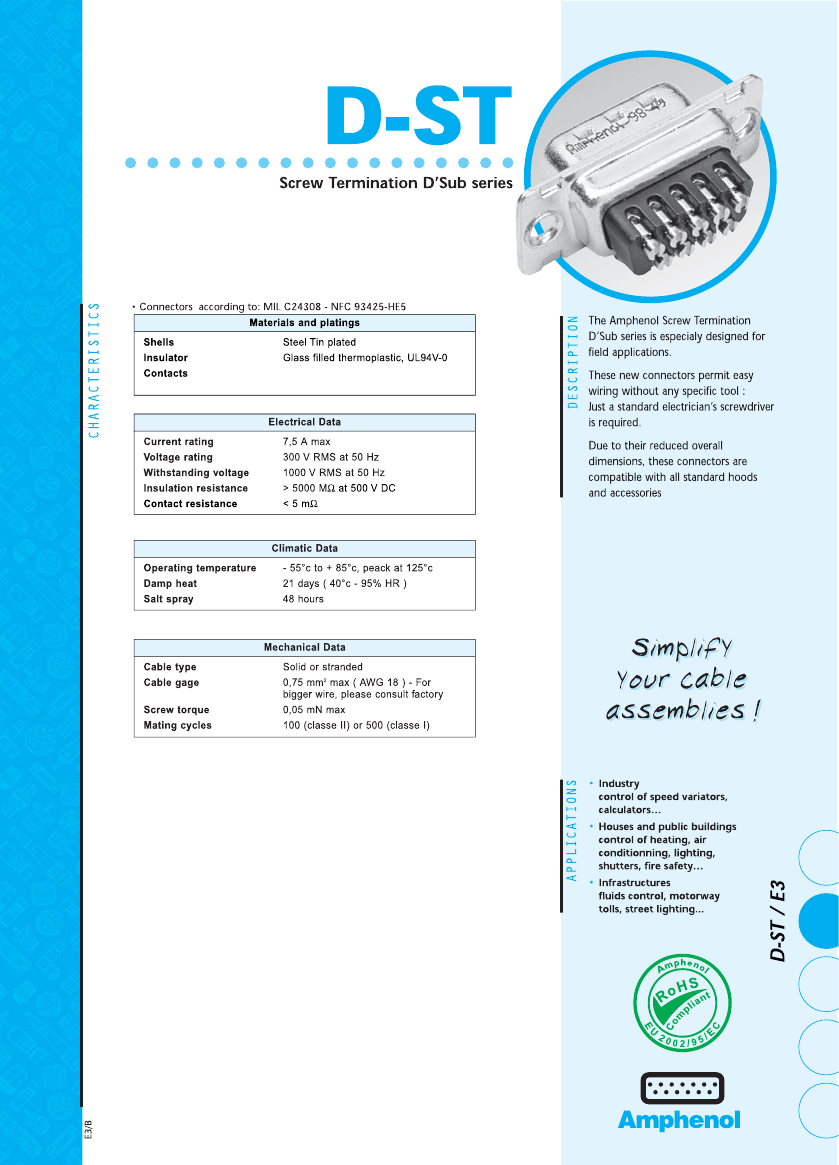

L77DE09PST2 Overview

D Type Connector, 9 Contact(s), Screw Terminal, Locking

L77DE09PST2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid316198305
Reach Compliance Codeunknown
ECCN codeEAR99
contact modeSTAGGERED
Contact resistance5 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
Minimum insulation diameter0.03 inch
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYETHYLENE
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Rated current (signal)7.5 A
GuidelineUL
Shell surfaceTIN
Shell materialSTEEL
Termination typeSCREW
Total number of contacts9
Maximum wire diameter28 AWG
Minimum wire diameter28 AWG
Machined brass for play full gold
Machined Bronte for socket, full gold
