ROHS

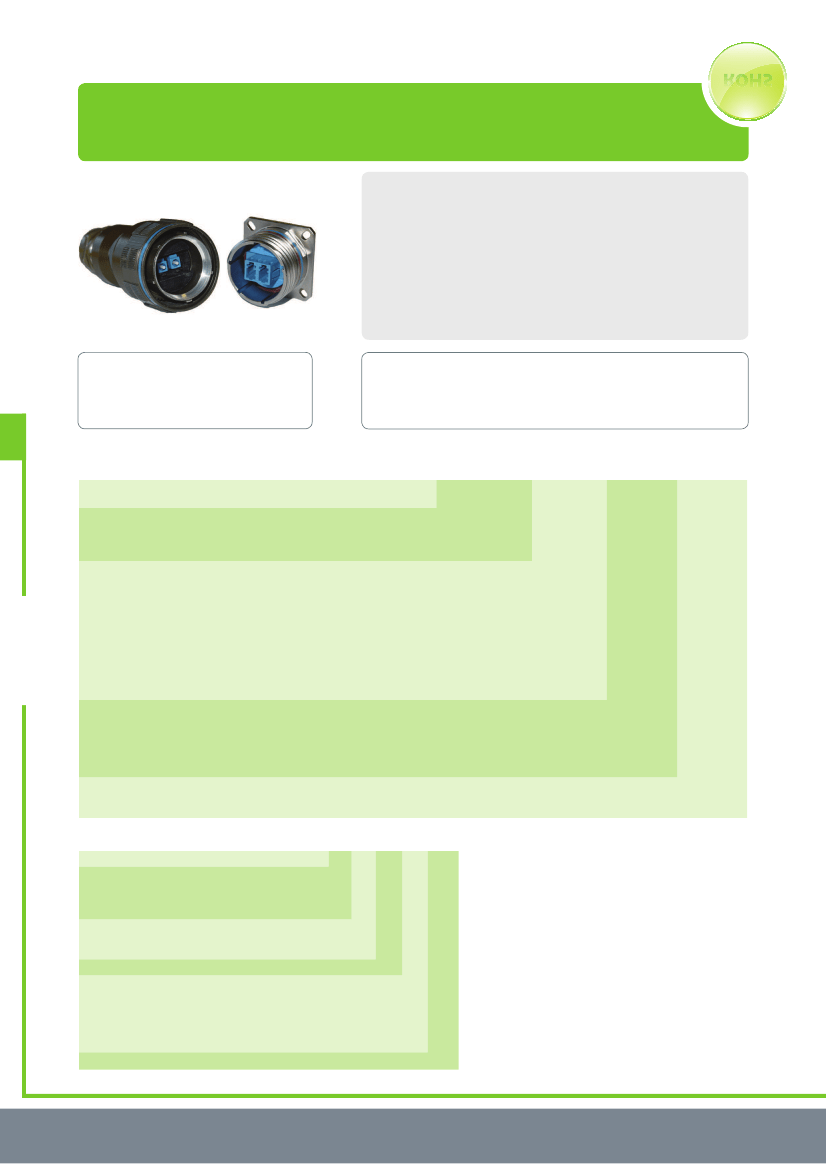

Transform your LC patchcord into an Environmental Connector
The LC Field offers an easy system to upgrade from a standard to an
environmental LC.
LC FIELD
COMPLIANT
N
(except 1,6mm and 2mm zipcord cable)
With the patented RJStop® system you can use a standard LC patchcord
in a metallic plug which will protect it from shocks, dust and fluids.
No hazardous on-field cabling!
Applications
Railways
Base Station
Military communication
Navy
Mechanical characteristics
Number of Channels: 2
Typical Insertion Loss: 0,5dB in MM and SM
Durability 500 mating/unmating cycles (changes for<0,2 dB)
Part Number Code
Serie
Optical connector type
Shell Type
6M:
Plug with metal backshell and metal PG clamp
2:
Square flange receptacle without backshell
7:
Jam nut receptacle without backshell
Cable Type
Only for plug
D:
Flat duplex cable 1,6 mm
E:
Duplex zipcord 1,6 mm
F:
Flat duplex cable 2 mm
G:
Duplex zipcord 2 mm
H:
Flat duplex cable 2,8 mm
I:
Duplex zipcord 2,8 mm
T:
Flat duplex cable + Duplex zipcord for 1,6 mm - 2 mm - 2,8 mm
Only for receptacle (no backshell available for receptacle)
0:
Receptacle without backshell
Shell Finish
N:
Nickel plated
G:
Olive drab cadmium plated
B:
Bronze
D:
Black zinc cobalt
Z:
Olive drab zinc cobalt
Polarization
N:
Normal
A/B/C/D/E
LCF TV
6M
D
G
N
Amphenol
150
Cap Series
Protective cap type
EC:
For square flange receptacle
ER:
For jam nut receptacle
F:
For plug
Wire type
N:
Nylon cord
Blank:
Metallic chain
TV:
Series
B
EC
N
TV
W
19
Requested information to order LC Field
Patchcord
Type of connector: Male /Female
Type of fiber: 50/125, 62,5/125, 9/125
Patchcord length: ex 10.5m

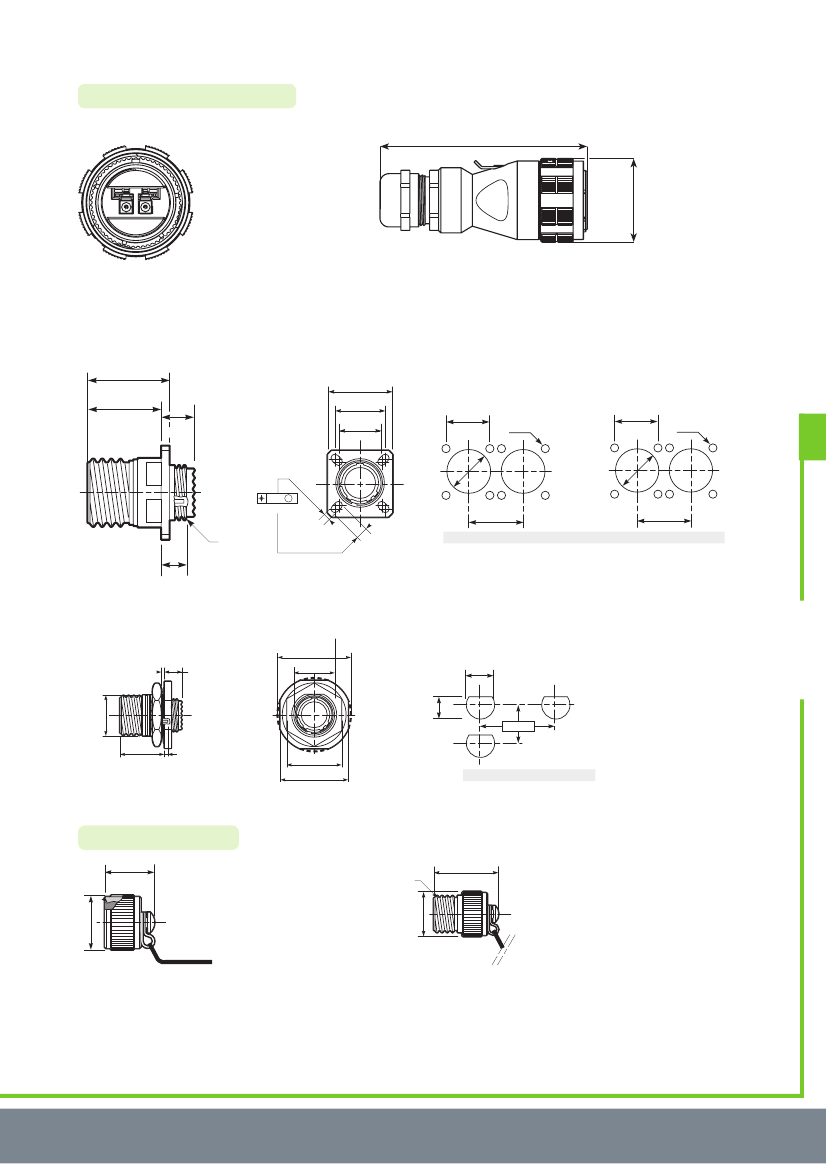

Drawing: description of the product
Contact us for other configuration.
Tools informations
Mounting Tools:
LCFTV MO TOOL: LC FIELD Mounting tools
Dismounting Tools:
LCFTV DM TOOL: LC FIELD Dismounting tools
(To dismount the LC you need to use both
dismounting and mounting tools)
Shell finish
B:
Bronze
F:
Electroless nickel plated, aluminium version
W:
Olive drab cadmium plated, aluminium version
D:
Black zinc cobalt
Z:
Olive drab zinc cobalt
Corresponding connector shell size: 19
