DV74LS258BD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS258BD

DV74LS258BD: DescriptionMultiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size444KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS258BD Overview

Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16

DV74LS258BD Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	PLASTIC, SOP-16
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	15 mA
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

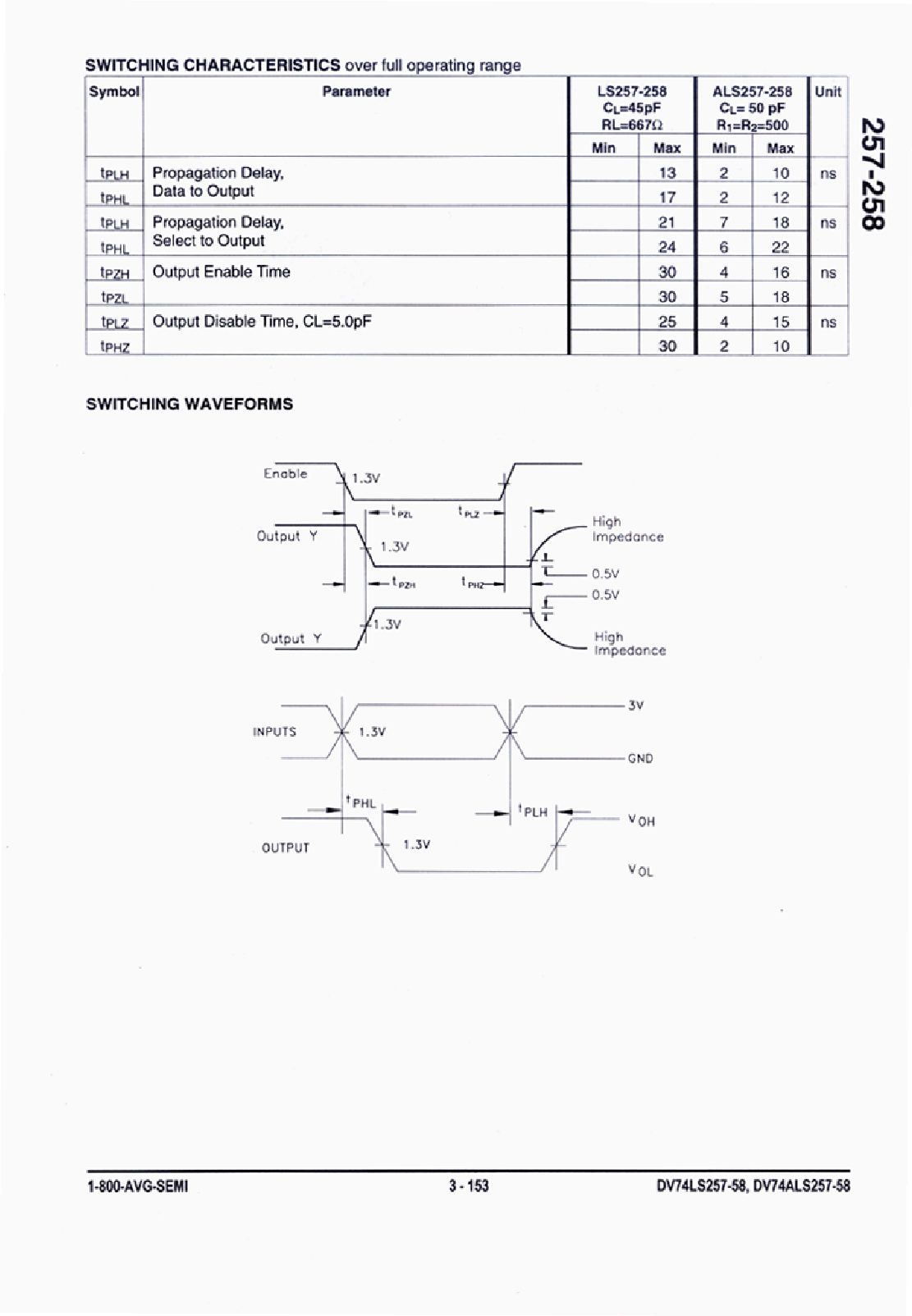

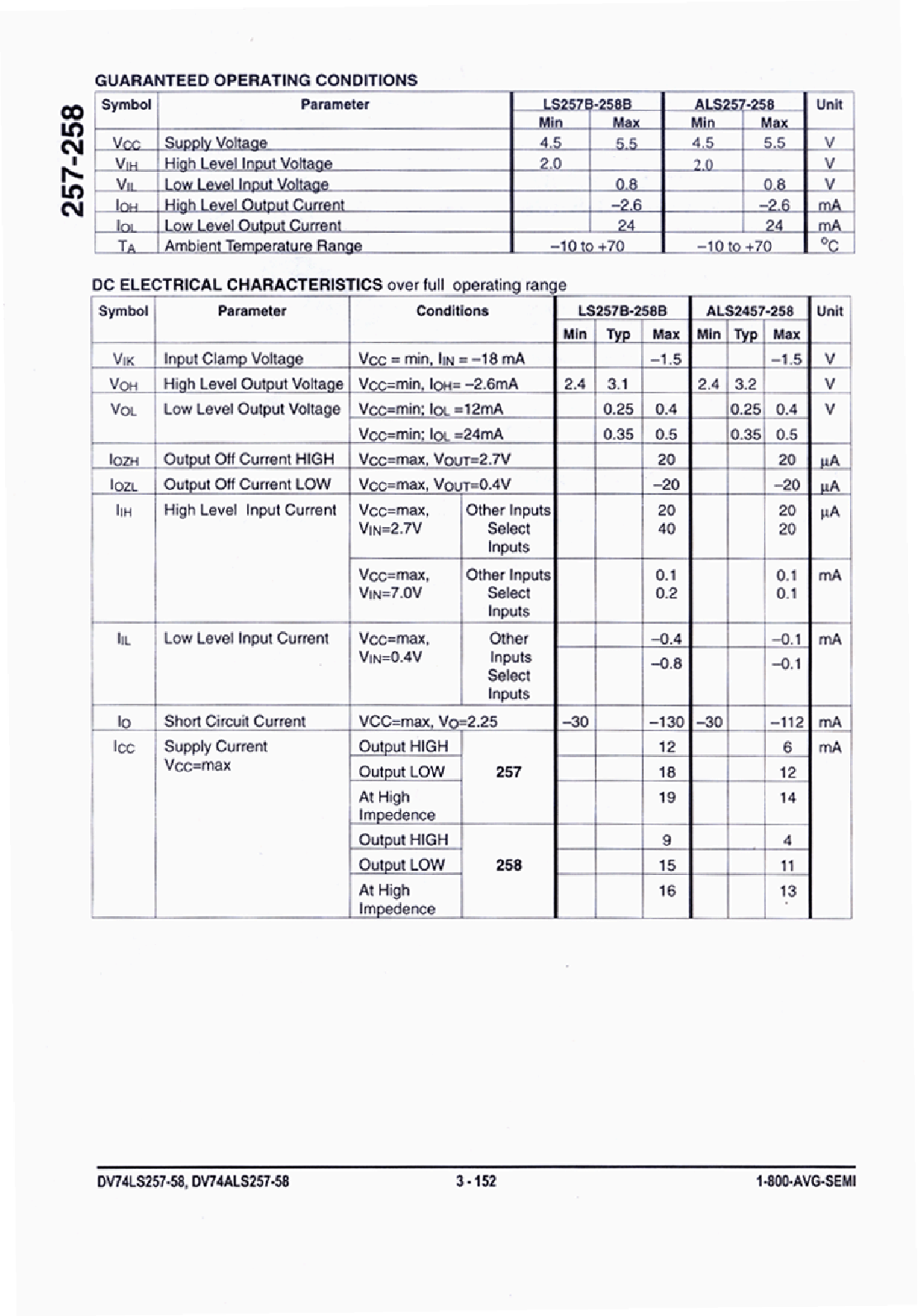

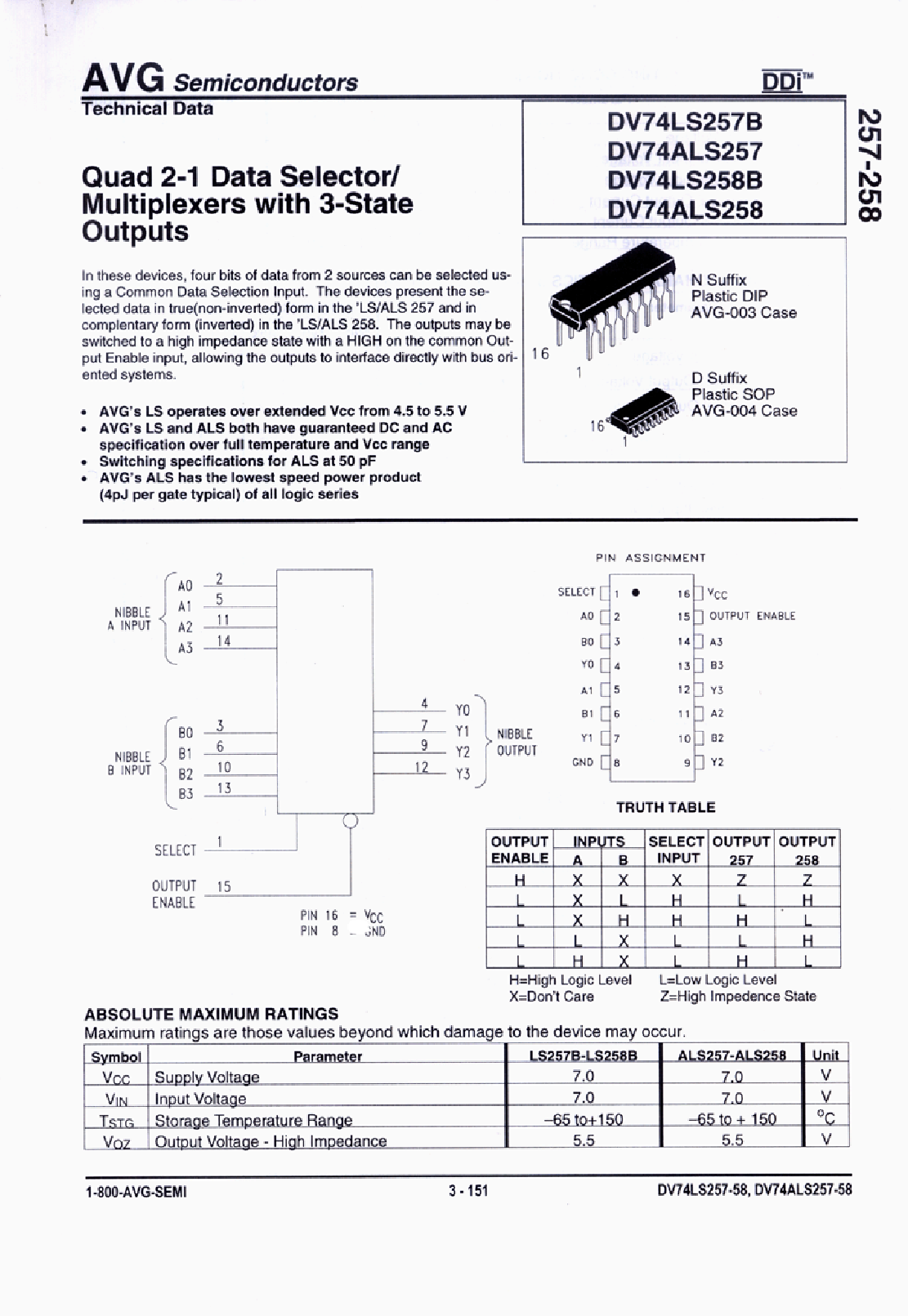

Preview

Download Datasheet

View All

DV74LS258BD Related Products

	DV74LS258BD	DV74LS257BD	DV74ALS257D	DV74ALS258D	DV74ALS258N
Description	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16	Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, PDSO16, PLASTIC, SOP-16	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, PDSO16, PLASTIC, SOP-16	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, PLASTIC, SOP-16	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDIP16, PLASTIC, DIP-16
Parts packaging code	SOIC	SOIC	SOIC	SOIC	DIP
package instruction	PLASTIC, SOP-16	SOP,	SOP,	SOP,	DIP,
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
series	LS	LS	ALS	ALS	ALS
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16
length	9.9 mm	9.9 mm	9.9 mm	9.9 mm	19.175 mm
Load capacitance (CL)	45 pF	45 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4
Number of entries	2	2	2	2	2
Output times	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	TRUE	TRUE	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Maximum supply current (ICC)	15 mA	18 mA	12 mA	11 mA	11 mA
propagation delay (tpd)	17 ns	17 ns	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	1.75 mm	4.44 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	3.9 mm	7.62 mm
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-	-	AVG [AVG Semiconductors(HITEK)]
Base Number Matches	1	1	1	1	-
