Pressure Point 4: Dual Die Compensation for MEMS Pressure Sensors
Several pressure sensor manufactures promote product incorporating “dual die compensation.” This
compensation technique is employed for very low pressure sensors where common mode errors cannot
be compensated by any other means for either gage or differential pressure measurements. There are
two forms of dual die compensation. One form of dual die compensation incorporates two pressure
sensors but only one of the two sensors provides a pressure sensitive output. The second sensor is
passive and is used solely to correct for common mode errors. The second form of dual die
compensation incorporates two pressure sensors and both sensors provide a pressure sensitive signal.
Both these compensation techniques are embodied in patent 6,023,978. This compensation technique
applies to all common mode errors and is the only technique available to compensate for long term drift
of output offset voltage. Figures 1 and 2 illustrate dual die compensation methods where common

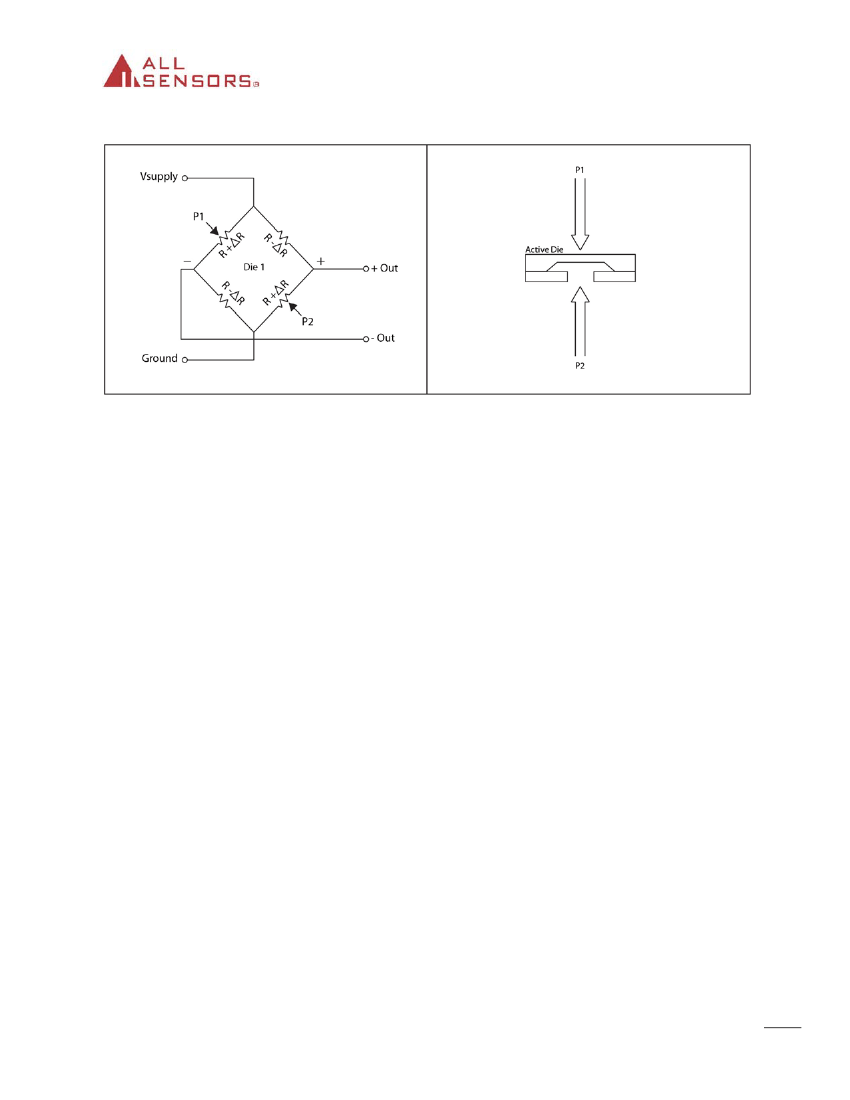

mode errors are reduced in comparison to traditional methods. Figure 3 illustrates a reference to
traditional sensor construction where common mode errors are not reduced.
Reference Dual Die Compensation using electrical cross coupling:
Figure 1 shows the schematic for passive dual die compensation. The active die provides an output
signal proportional to pressure while the reference die is used to virtually eliminate all common mode
errors of the active die. This compensation is done by electrically cross coupling the outputs of the two
sensors. To provide the highest degree of compensation accuracy the two die are selected as adjacent
die on the same wafer. This form of compensation will correct for output signal offset errors associated
with long term drift, warm-up drift, and offset drift over temperature. This compensation is used in lieu
of active dual die compensation when there are package size limitations and the output signal is
acceptable at one-half the single die level. For the lowest pressures, one inch of water or less full scale,
generally active dual die compensation is the preferred approach.
Active Dual Die Compensation using pneumatic, fluidic cross coupling and electrical cross
coupling:
Active dual die compensation has both electrical cross coupling of the sensors outputs and pneumatic
cross coupling of the pressure. In doing both electrical and pneumatic cross coupling the signal strength
is not reduced and the common mode error compensation is optimized. This is a result of a double
negative multiplier effect. Figure 2 shows how the pneumatic cross coupling is done. For gage pressure
measurement ambient pressure is applied to one side of one pressure sensor diaphragm and is also
applied to the opposite side of the second pressure sensor diaphragm. The pressure being measured is
also pneumatically coupled to the opposite sides of the two pressures sensors from the ambient
pressure.
WP-0005 Rev A
For differential pressure measurements the ambient pressure is replaced by the reference pressure (P2)
and result in a differential pressure reading. The pneumatic cross coupling for both gage and differential
pressure measurements is done using fluidic channels in the package housing of the pressure sensors.
The active dual die compensation is not only effective in reducing the common mode errors as in the
reference dual die configuration but the front to back linearity is also dramatically improved. This is
because for any given pressure measurement, the output is the average of one front side measurement
and one backside measurement resulting in equal positive pressure and negative pressure sensitivities.
This front to back linearity improvement together with the common mode error reduction and full
output signal makes this configuration the preferred approach for very low pressure sensing and
compensation.

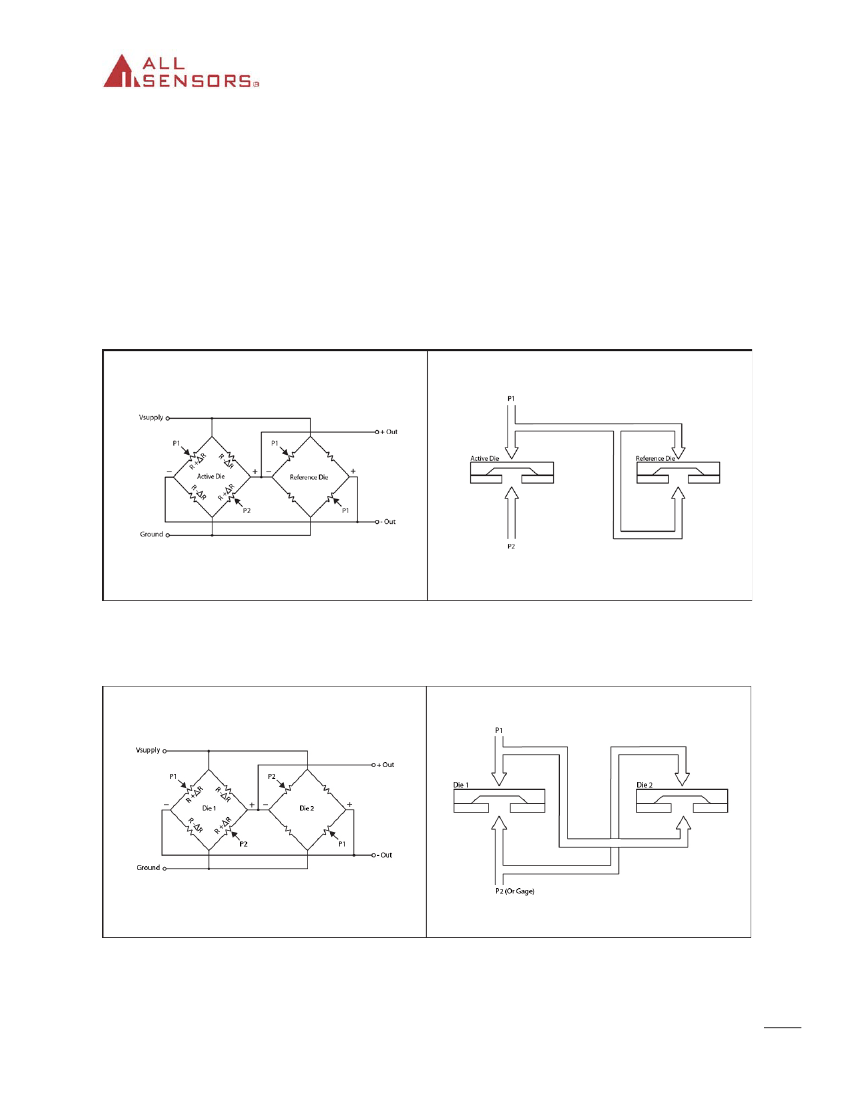

Figure 1
Electrical cross coupling compensation of active die using reference die
Figure 2
Pneumatic cross coupling compensation using fluidic channels in the pressure sensor package
WP-0005 Rev A
